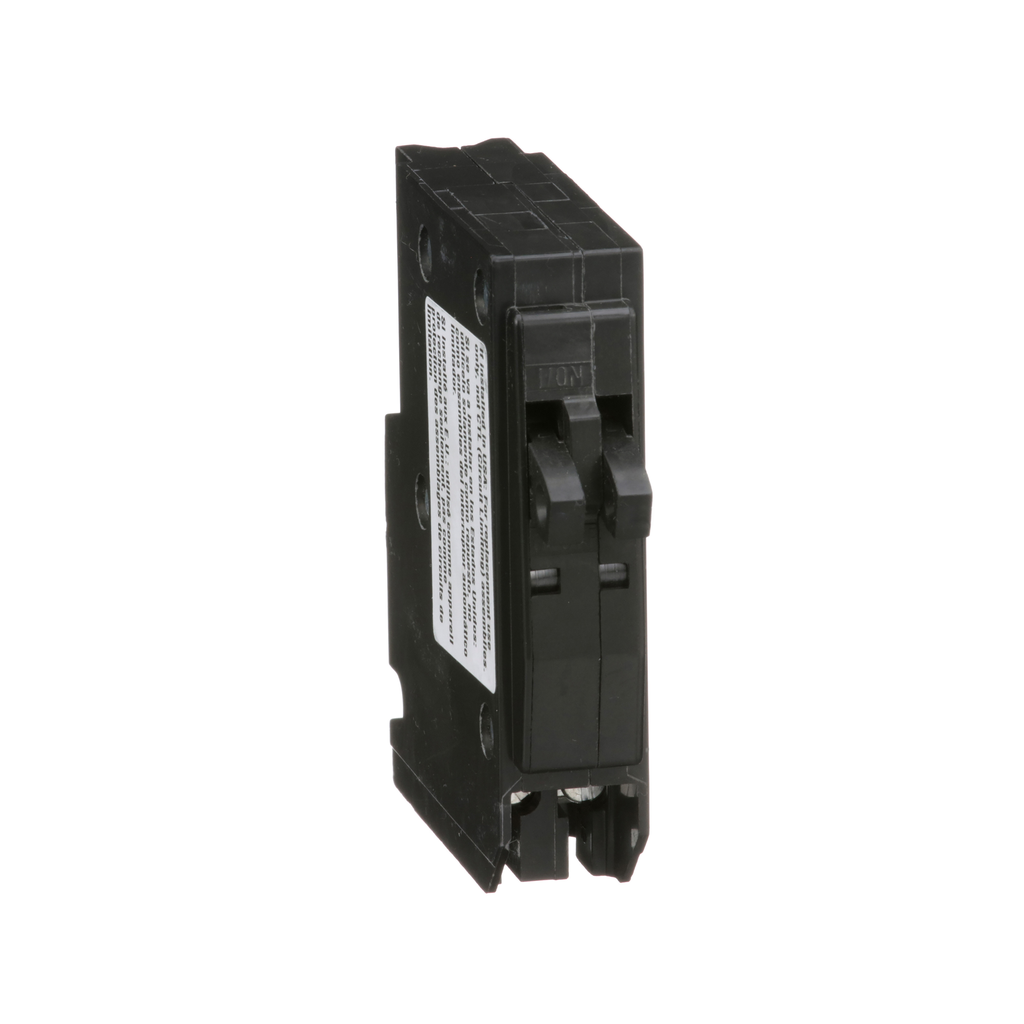

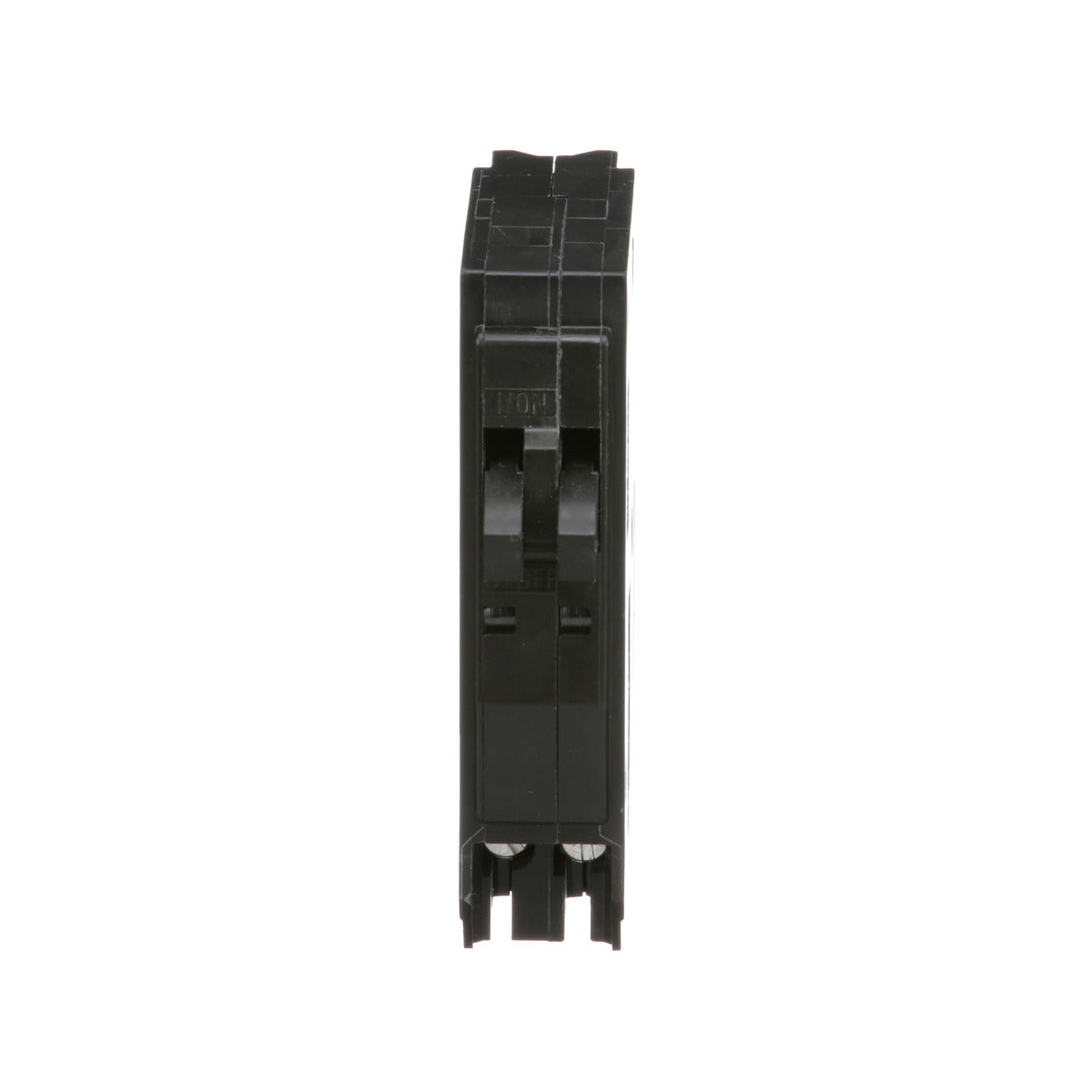

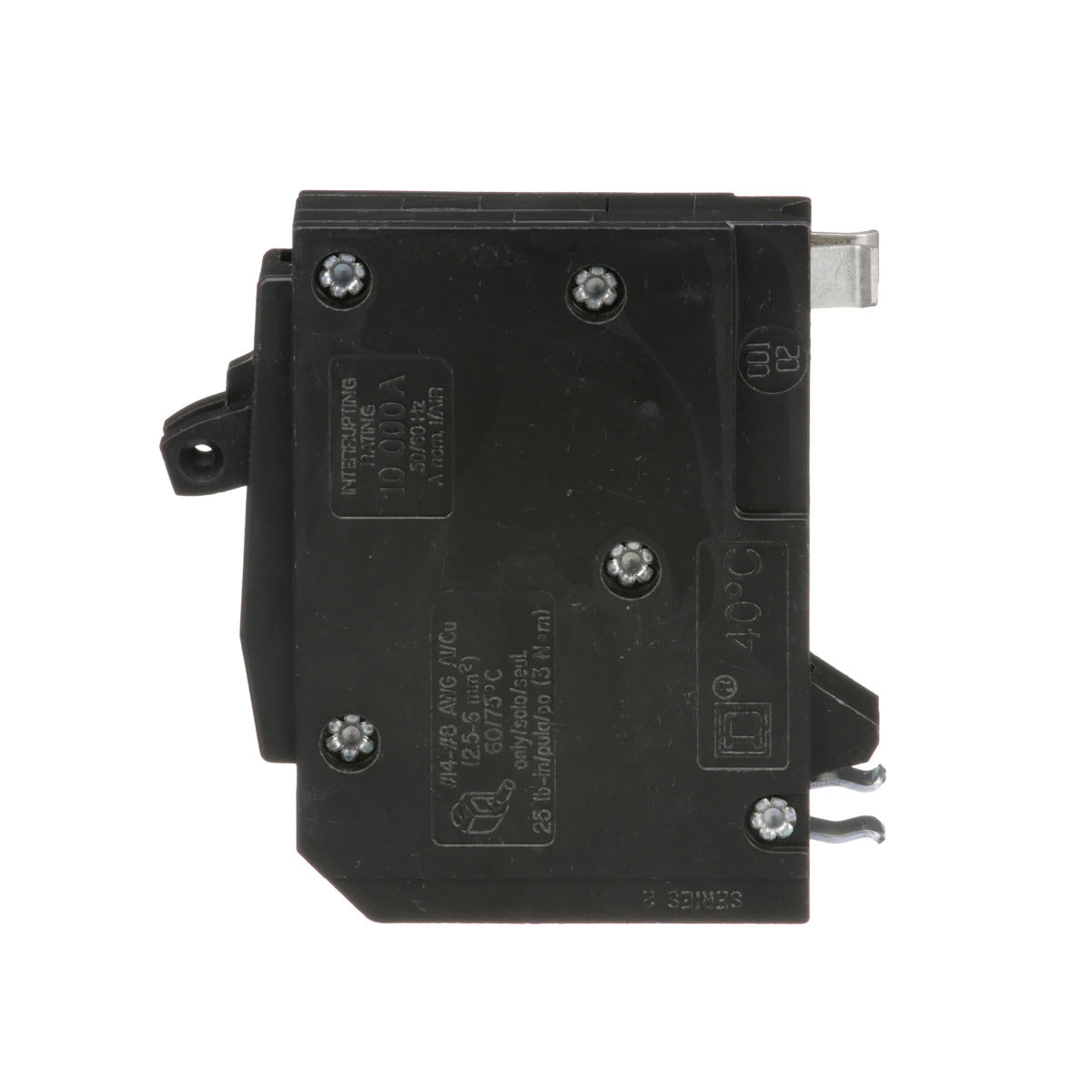

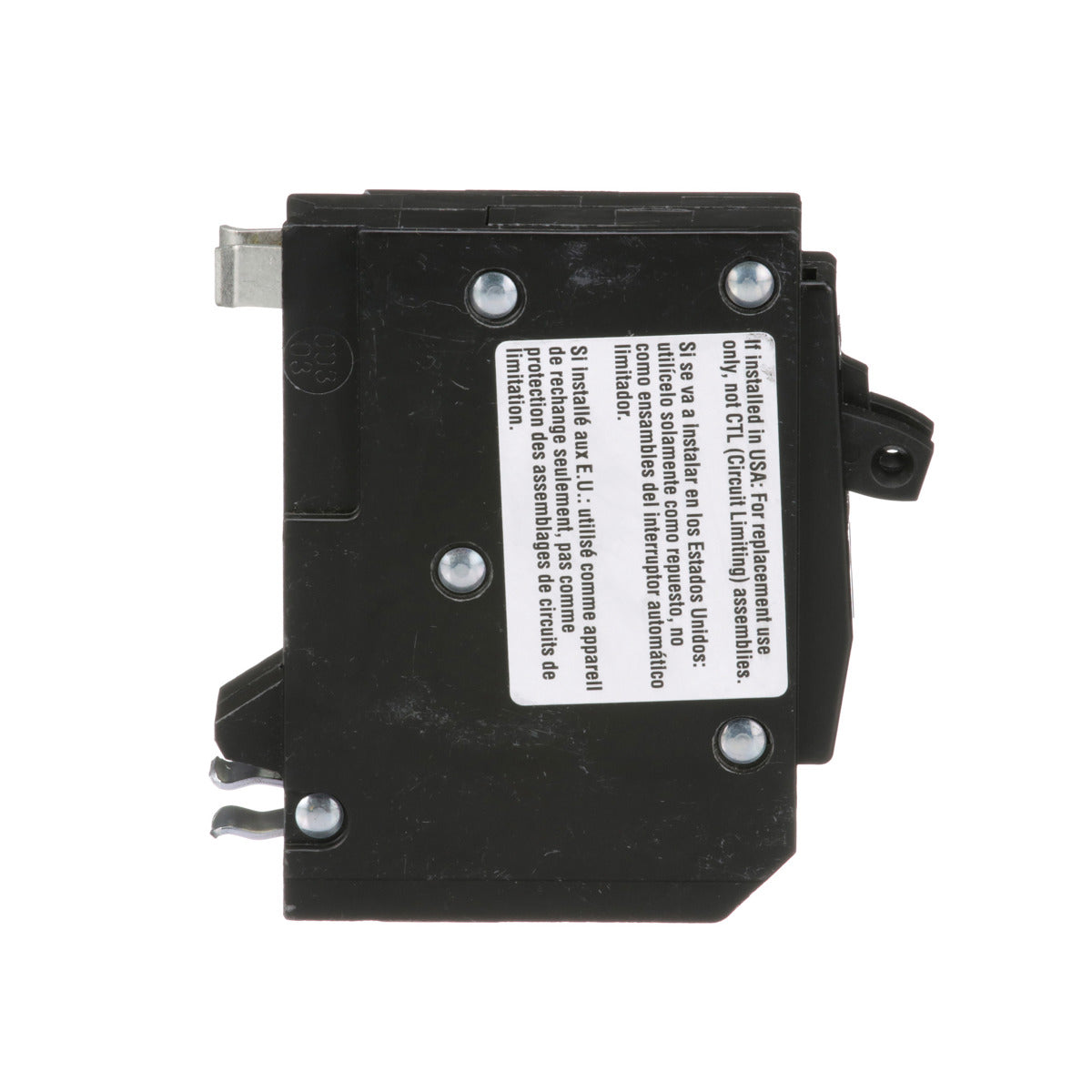

Square D QO1530 1-Pole 30 Amp 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D QO1530 is a 1-Pole, 30 Amp, 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker. It provides reliable overcurrent protection and switching for both AC and DC systems. This model features a quick make and break action with a positive handle indication and VisiTrip technology that visually indicates when the breaker has tripped. The unit includes a tandem configuration with one pole rated at 15 Amps and another at 30 Amps, making it versatile for various electrical applications.

• UL Listed and CSA Certified for safety.
• 10kA breaking capacity for enhanced protection.
• Supports AWG 14 to 8 wire sizes.

Product Highlights

This circuit breaker is designed for performance and reliability, making it suitable for residential and commercial power distribution systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO1530
• Current: 15A/30A
• Voltage: 120/240 Volt
• Type: Miniature Circuit Breaker
• Depth: 74 mm
• Width: 19 mm
• Height: 82 mm
• Material: Fiberglass
• Operating Temperature: Calibrated for use at 40 degrees C
