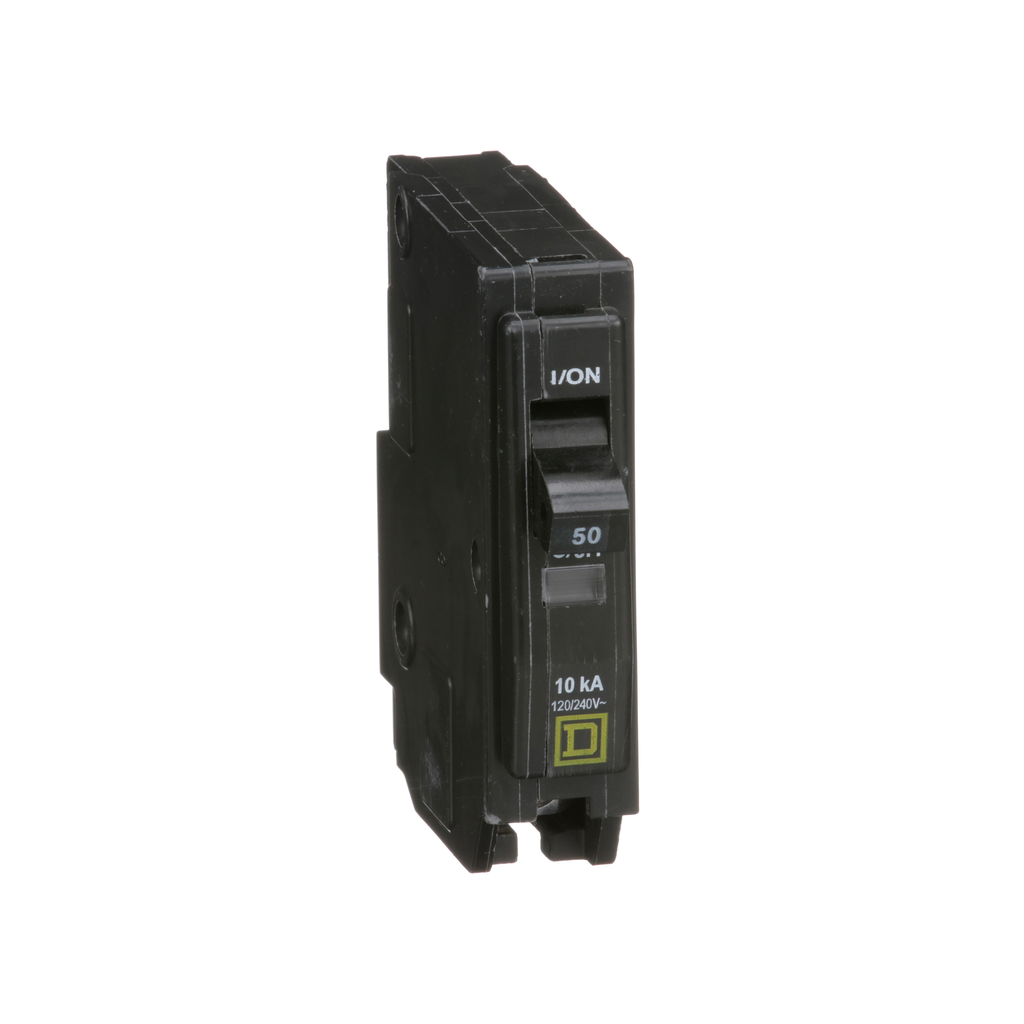

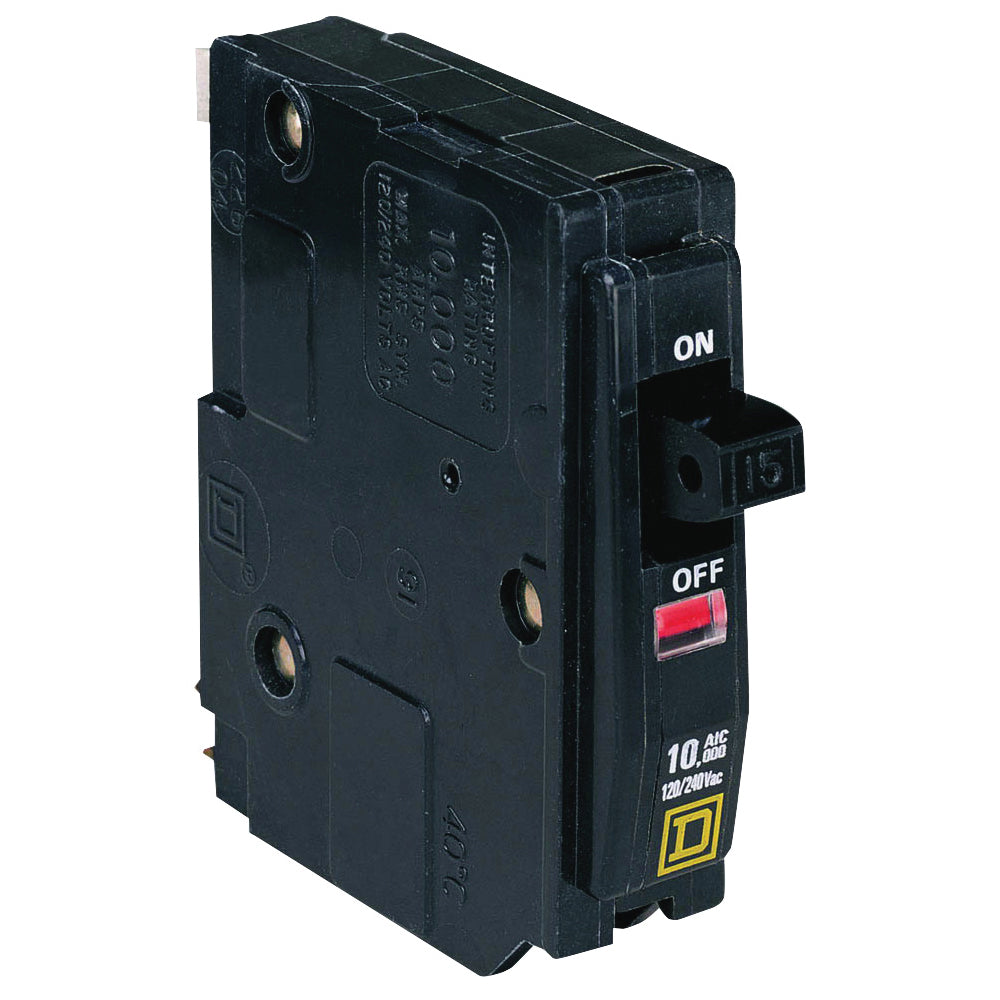

Square D QO150CP Qo 50 amp mini circuit breaker

Product Description

The Square D QO150CP is a one-pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. It features an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. The VisiTrip trip indication provides a visual indication that the circuit breaker has tripped. Rated at 50A at 120/240VAC.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication for easy identification of tripped breakers
• Offers 10kA breaking capacity and plug-in mounting

Product Highlights

This Square D QO mini circuit breaker is UL Listed and CSA Certified, offering reliable circuit protection with easy installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO150CP
• Country of Origin: Mexico

Technical Specifications

• Brand: Square D
• MPN: QO150CP
• Range: QO
• Current: 50 Amp
• Voltage: 120/240-Volt AC
• Mounting Type: Plug-In
• Certifications: CSA,UL Listed
• Number of Poles: 1 Pole
• Interrupt Rating: 5, 10 kAIC
• Country of Origin: Mexico
• Line Rated Current: 50 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Depth: 74 mm
• Width: 19 mm
• Height: 79 mm
• Current Rating: 50 Amps
• Number Of Poles: 1
• Voltage Rating: 120/240 VAC, 48 VDC
• Operating Frequency: 50/60
• Number of Phases: 1
• Trip Type: Fixed
• Wire Size: 8 to 2
• Terminal Type: Lug
• Number of Spaces: 1
• Mounting: Plug
• Operating Temperature: 104
• Maximum Amperage (A): 50 A
• Pack Size: 1
• Interruption Type: Standard Trip
• Maximum Amperage: 50 A
• Power Capacity: 50-amp
• Type: Standard trip
• Compatible with: Square D QO electrical panels, CSED with 1 Space
• AIR: 10,000 AIR
