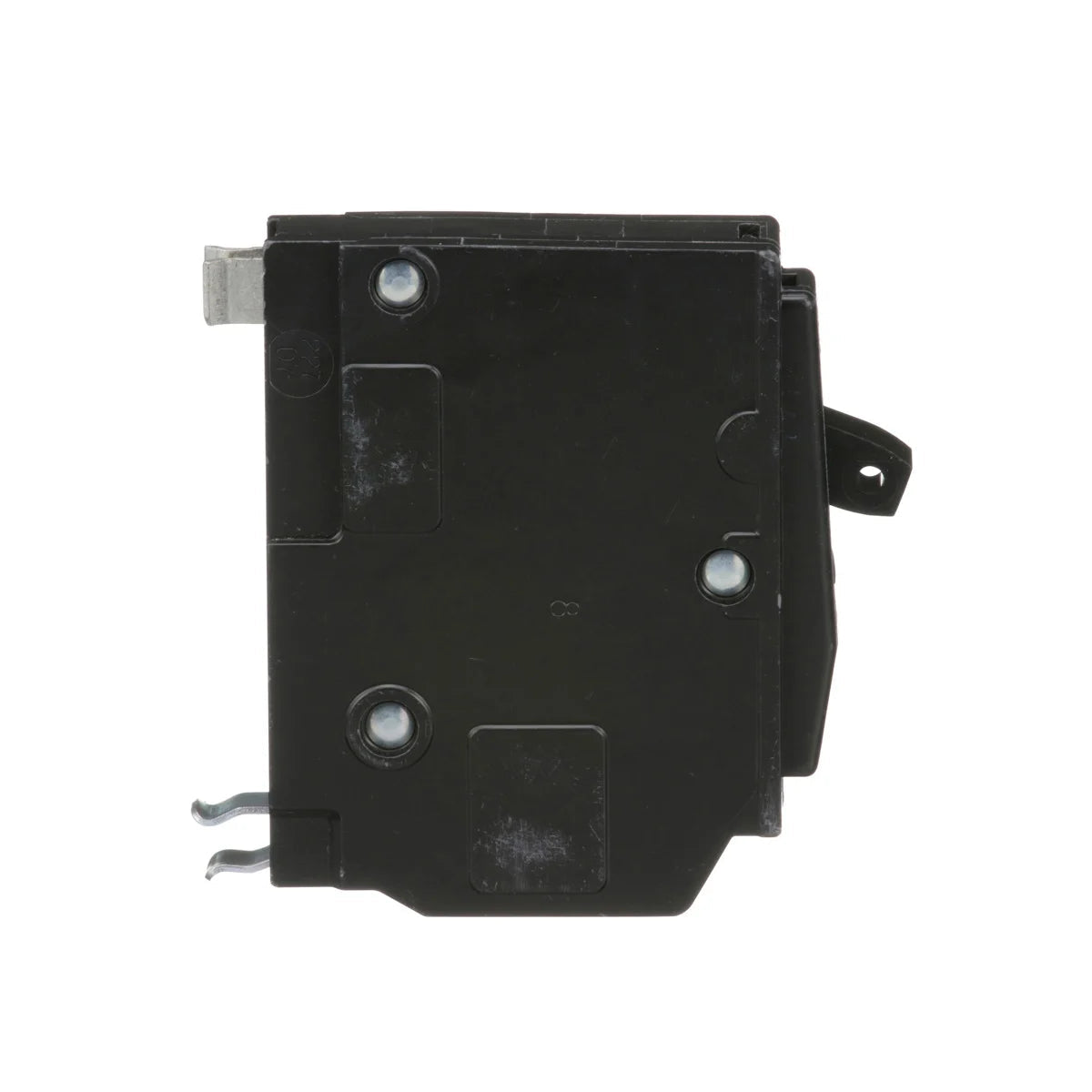

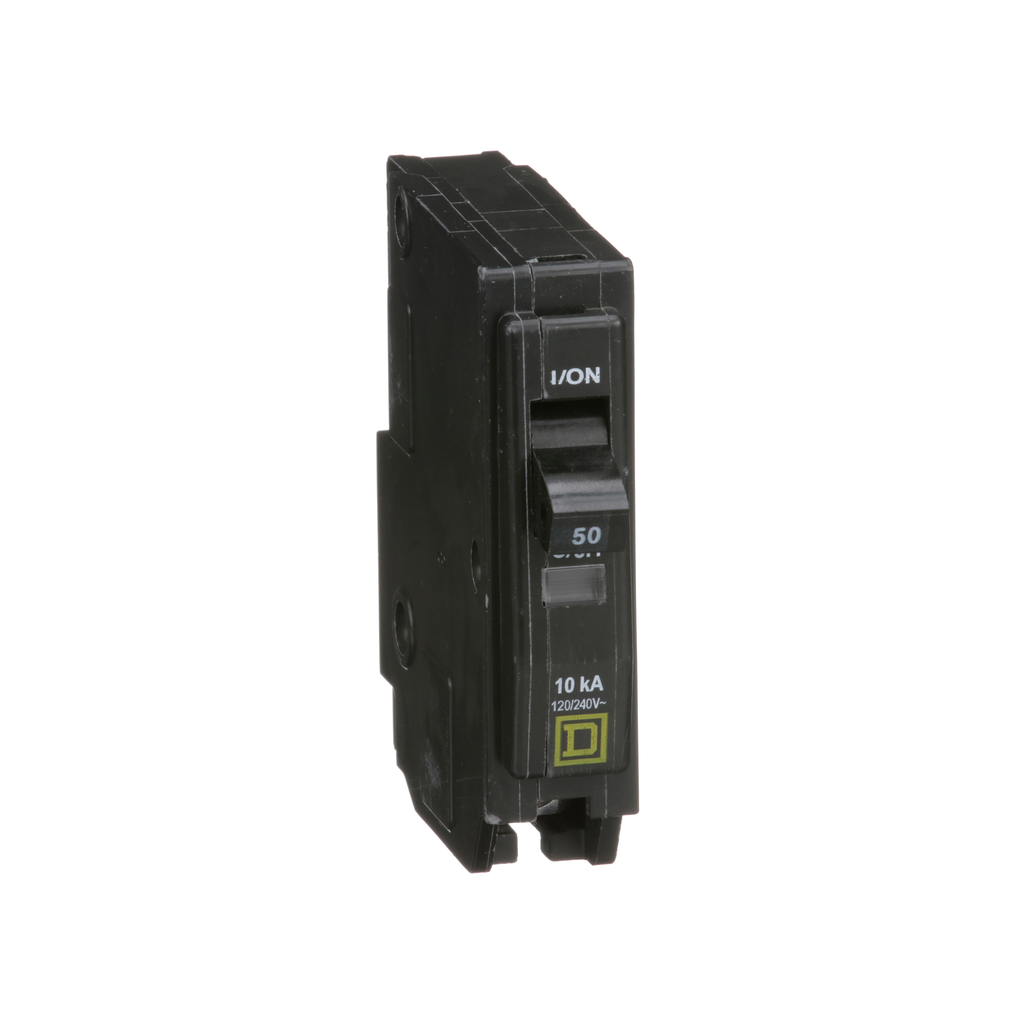

Square D QO150 Miniature Circuit Breaker 50A 120/240V 1Ph 1P Plug-On

Product Description

The Square D QO150 Miniature Circuit Breaker is designed for use in 120/240 volt applications. This one-pole device provides overcurrent protection and ensures safe operation of AC and DC systems. The QO circuit breaker features a thermal magnetic system which can quickly break the circuit in case of an overload or short circuit. It utilizes a quick make, quick break toggle mechanism that allows for easy operation and has a visual indication for trip status called VisiTrip.

• Rated at 50 amps; suitable for 120/240V AC systems
• 10kA breaking capacity for reliable performance
• Easy plug-in mount design simplifies installation

Product Highlights

This circuit breaker complies with safety standards and warranties. It is UL Listed and CSA Certified, ensuring high quality and reliability in electrical applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO150
• Current Rating: 50 amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Interrupt Rating: 5, 10 kAIC
• Mounting Type: Plug-in
• Dimensions: 2.91 inches x 2.91 inches x 3.11 inches
• Weight: 0.127 kg
