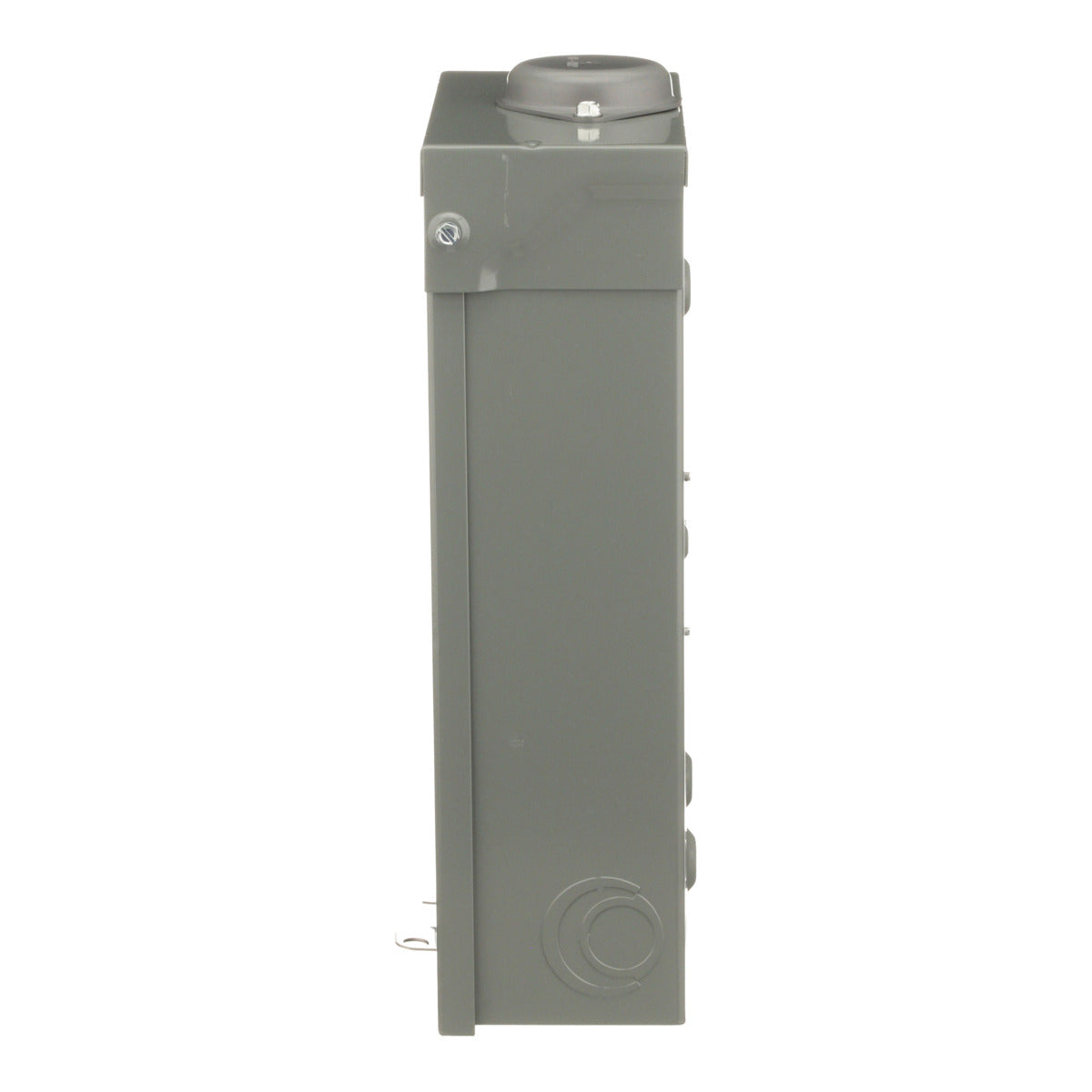

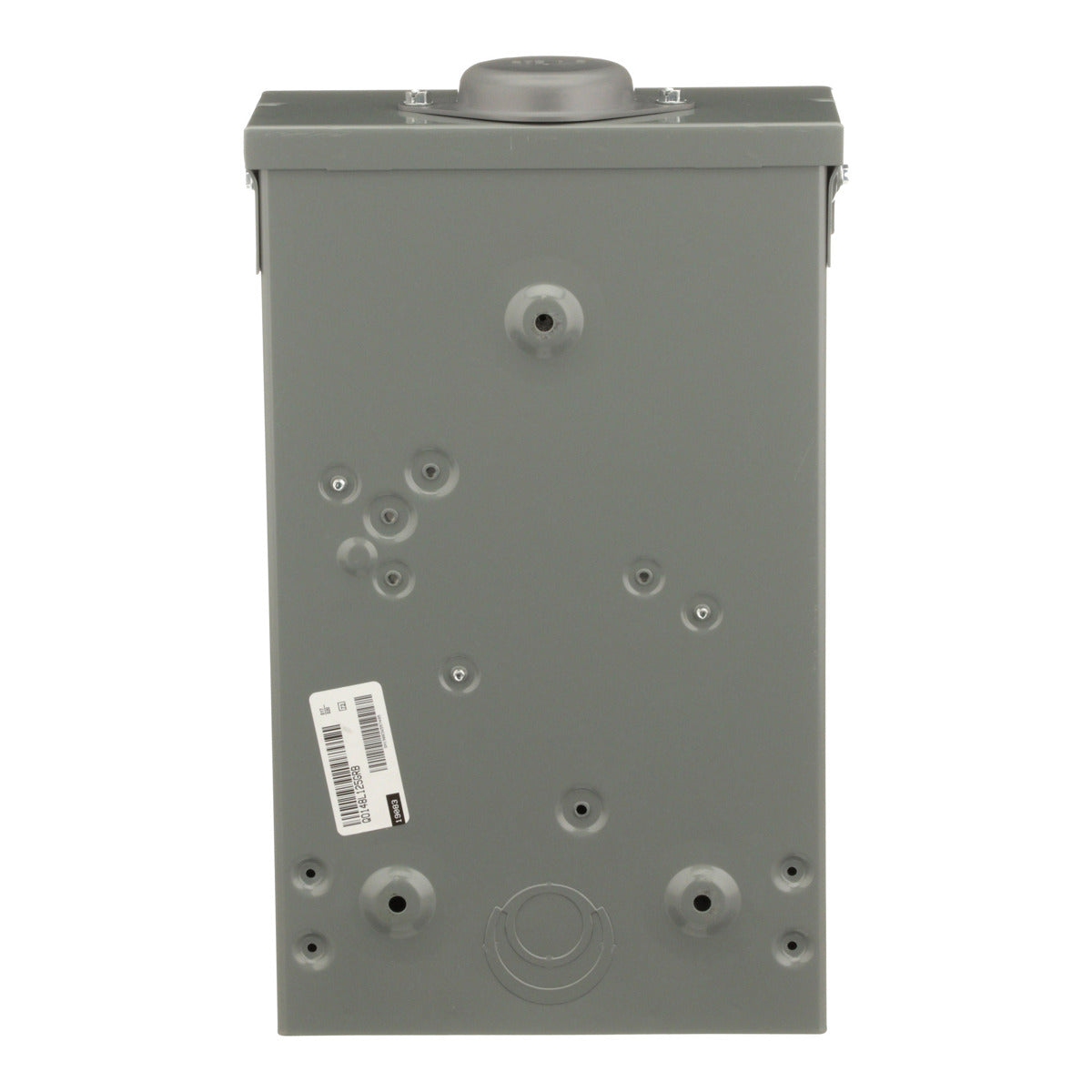

Square D QO148L125GRB Load Center QO MLO 125A 4SP NEMA-3R

Product Description

The Square D QO148L125GRB load center offers premium features, allowing QO breakers, ground arc fault interrupters and surge arresters to be installed inside. Designed for residential, commercial, and industrial requirements to protect electrical systems. This system provides 4 spaces and 8 circuits with 125A fixed main lugs in a NEMA 3R enclosure. Ground bar is included.

• Allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside
• Designed for residential and industrial use
• Protects electrical systems, equipment, and people

Product Highlights

The Square D QO148L125GRB load center provides 4 spaces and 8 circuits with 125A fixed main lugs in a NEMA 3R enclosure.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO148L125GRB
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center
• Brand: Square D
• Width: 226 mm
• Finish: Baked Enamel
• Height: 376 mm
• Current: 125 Amp
• Voltage: 201-250 V
• Amperage: 125A
• Material: Tin Plated Copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: QO
• Wire Size: AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
• Cable Size: AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
• Cover Type: Surface cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL
• Conductor Size: 12-2/0 AWG (AL)/14-2/0 AWG (CU)
• Enclosure Type: Weatherproof enclosure
• Surface Finish: Baked enamel Gray
• Enclosure Rating: 3R
• Interrupt Rating: 10 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 4
• Country of Origin: Mexico
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Number of Circuits: 8
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 10 kA
• Catalog Number: QO148L125GRB
• Manufacturer: Schneider Electric
• Made in USA: No
• Phase: 1
• Special Features: Tin plated copper: busbar
• UPC: 785901484394
• Item Type: Load Center
• Voltage Rating: 120/240 VAC
• Current Rating: 101-150 A
• Circuit Configuration: 1 Phase 3 Wire
• Maximum Number of Circuits: 8
• Maximum Number of Spaces: 4
• Breaker Mounting: Bolt-On
• Interrupting Rating: 10 Kiloampere
• Neutral Type: Split Branch
• Bus Material: Tin Plated Copper
• Feed Location: Top
• Main Wire Size: 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
• Enclosure Size Designation: 15R
• Approval: UL, NOM
• Main: Fixed Main Lugs
• Ground Bar: Yes
• UL Rated: Yes
• Wiring Configuration: 3-Wire
• Electrical Connection: lugs
• Enclosure NEMA Rating: NEMA 3R outdoor
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 4
• Short Circuit Current Rating: 10 kA
• Main Circuit Breaker or Main Lug: Main Lug
• Rated Voltage: 120/240V ac
• Max. Single Pole Circuits: 8
• Max. Tandem Circuits: 4
• No. of Circuits: 8
• AWG Range: AWG 12...AWG 2/0
• Model: QO148L125GRB
• Suitable For: Interior, Exterior, Wall
• Current Type: AC
• Mounting Style: Panel, Fixed, Bolt-On
• Maximum Amperage: 125 A
• Tightening Torque: main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
