Square D QO142M200PRB Load Center 200A 42 Spaces / 52 Circuits

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: QO142M200PRB
Availability: Out Of Stock
$608.76
$608.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

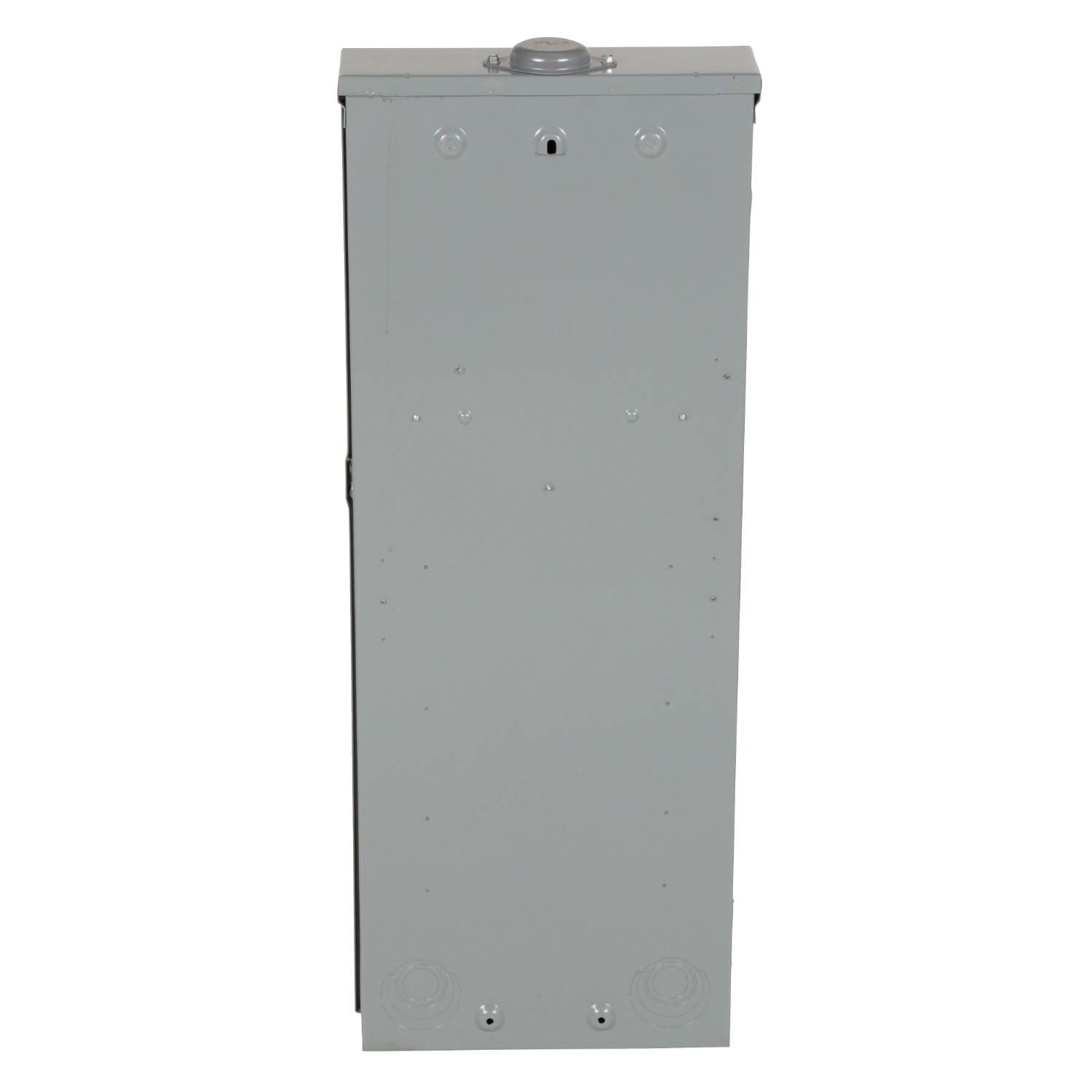

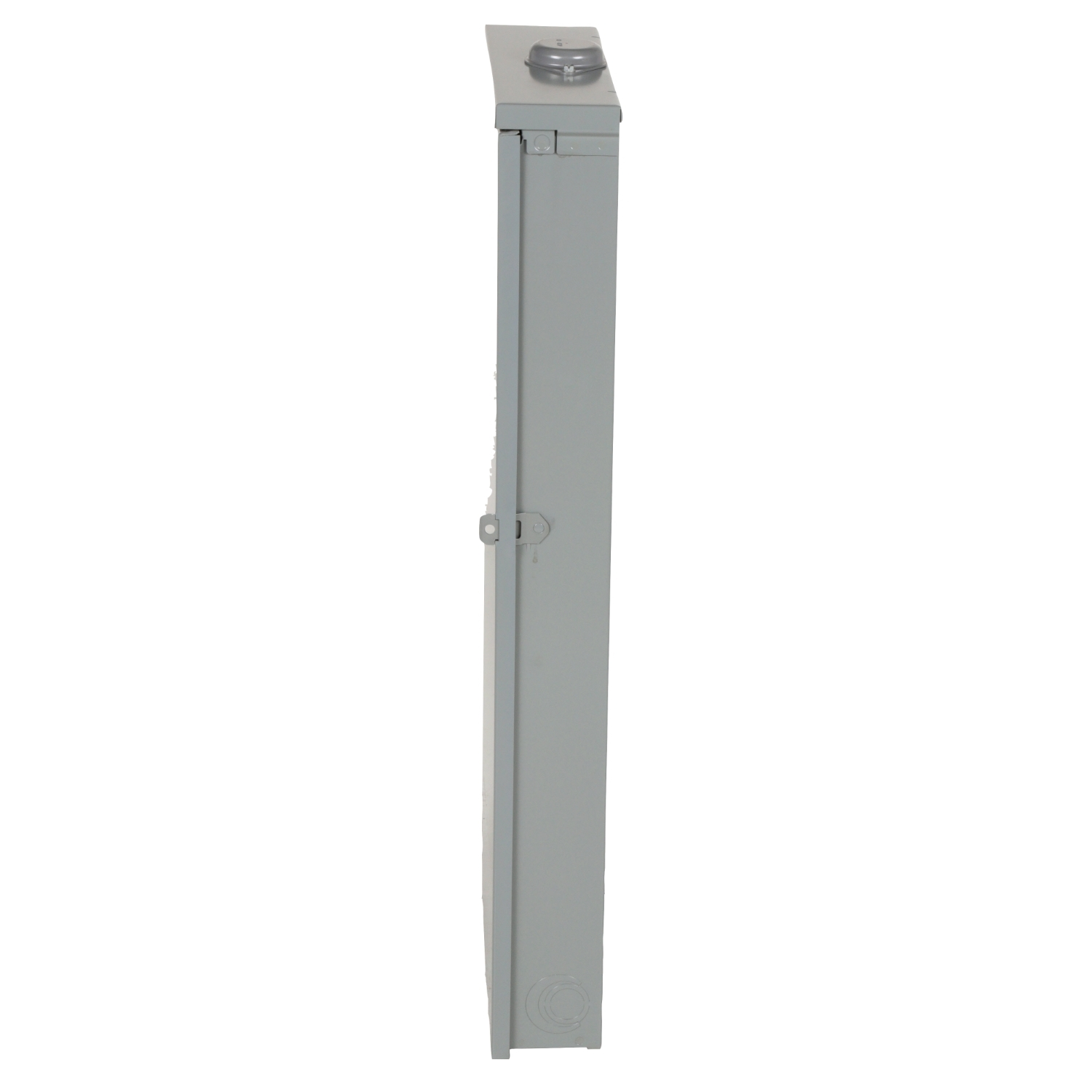

The Square D QO142M200PRB is a load center offering premium features, allowing QO breakers, ground arc fault interrupters, arc fault interrupters, and surge arresters to be installed inside. This system provides 42 spaces in a NEMA 3R enclosure and is hub ready. The load center is plug-on neutral ready and features a convertible main breaker. Suitable for both single and three-phase systems.

  • Convertible Main Breaker
  • Plug-On Neutral
  • NEMA-3R Enclosure

Product Highlights

Premium load center with plug-on neutral, convertible main breaker, and NEMA-3R enclosure for indoor and outdoor applications.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: QO142M200PRB
  • Country of Origin: Mexico
Technical Specifications
GTIN
00785901285083
Type
LOAD CENTER
Brand
Square D
Width
375 mm
Finish
Baked Enamel
Height
965 mm
Current
200 Amp
Amperage
200 A
Material
Tin Plated Copper: Busbar
Enclosure
3R
NEMA Size
3R
Sub Brand
QO
Wire Size
AWG 4...250 kcmil aluminium/copper
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Cover Type
Surface cover
Product UPC
78590128508
12-Digit UPC
785901285083
Certifications
UL
Conductor Size
4 AWG-250 kcmil
Enclosure Type
Weatherproof enclosure
Surface Finish
Baked enamel Gray
Enclosure Rating
3R
Interrupt Rating
22 kAIC
Number of Phases
1,3 Phase
Number of Spaces
42
Enclosure Material
Steel
Line Rated Current
200 A
Number of Circuits
52
Short Circuit Current
22 kA
Voltage Rating
120/240 Volt AC
Circuit Configuration
1-Phase 3-Wire
Maximum Number of Circuits
42
Maximum Number of Spaces
42
Main Breaker Type
QOM2 Main Circuit Breaker Frame Size
Breaker Mounting
Plug-On
Bus Material
Tin Plated Copper
Main Wire Size
4 AWG to 250 KCMIL (Aluminum/Copper)
Enclosure Size Designation
8R
Approval
UL
RoHS Compliant
True
Phase
1 phase 3 wires
Electrical Connection
lugs
Short-Circuit Current
22 kA
Number Of Tandem Circuit Breakers
10
AWG Gauge
AWG 4...250 kcmil aluminium/copper
Load Center Type
PoN Convertible Mains (breaker)
Device Composition
grounding bar (ordered separately)
Box Number
8R
Product Certifications
UL Listed
Nema Degree Of Protection
NEMA 3R weatherproof enclosure
Wiring Configuration
3-wire
