Square D QO142M200PQ QO Qwik Grip Pon LC N1 1PH MB 200A

Product Description

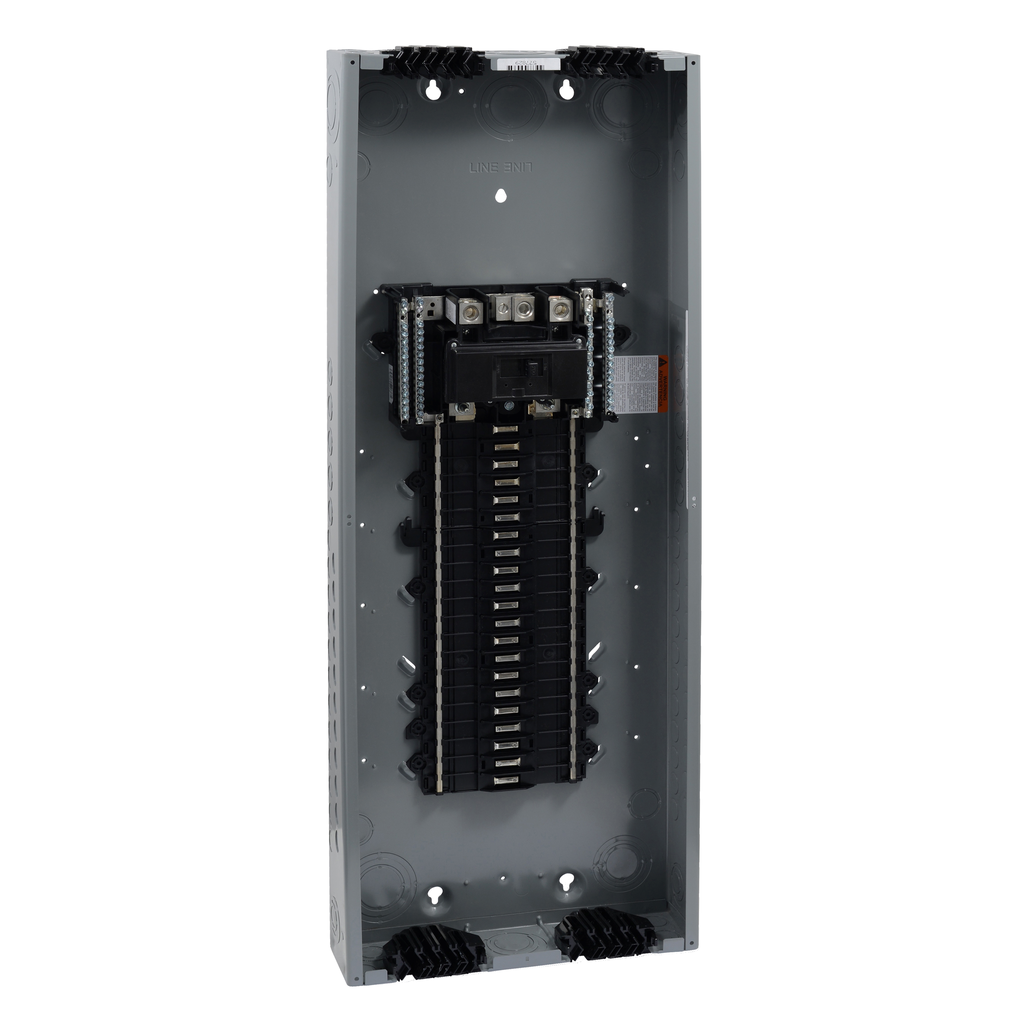

Square D QO142M200PQ is a load center that combines safety and functionality in electrical systems. It is rated for 200 amperes and designed for both residential and commercial use. It offers 42 spaces and can accommodate up to 52 circuits. This model supports plug-on neutral configurations and includes Qwik Grip technology for easier installation.

• 200 Amp, 120/240 Volt, single-phase
• 42 spaces with 52 circuits available
• 22 kA short-circuit current rating

Product Highlights

This load center provides superior protection for electrical systems by allowing the installation of various breakers and devices, including GFCI and surge protectors.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO142M200PQ
• Phase: 1
• NEMA Rating: 1
• Wire Size: AWG 4-300 kcmil copper/aluminum
• Height: 37.98 inches
• Width: 14.25 inches
• Depth: 3.75 inches
• Enclosure Material: Steel
