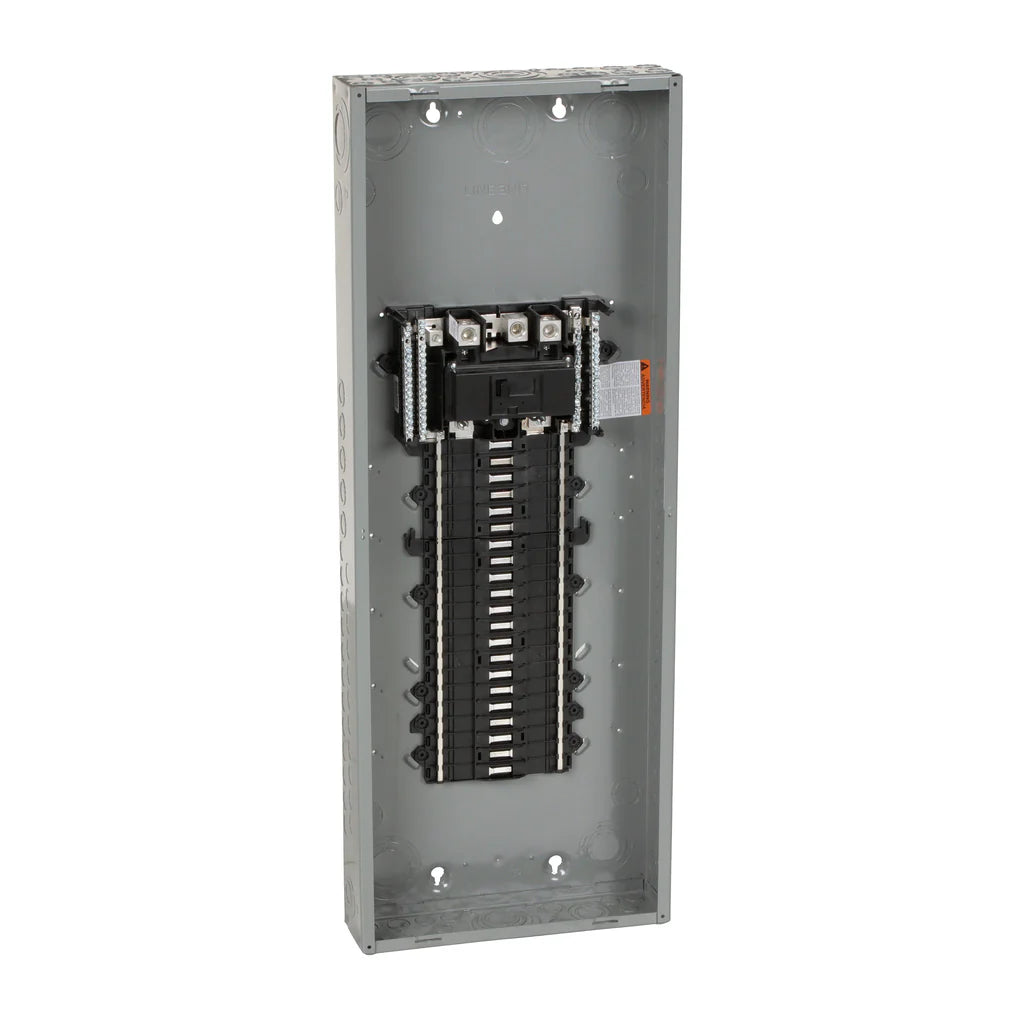

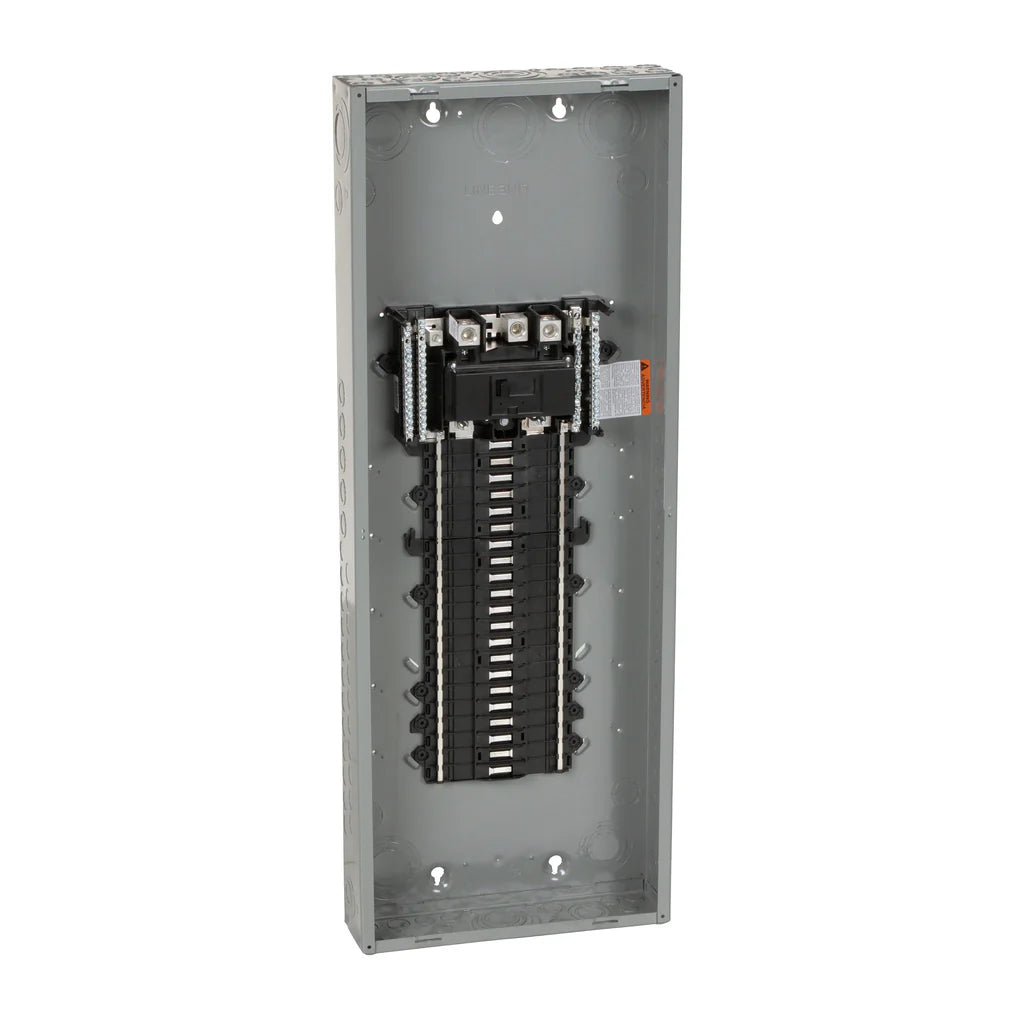

Square D QO142M200PCVP Load Center, 200A Convertible Main Breaker, 42 Spaces, 52 Circuits, NEMA 1

Product Description

The Square D QO142M200PCVP Load Center is designed for effective management of electrical systems. This model provides a convertible main breaker rated at 200 Amps and can accommodate up to 42 spaces and 52 circuits. QO Load Centers are suitable for residential and commercial applications. They allow the installation of various circuit breakers and accessories, ensuring reliable protection for equipment and users.

• Includes a combination flush/surface cover.
• Features a NEMA 1 enclosure for indoor applications.
• Capable of supporting both single-phase and three-phase configurations.

Product Highlights

This load center is UL listed and CSA rated, suitable for various installations, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO142M200PCVP
• Voltage: 120/240 Volt
• Current: 200 Amp
• Number of Spaces: 42
• Number of Circuits: 52
• Phase Type: 1,3 Phase
• Enclosure Material: Steel
• Surface Finish: Baked enamel Gray
