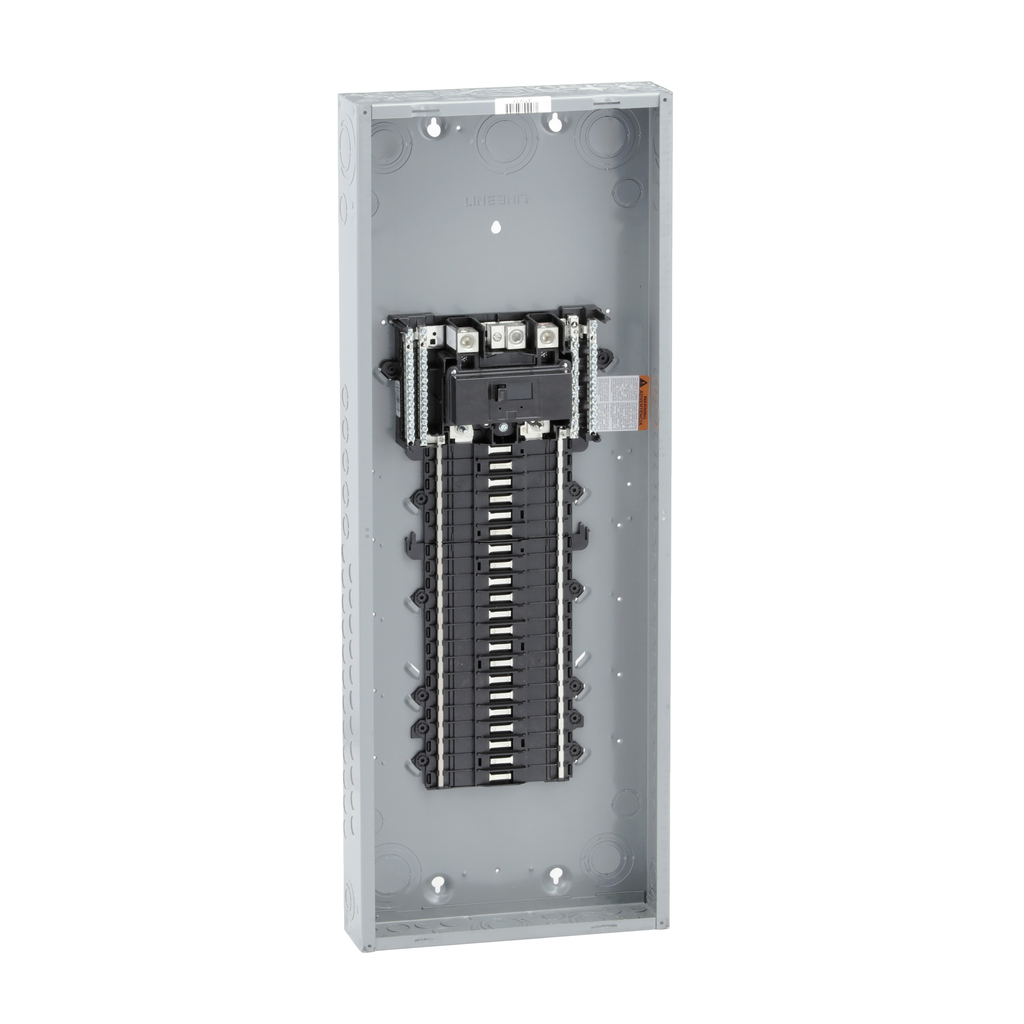

Square D QO142M200P Load Center 200A 120/240V 1 Phase 42 Spaces 52 Circuits

Product Description

The Square D QO142M200P is a reliable load center that meets the needs of residential, commercial, and industrial applications. This load center features a convertible main breaker and is rated for two hundred amps at one hundred twenty to two hundred forty volts. Its design accommodates up to forty-two spaces and fifty-two circuits, making it suitable for various electrical configurations.

• UL Listed and CSA rated panelboard
• Plug-on neutral configuration available
• Manufactured with tin plated copper busbars

Product Highlights

This load center provides excellent protection for electrical systems, equipment, and personnel with its durable steel enclosure rated NEMA 1. The design allows for easy installation and maintenance, ensuring long-term performance.

Product Information

Standard Information

• Brand: Square D
• MPN: QO142M200P

Technical Specifications

• Product Type: Load Center
• Number of Circuits: 52
• Voltage Rating: 120/240 Volt
• Current Rating: 200 Amp
• Enclosure Type: NEMA 1
• Material: Steel
• Country of Origin: USA
• Operating Temperature: -5 to 40 degrees Celsius
• Interrupt Rating: 22 kAIC
• Number of Phases: 1
• Warranty Length: 18 months
