Square D QO142L225PGRB Single-Phase QO Load Center 225A 42 Spaces

Product Description

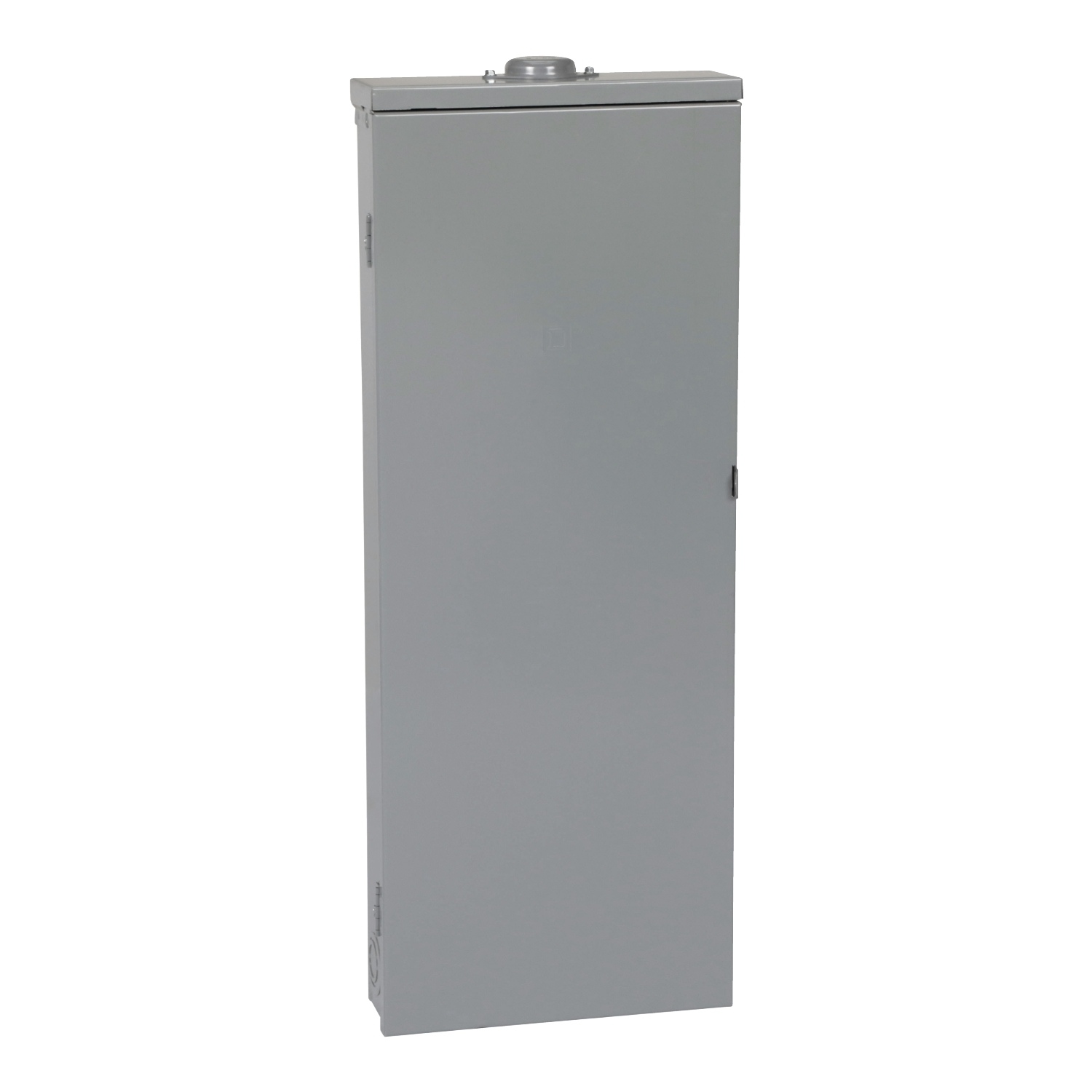

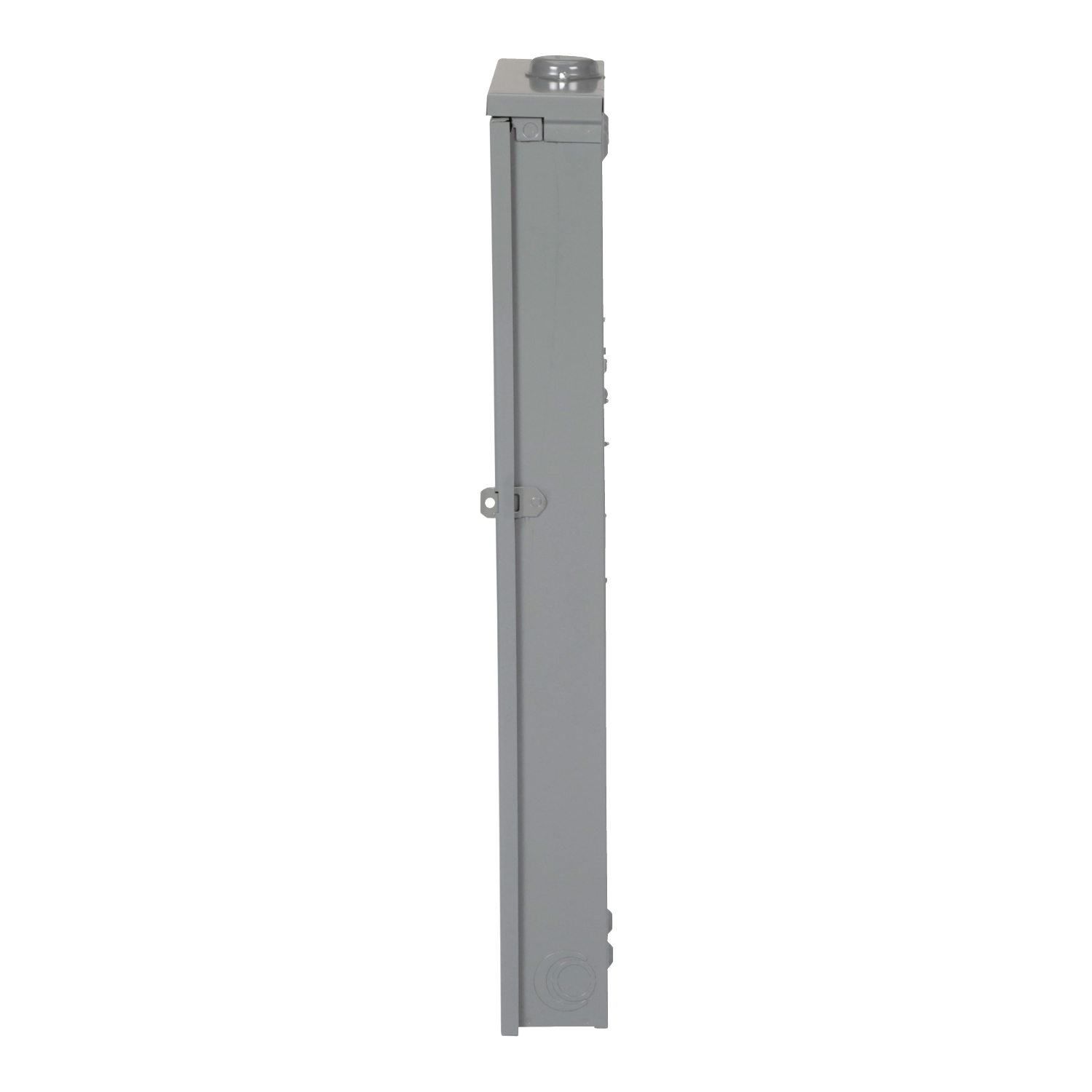

The Square D QO142L225PGRB is a single-phase QO load center with a main lug and ground bar. Rated at 225A, this system provides 42 spaces and 52 circuits in a NEMA 3R enclosure. It features a plated copper bus for enhanced performance and durability and is plug-on neutral ready. The ground bar is included but requires field installation.

• Rated at 225 A and 1 phase
• Provides 42 spaces and 52 circuits
• NEMA 3R enclosure for outdoor use

Product Highlights

This Square D load center offers premium features and is compatible with QO breakers, ground arc fault interrupters, and surge arresters.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO142L225PGRB
• Country of Origin: United States

Technical Specifications

• Type: Convertible
• Phase: Single-Phase
• Width: 14.76 Inches
• Height: 37.99 Inches
• Mounting: Surface
• NEMA Rating: NEMA 3R
• Amperage Rating: 225 Amperes
• Interrupt Rating: 65 Kiloamperes
• Number Of Spaces: 42
• Country of Origin: US
• Circuit Breaker Type: QO
• Wiring Configuration: 3-Wire
• Brand: Square D
• Finish: Baked Enamel
• Current: 225 Amp
• Voltage: 120/240 VAC
• Material: Tin Plated Copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: QO
• Wire Size: AWG 6...300 kcmil aluminium/copper
• Cable Size: AWG 6...300 KCMIL ALUMINIUM/COPPER
• Cover Type: Surface cover
• Certifications: UL
• Conductor Size: 6 AWG-300 kcmil
• Enclosure Type: Weatherproof enclosure
• Enclosure Rating: 3R
• Number of Phases: 1 phase
• Number of Circuits: 52
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 65 kA
• Product Type: Load Center
• Load Center Type: PoN Convertible Mains (lugs)
• Rated Current: 225 A
• Max Short Circuit Current Rating: 65 kA
• Maximum Number of Single Pole Circuits: 52
• Maximum Number of Tandem Breakers: 10
• Ground Bar: included
• Electrical Connection: Lugs
• Busbar Material: Tin plated copper busbar
• Surface Finish: Baked enamel Gray
• Range Of Product: QO
• Product Or Component Type: Load Center
• Tightening Torque: main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
• Short-Circuit Current: 65 kA
• Number Of Tandem Circuit Breakers: 10
• Awg Gauge: AWG 6...300 kcmil aluminium/copper
• Device Composition: grounding bar included (not installed)
• Box Number: 8R
• Product Certifications: UL Listed
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Nema Degree Of Protection: NEMA 3R weatherproof enclosure
• Max. No. of Tandem Breakers [Specifications]: 10
• Main Circuit Breaker or Main Lug [Specifications]: PoN Convertible Mains (lugs)
• Amps [Specifications]: 225 A
• Item [Specifications]: QO LoadCTR,Main Lugs,225A,1PH-3W,42S
• Phase [Specifications]: 1 phase
• Standards [Specifications]: UL Listed
• Wire Size [Specifications]: AWG 6...300 kcmil aluminium/copper
• Bus Material [Specifications]: tin plated copper busbar
• Ground Bar Kit [Specifications]: grounding bar included (not installed)
• Surface Finish [Specifications]: baked enamel Gray
• Enclosure NEMA Rating [Specifications]: NEMA 3R outdoor
• Primary/Ambient Air Temp. [Specifications]: -5°C || 40°C
• Short Circuit Current Rating [Specifications]: 65 kA
• Main Breaker Type: QOM2 Main Circuit Breaker Frame Size
• Breaker Mounting: Plug-On
• Interrupting Rating: 65 Kiloamp
• Bus Material: Tin Plated Copper
• Main Wire Size: 6 AWG to 300 KCMIL (Aluminum/Copper)
• Enclosure Size Designation: 8R
• RoHS Compliant: RoHS Compliant
• Includes: Ground Bar
• Spaces: 42
• Circuits: 52
• Amperage: 225A
• Enclosure Material [Specifications]: welded galvannealed steel
• Enclosure NEMA Rating: NEMA 3R outdoor
