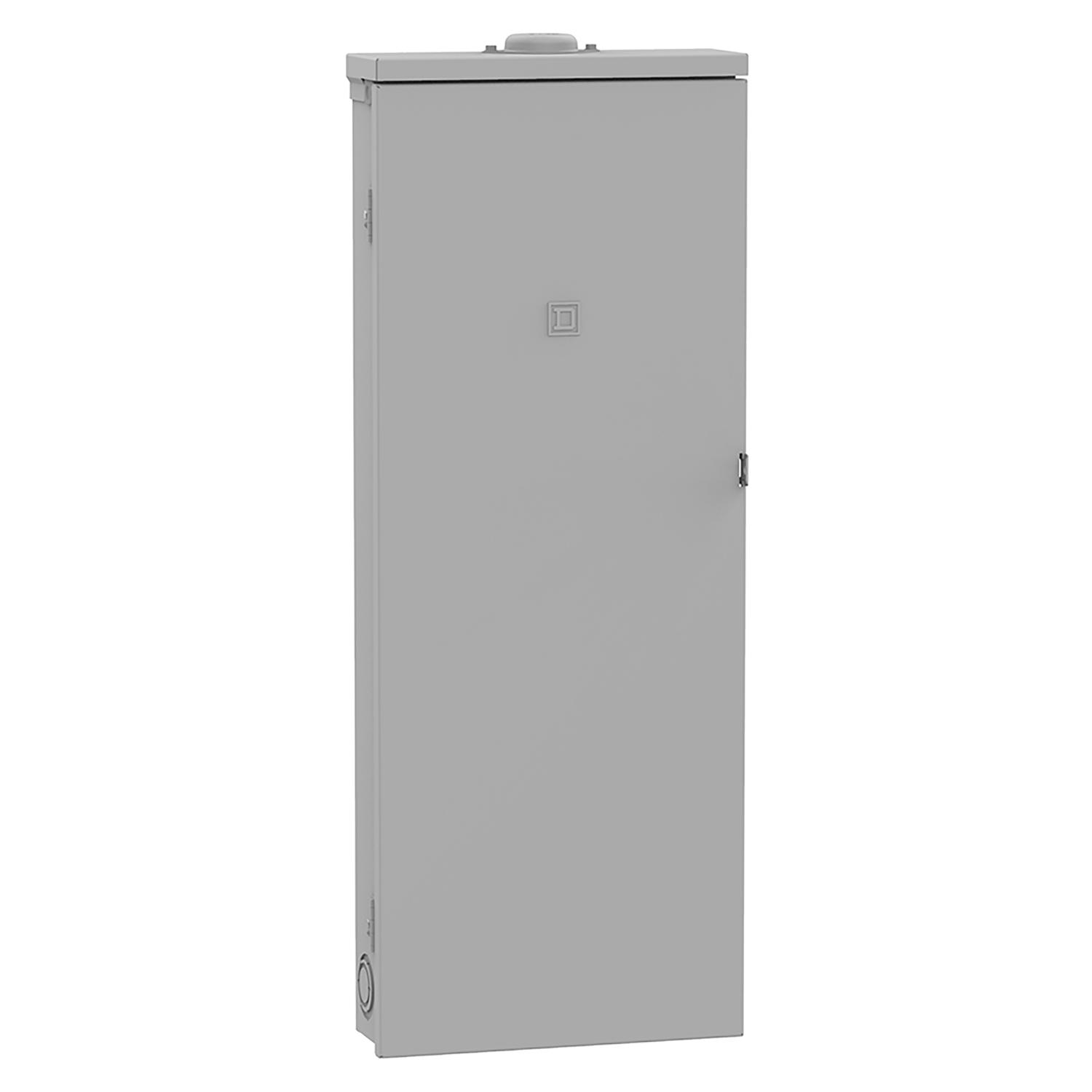

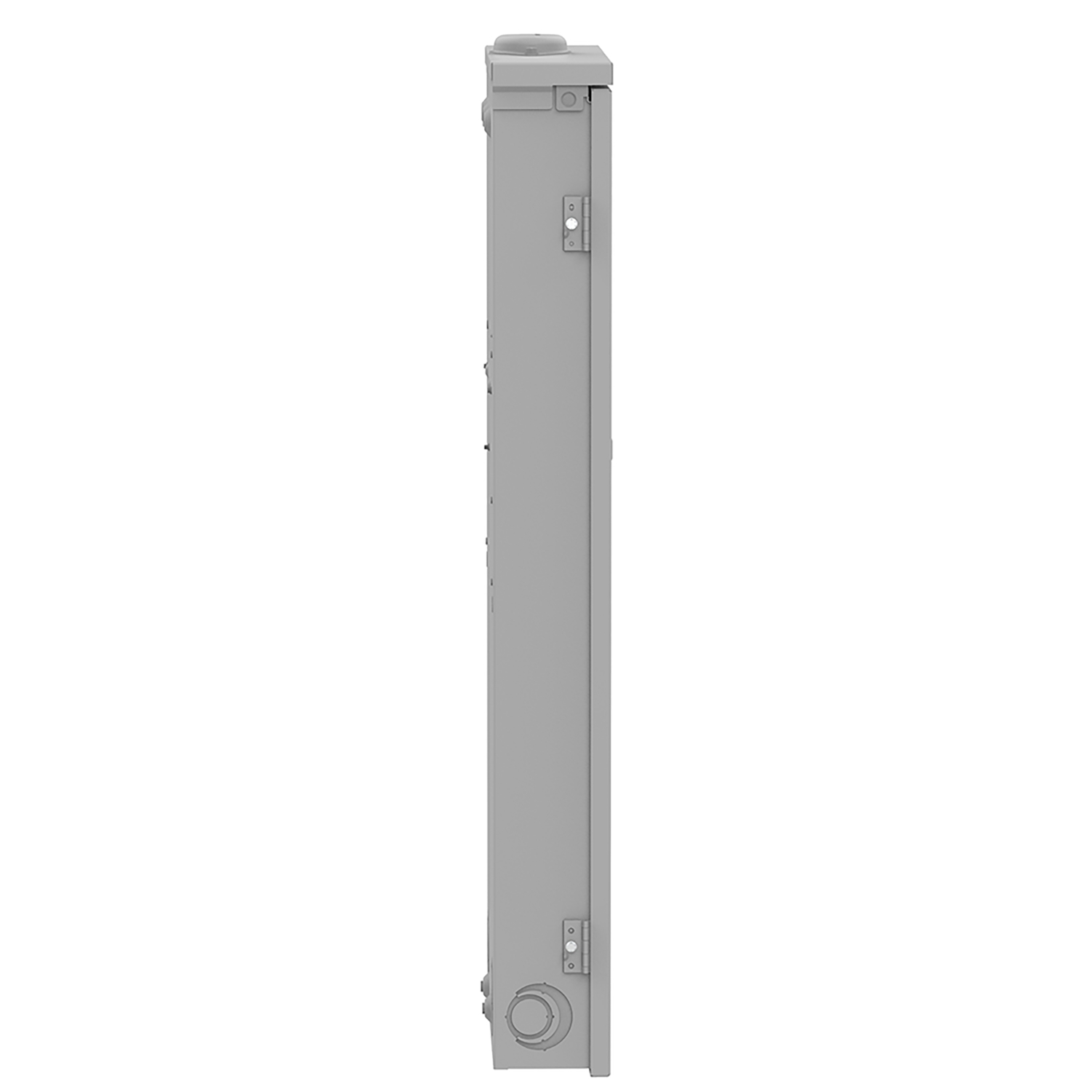

Square D QO140L200PGRB load center, QO, 200 amp, 40 spaces

Product Description

The Square D QO140L200PGRB load center allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use to protect electrical systems, equipment, and people. This single phase load center has 40 spaces and 60 circuits, and provides 200A convertible main lugs in a NEMA 3R enclosure. Includes plug on neutral and ground bar and is UL rated.

• Allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside
• Designed for residential and industrial use
• 200A convertible main lugs in a NEMA 3R enclosure

Product Highlights

The Square D QO140L200PGRB is a 200A, 1-phase load center with 40 spaces, suitable for residential and industrial applications. It features a NEMA 3R enclosure, plug-on neutral, and ground bar.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO140L200PGRB
• Country of Origin: United States

Technical Specifications

• Catalog Number: QO140L200PGRB
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Number of Phases: 1 Phase
• Number of Spaces: 40
• Number of Circuits: 40
• Current: 200 Amp
• Amperage: 200 Amp
• Enclosure: 3R
• NEMA Size: 3R
• Certifications: UL
• Enclosure Type: Weatherproof enclosure
• Enclosure Rating: 3R
• Line Rated Current: 200 A
• Short Circuit Current: 65 kA
• Depth: 115 mm
• Width: 375 mm
• Height: 858 mm
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Country of Origin: United States
• Made in USA: Yes
• Phase: 1
• UPC: 785901086093
• GTIN: 00785901086093
• Range Of Product: QO
• Product Or Component Type: Load Center
• Load Center Type: PoN Convertible Mains (lugs)
• Device Composition: grounding bar included (not installed)
• Product Certifications: UL Listed
• Nema Degree Of Protection: NEMA 3R weatherproof enclosure
• Provided Equipment: grounding bar
