Product Description

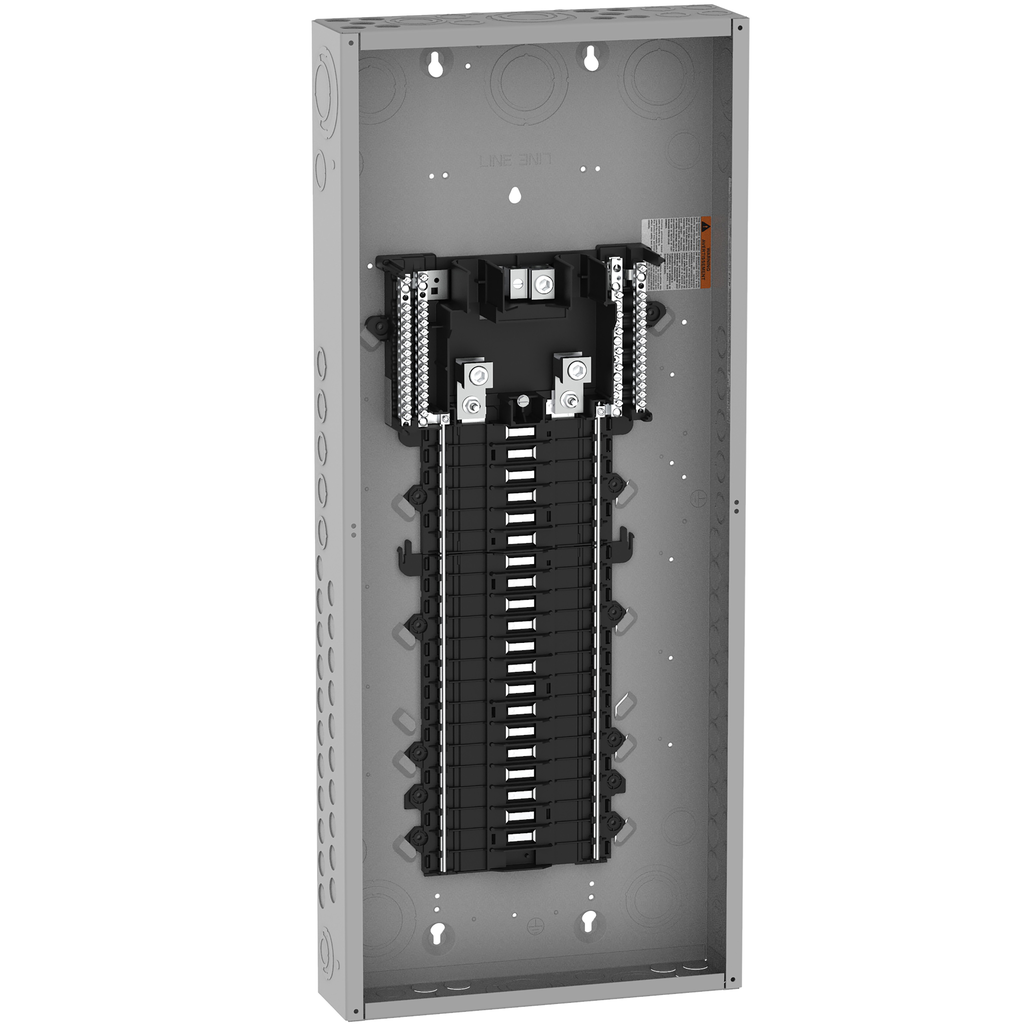

The Square D QO140L200PG Load Center is a single phase unit designed for effective power distribution in various settings. This load center features 200 amperes capacity and is built to accommodate up to 40 spaces and circuits, providing flexibility for electrical layouts. It includes convertible main lugs and is housed in a NEMA 1 enclosure, ensuring compatibility with indoor applications. Safety and reliability are guaranteed as it comes UL listed.
- 40 spaces and 40 circuits for optimal electrical management.
- 200A main lugs included; suitable for residential and light commercial use.
- Designed for easy installation, with options for plug-on neutral configurations.
Product Highlights
This load center is designed for residential and light commercial applications.
Product Information
Standard Information
-
Brand: Square D
-
MPN: QO140L200PG
Technical Specifications
-
Depth: 3.74 inches
-
Width: 14.25 inches
-
Height: 33.78 inches
-
Current: 200 Amp
-
Enclosure Type: NEMA 1
-
Net Weight: 20 lbs
-
Country of Origin: USA
-
Operating Temperature: 23 degrees F (-5 degrees C) to 104 degrees F (40 degrees C)
