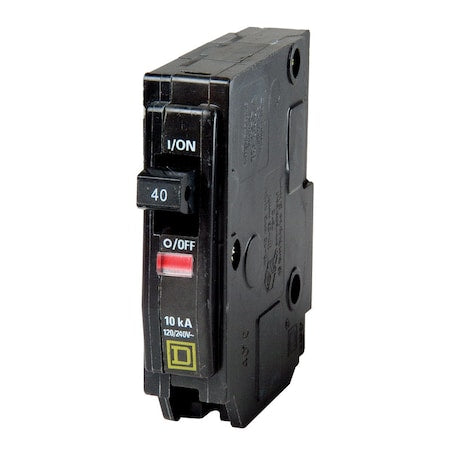

Square D QO140CP Miniature Circuit-Breaker 40 A 120/240V AC 1 Pole Plug-In Mounting Style

Product Description

The Square D QO140CP miniature circuit breaker is designed for overload and short-circuit protection of your electrical system. This unit is ANSI-certified, UL-listed, and rated for 120/240 VAC and 10 kA AIR. It features a Visi-Trip indicator that easily identifies tripped breakers in a load center. The circuit breaker has a plug-in mounting style.

• Mercury Free
• Visi-Trip indicator
• Suitable for HACR rated Applications

Product Highlights

The Square D QO140CP circuit breaker provides reliable overload and short-circuit protection with easy tripped breaker identification.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO140CP
• Country of Origin: Mexico

Technical Specifications

• Amps: 40 A
• Item: Miniature Circuit-Breaker
• Depth: 74 mm
• Width: 19 mm
• Height: 79 mm
• Features: Mercury Free
• Standards: UL Listed, CSA
• Application: HACR rated Applications
• Max. Wire Size: 2 AWG (Cu/Al)
• Min. Wire Size: 8 AWG (Cu/Al)
• Max. AIR Rating: 10 kA
• Number of Poles: 1
• Interrupt Rating: 10 kA at 120/240V AC
• AC Voltage Rating: 120/240V AC
• Terminal Connection: Box Lugs
• Circuit Breaker Type: Standard
• Circuit Breaker Mounting Style: Plug-In
• Brand: Schneider Electric
• Current Rating: 40 Amps
• Mounting Type: Plug-In Mount
• Voltage: 120 Volts
• Part Number: QO140CP
• Item model number: QO140CP
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Type: Mini
• Voltage Rating: 120/240 VAC, 48 VDC
• Operating Frequency: 50/60
• Number of Phases: 1
• Trip Type: Fixed
• Wire Size: 8 to 2
• Terminal Type: Lug
• Number of Spaces: 1
