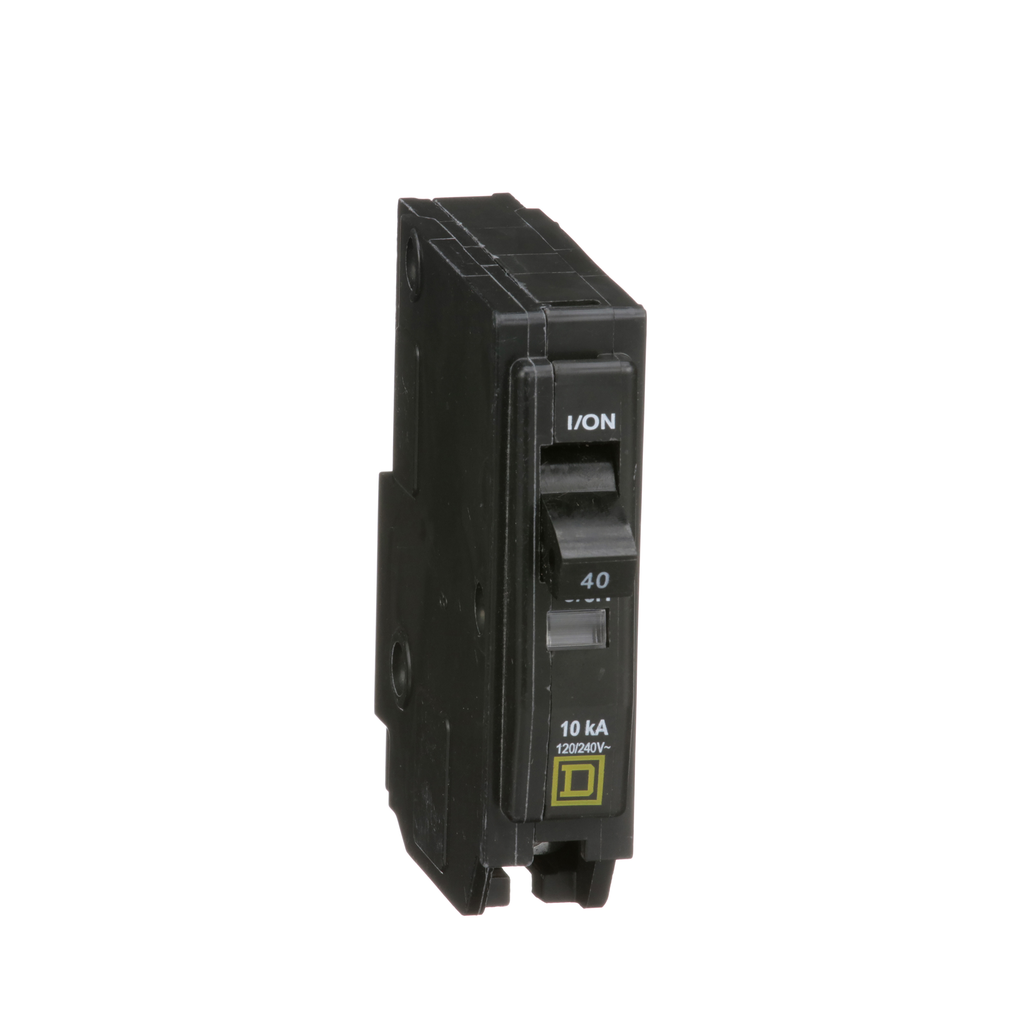

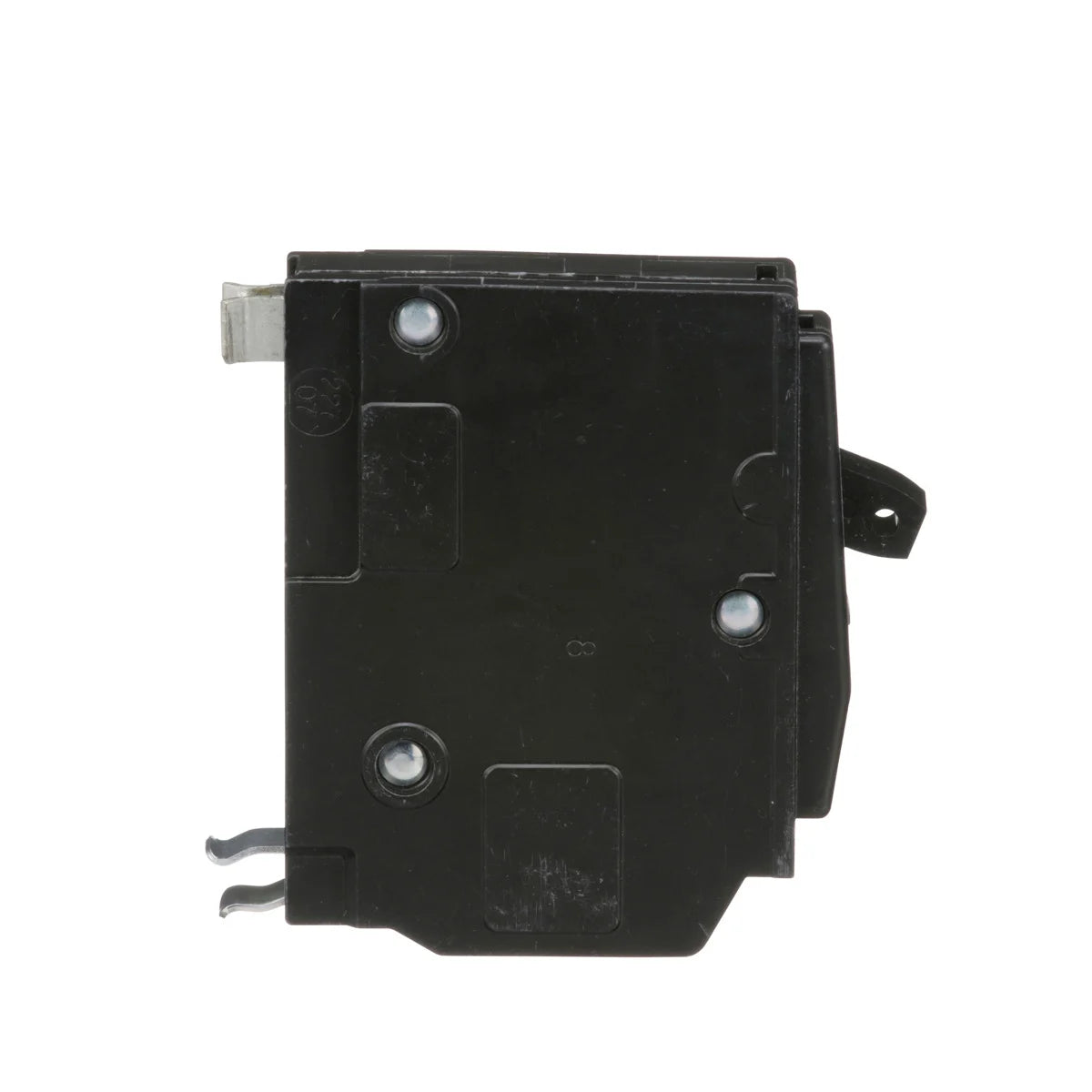

Square D QO140 Miniature Circuit Breaker 40A 120/240V 1Ph 1P

Product Description

The Square D QO140 Miniature Circuit Breaker, MPN QO140, offers essential overcurrent protection for electrical systems. This one-pole breaker is rated for forty amps at 120/240 volts, designed specifically for plug-in mounting. The QO140 circuit breaker features a trip-free toggle mechanism allowing easy operation with positive handle indication. Its VisiTrip functionality provides a clear visual alert when the breaker has tripped, facilitating quick response times in fault conditions.

• Rated for 40A at 120/240VAC
• 10kA breaking capacity
• Quick break action with plug-in mounting

Product Highlights

The QO series circuit breaker is UL Listed and CSA Certified, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO140
• Net Weight: 0.245 kg
• Height: 79 mm
• Width: 19 mm
• Depth: 74 mm
• Voltage Rating: 120/240 V AC
• Current Rating: 40 A
• Poles: 1 Pole
