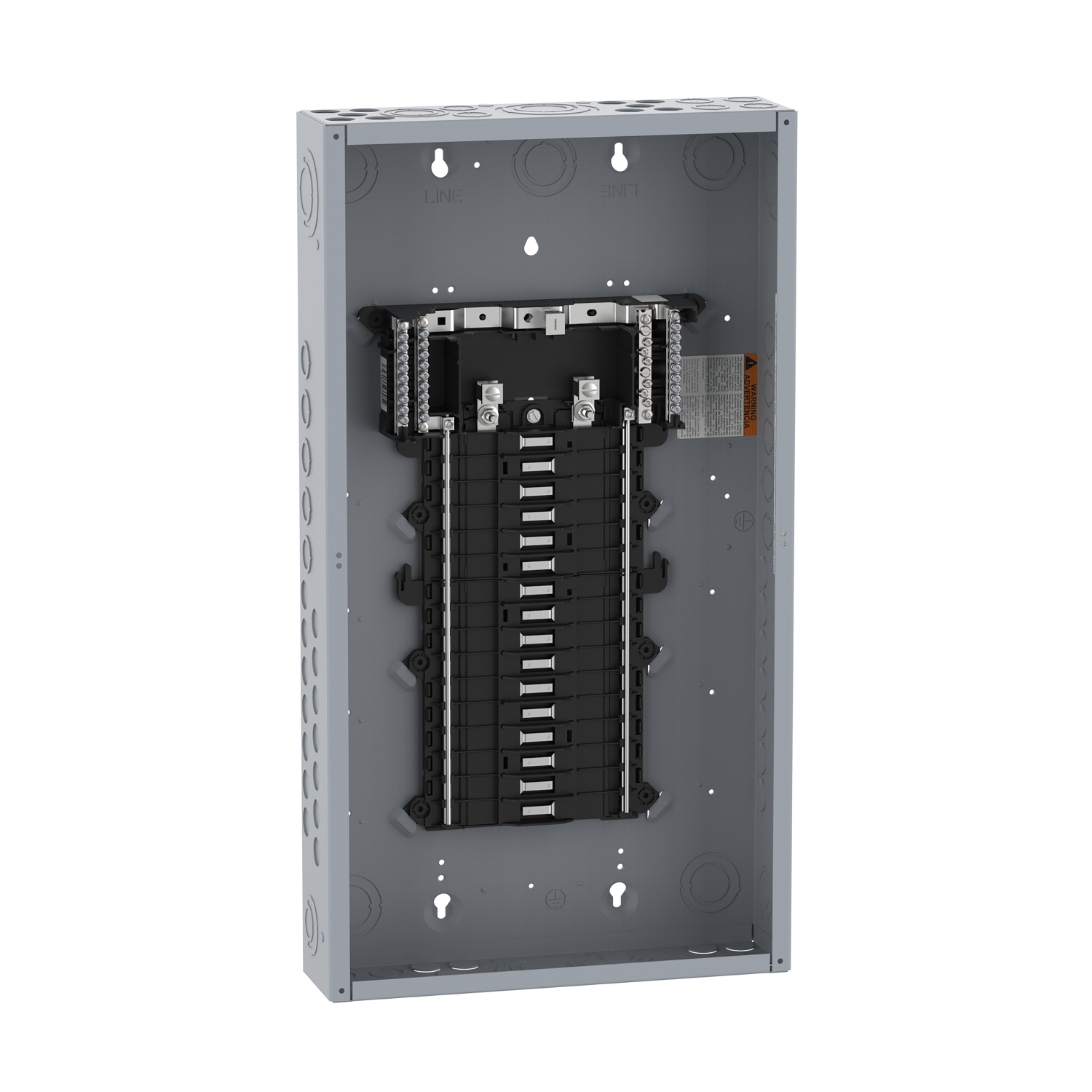

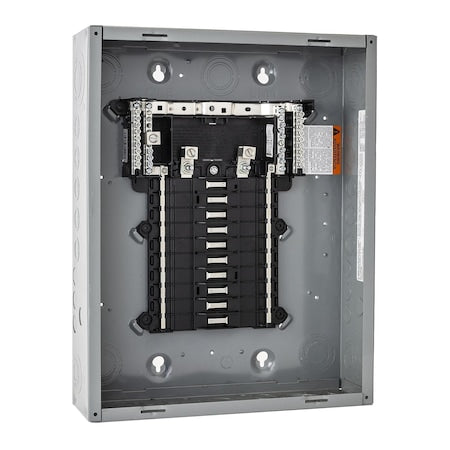

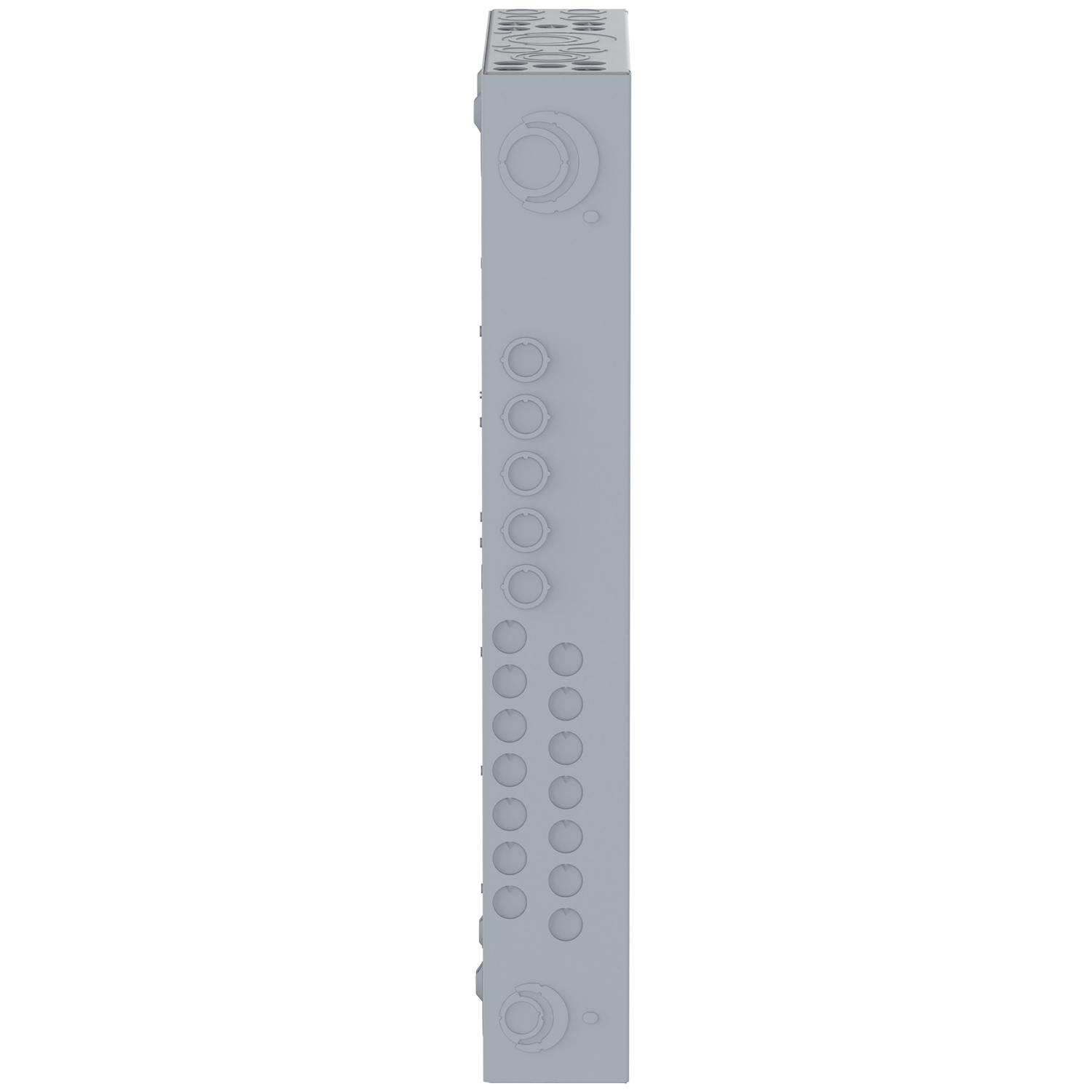

Square D QO132L125PG Load Center, Qo, 125 Amp, 32 Spaces

Product Description

The SQUARE D QO132L125PG load center offers premium features, accommodating QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters. Designed for residential and industrial use, it supports both traditional and plug-on neutral configurations. This single-phase load center has 32 spaces and 38 circuits, with 125A convertible main lugs in a NEMA 1 enclosure.

• Compatible with QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters
• Designed for residential and industrial use
• Available in traditional and plug on neutral configurations

Product Highlights

This Square D load center is ideal for protecting electrical systems in residential and industrial settings. It features a NEMA 1 enclosure, plug-on neutral, and a ground bar.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO132L125PG
• Country of Origin: USA

Technical Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• MPN: QO132L125PG
• Amperage: 125 Amp
• Current: 125 Amp
• Line Rated Current: 125 A
• Phase: 1 phase
• Number of Phases: 1 phase
• Number of Spaces: 32
• Number Of Spaces: 32
• Number of Circuits: 38
• Number Of Circuits: 38
• Short Circuit Current: 65 kA
• Enclosure NEMA Rating: 1
• NEMA Degree Of Protection: NEMA 1 indoor enclosure
• Depth: 95 mm
• Width: 362 mm
• Height: 661 mm
• Certifications: UL
• Country of Origin: USA
• Product Certifications: UL Listed
• Provided Equipment: grounding bar
• Device Composition: grounding bar included (not installed)
• Number Of Tandem Circuit Breakers: 6
• Tightening Torque: Cover 20 lb.in
• Product Type: Load Center
• Ground bar: Included
• Load Center Type: PoN Convertible Mains (lugs)
• Rated Current: 125 A
• Max Short Circuit Current Rating: 65 kA
• Maximum Number of Single Pole Circuits: 38
• Maximum Number of Tandem Breakers: 6
• Enclosure Type: NEMA 1 indoor
• Item: Load Center
• Voltage: 120/240V AC
• Location: Indoor
• Standards: RoHS Compliant, UL Listed
• For Use With: Square D QO Circuit Breakers
• Recommended Ground Bar Kit: Included
• Main Circuit Breaker or Main Lug: Main Lug
• Range Of Product: QO
• Product Or Component Type: Load Center
• NEMA Size: 1
• GTIN: 00785901611226
• UPC: 785901611226
• Made in USA: Yes
• Color: Gray
• Special Features: Mercury Free
