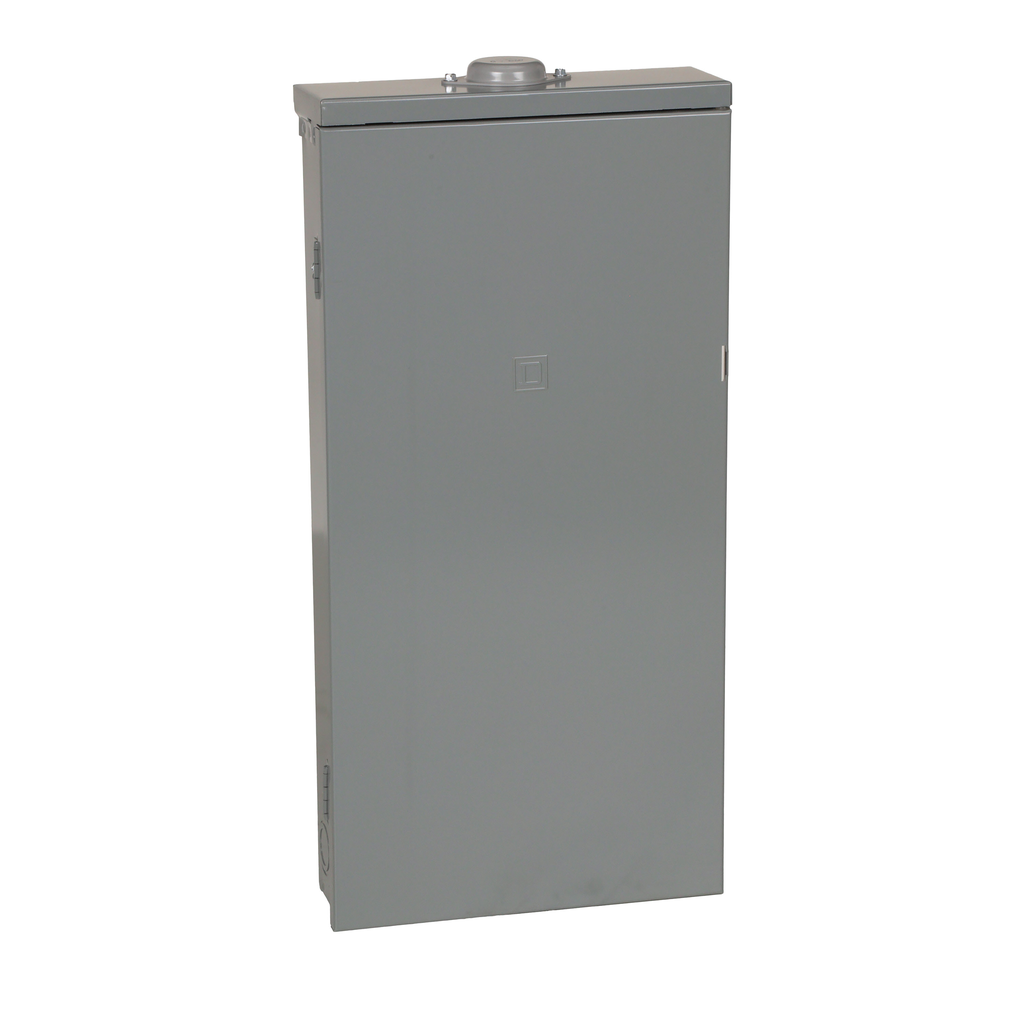

Square D QO130M200PRB Load Center 200A 120/240V 30 Spaces / 40 Circuits

Product Description

The Square D QO130M200PRB is a 200 amp load center that operates at 120/240 volts. It features thirty spaces and forty circuits, making it suitable for a range of installations. This load center is designed to meet both residential and commercial electrical needs while providing a safe and reliable power distribution solution.

• Underwriters Laboratories (UL) listed and CSA rated.
• NEMA 3R rated enclosure for outdoor and indoor installations.
• Plug-on neutral design enhances performance and efficiency.

Product Highlights

This load center is equipped with a convertible main breaker, allowing for flexibility in installation. The bus bars are made of tin-plated copper for enhanced conductivity and durability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO130M200PRB
• Rated Current: 200 A
• Voltage: 120/240 VAC
• Number of Spaces: 30
• Number of Circuits: 40
• Enclosure Rating: NEMA 3R
• Material: Welded galvannealed steel
• Bus Bar Material: Tin plated copper
• Operating Temperature: -5 to 40 degrees C
