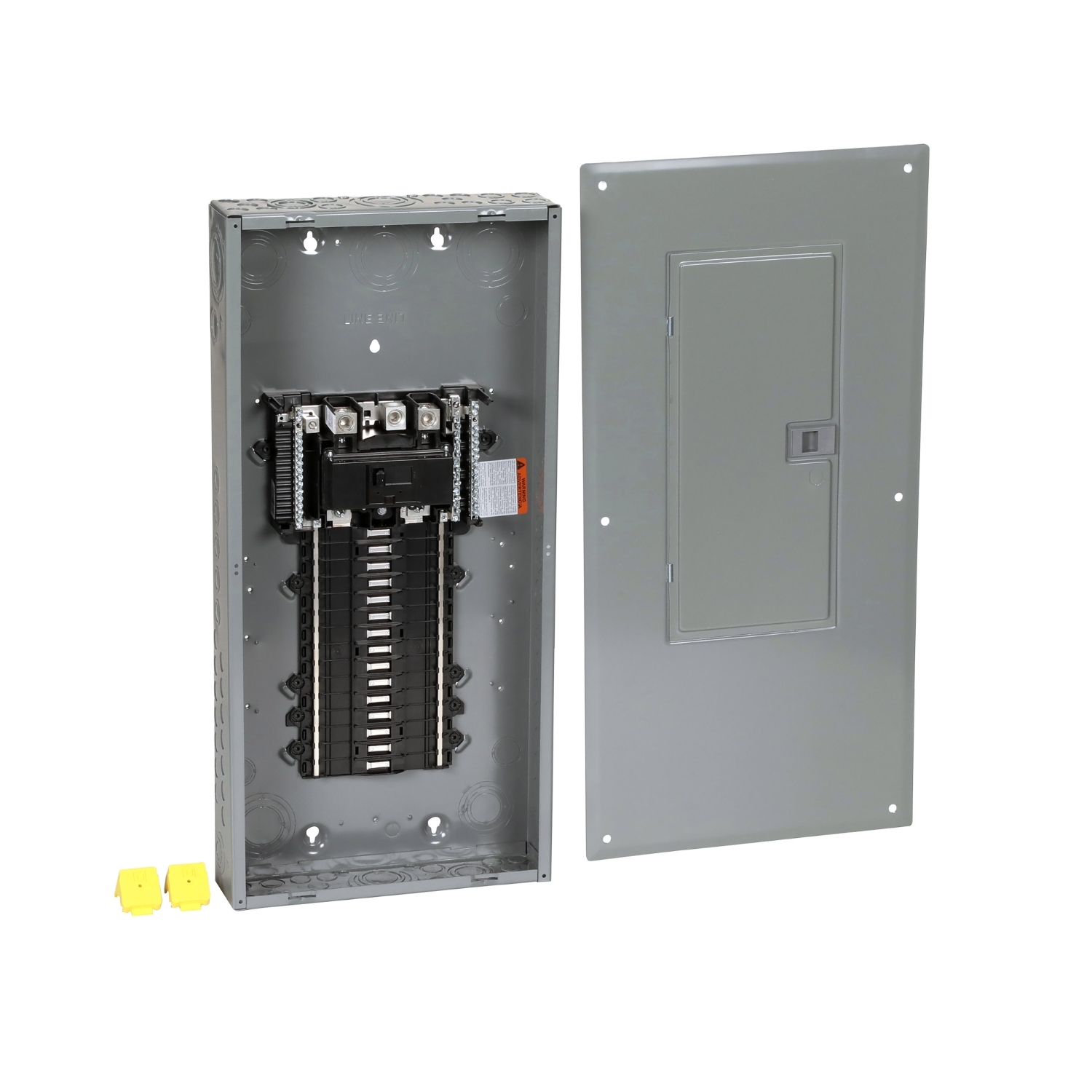

Square D QO130M200PC Load Center, QO, 1 200 Amp 30 Spaces

Product Description

The Square D QO130M200PC Load Center offers premium features, allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use to protect electrical systems, equipment, and people. This 1 phase load center has 30 spaces and 40 circuits with a 200A convertible main breaker in a NEMA 1 enclosure. It includes plug on neutral and a combination cover, and is UL rated.

• Allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside
• Designed for residential and industrial use
• Protects electrical systems, equipment, and people

Product Highlights

The Square D QO130M200PC is a 200A load center with 30 spaces, suitable for residential and industrial applications. It features a NEMA 1 enclosure, plug-on neutral configuration and a combination cover.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO130M200PC
• Country of Origin: United States

Technical Specifications

• Type: LOAD CENTER
• Brand: Square D
• Width: 362 mm
• Finish: Baked Enamel
• Height: 758 mm
• Current: 200 Amp
• Voltage: 120/240 VAC
• Amperage: 200 A
• Material: Tin Plated Copper: Busbar
• Enclosure: 1
• NEMA Size: 1
• Sub Brand: QO
• Wire Size: AWG 4...250 kcmil aluminium/copper
• Cable Size: AWG 4...250 KCMIL ALUMINIUM/COPPER
• Cover Type: Combination flush/surface cover
• Certifications: UL
• Conductor Size: 4 AWG-250 kcmil
• Surface Finish: Baked enamel Gray
• Interrupt Rating: 22 kAIC
• Number of Phases: 1
• Number of Spaces: 30
• Enclosure Material: Steel
• Line Rated Current: 200 A
• Number of Circuits: 40
• Short Circuit Current: 22 kA
• Catalog Number: QO130M200PC
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 1
• UPC: 785901960188
• GTIN: 00785901960188
• MPN: QO130M200PC
• Range Of Product: QO
• Product Or Component Type: Load Center
• Tightening Torque: Cover 20 lb.in
• Electrical Connection: lugs
• Number Of Tandem Circuit Breakers: 10
• Load Center Type: PoN Convertible Mains (breaker)
• Device Composition: grounding bar (ordered separately)
• Box Number: 9
• Product Certifications: UL Listed
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Pole: 30
• Space: 30
• Mounting: Flush, Surface
