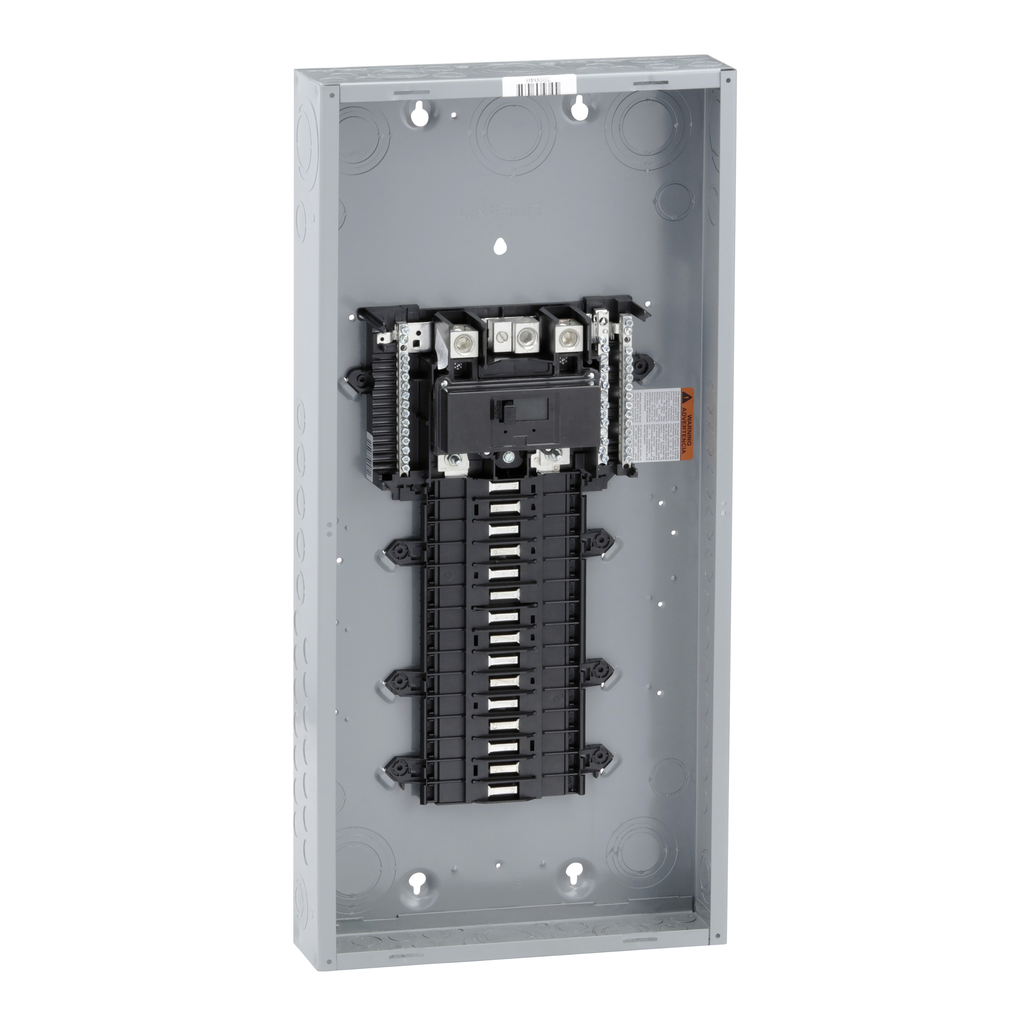

Square D QO130M200P 200A 120/240V 1 Phase Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-1

Product Description

The Square D QO130M200P is a 200 amp load center designed for residential, commercial, and industrial applications. This panelboard is UL Listed and CSA rated, ensuring compliance with safety standards. The QO130M200P features a convertible main breaker and is equipped with a plug-on neutral configuration that simplifies installation.

• Designed for 120/240 volt, single phase applications
• Offers 30 spaces and 40 circuits for effective circuit management
• Constructed with a tin-plated copper busbar for durability

Product Highlights

This load center supports maximum amperage of 200 and includes options for main circuit breakers, main lugs, and generator panel configurations. Its NEMA 1 enclosure allows for indoor use, while accommodating various wire sizes from AWG four to 250.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 volts
• Current: 200 amps
• Number of Spaces: 30
• Number of Circuits: 40
• Enclosure Material: Steel
• Surface Finish: Baked enamel gray
• Dimensions: 758 mm height, 362 mm width
• Warranty: 18 months
