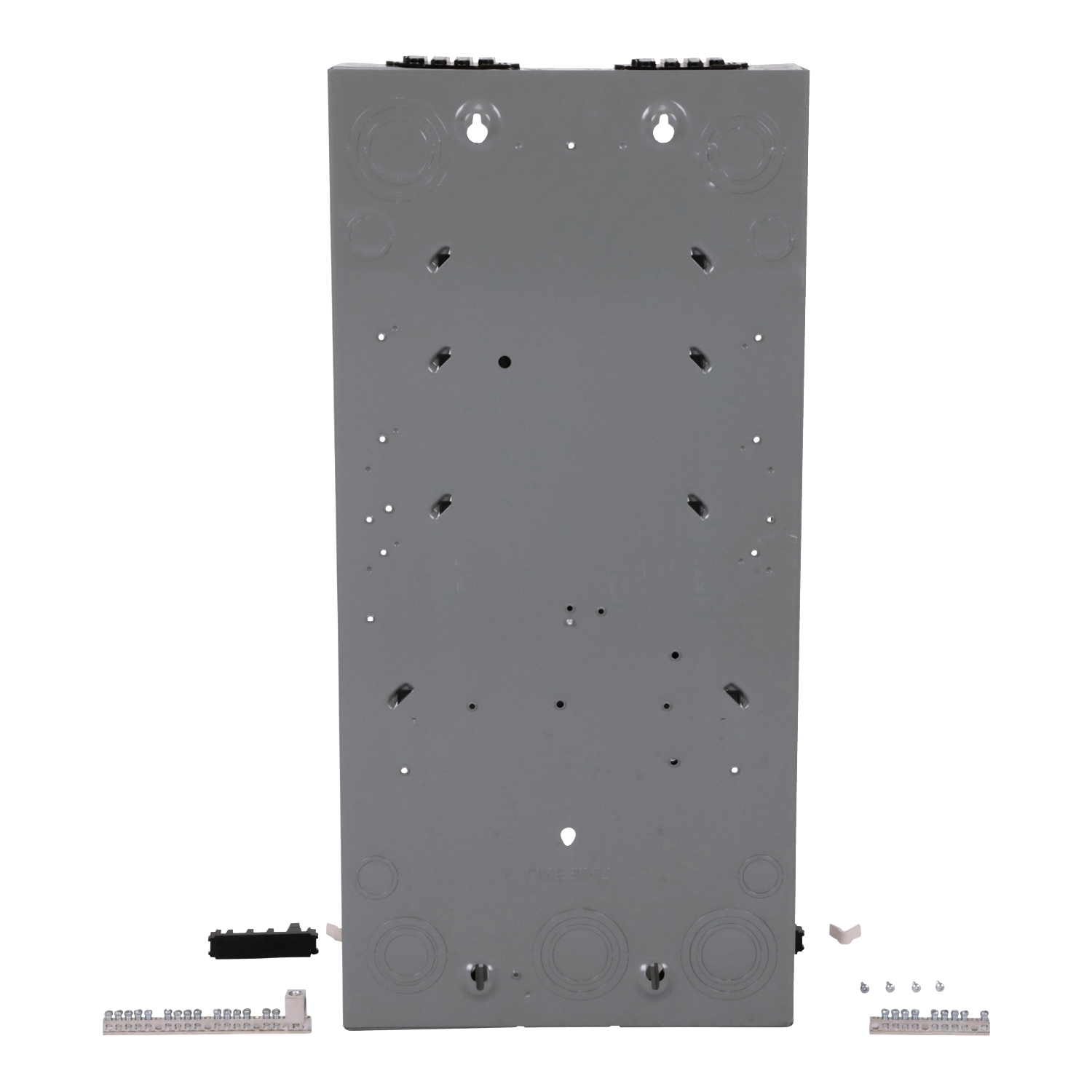

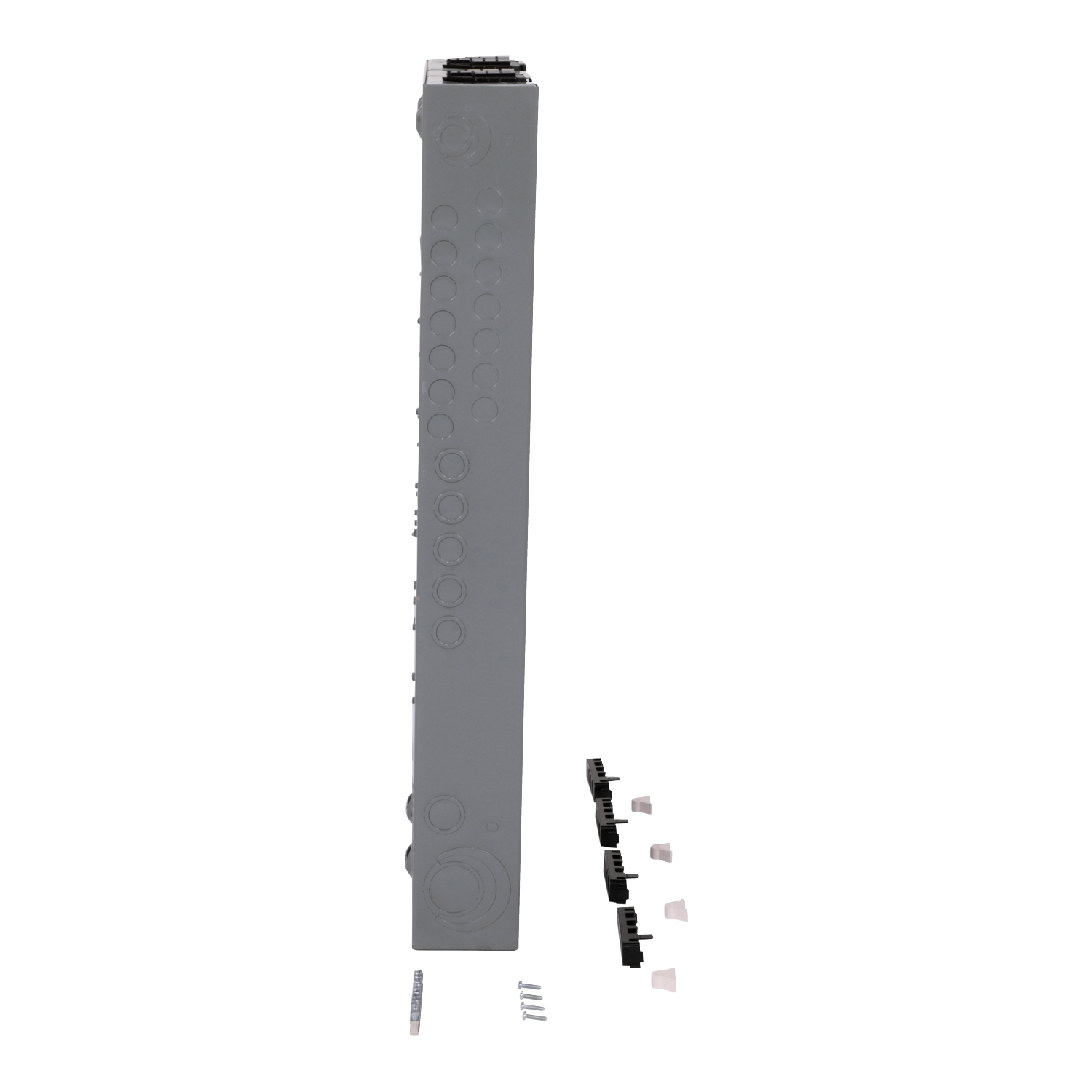

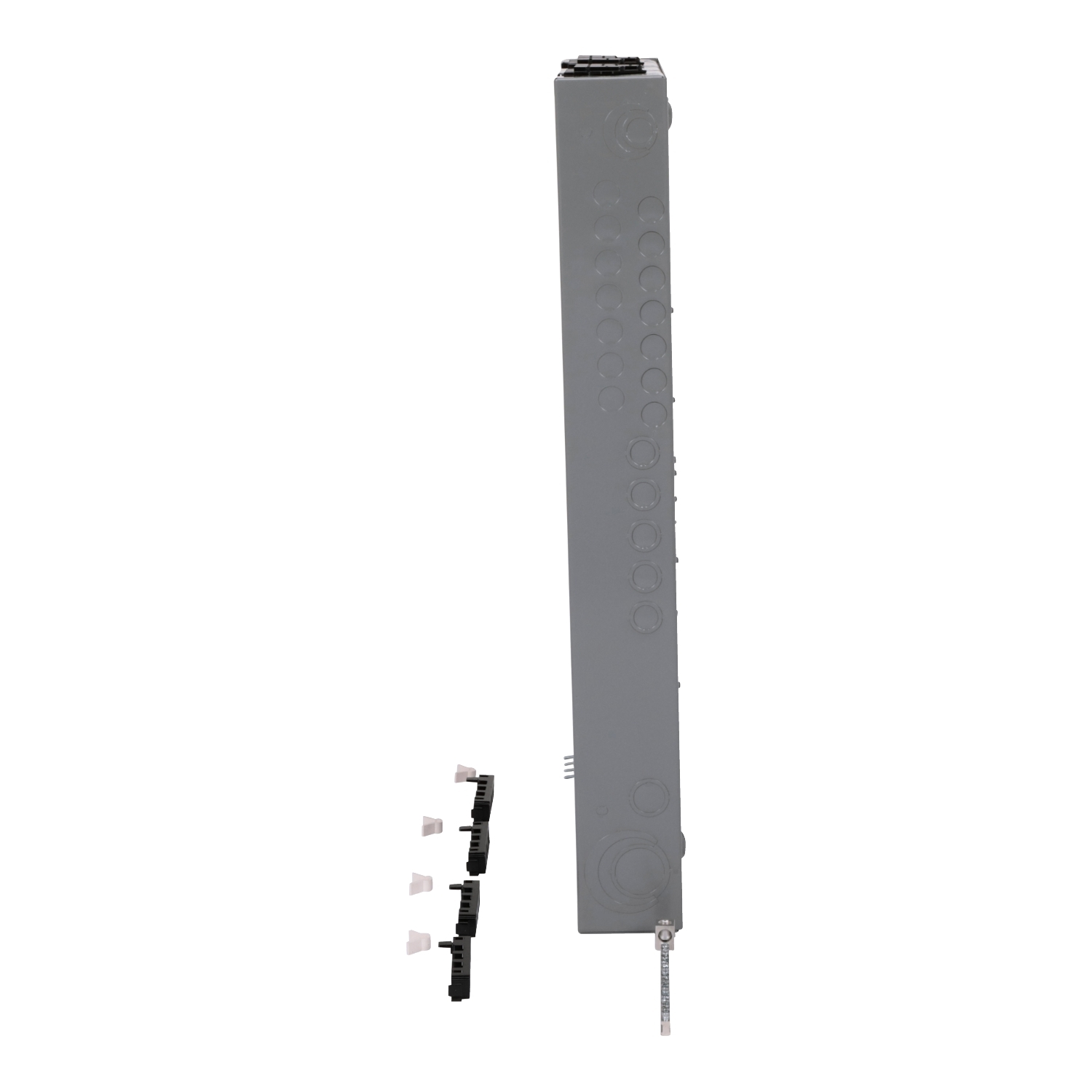

Square D QO130L200PQG Load Center, QO, 1 Phase, 200 Amp

Product Description

The Square D QO130L200PQG load center offers premium features, allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use, it protects electrical systems, equipment, and people. This 1-phase load center has 30 spaces and 40 circuits, providing 200A convertible main lugs in a NEMA 1 enclosure. It includes plug-on neutral, Qwik-grip, and a ground bar, and is UL rated.

• Protects electrical systems, equipment, and people.
• Indoor enclosures rotate 180 degrees.
• Includes plug on neutral, Qwik-grip, ground bar.

Product Highlights

This Square D load center is ideal for residential and industrial applications requiring reliable circuit protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO130L200PQG
• Country of Origin: United States

Technical Specifications

• Brand: Square D
• Width: 362 mm
• Finish: Baked Enamel
• Height: 758 mm
• Current: 200 Amp
• Voltage: 120/240 Volt AC
• Amperage: 200 Amp
• Material: Copper: Busbar
• Enclosure: 1
• NEMA Size: 1
• Wire Size: AWG 6...300 kcmil aluminium/copper
• Product UPC: 78590177434
• 12-Digit UPC: 785901774341
• Certifications: UL
• Conductor Size: 6 AWG-300 kcmil
• Surface Finish: Baked enamel Gray
• Number of Phases: 1 Phase
• Number of Spaces: 30
• Country of Origin: USA
• Enclosure Material: Steel
• Line Rated Current: 200 A
• Number of Circuits: 40
• Short Circuit Current: 65 kA
• Catalog Number: QO130L200PQG
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 1
• UPC: 785901774341
• GTIN: 00785901774341
• Type: Main Lug
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 30
• Maximum Number of Spaces: 30
• Main Breaker Type: QOM2 Main Frame Size
• Breaker Mounting: Plug-On
• Interrupting Rating: 65 Kiloamp
• Bus Material: Copper
• Main Wire Size: 6 AWG to 300 KCMIL (Aluminum/Copper)
• Enclosure Type: NEMA 1 Indoor
• Enclosure Size Designation: 9Q
• Approval: UL
• Cover Finish: Gray Baked Enamel
• Range Of Product: QO
• Product Or Component Type: Load Center
• Rated Operational Voltage: 120/240 V AC
• Short-Circuit Current: 65 kA
• Load Center Type: Main lugs
• Product Certifications: UL Listed
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Tightening Torque: main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
• Awg Gauge: AWG 6...300 kcmil aluminium/copper
• Device Composition: grounding bar included (not installed)
• Box Number: 9Q
• Product Type: Load Center
• Provided Equipment: Qwik grip assembly kit
• Rated Current: 200 A
• Max Short Circuit Current Rating: 65 kA
• Maximum Number of Single Pole Circuits: 40
• Maximum Number of Tandem Breakers: 10
• Grounding Bar: Included
• Electrical Connection: Lugs
• Wiring Configuration: 3-wire
• Busbar Material: Copper busbar
• Item: Load Center,QO,Qwik Grip,Main Lug,Pl
• Standards: UL Listed
• Ground Bar Kit: grounding bar included (not installed); qwik grip assembly kit 1 )
• Enclosure NEMA Rating: NEMA 1 indoor
• Max. No. of Tandem Breakers: 10
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
