Product Description

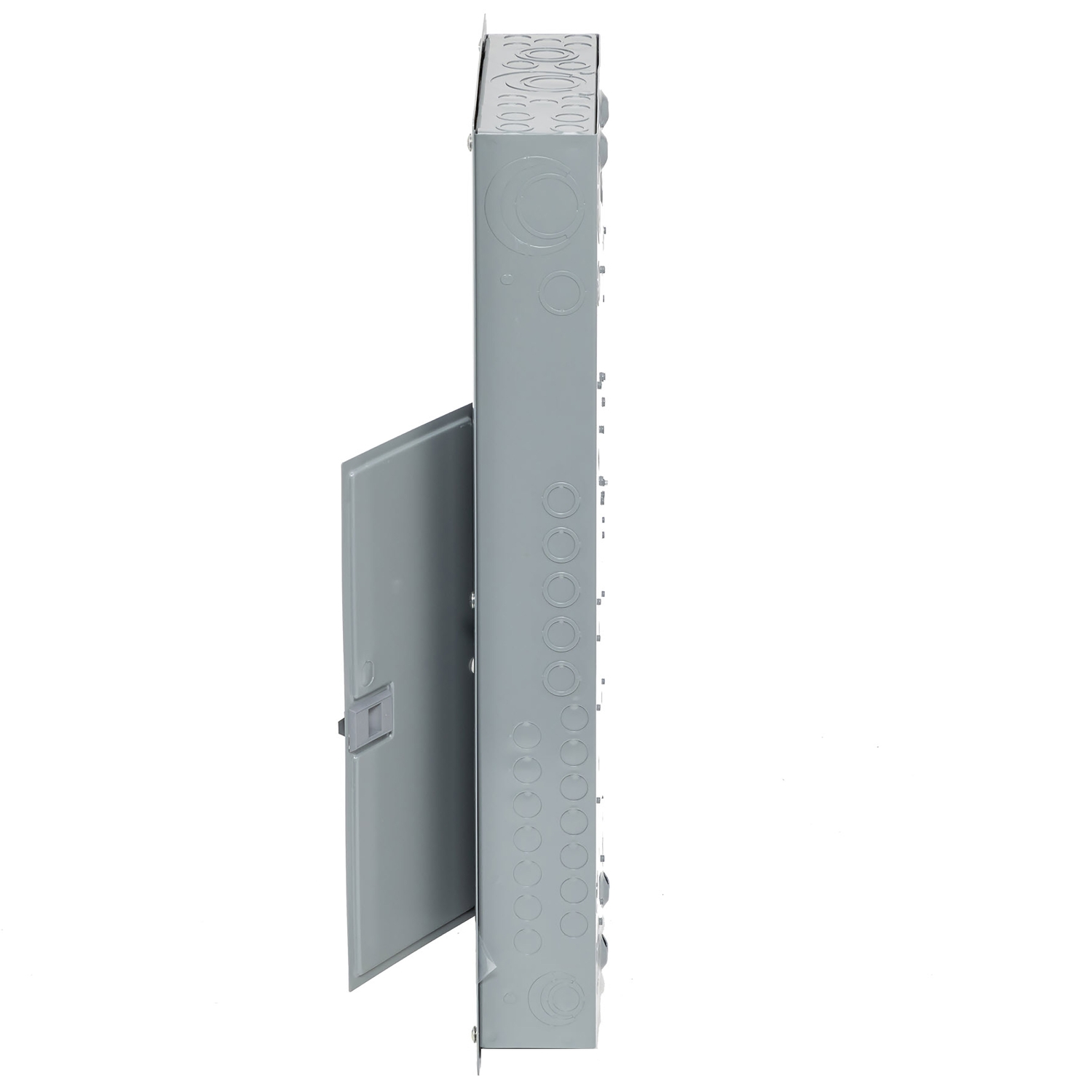

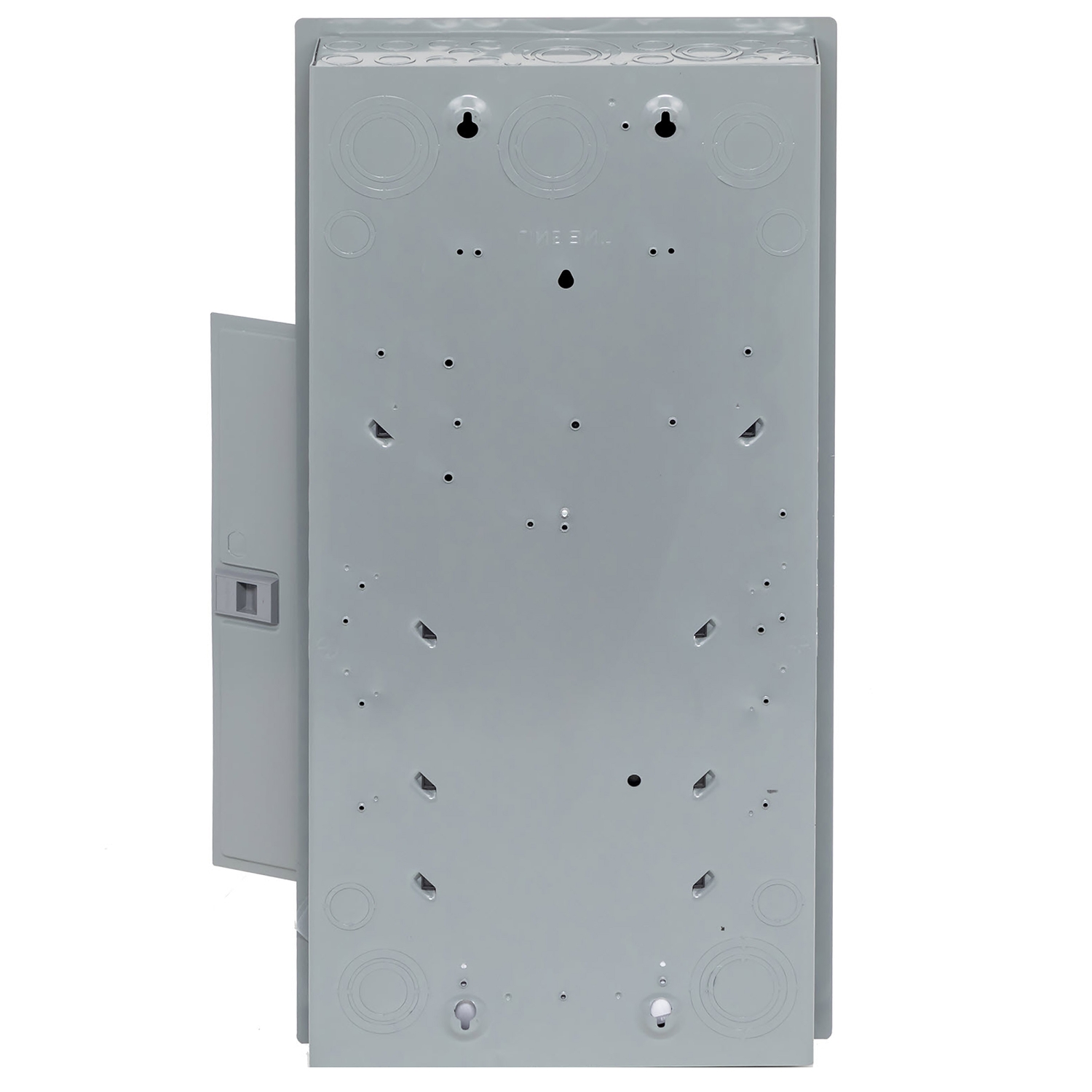

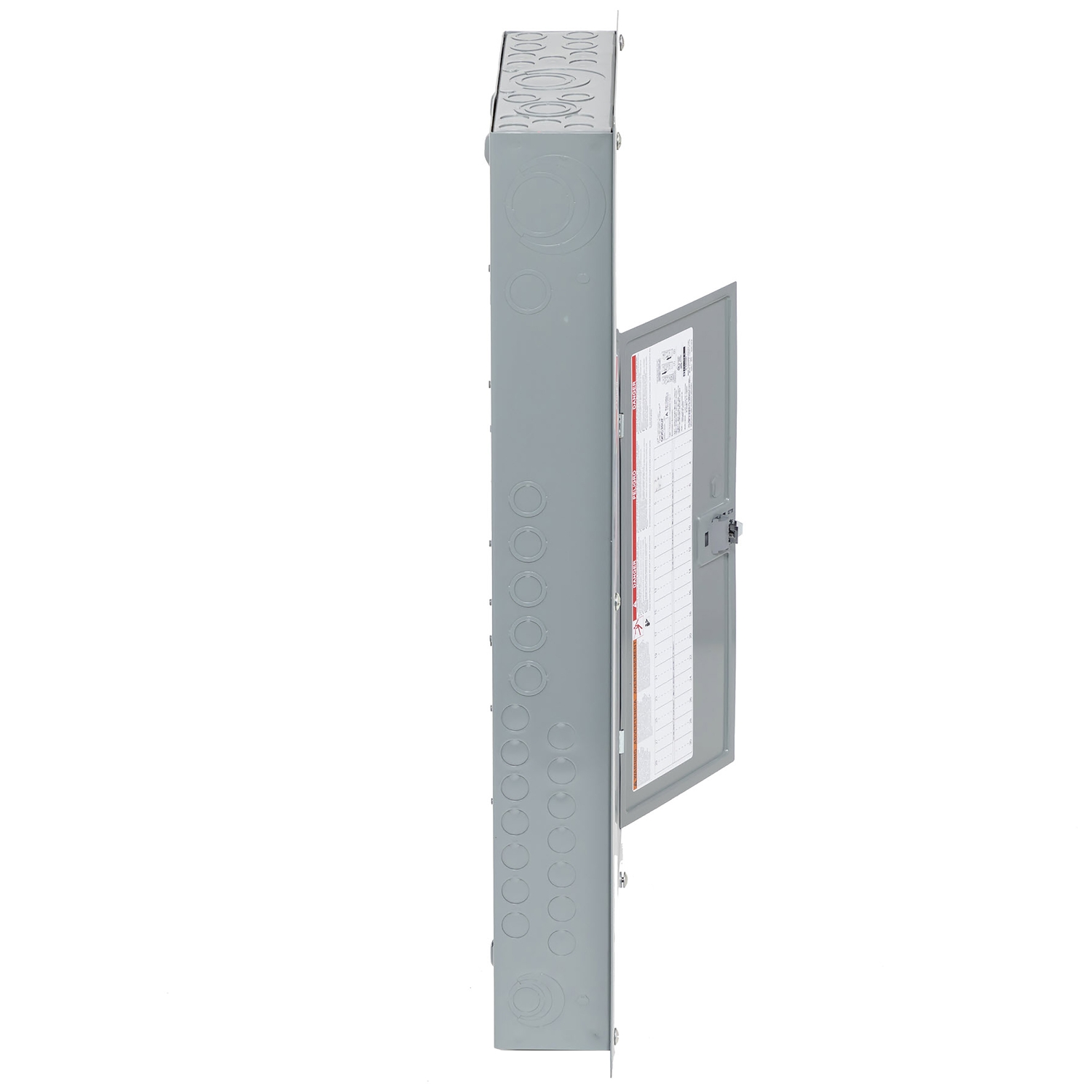

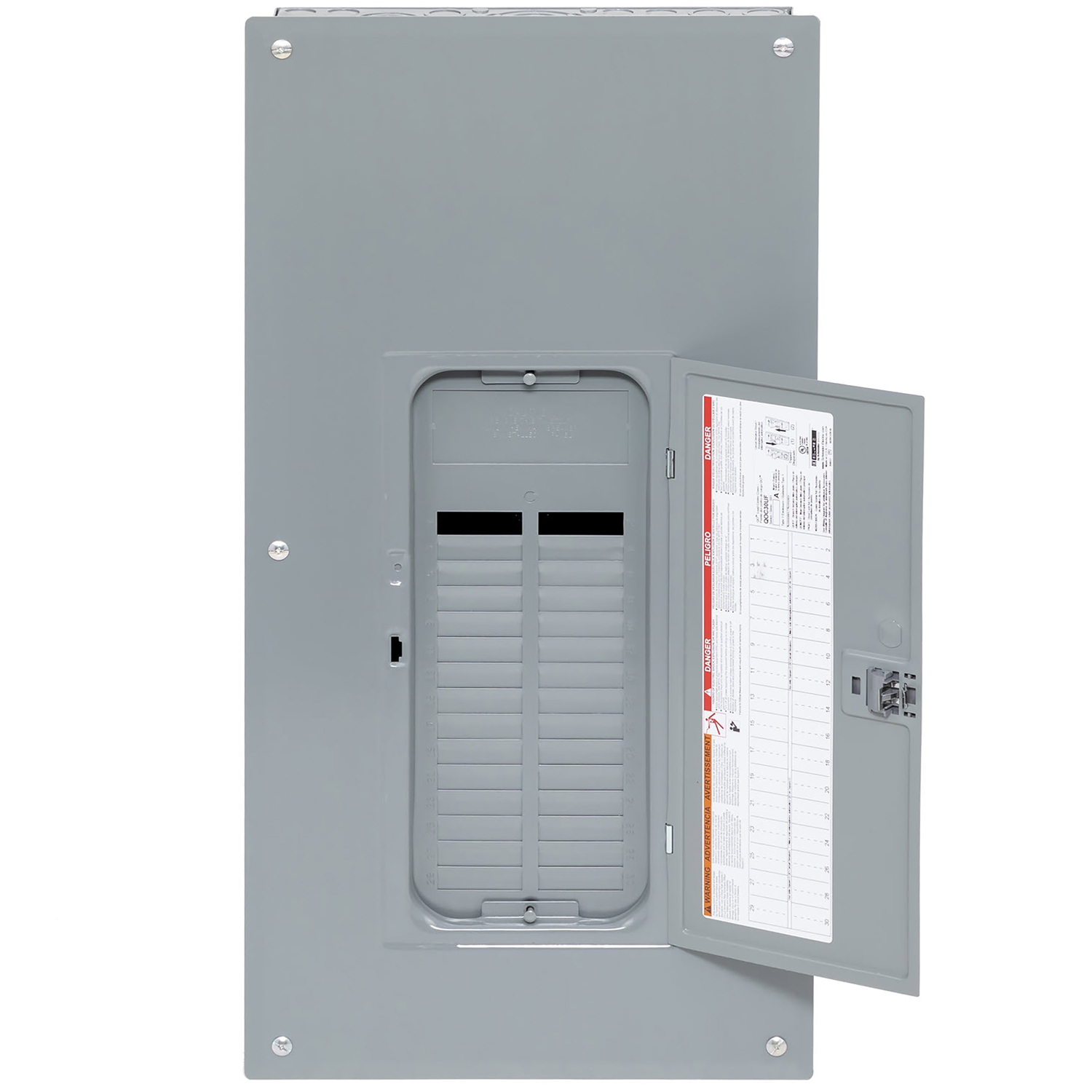

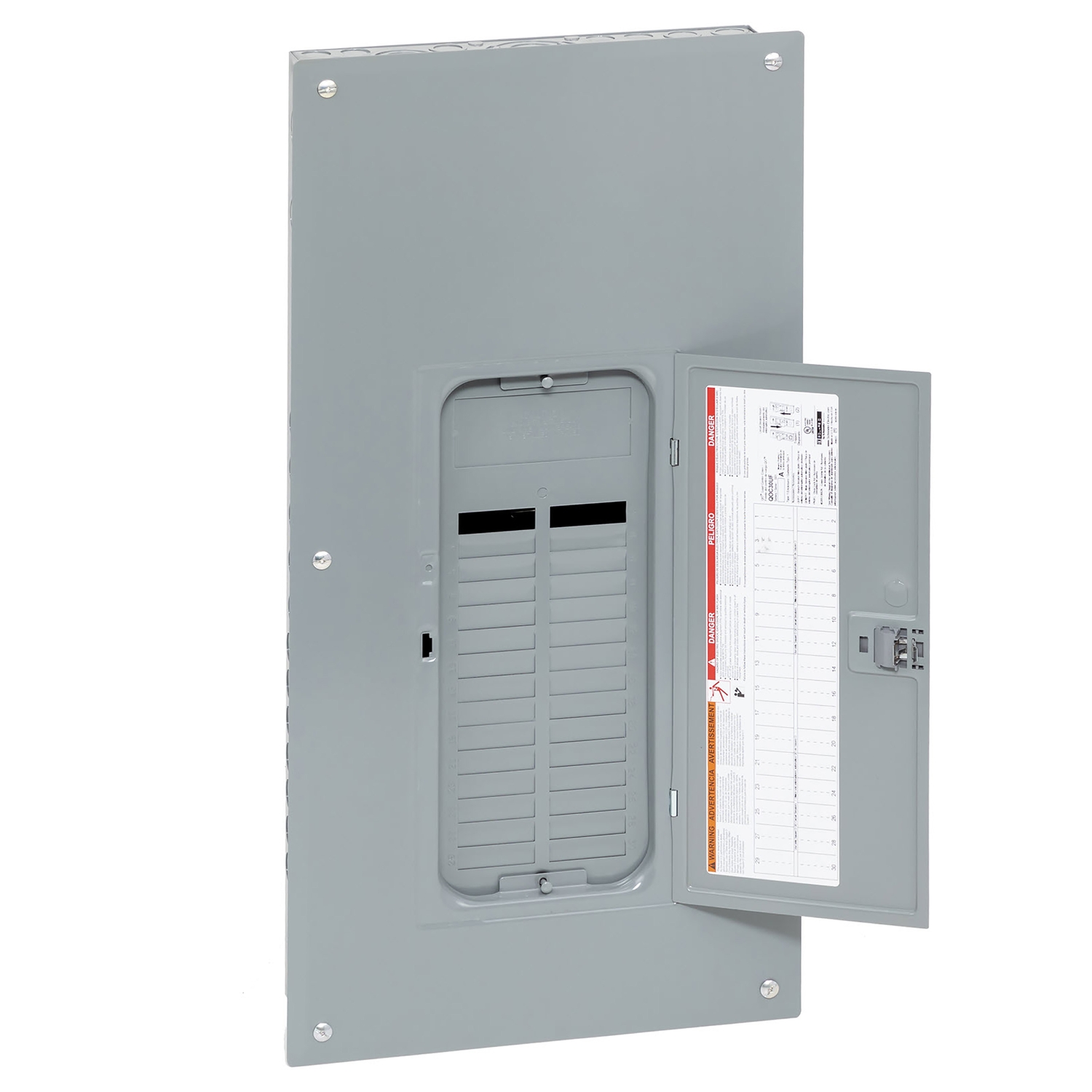

The Square D QO130L200PGC load center offers premium features, allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use to protect electrical systems, equipment, and people. This single phase load center has 30 spaces and 40 circuits with 200A convertible main lugs in a NEMA 1 enclosure. Includes plug on neutral, ground bar, combination cover, and is UL rated.
- Allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside
- Designed for residential and industrial use
- 200A convertible main lugs in a NEMA 1 enclosure
Product Highlights
The Square D QO130L200PGC load center protects electrical systems with premium features and a full complement of accessories.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer Part Number: QO130L200PGC
-
Country of Origin: United States
Technical Specifications
-
Type: LOAD CENTER
-
Brand: Square D
-
Width: 362 mm
-
Finish: Baked Enamel
-
Height: 758 mm
-
Current: 200 Amp
-
Voltage: 120/240 VAC
-
Amperage: 200 Amp
-
Material: Tin Plated Copper: Busbar
-
Enclosure: 1
-
NEMA Size: 1
-
Sub Brand: QO
-
Wire Size: AWG 6...250 kcmil aluminium/copper
-
Cable Size: AWG 6...250 KCMIL ALUMINIUM/COPPER
-
Cover Type: Combination flush/surface cover
-
Certifications: UL
-
Conductor Size: 6 AWG-250 kcmil
-
Surface Finish: Baked enamel Gray
-
Interrupt Rating: 65 kAIC
-
Number of Phases: 1
-
Number of Spaces: 30
-
Enclosure Material: Steel
-
Line Rated Current: 200 A
-
Number of Circuits: 40
-
Short Circuit Current: 65 kA
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Phase: 1
-
Range Of Product: QO
-
Product Or Component Type: Load Center
-
Tightening Torque: main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || main lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper
-
Electrical Connection: lugs
-
Short-Circuit Current: 65 kA
-
Number Of Tandem Circuit Breakers: 10
-
Load Center Type: PoN Convertible Mains (lugs)
-
Device Composition: grounding bar included (not installed)
-
Box Number: 9
-
Product Certifications: UL Listed
-
Ambient Air Temperature For Operation: -5 °C || 40 °C
-
Nema Degree Of Protection: NEMA 1 indoor enclosure
-
Wiring Configuration [Specifications]: 3-wire
-
Enclosure NEMA Rating [Specifications]: 1
-
Recommended Flush Cover [Specifications]: Included
-
Enclosure Surface Finish [Specifications]: Baked Enamel Gray
-
Included Enclosure Cover [Specifications]: Combination Flush/Surface Cover
-
Primary/Ambient Air Temp. [Specifications]: -5°C || 40°C
-
Recommended Surface Cover [Specifications]: Included
-
Recommended Ground Bar Kit [Specifications]: Included
-
Max. No. of Tandem Breakers [Specifications]: 10
-
Short Circuit Current Rating [Specifications]: 65 kA
-
Main Circuit Breaker or Main Lug [Specifications]: Main Lug
-
Country of Origin (subject to change) [Specifications]: United States
-
Item [Specifications]: Load Center
-
Max. Operating Temp. [Specifications]: 104 Degrees F
-
Min. Operating Temp. [Specifications]: 23 Degrees F
-
Enclosure Material [Specifications]: Welded Sheet Steel
-
Bus Material [Specifications]: Tin Plated Copper
-
For Use With [Specifications]: Square D QO Circuit Breakers
-
Ground Bar Kit [Specifications]: grounding bar included (not installed)
-
Special Features [Specifications]: Mercury Free
