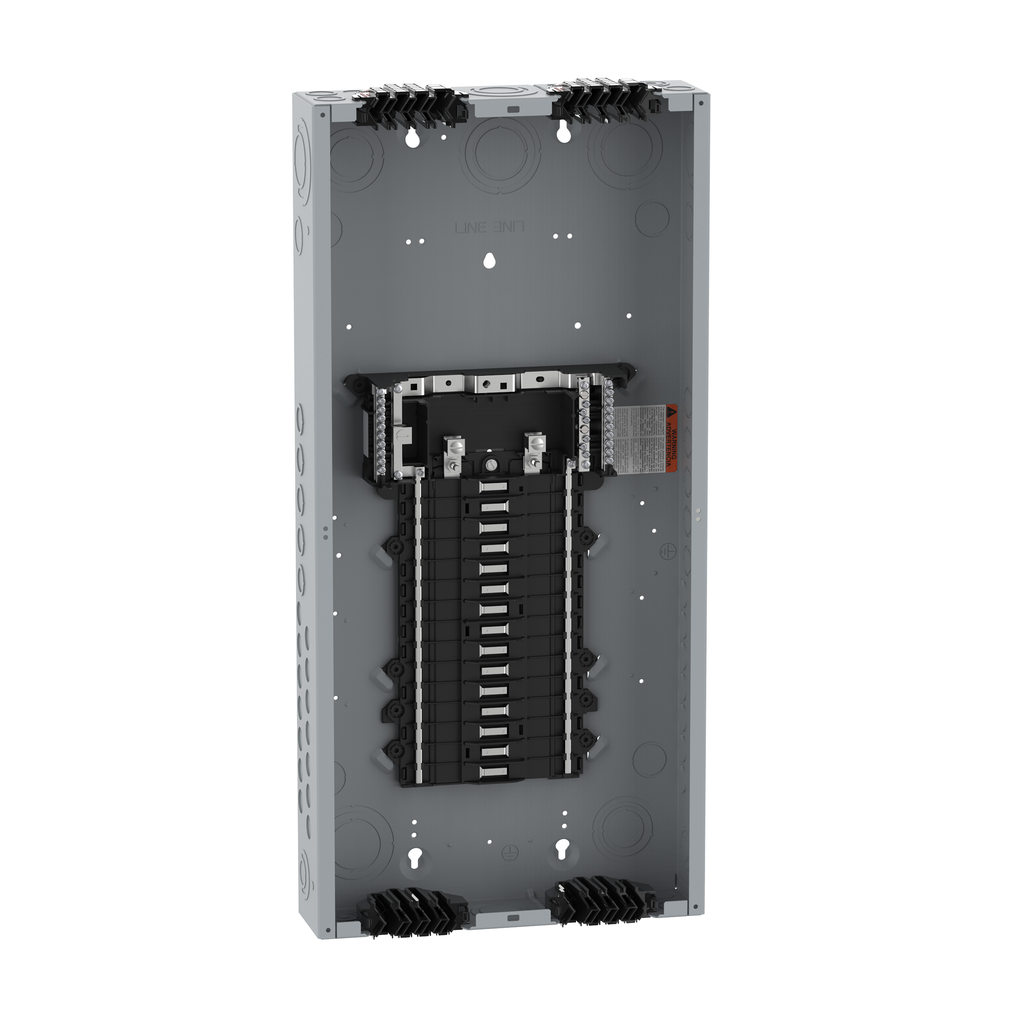

Square D QO130L125PQG Load center QO 1 Phase 30 spaces 34 circuits

Product Description

The Square D QO130L125PQG Load Center is built by Schneider Electric. This load center is designed for residential, commercial, and industrial use. It protects electrical systems and provides reliable service. The load center features traditional and plug-on neutral configurations. It is constructed to support main circuit breakers, main lugs, and generator panels. This model has 30 spaces and supports 34 circuits.

• 1 Phase system
• 125 Amp capacity
• UL and CSA rated

Product Highlights

This load center includes features such as a NEMA 1 enclosure, plug-on neutral, and a Qwik-grip ground bar. The bus bars are made of tin-plated copper and are shielded for reliable use in different conditions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO130L125PQG
• Current: 125 Amp
• Voltage: 120/240 Volt
• Number of Phases: 1
• Number of Spaces: 30
• Number of Circuits: 34
• Enclosure Material: Steel
• Operating Temperature: 23 degrees F to 104 degrees F
