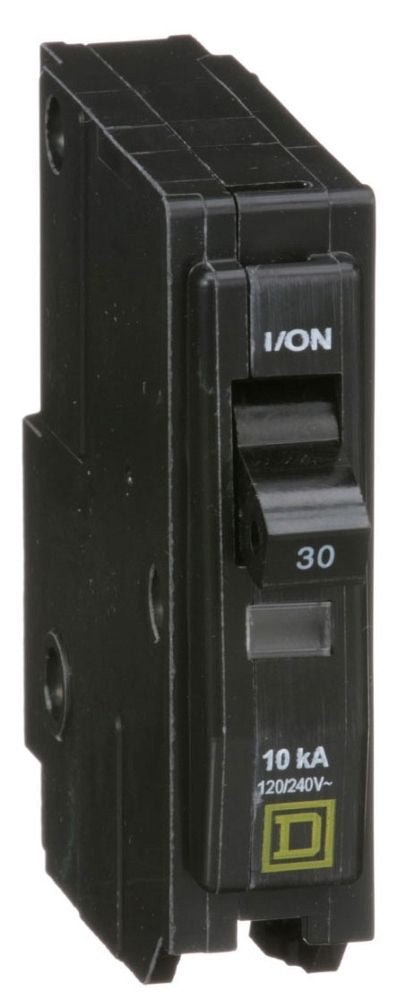

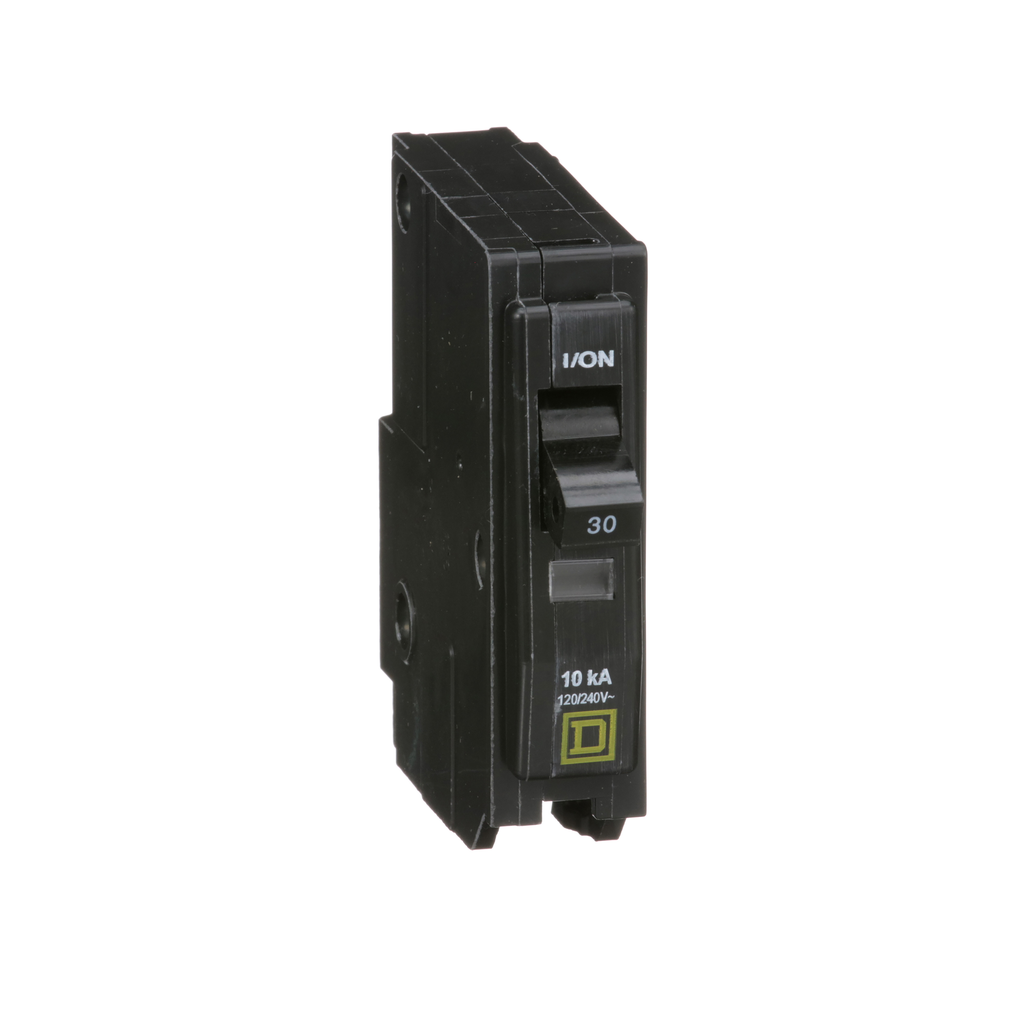

Square D QO130 Miniature Circuit Breaker 30A 120/240V 1 Pole

Product Description

The Square D QO130 Miniature Circuit Breaker is designed for overcurrent protection in AC and DC systems. This circuit breaker operates at thirty amperes and is rated for 120/240 volts with a single pole configuration. Key features include VisiTrip indication for visual confirmation of tripping, along with a fast and reliable trip-free toggle mechanism. It is UL listed and CSA certified, ensuring adherence to safety and reliability standards. This unit is designed for easy installation and compact mounting in a load center or panelboard.

• Rated for 30 amperes and 120/240 volts
• Includes VisiTrip tripping indication
• UL Listed and CSA Certified

Product Highlights

Standard for providing overload and short circuit protection.

Product Information

Standard Information

• Catalog Number: QO130
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 30 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size: 14 to 8 AWG (copper/aluminum)
• Depth: 2.91 inches
• Height: 3 inches
• Width: 0.75 inches
• Country of Origin: Mexico
• Warranty: 18 months
