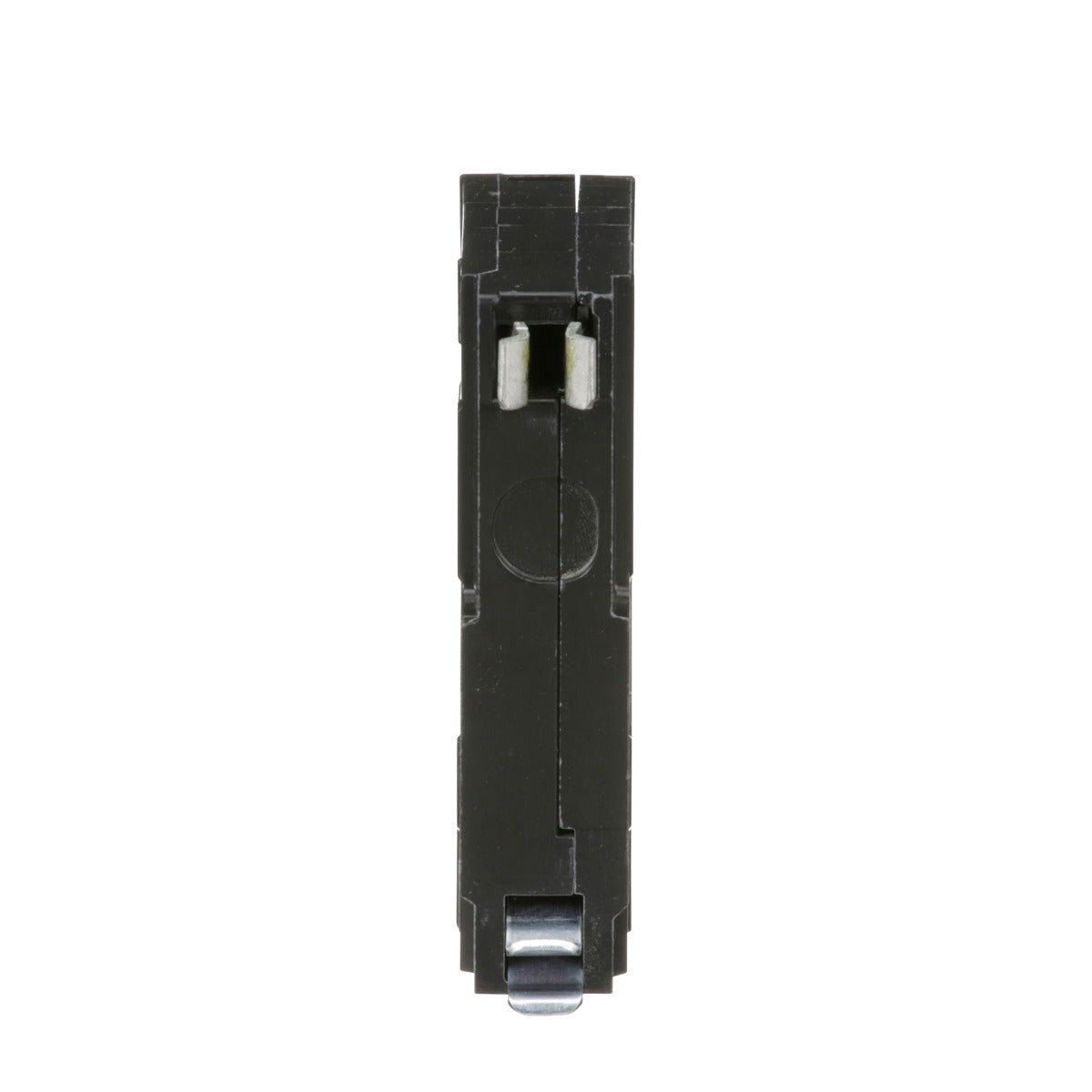

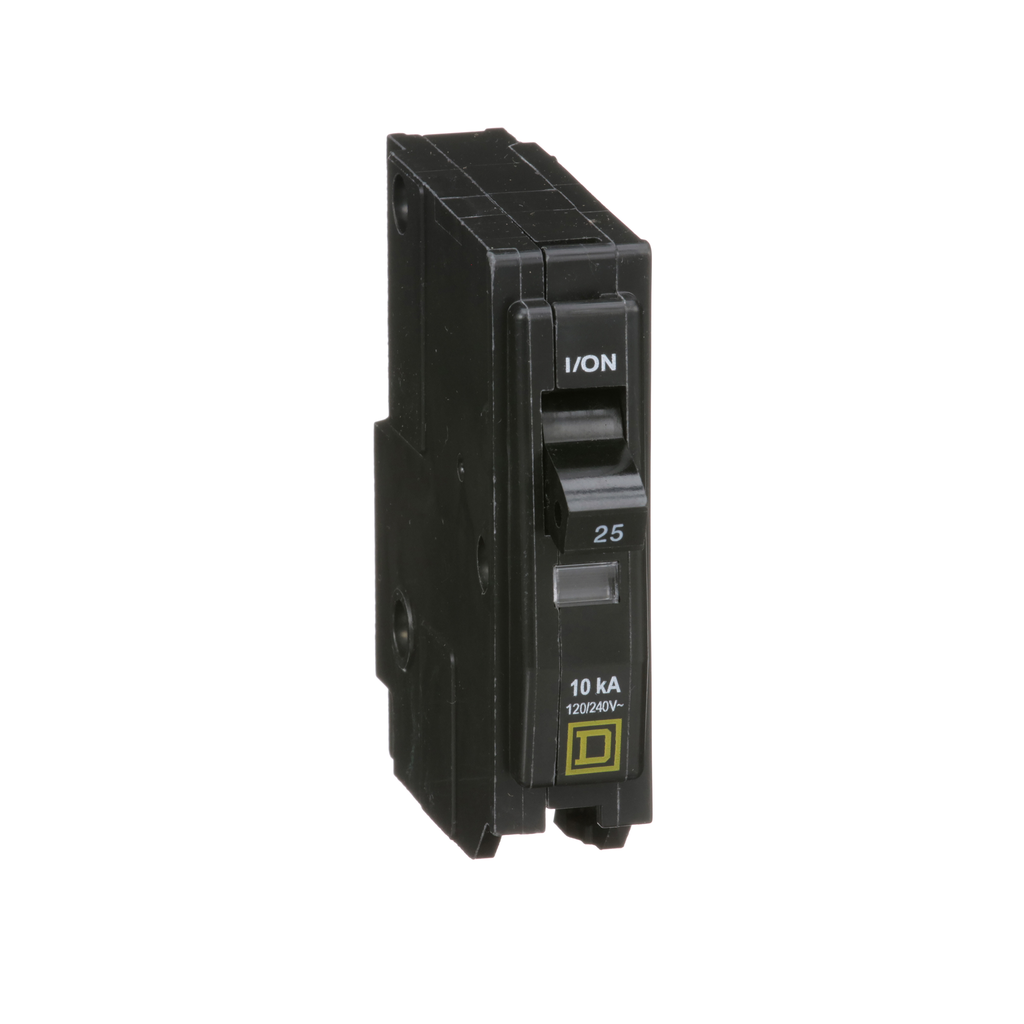

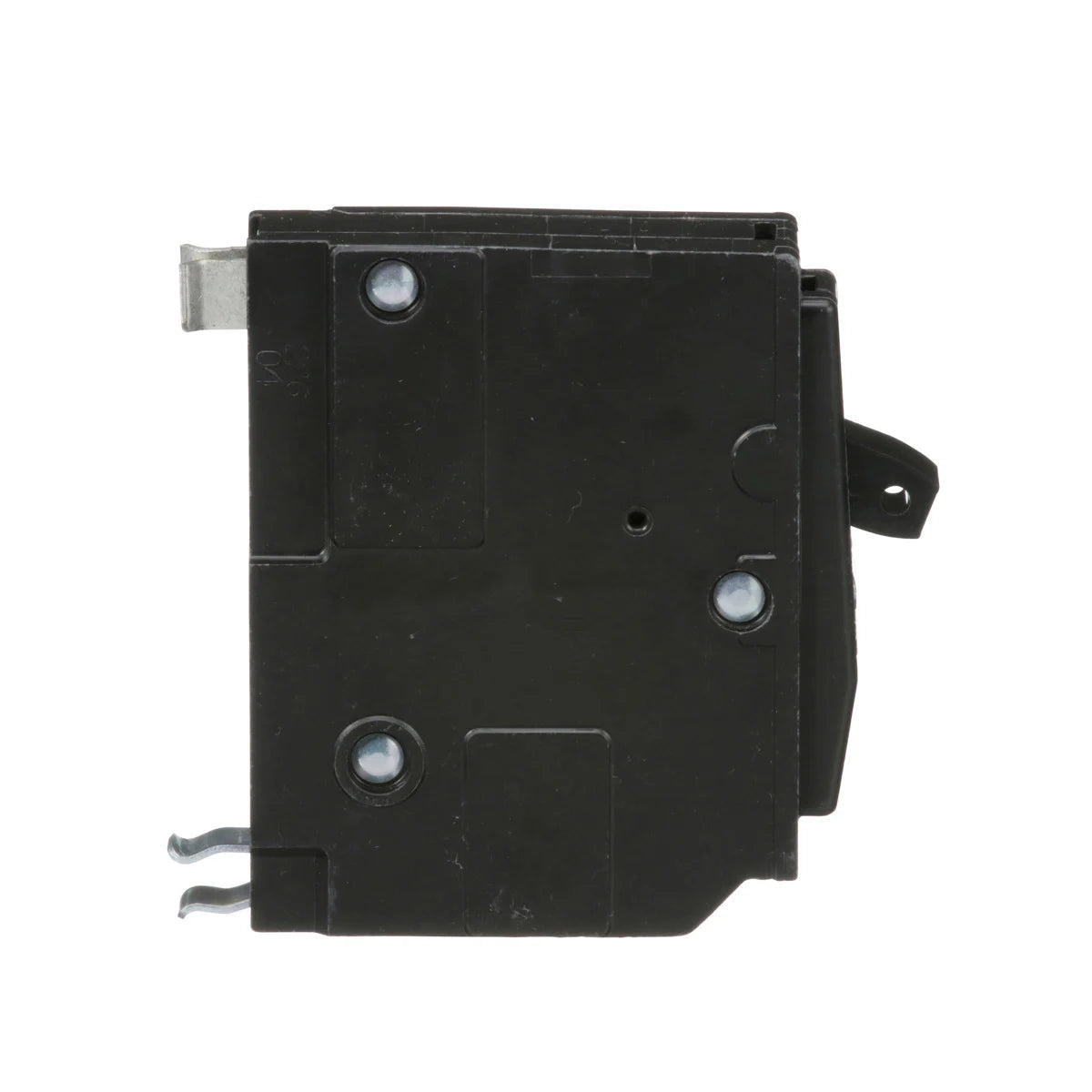

Square D QO125 25amp 120/240v 1Pole Miniature Circuit Breaker, Plug-In

Product Description

The Square D QO125 is a miniature circuit breaker with an MPN of QO125. This breaker provides overcurrent protection for systems operating on AC and DC. It features a trip-free toggle mechanism designed for quick make and quick break functionality. With VisiTrip indication, it visually alerts users when the breaker has tripped.

• Rated at 25 amperes and operates on 120/240 volts AC.
• Offers a breaking capacity of 10 kA.
• Designed for plug-in mounting within load centers.

Product Highlights

This miniature circuit breaker is ideal for use in residential and commercial electrical systems. It is UL listed and CSA certified, ensuring compliance with safety standards.

Product Information

Standard Information

• MPN: QO125
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO125
• Current Rating: 25 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size: AWG 14...AWG 8
• Country of Origin: Mexico
• Warranty Length: 18 months
