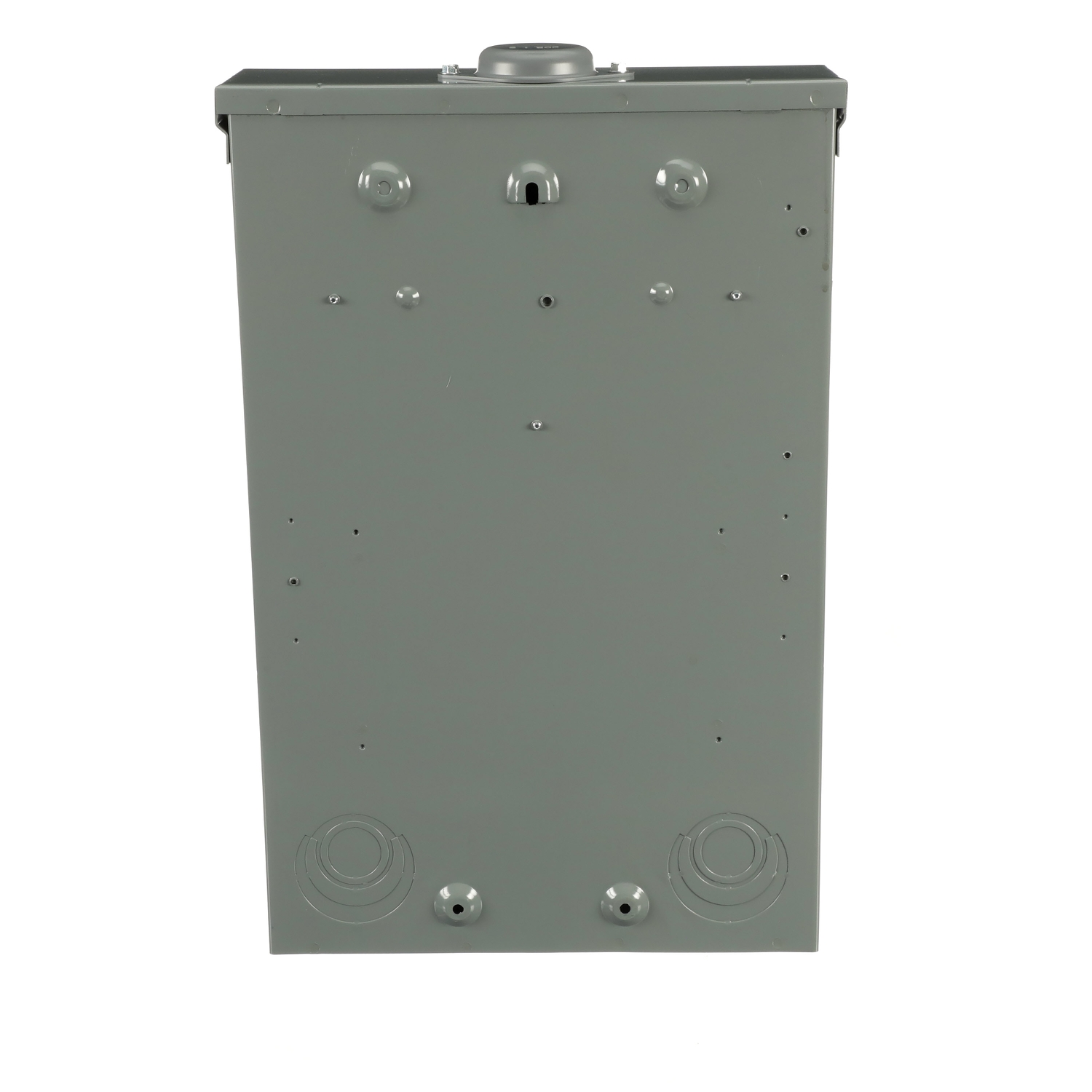

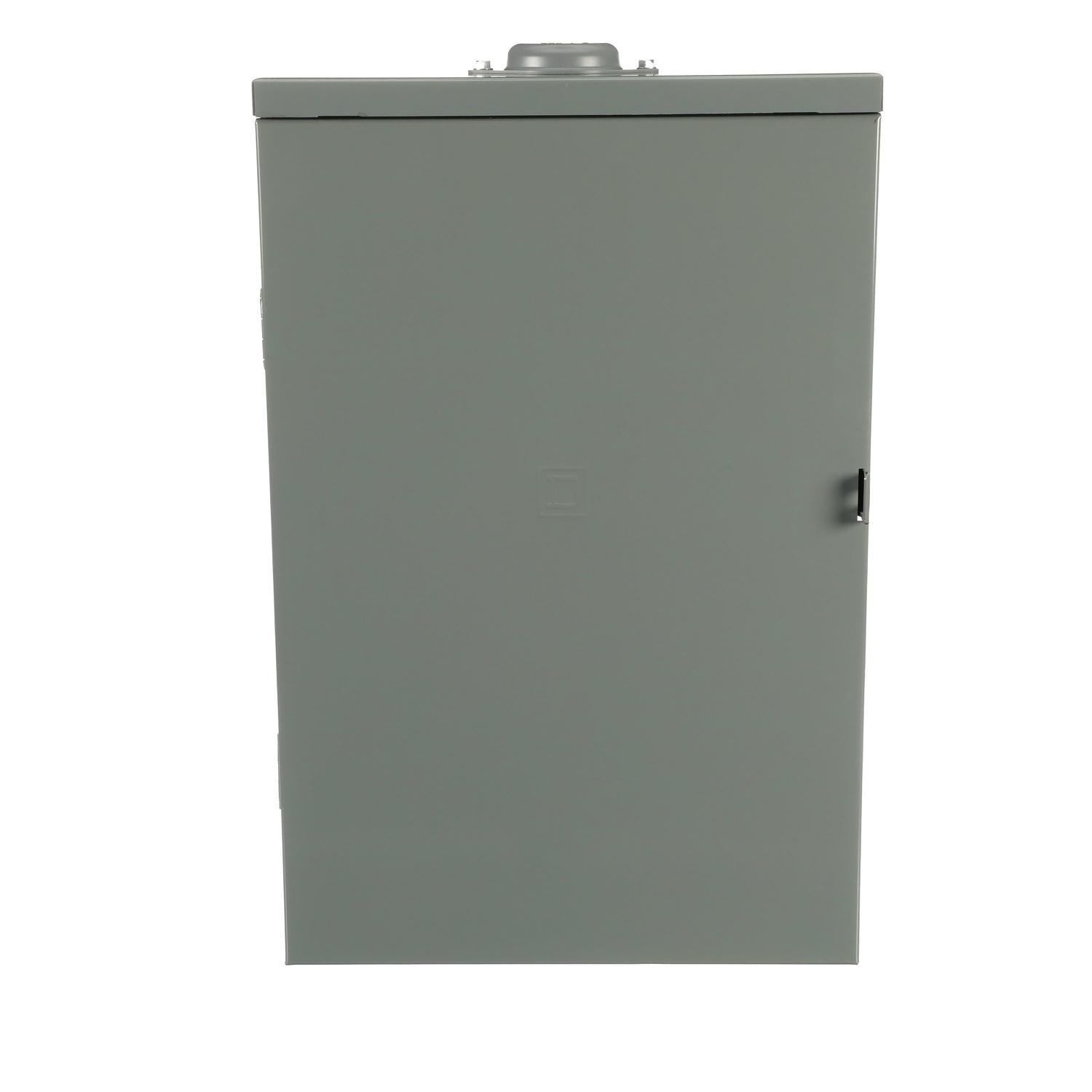

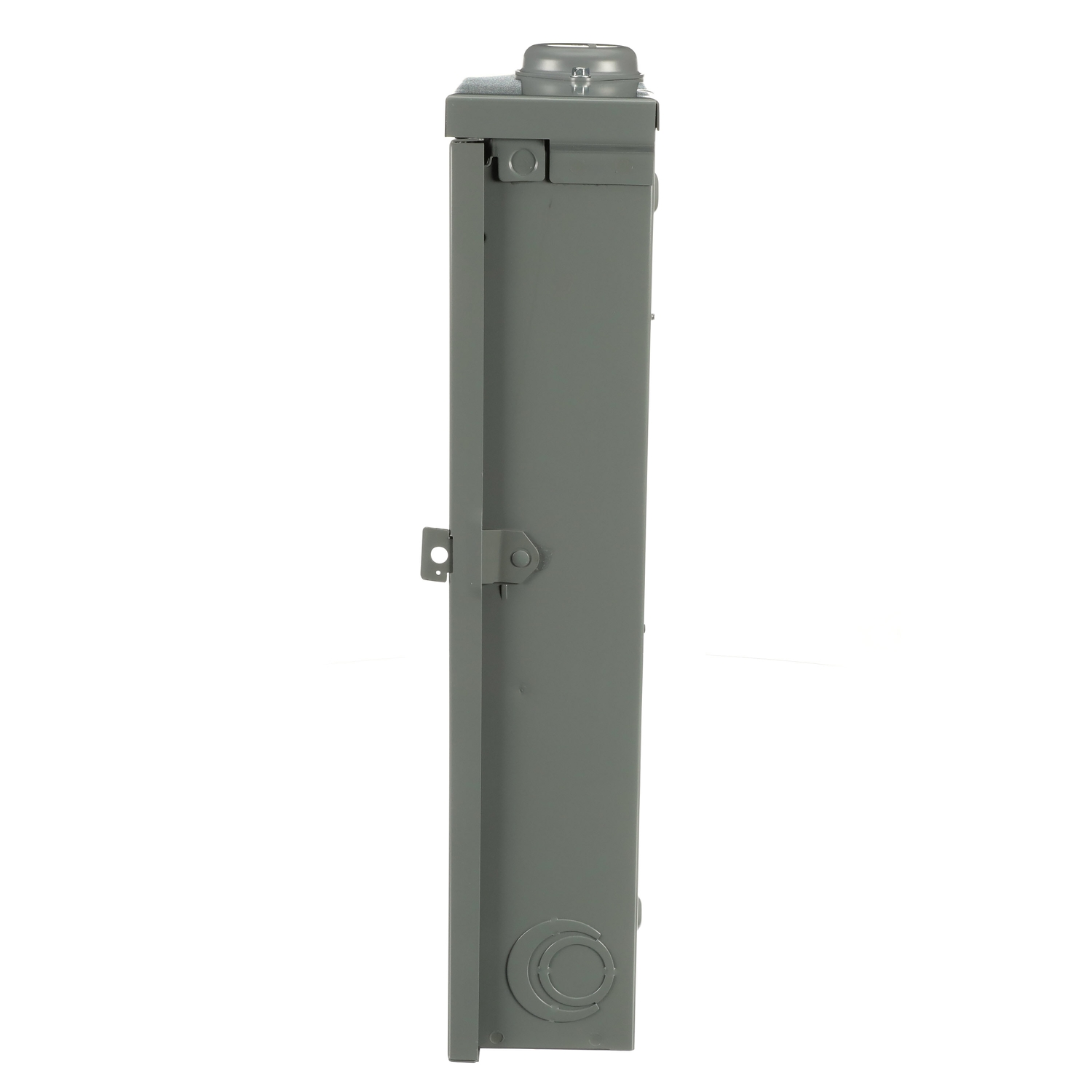

Square D QO124M100PRB Load Center 100A 120/240V 24 Spaces / 34 Circuits NEMA-3R

Product Description

The Square D QO124M100PRB is a load center designed to meet residential, commercial, and industrial requirements. This panelboard protects electrical systems, equipment, and people. It has 24 spaces and 34 circuits, with a 100A convertible main breaker in a NEMA 3R enclosure. It is UL Listed and CSA rated.

• UL Listed and CSA rated panelboard
• 100A convertible main breaker
• NEMA 3R enclosure for outdoor use

Product Highlights

This Square D load center offers reliable protection for electrical systems in various settings. It features a convertible main breaker and a NEMA 3R enclosure.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO124M100PRB
• Country of Origin: United States

Technical Specifications

• Type: Load Center
• Brand: Square D
• Width: 375 mm
• Height: 560 mm
• Current: 100 Amp
• Voltage: 120/240 VAC
• Amperage: 100 Amp
• Material: Tin Plated Copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: QO
• Wire Size: AWG 6...AWG 2/0 aluminium/copper
• Cable Size: AWG 6...AWG 2/0 aluminium/copper
• Cover Type: Surface cover
• Certifications: UL
• Conductor Size: 6-2/0 AWG
• Enclosure Type: Weatherproof enclosure
• Enclosure Rating: NEMA 3R outdoor
• Interrupt Rating: 22 kAIC
• Number of Phases: 1
• Number of Spaces: 24
• Enclosure Material: Welded Galvannealed Steel
• Line Rated Current: 100 A
• Number of Circuits: 34
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 22 kA
• Finish: Baked Enamel
• Phase: 1
• Special Features: Tin plated copper: busbar
• Item Type: Load Center
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 24
• Maximum Number of Spaces: 24
• Main Breaker Type: QOM1 Main Circuit Breaker Frame Size
• Breaker Mounting: Plug-On
• Bus Material: Tin Plated Copper
• Main Wire Size: 6 to 2/0 AWG (Aluminum/Copper)
• Approval: UL
• RoHS Compliant: True
• Cover Finish: Gray Baked Enamel
• Wiring Configuration: 3-wire
• Electrical Connection: Lugs
• Max. No. of Tandem Breakers: 10
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (breaker)
• Rated Current: 100A
• Voltage Type: 1-Phase AC
• Single Pole Circuit Capacity: 34 circuits
• Tandem Breaker Capacity: 10 breakers
• Storage Temperature: 0 to 50 degrees Celsius
• Mounting type: Plug-On
• Box Number: 4R
• Awg Gauge: AWG 6...AWG 2/0 aluminium/copper
• Load Center Type: PoN Convertible Mains (breaker)
• Device Composition: grounding bar (ordered separately)
• Primary/Ambient Air Temp.: -5°C || 40°C
• Enclosure Size Designation: 4R
• Breaker Type: QO
• Housing material: Galvanized Steel
