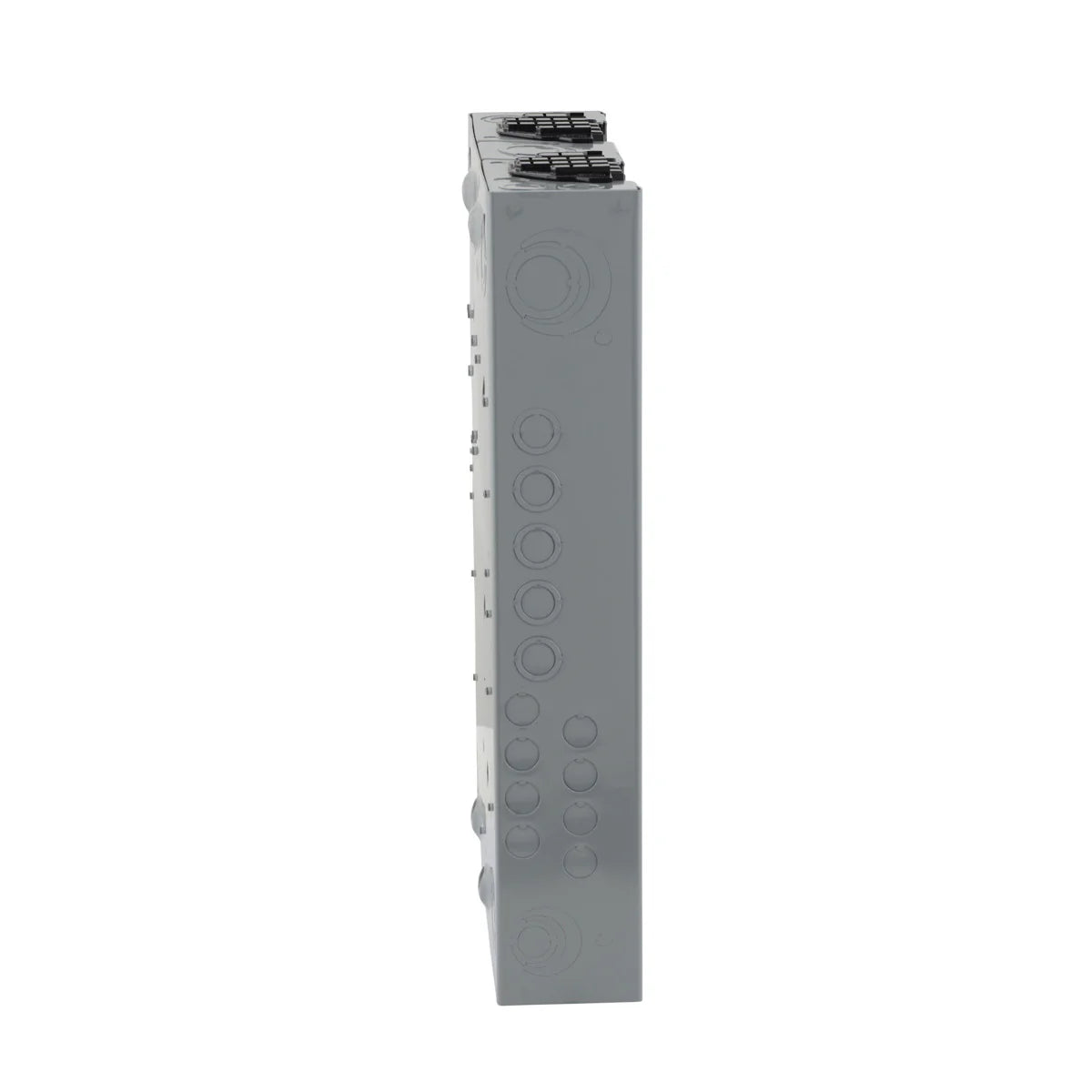

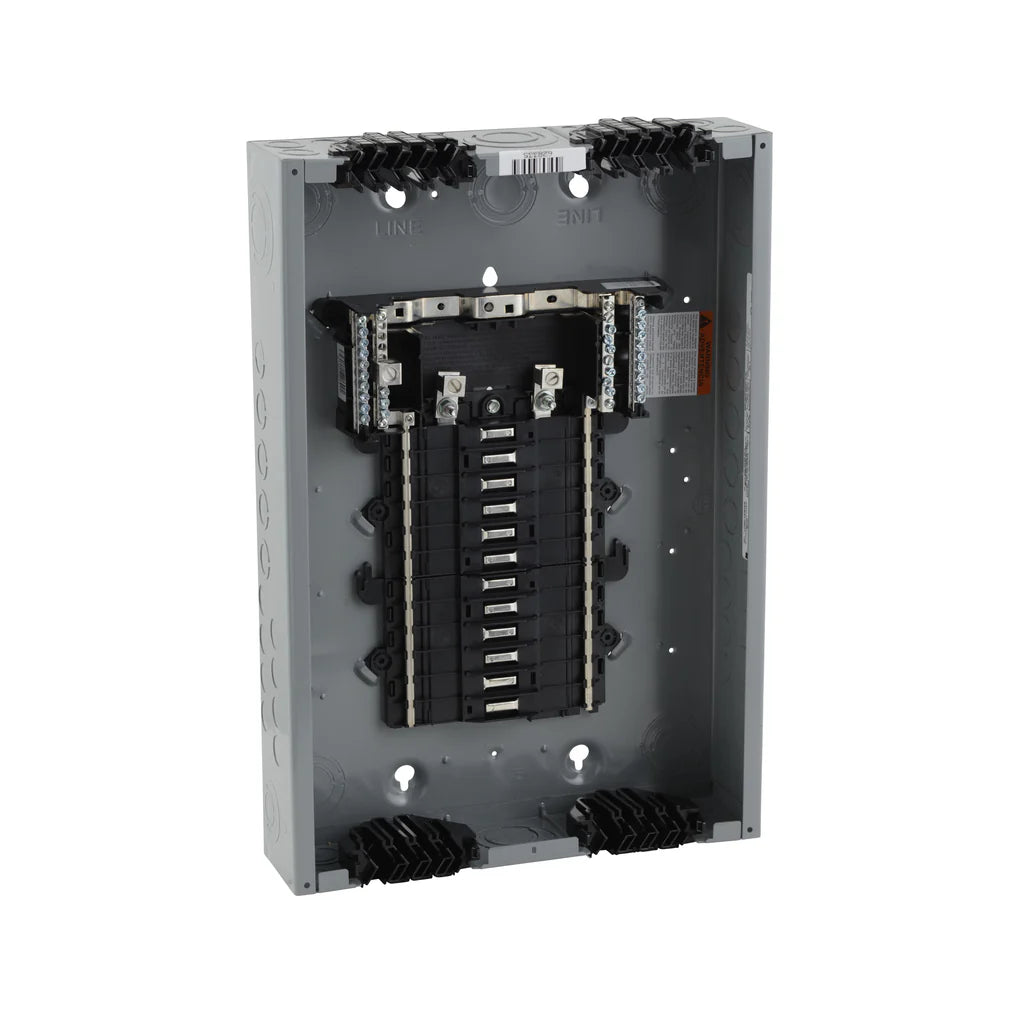

Square D QO124L125PQG Load Center 125A 1 Phase 24 Spaces 34 Circuits

Product Description

The Square D QO124L125PQG is a load center designed to provide reliable power distribution. This unit features a rating of 125 amps and accommodates one phase. The QO series is compatible with QO breakers and supports 24 spaces and 34 circuits. The load center offers a NEMA 1 enclosure suitable for indoor applications.

• Rated current of 125 amps
• Supports 24 spaces and 34 circuit configurations
• Features plug-on neutral technology

Product Highlights

The load center provides safety and efficiency for residential and commercial installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO124L125PQG
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Number of Circuits: 34
• Number of Spaces: 24
• Enclosure Type: NEMA 1
• Material: Copper Busbar
• Operating Temperature: 23 degrees F to 104 degrees F
• Short Circuit Current Rating: 65 kA
• Country of Origin: United States
