Square D QO124L125PGC Load Center 125A 24-Space 34-Circuit Convertible Main Lugs

Product Description

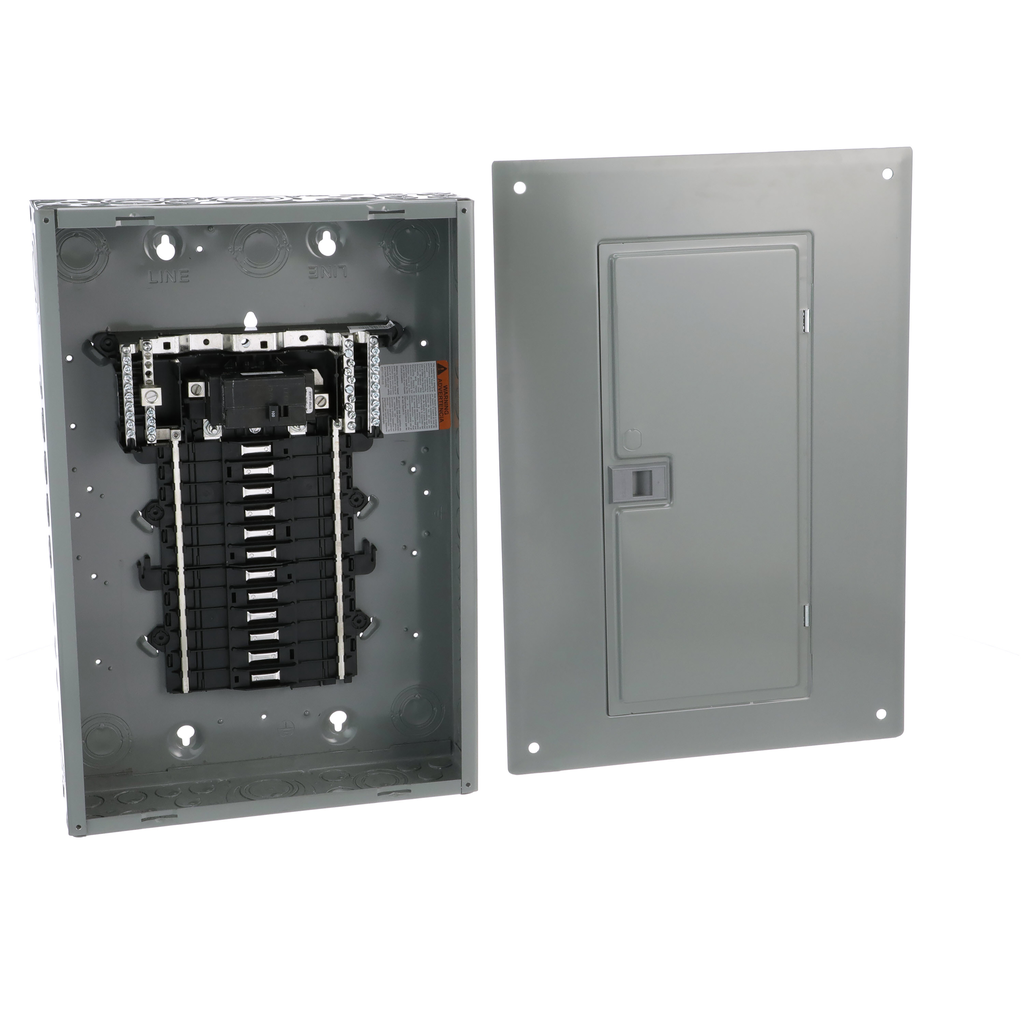

The Square D QO124L125PGC Load Center is designed for both residential and industrial applications. It allows for efficient electrical distribution with a capacity of one hundred twenty-five amperes. This load center features twenty-four spaces and thirty-four circuits, equipped for plug-on neutral configurations.

• Standard NEMA 1 enclosure for indoor use.
• Constructed with tin plated copper bus bars.
• Compatible with various Square D QO breakers and accessories.

Product Highlights

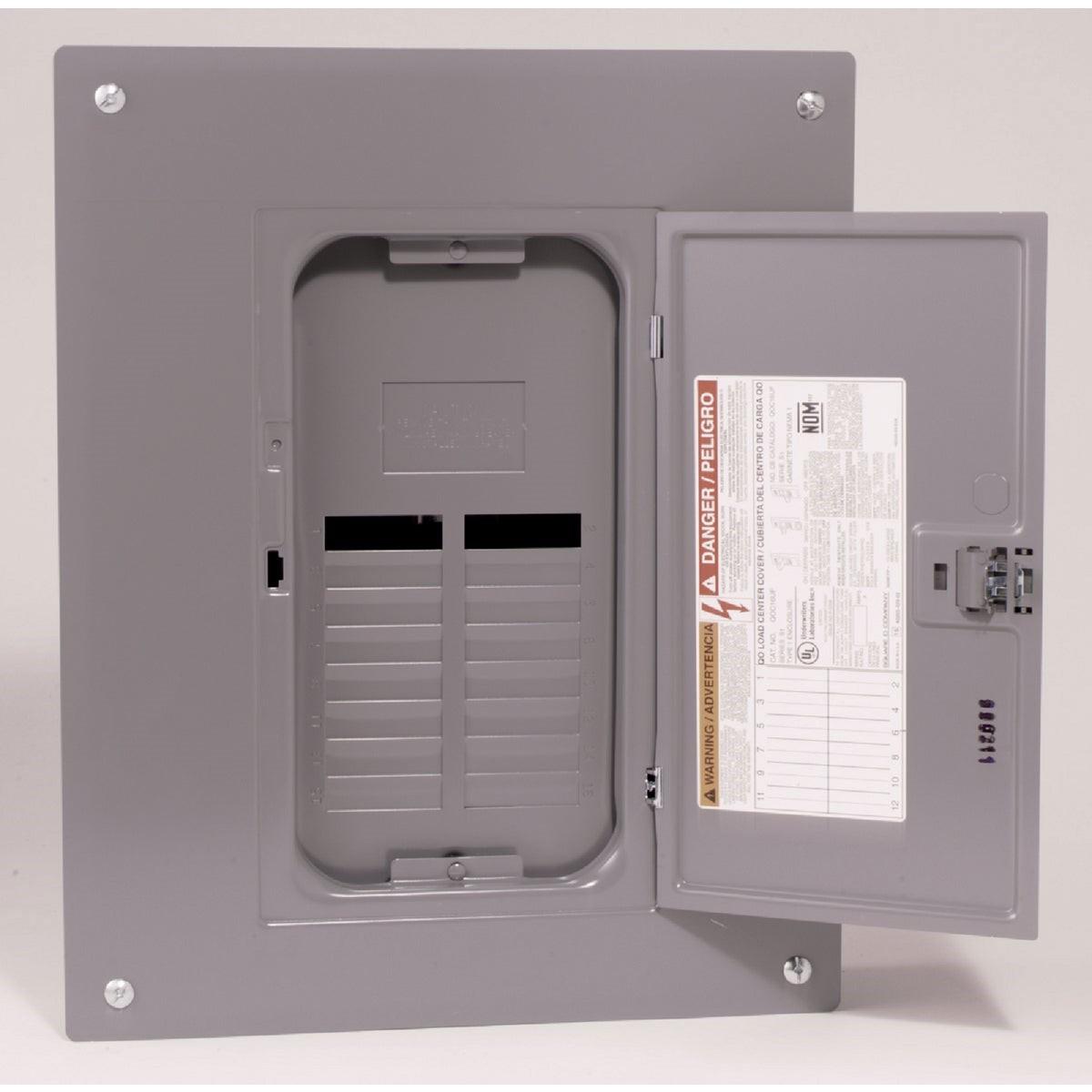

It provides a combination cover and ground bar for enhanced safety and usability. The load center is UL rated, ensuring compliance with electrical safety standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO124L125PGC
• Current Rating: 125 Amp
• Voltage Rating: 120/240 VAC
• Number of Spaces: 24
• Number of Circuits: 34
• Enclosure Type: NEMA 1
• Material: Tin Plated Copper
• Special Features: Combination cover and ground bar
