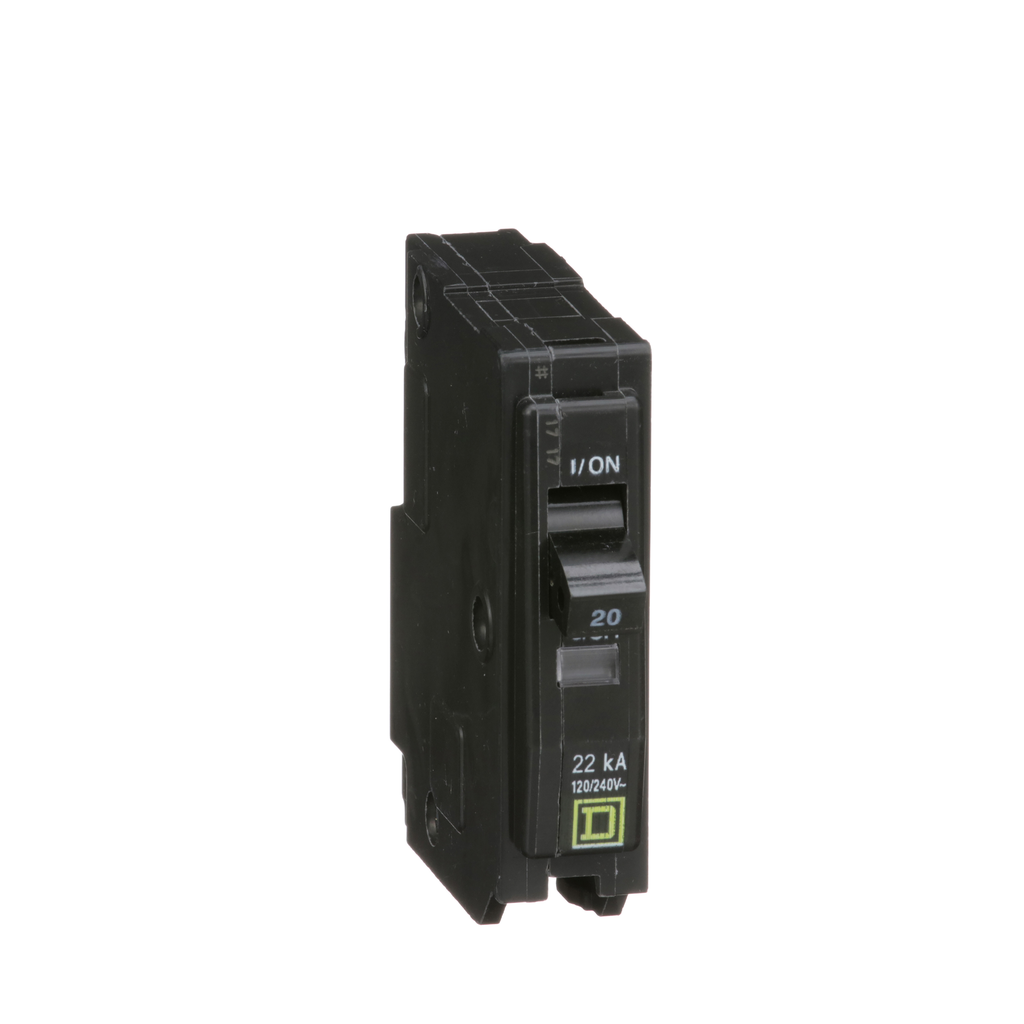

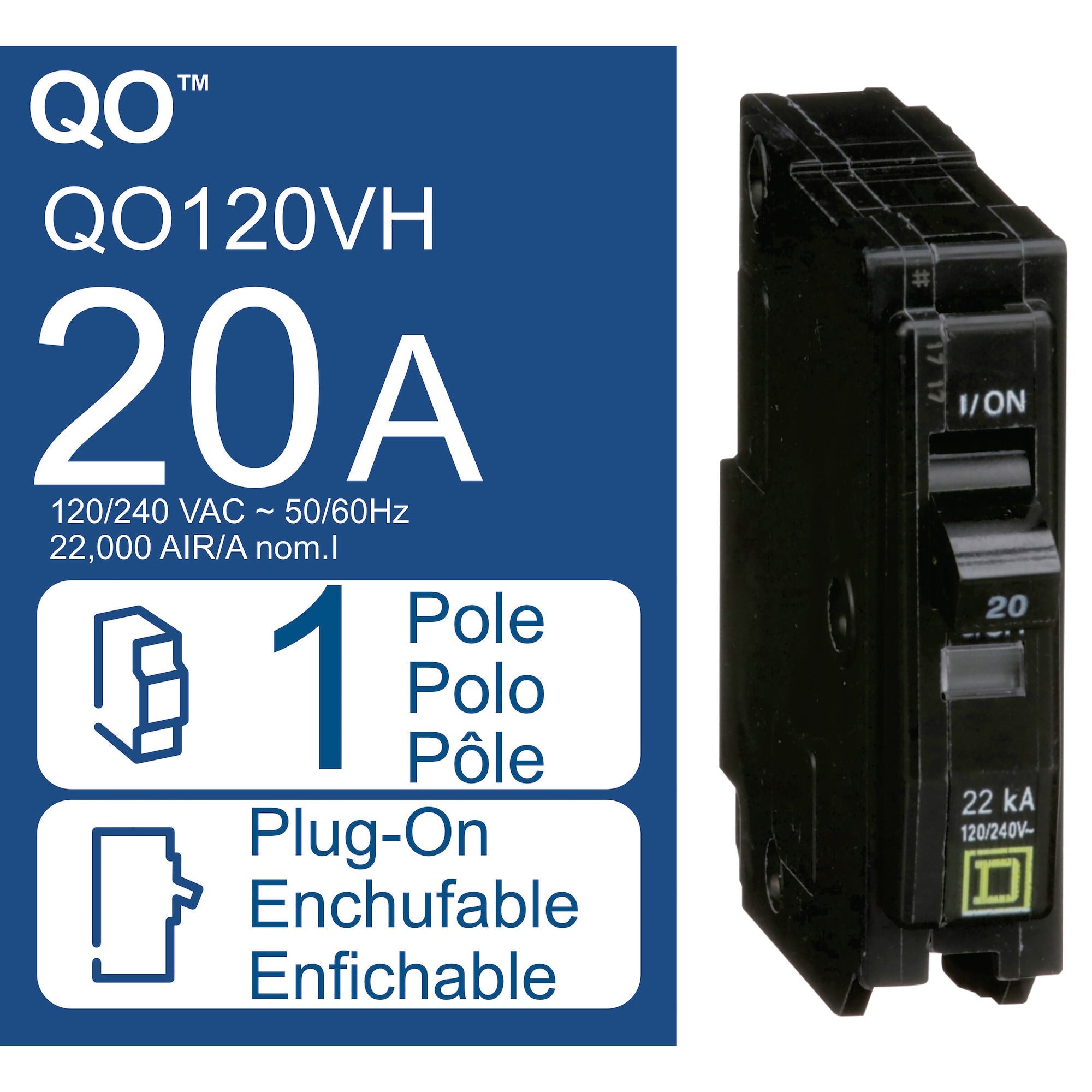

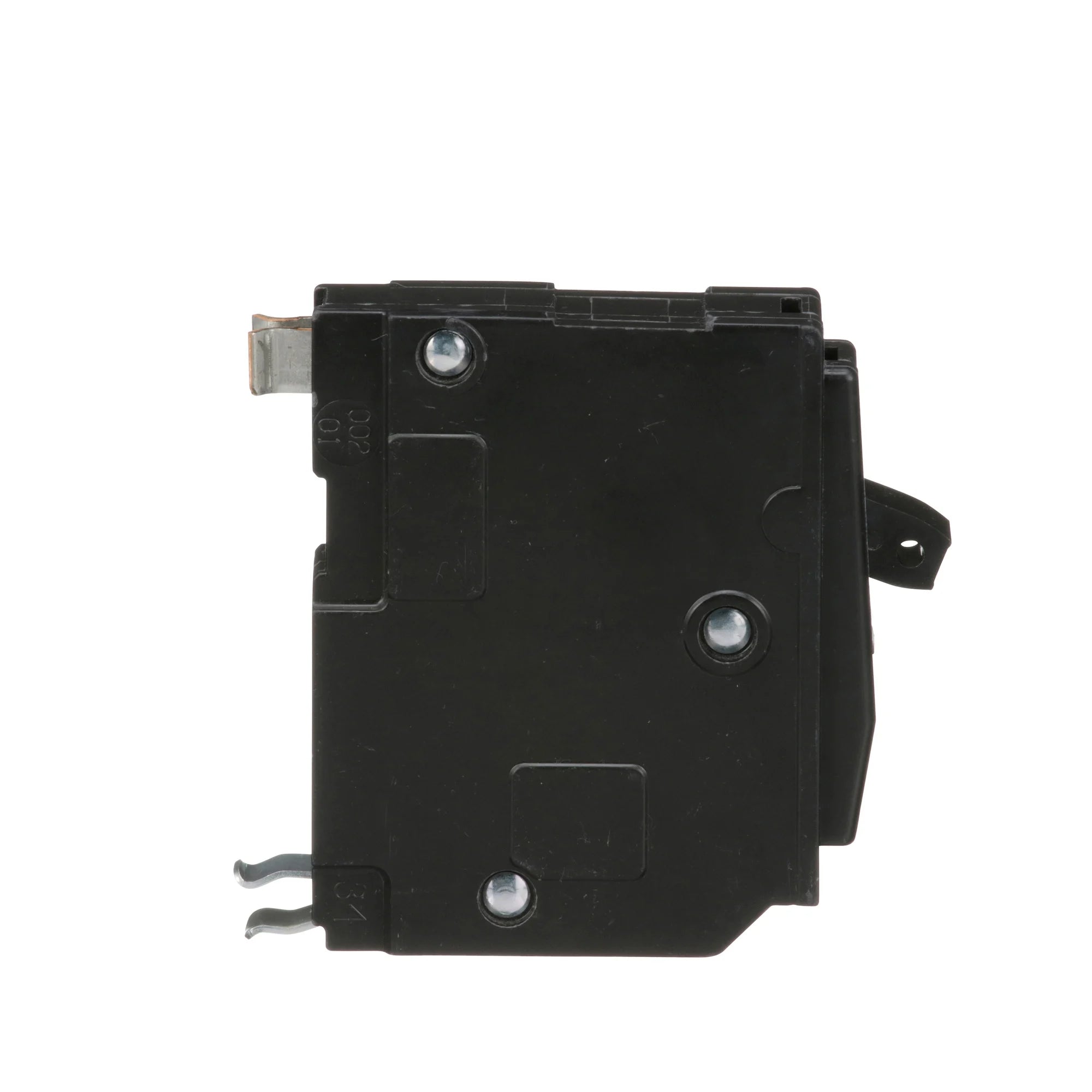

Square D QO120VH Miniature Circuit Breaker 20A 120/240V 1Ph 1P

Product Description

The Square D QO120VH Miniature Circuit Breaker is designed for overcurrent protection in both AC and DC systems. Rated at 20 Amps and suitable for 120/240 Volt power systems, this circuit breaker provides reliable service with a breaking capacity of 22kA. The quick make, quick break toggle mechanism allows for efficient operation and features positive handle indication for enhanced safety. Its compact design ensures minimal footprint, making it ideal for various electrical applications.

• UL Listed and CSA Certified
• 1 Pole design with plug-in mounting
• Compatible with a range of factory-installed accessories

Product Highlights

This circuit breaker includes VisiTrip trip indication for visual alerts when tripped, ensuring immediate response to electrical issues.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Name: Square D QO120VH Miniature Circuit Breaker

Technical Specifications

• Catalog Number: QO120VH
• Type: Miniature Circuit Breaker
• Length: 2.91 inches
• Width: 19 mm
• Height: 76 mm
• Current: 20 Amp
• Voltage: 120/240 Volt
• Number of Poles: 1 Pole
• Interrupt Rating: 22 kAIC
• Certifications: UL Listed, CSA Certified
