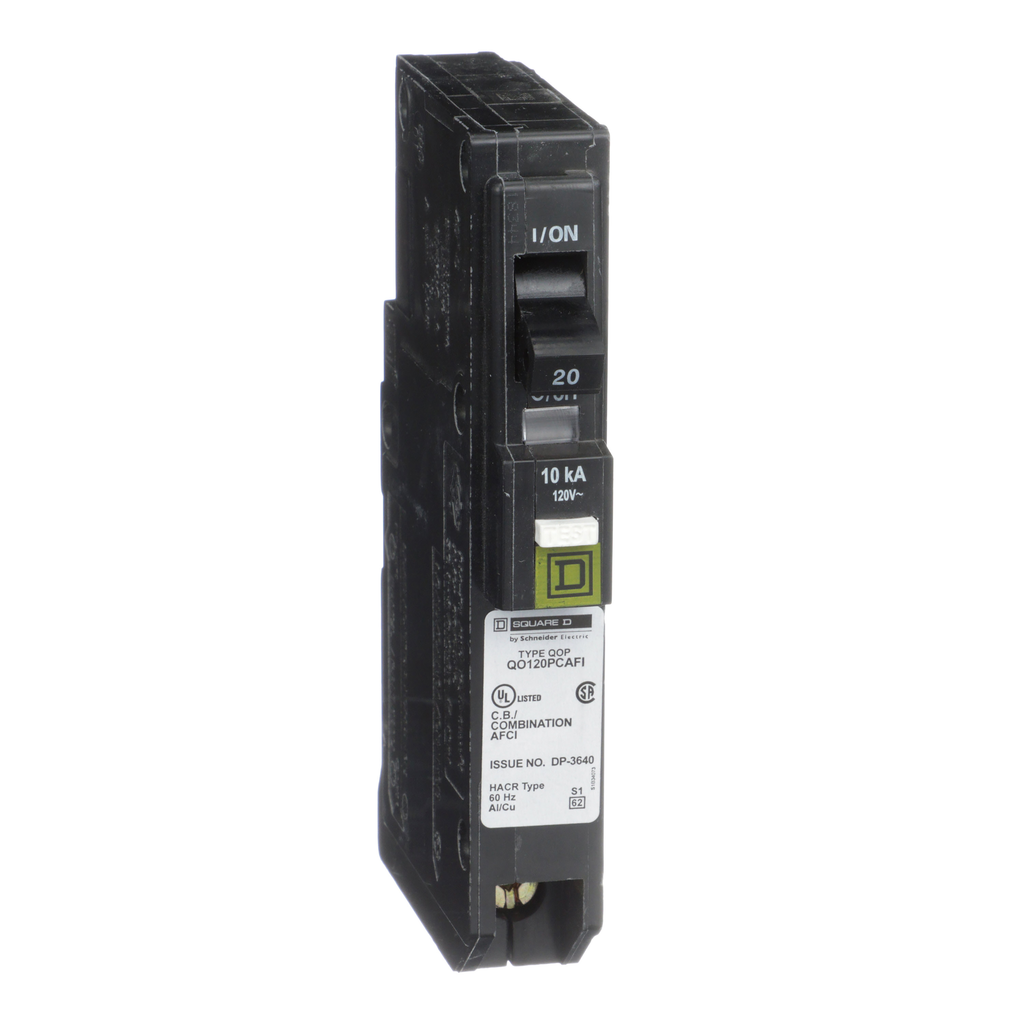

Square D QO120PCAFIC Sqd QO120PCAFIC Mini Circuit Breaker 20 Amp

Product Description

The Square D QO120PCAFIC Sqd QO120PCAFIC mini circuit breaker provides overcurrent protection and switching on AC and DC systems. This 1 pole circuit breaker is rated at 20A at 120VAC and provides 10kA breaking capacity with plug in mounting. It features VisiTrip trip indication and includes a combination arc fault with plug on neutral.

• Overcurrent protection
• Switching on ac and dc systems
• VisiTrip trip indication
• Combination arc fault with plug on neutral

Product Highlights

Miniature circuit breaker with overcurrent protection, switching capabilities, and VisiTrip trip indication for AC and DC systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO120PCAFIC
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 20 Amp
• Voltage: 120 Volt
• Amperage: 20 Amp
• Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Applications: HACR rated
• Mounting Type: Plug-In
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 20 A
• Circuit Breaker Type: Combination ARC-fault
• Short Circuit Current: 10 kA
• Features: Mercury Free
• Standards: UL Listed, CSA
• Max. Wire Size: 8 AWG (Cu), 8 AWG (Al)
• Min. Wire Size: 14 AWG (Cu), 12 AWG (Al)
• Max. AIR Rating: 10 kA
• AC Voltage Rating: 120V AC
• Terminal Connection: Pressure Plate
• Circuit Breaker Mounting Style: Plug-In
• Certifications: CSA,UL Listed
