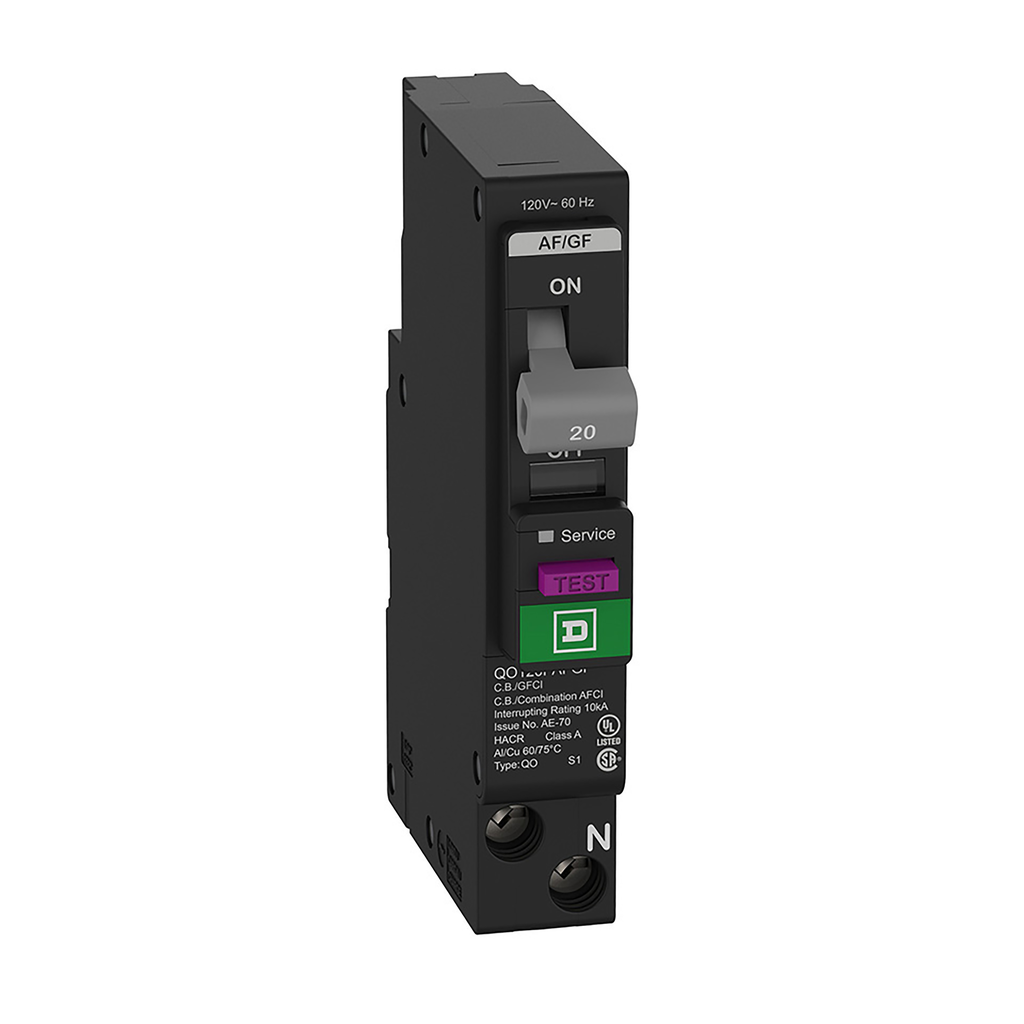

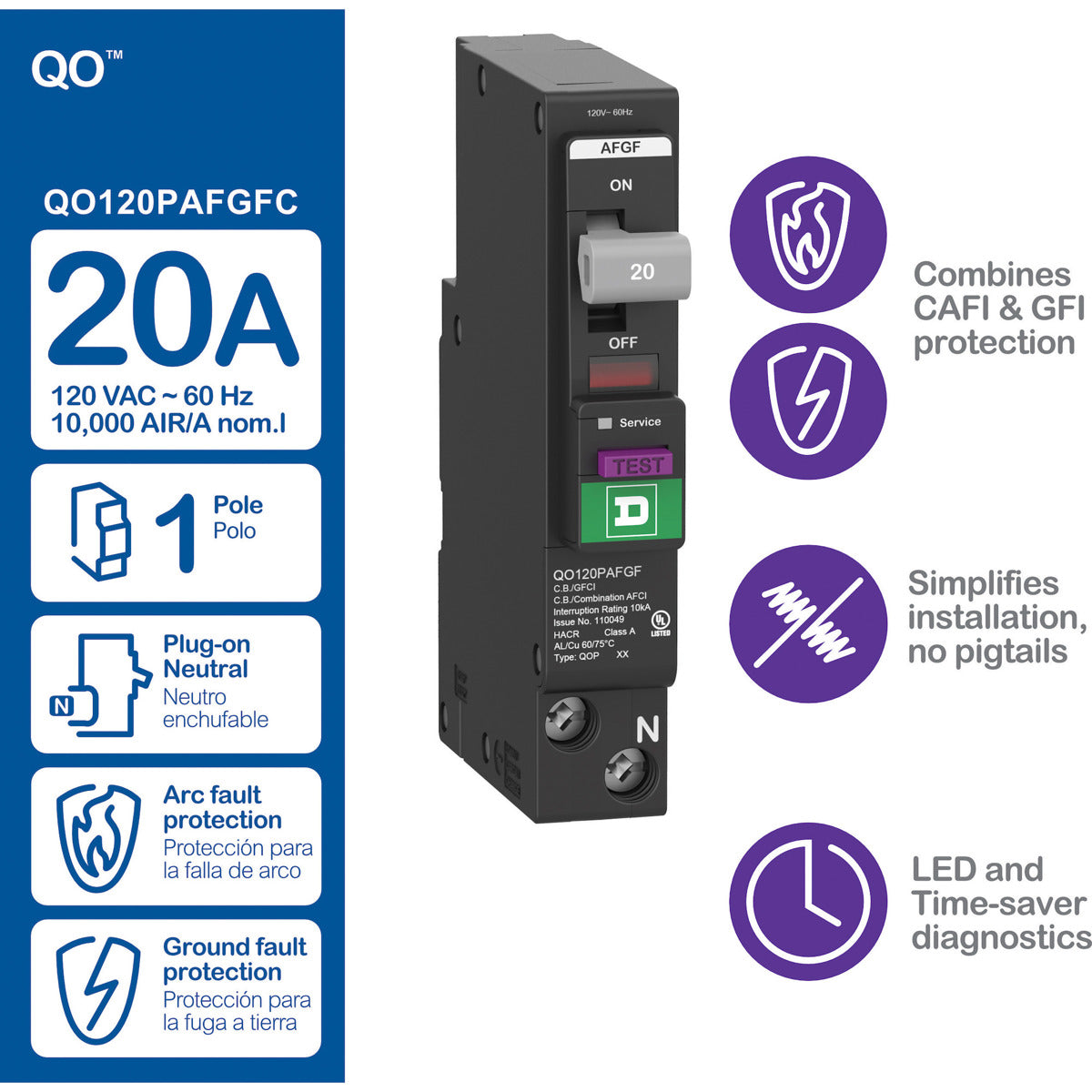

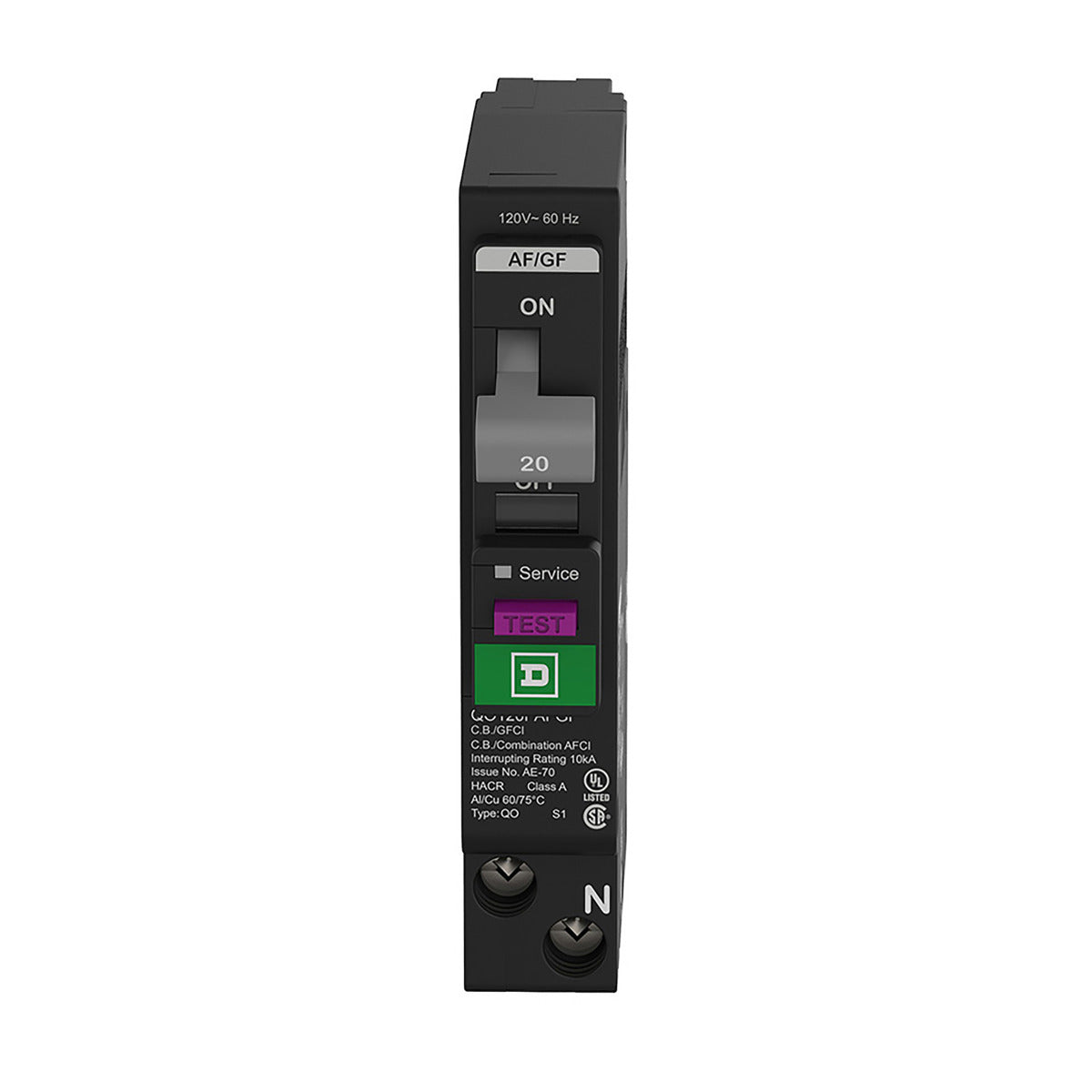

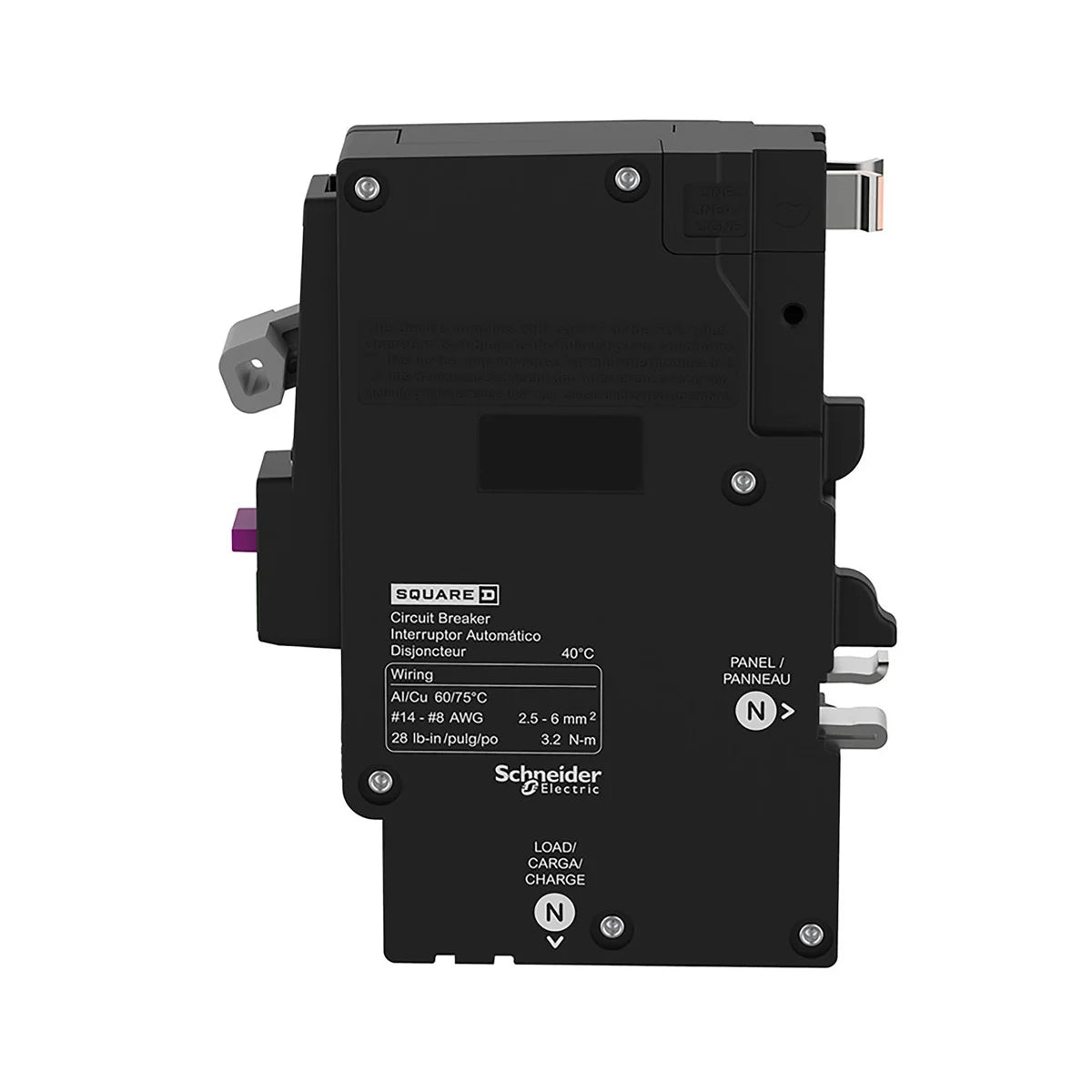

Square D QO120PAFGF Mini Circuit Breaker 20A 120VAC

Product Description

The Square D QO120PAFGF is a mini circuit breaker designed for overcurrent protection in both AC and DC systems. It features a thermal magnetic mechanism that provides reliable performance. The device includes a trip-free toggle switch for easy operation and VisiTrip indication to visually show when the circuit has been interrupted.

• Rated at 20A and 120VAC
• 10kA breaking capacity
• Dual function feature for arc fault and ground fault protection

Product Highlights

This product is suited for installation in various settings where circuit protection is critical. It provides essential safety functions for residential, commercial, and industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO120PAFGF
• Line Rated Current: 20 A
• Mounting Type: Plug-In
• Depth: 4.1 inches
• Width: 0.75 inches
• Height: 2.72 inches
• Weight: 0.35 lbs
• UPC: 785901779278
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
