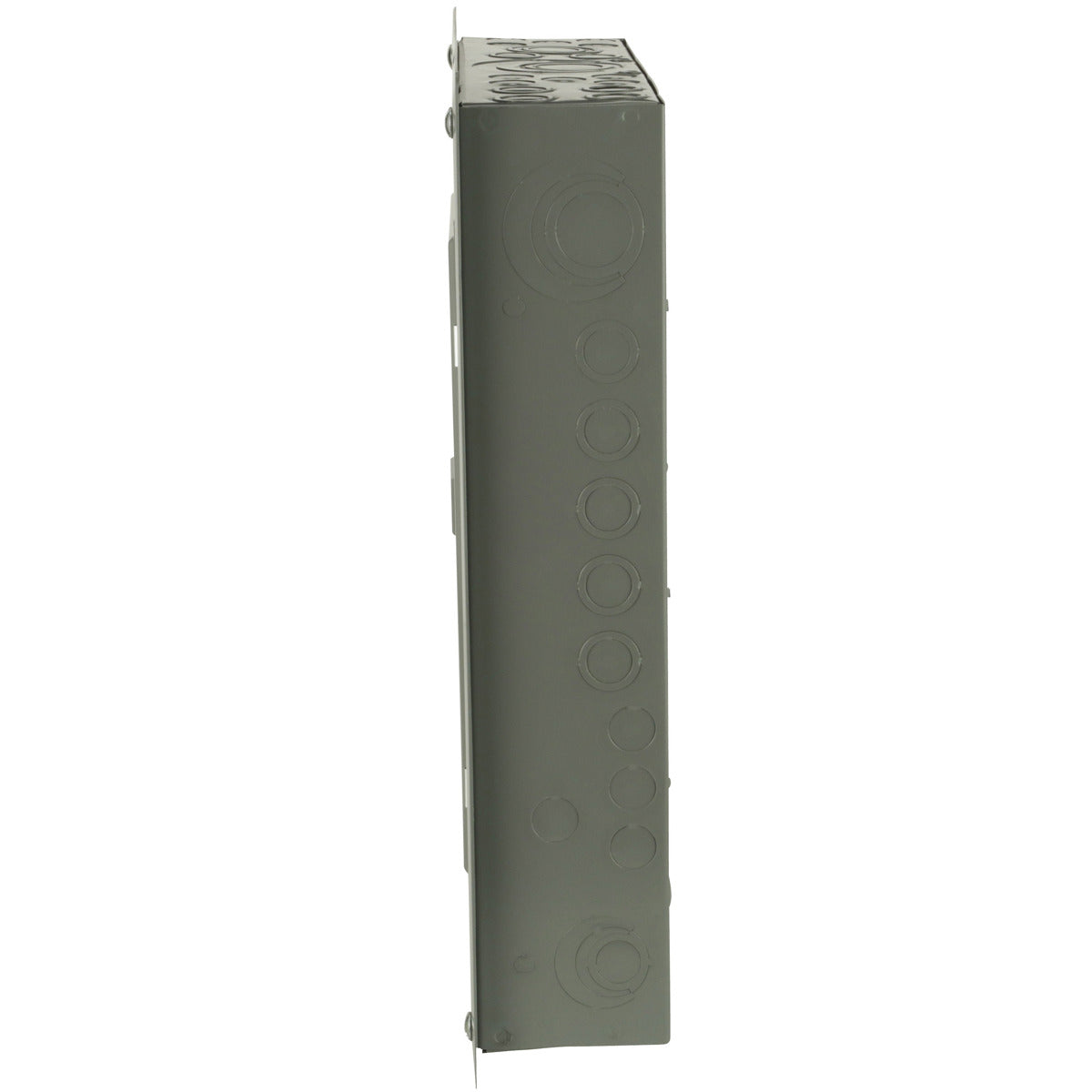

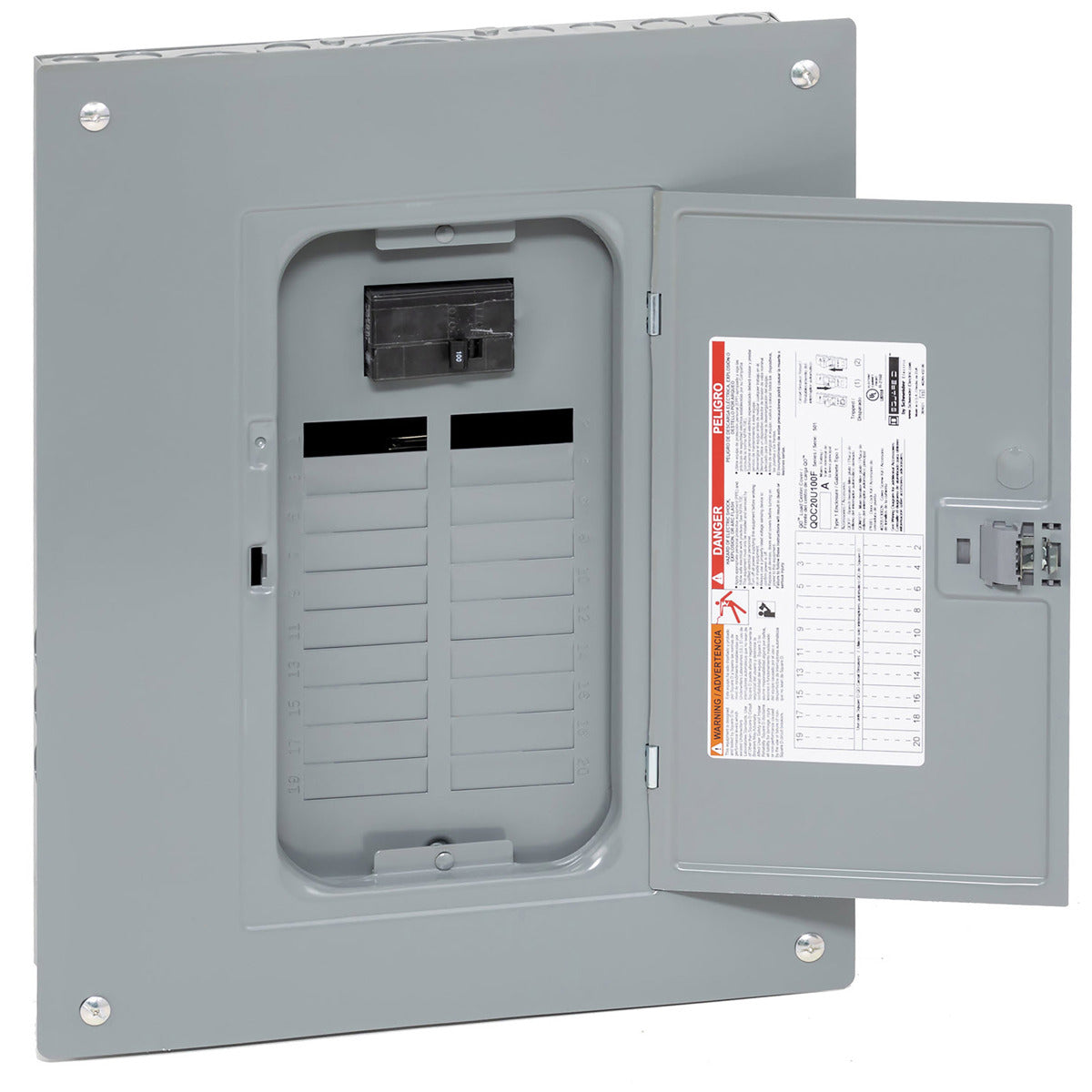

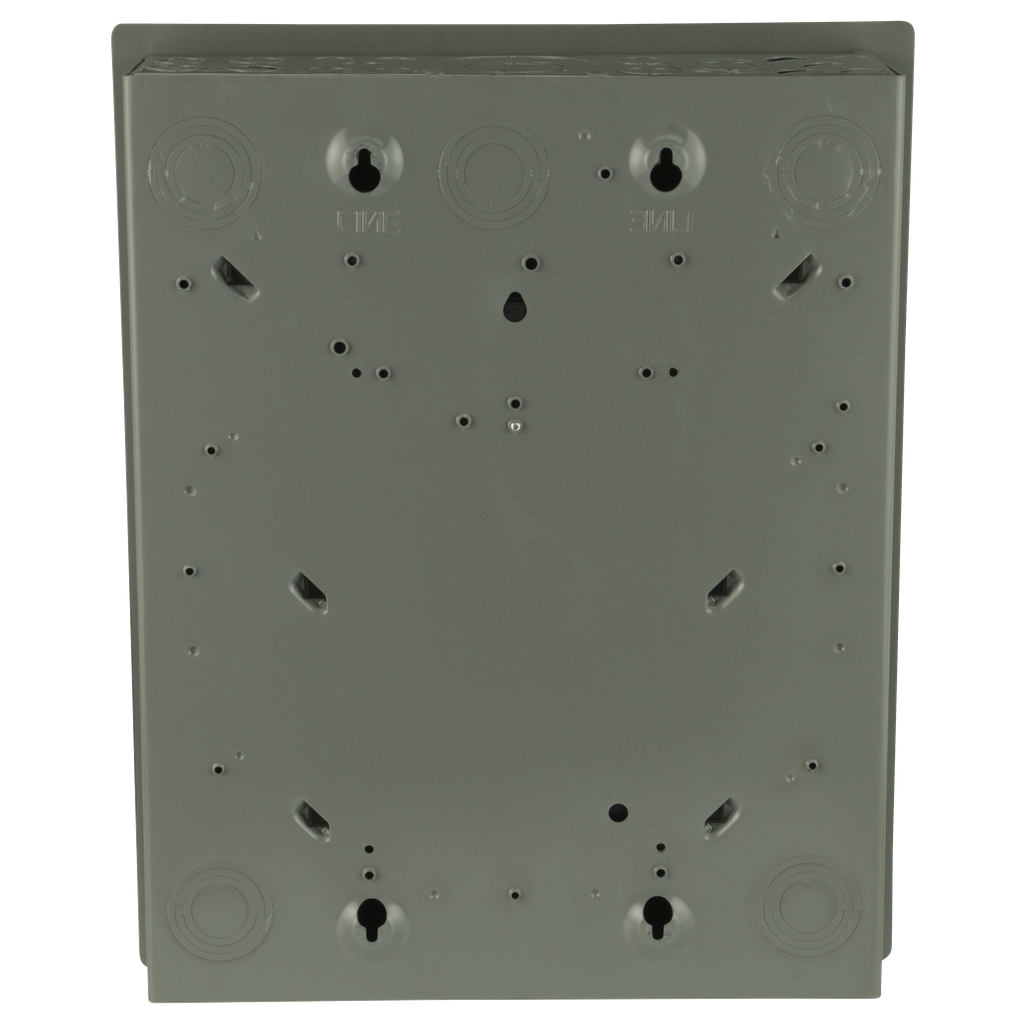

Square D QO120M100PC Load Center, QO, 1 Phase, 20 Spaces, 24 Circuits, 100A Convertible Main Breaker

Product Description

Square D QO120M100PC is a load center designed for use in residential and industrial applications. This unit features the capability to house QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters. It is built to protect electrical systems and equipment while ensuring safety for users. The load center comes with both traditional and plug-on neutral configurations.

• Contains 20 spaces and supports 24 circuits.
• Includes a 100 Amp convertible main breaker in a NEMA 1 enclosure.
• Available for single and three-phase options.

Product Highlights

This load center is designed for efficient power distribution, with a robust construction that allows for indoor and outdoor use.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO120M100PC
• Amperage: 100 Amp
• Enclosure: NEMA 1
• Dimensions: 362 mm width x 455 mm height x 95 mm depth
• Number of Phases: 1
• Number of Spaces: 20
• Number of Circuits: 24
• Operating Temperature: -5 degrees C to 40 degrees C
• Short Circuit Current: 22 kA
• Certifications: UL
• Country of Origin: United States
