Product Description

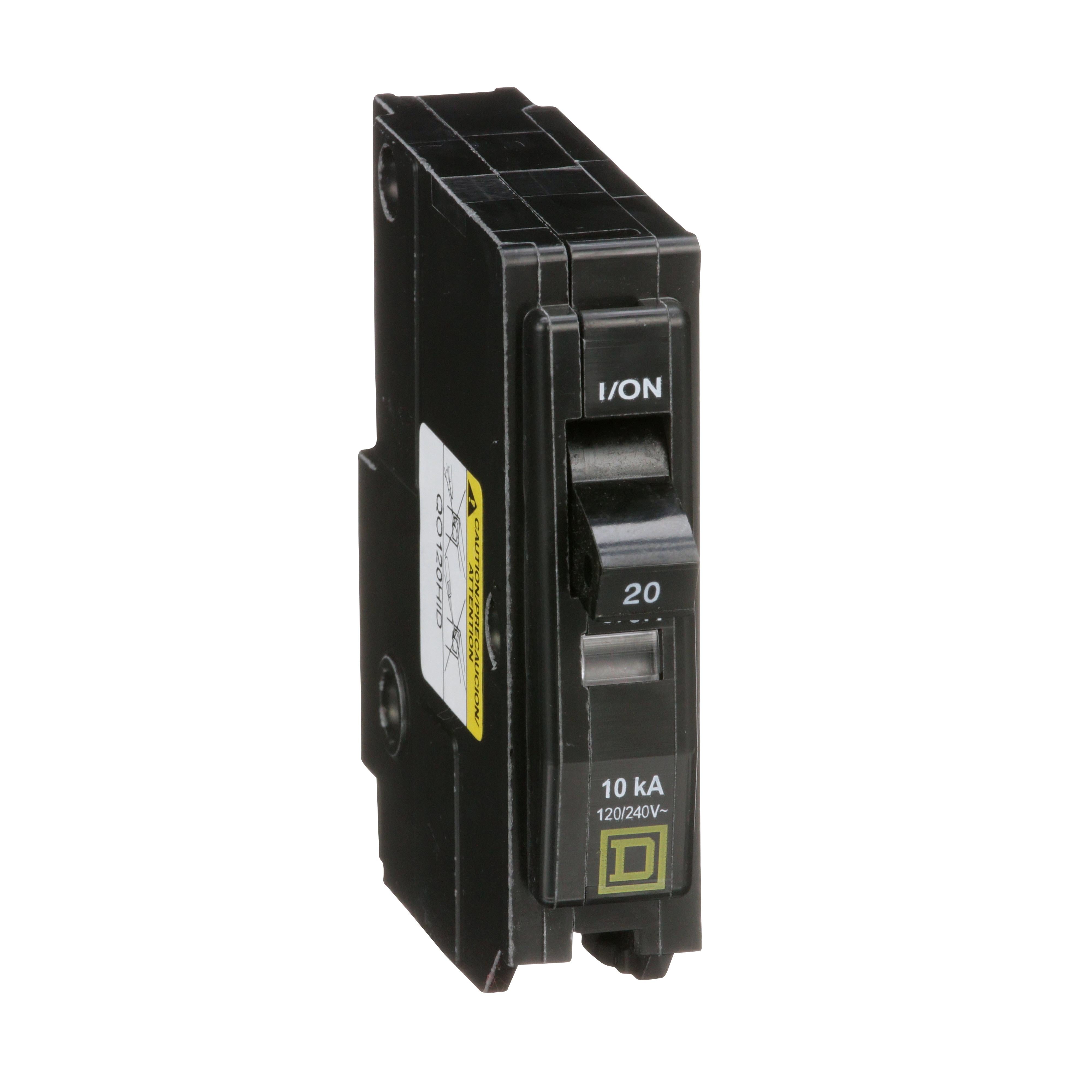

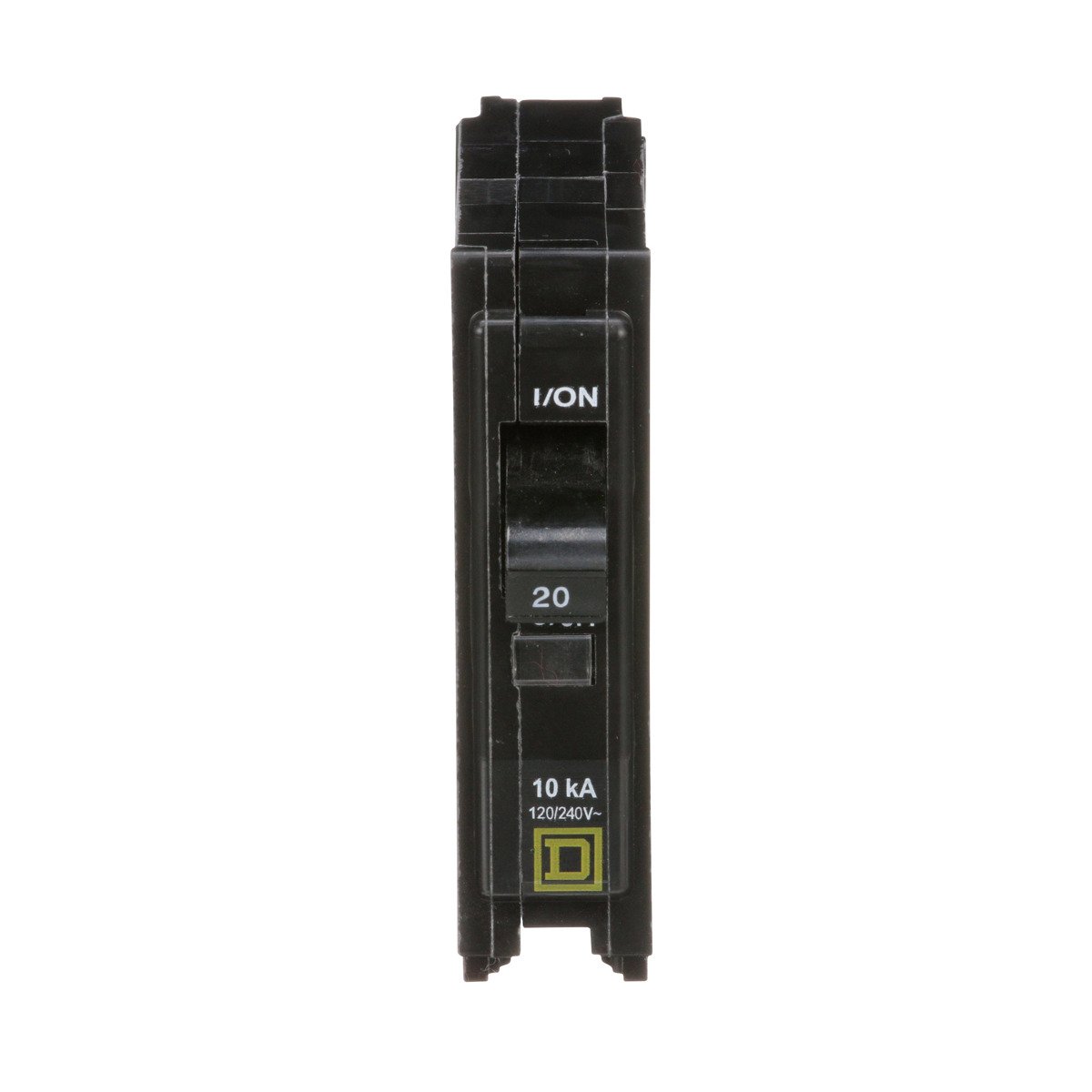

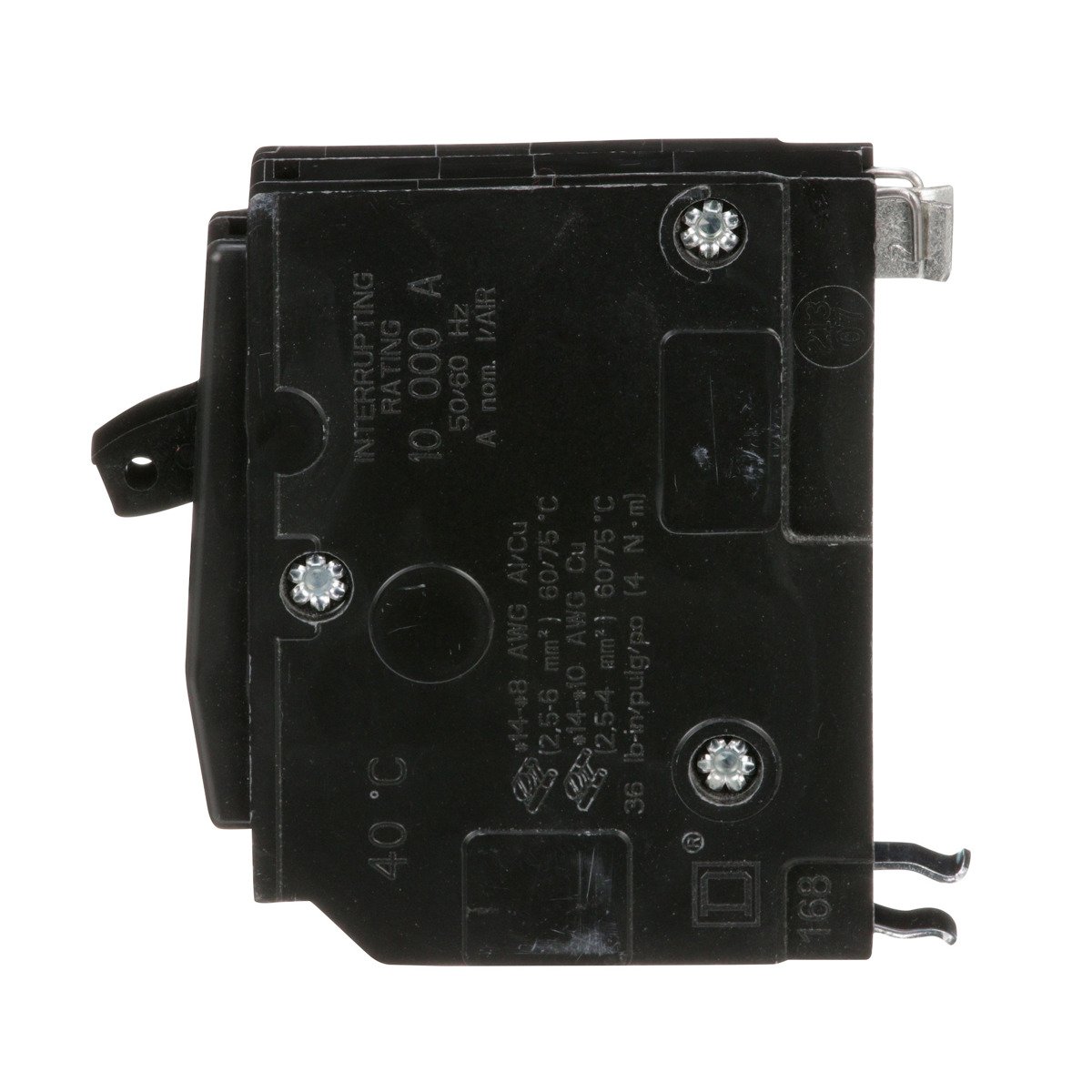

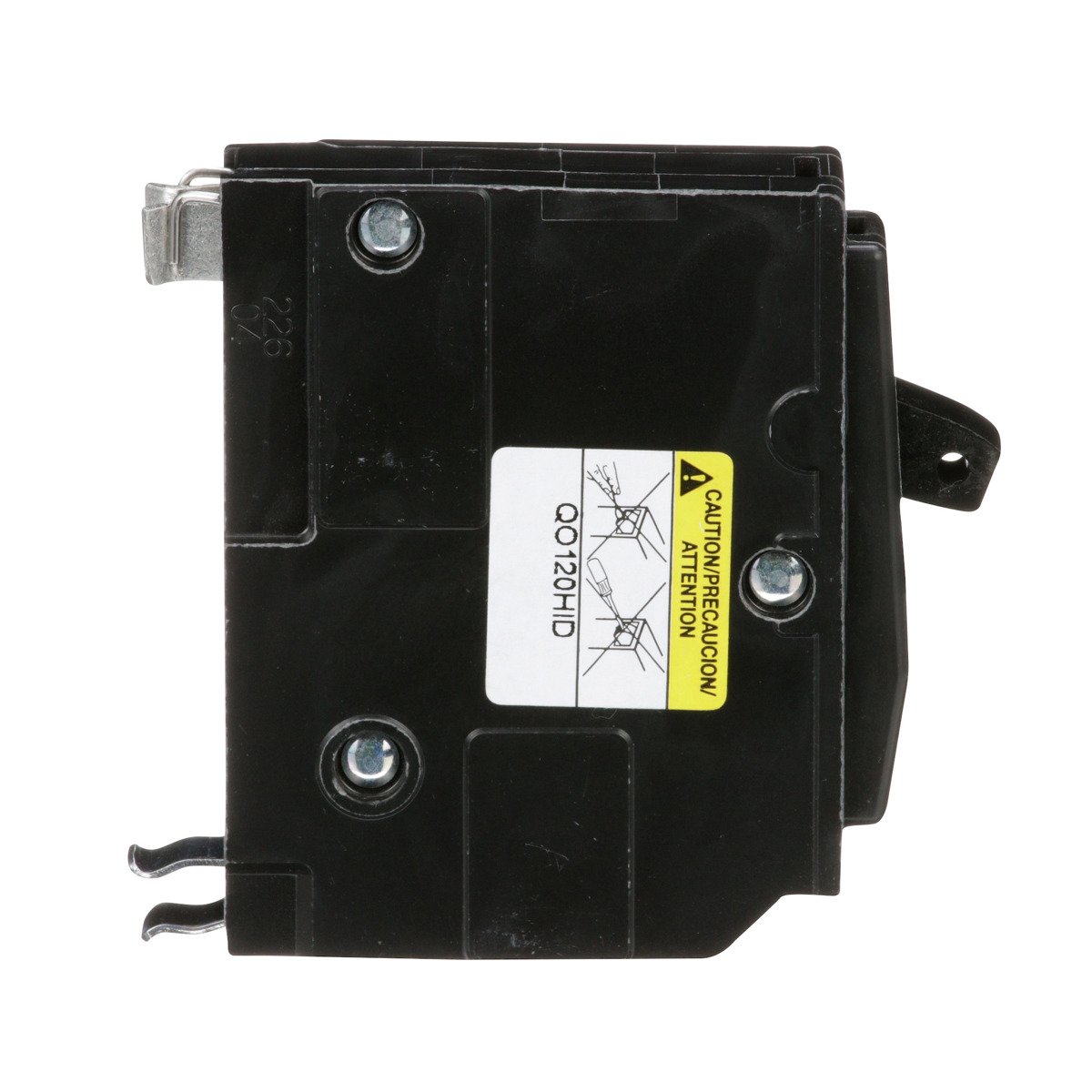

The Square D QO120HID is a miniature circuit breaker designed to provide overcurrent protection and switching on AC and DC systems. This 20 Amp, 120/240 Volt circuit breaker features an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. It has a 10kA breaking capacity and plug in mounting, and is suitable for circuits feeding fluorescent and other high intensity discharge lighting systems.
- Provides overcurrent protection and switching on AC and DC systems
- Features VisiTrip trip indication for visual indication of tripped circuit
- Designed for use on circuits feeding fluorescent and other high intensity discharge lighting systems
Product Highlights
The Square D QO120HID circuit breaker offers reliable overcurrent protection with quick-break action and clear trip indication.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO120HID
-
Country of Origin: Mexico
Technical Specifications
-
Type: MINIATURE CIRCUIT BREAKER
-
Brand: Square D
-
Current: 20 Amp
-
Voltage: 120/240 Volt
-
Amperage: 20 Amp
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 8 copper or aluminium
-
Product UPC: 78590154372
-
12-Digit UPC: 785901543725
-
Applications: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS.
-
Mounting Type: Plug-In
-
TC Connection: PRESSURE PLATE #14 TO #8 AWG(AL/CU)
-
Certifications: CSA,UL Listed
-
Conductor Size: 14-8 AWG
-
Number of Poles: 1 Pole
-
Interrupt Rating: 10 kA at 120/240V AC
-
Line Rated Current: 20 A
-
Circuit Breaker Type: High Intensity Discharge
-
Short Circuit Current: 10 kA
-
Poles: 1
-
Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
-
Current Rating: 20 Ampere
-
Terminal Type: Pressure Plate
-
Application: Fluorescent/HID Lighting
-
Construction Feature: Common Trip
-
Mounting: Plug-On
-
Used On: NQOD Panelboard, QO Loadcenter, Speed-D Switchboard Distribution Panel
-
Item: Miniature Circuit Breaker
-
Phase: Single
-
Series: QO
-
Features: Mercury Free
-
Standards: CSA Certified, UL Listed
-
Frame Size: 100A/QO
-
For Use With: QO Load Centers and NQ Panelboards
-
Product Type: Miniature Circuit Breaker
-
Max. Wire Size: 8 AWG
-
Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
-
Max. AIR Rating: 10kA at 120/240V AC
-
AC Voltage Rating: 120/240V AC
-
DC Voltage Rating: 48V DC
-
Terminal Connection: Pressure plate
-
Circuit Breaker Actuator: Paddle
-
Circuit Breaker Mounting Style: Plug In
-
Compatible Panelboard/Load Center Series: QO
-
Frequency Rating: 50/60 Hz
-
Trip Type: Thermal Magnetic
-
Connection Type: Pressure Plate
-
Temperature Rating: 40 deg C
-
ECCN: EAR99
-
UNSPSC: 39121603
-
AWG Range: AWG 14...AWG 8
-
Rated Voltage: 120/240V ac
-
Torque: 4.6-4.6 N.m
