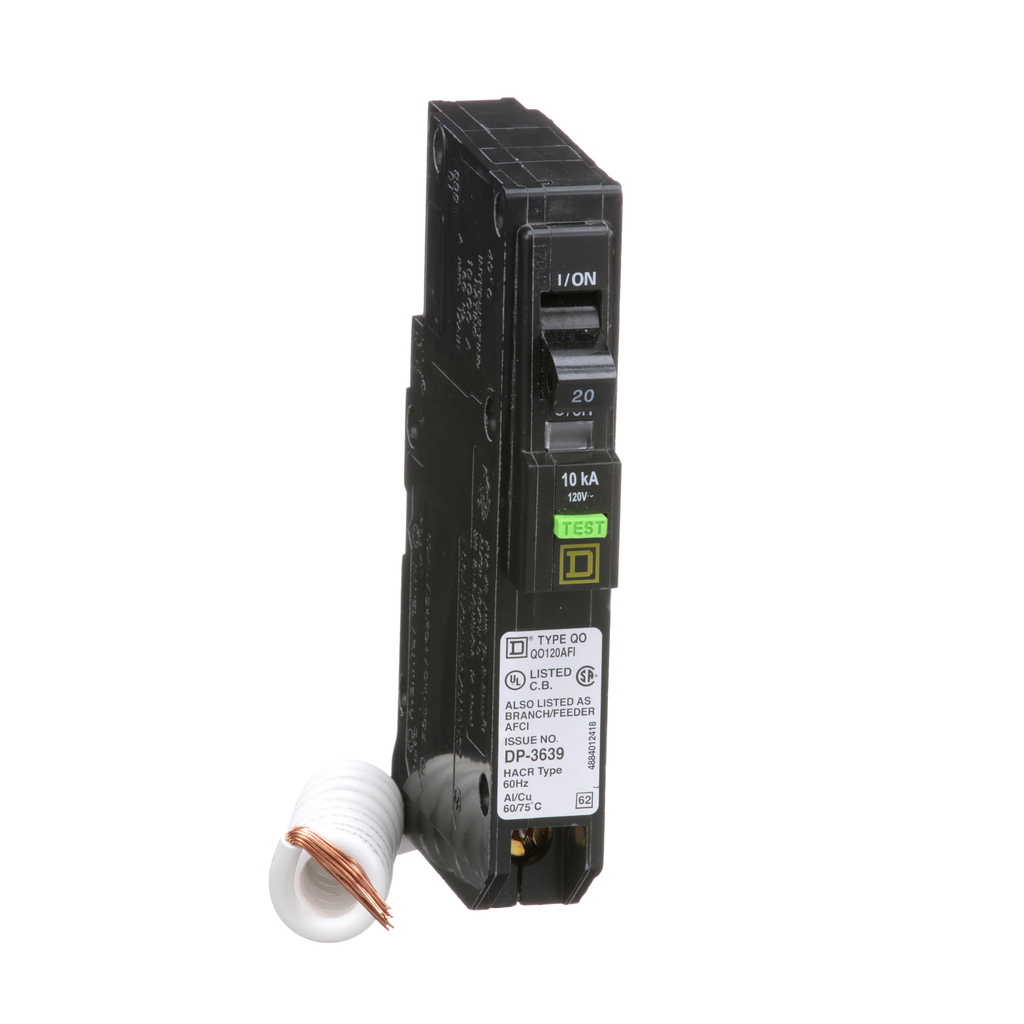

Square D QO120AFI Arc-Fault Miniature Circuit Breaker 20A 120V 1Ph 1P

Product Description

The Square D QO120AFI is a 20 Amp, 120 Volt, single-pole circuit breaker designed to provide overcurrent protection. This arc-fault circuit interrupter enhances safety in residential applications by detecting and interrupting electrical arcs that could cause fires. It features plug-on mounting for easy installation.

• Current rating: 20 Amps.
• Voltage: 120/240 Volts.
• Designed for HACR-rated applications.

Product Highlights

This circuit breaker includes VisiTrip trip indication for quick visual feedback when the circuit has tripped. It provides a breaking capacity of 10kA, ensuring reliable operation and protection.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO120AFI
• Type: Miniature Circuit Breaker
• Current: 20 Amps
• Voltage: 120/240 Volts
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
• Warranty: 18 months
