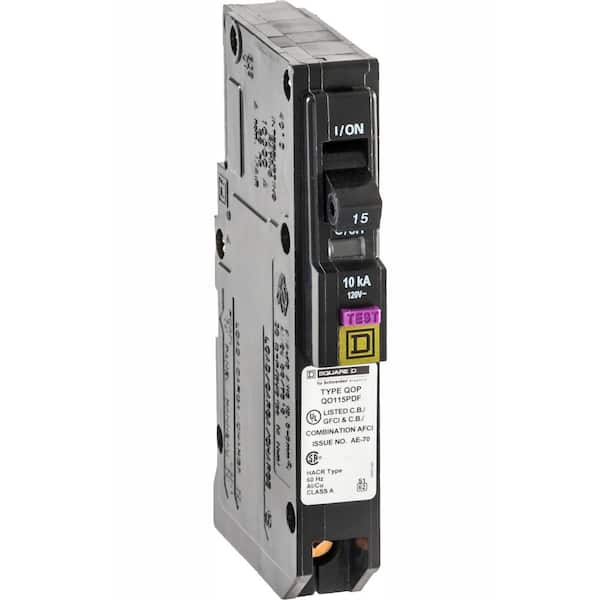

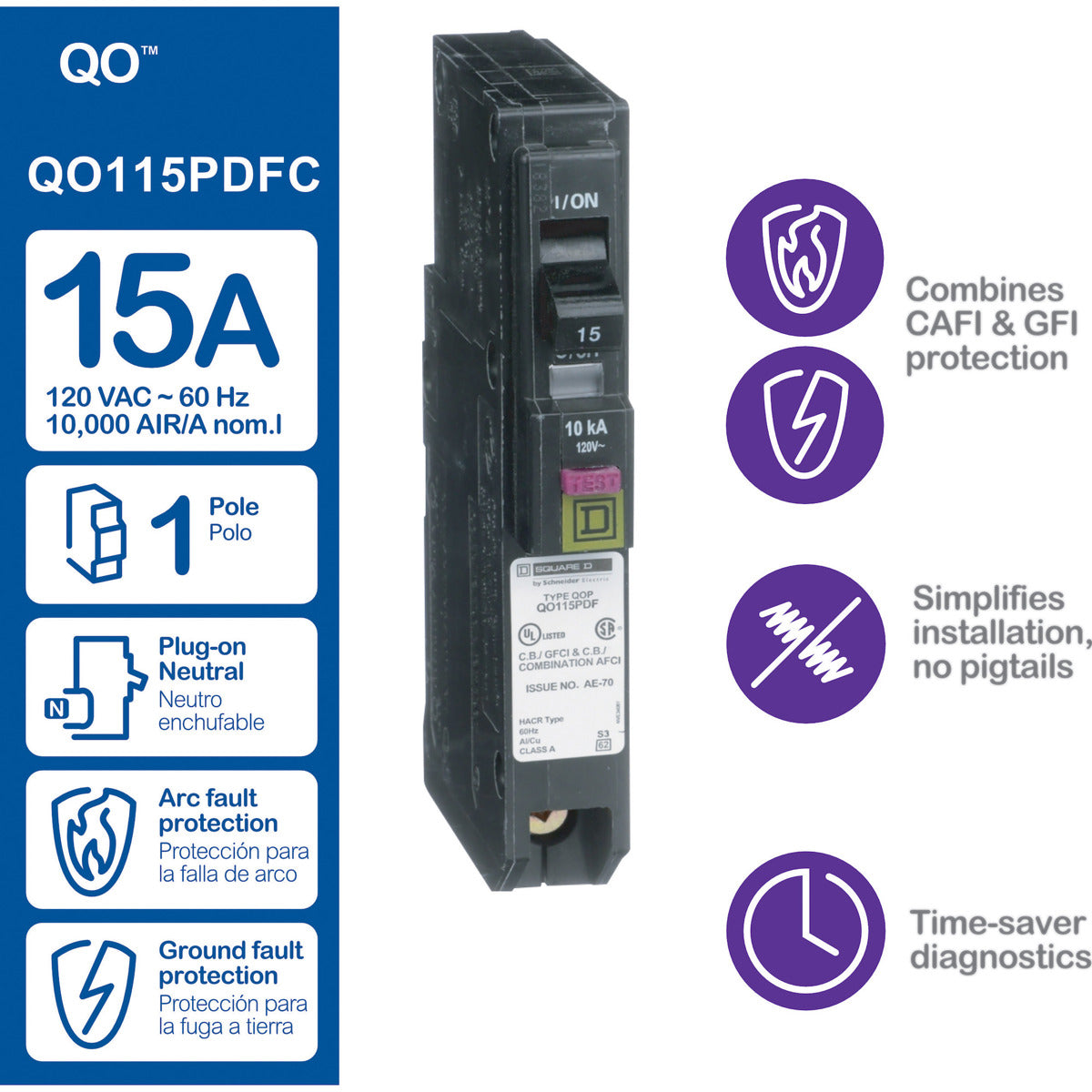

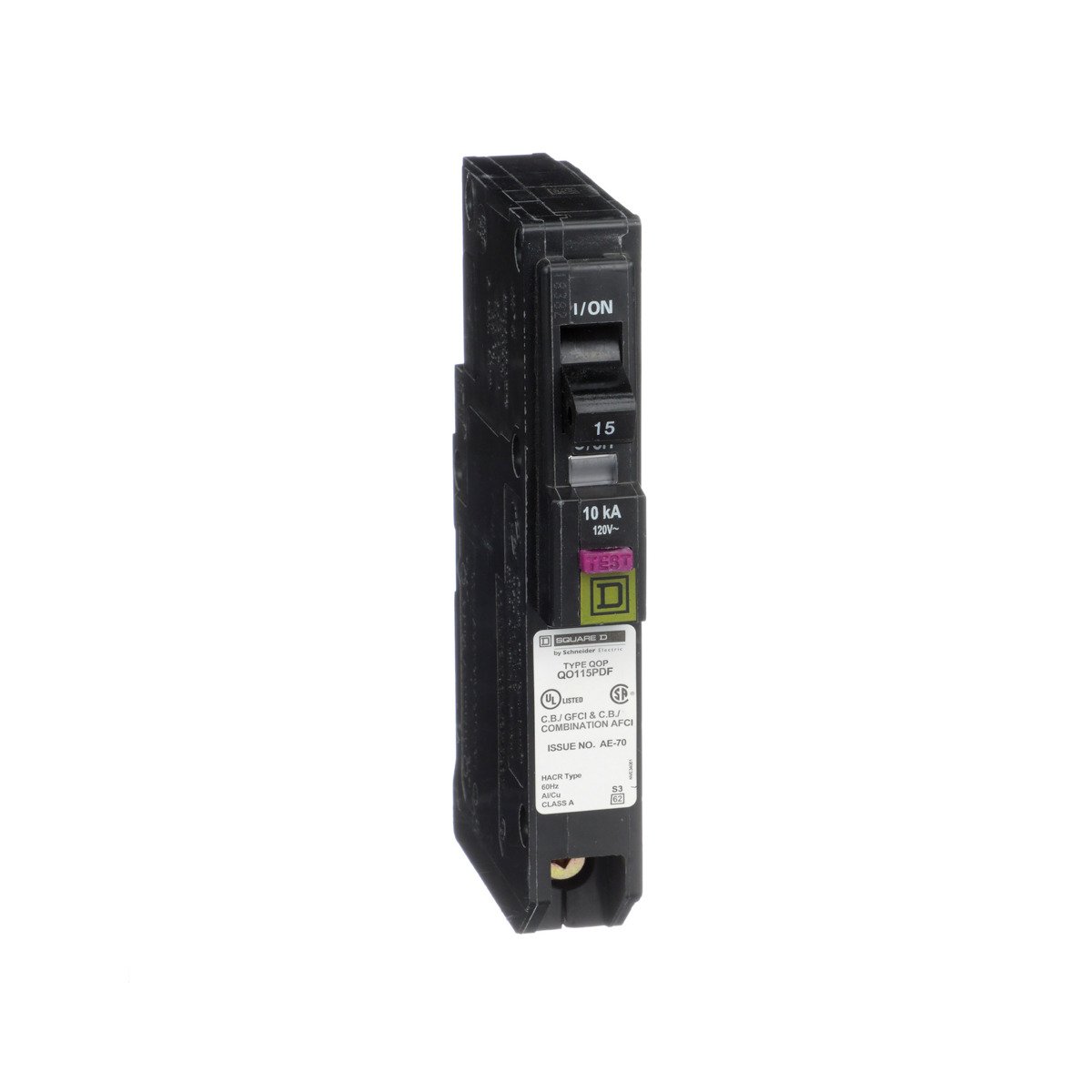

Square D QO115PDFC Sqd Qo115pdfc Mini Circuit Breaker 15 Amp

Product Description

The Square D QO115PDFC Sqd Qo115pdfc Mini Circuit Breaker provides overcurrent protection and switching on AC and DC systems. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. The VisiTrip trip indication offers a visual indication that the circuit breaker has tripped. This 1-pole QO circuit breaker is rated at 15A at 120VAC with 10kA breaking capacity and plug-in mounting. It includes a dual function feature with plug on neutral for combination arc fault and ground fault protection.

• Overcurrent protection
• Switching on AC and DC systems
• Trip-free toggle mechanism
• Combination arc fault and ground fault protection
• Plug-in mounting

Product Highlights

Provides overcurrent protection and switching with combination arc fault and ground fault protection. Features a trip-free toggle mechanism and plug-in mounting.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO115PDFC
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 15 Amp
• Voltage: 120 Volt
• Amperage: 15 Amp
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Applications: HACR rated
• Mounting Type: Plug-In
• TC Connection: Plug-on neutral;Pressure plate;AWG 14...AWG 8 copper or aluminium
• Certifications: CSA,UL Listed
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 15 A
• Circuit Breaker Type: Combination ARC-fault And Ground Fault
• Short Circuit Current: 10 kA
• Catalog Number: QO115PDFC
• Manufacturer: Schneider Electric
• Max. Wire Size: 8 AWG (Cu/Al)
• Min. Wire Size: 14 AWG (Cu/Al)
• Max. AIR Rating: 10 kA
• AC Voltage Rating: 120V AC
• Terminal Connection: Pressure Plate
• Operating Frequency: 50/60 Hz
• Terminal Type: Screw clamp
• Voltage Rating: 120 V
• Number of Spaces: 1
