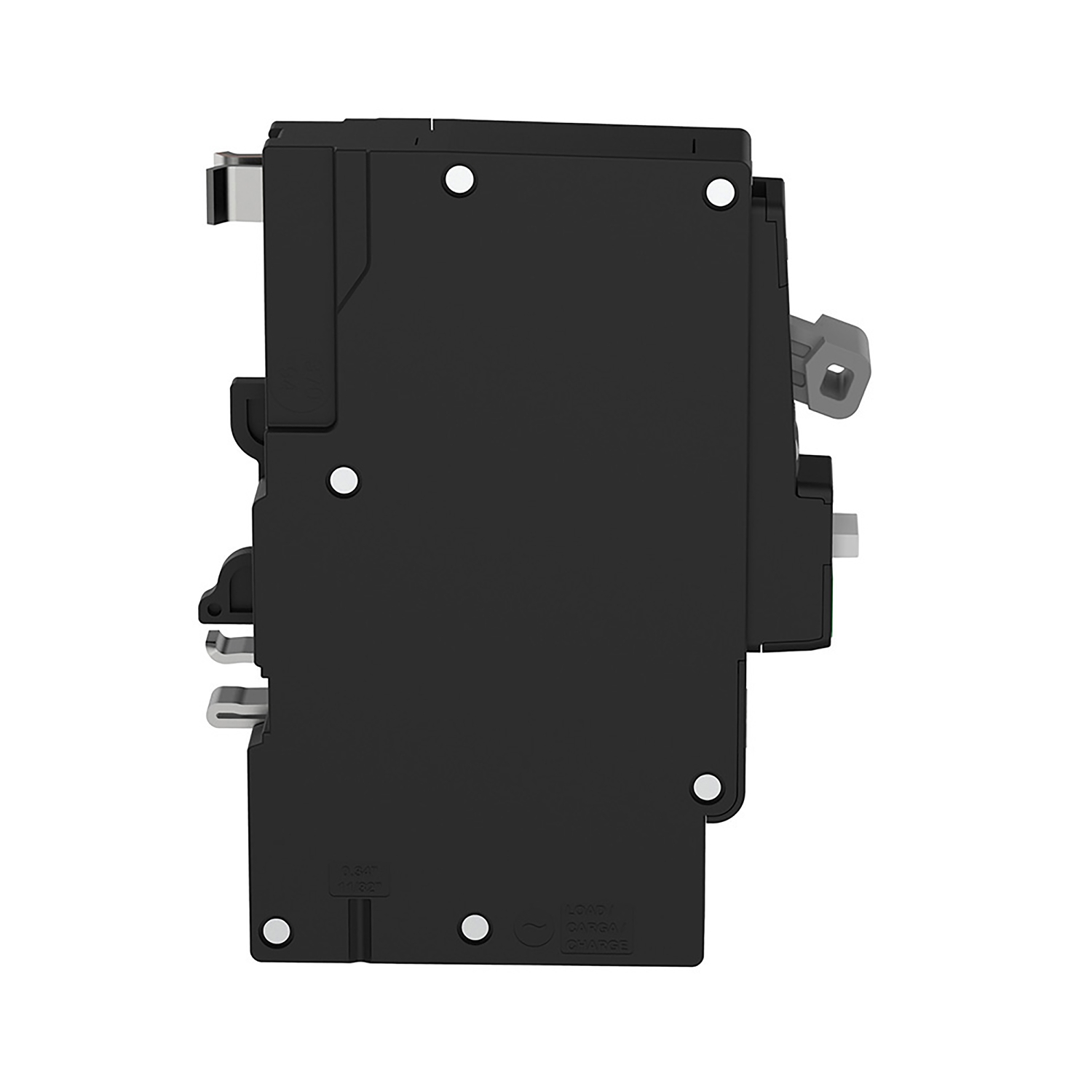

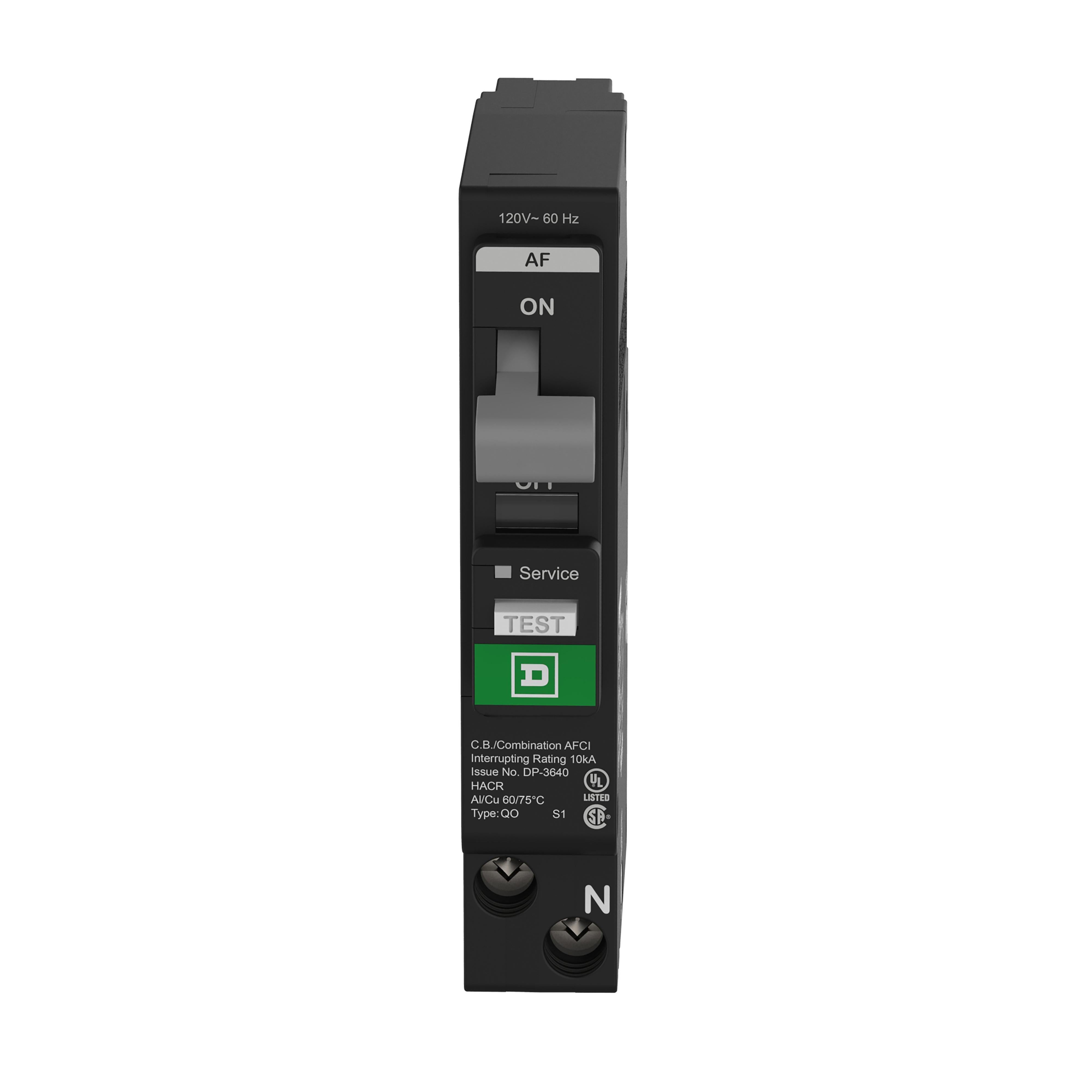

Square D QO115PAF mini circuit breaker 15A

Product Description

The Square D QO115PAF mini circuit breaker provides overcurrent protection and switching on AC and DC systems. This 1-pole QO circuit breaker is rated at 15A at 120VAC with a 10kA breaking capacity and plug-in mounting. It features a combination arc fault with plug-on neutral connection and VisiTrip trip indication.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication
• Includes a combination arc fault with plug-on neutral connection

Product Highlights

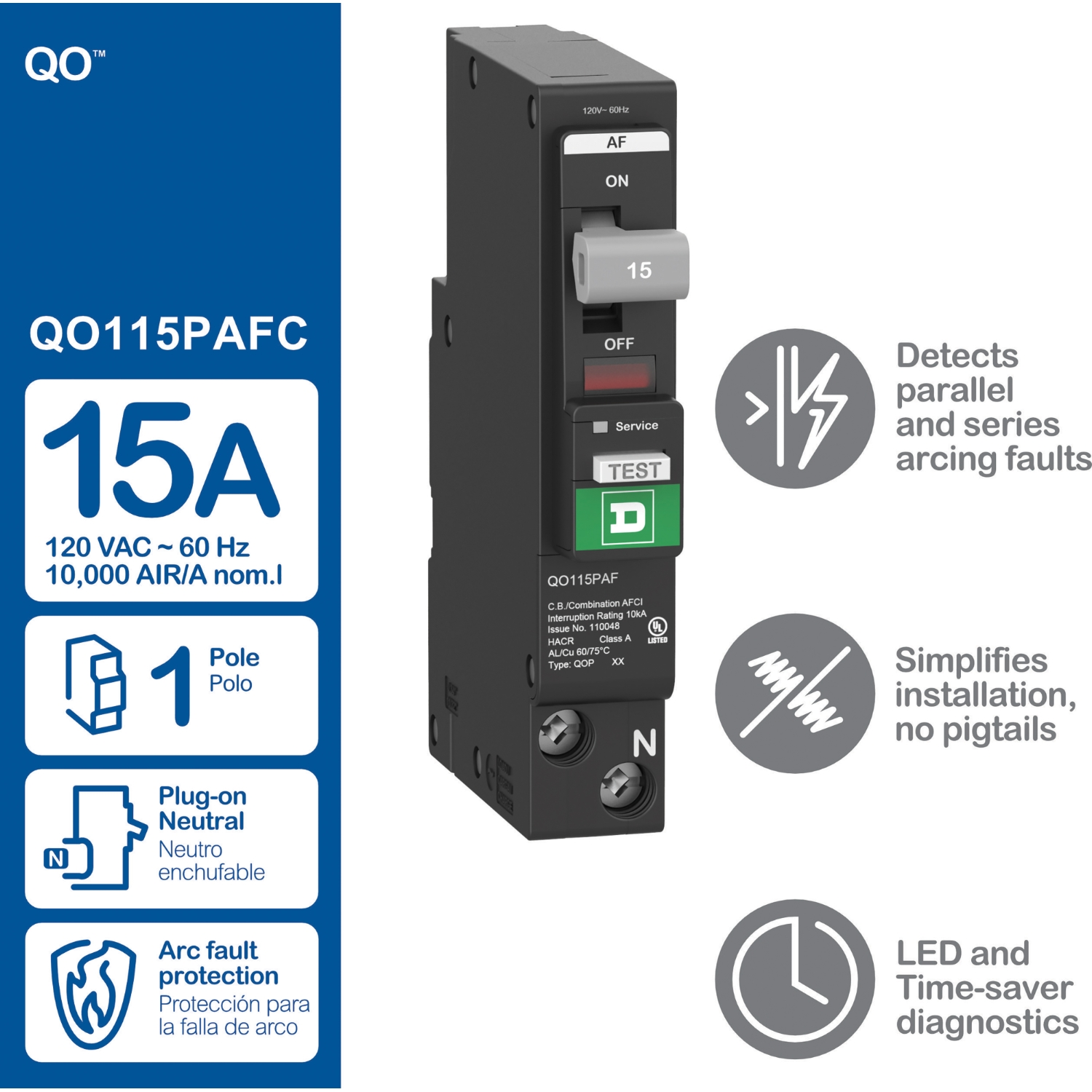

The Square D QO115PAF is a 15A, 1-pole mini circuit breaker with arc fault protection and plug-on neutral, suitable for residential circuits.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO115PAF
• Country of Origin: Mexico

Technical Specifications

• Brand: Square D
• Voltage: 120 V AC
• Mounting Type: Plug-In
• Certifications: UL
• Line Rated Current: 15 A
• Circuit Breaker Type: Combination ARC-fault
• Amperage: 15 A
• Breaking Capacity: 10 kA
• Poles: 1
• Interrupting Capacity: 10 kA
• Number of Poles: 1
• Electrical Connection: pressure plate
• [Ue] Rated Operational Voltage: 120 V AC

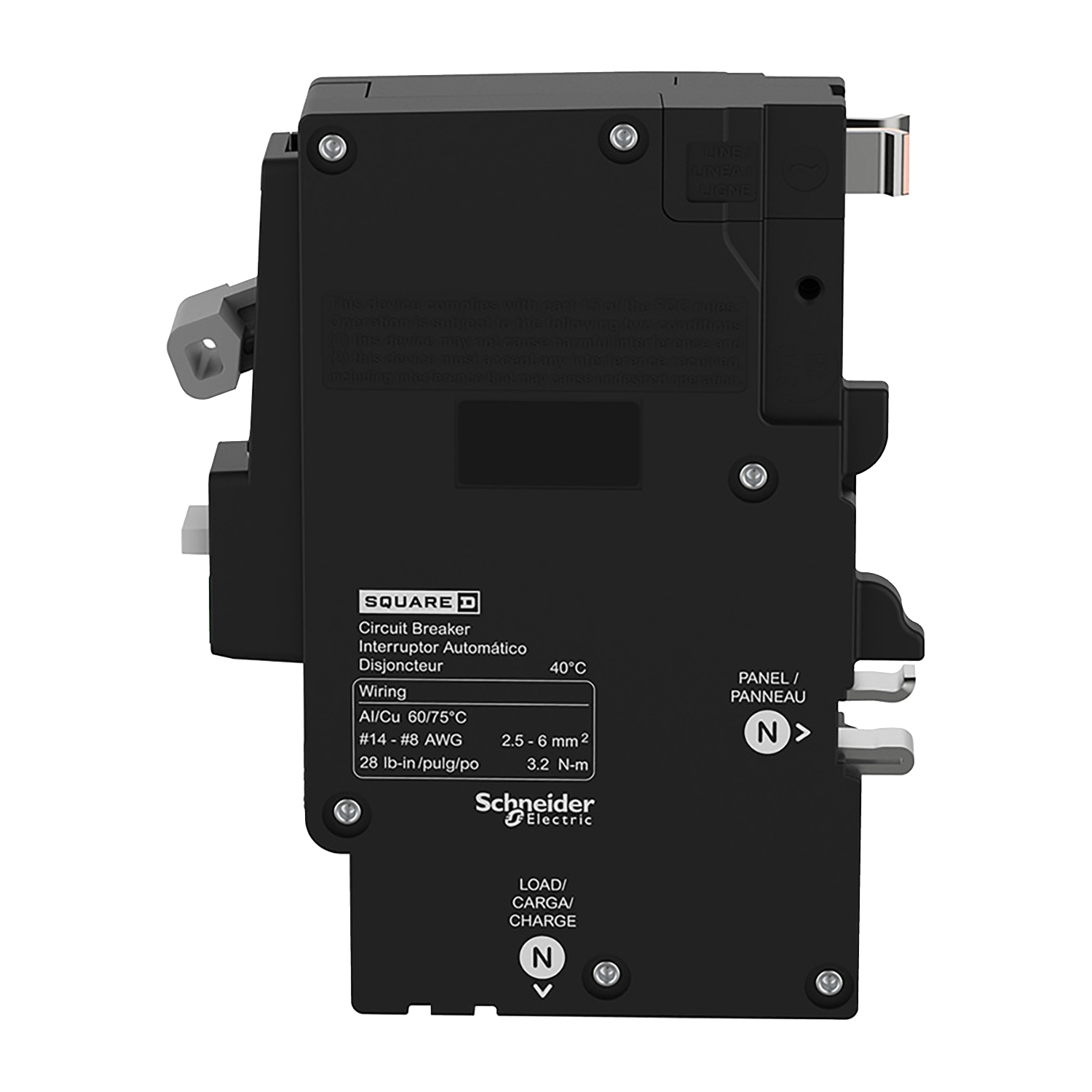

• Awg Gauge: AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
• Tightening Torque: 4-4 N.m
• Number Of Spaces Required: 1
• Connections - Terminals: plug-on neutral
• Series: QO
• Part Number: QO115PAF
• Phase: 1
• AIC Rating: 10kA @ 120VAC
• Special Classification: AFCI
• Terminal Type: Pressure Plate
• For Use With: QO Plug-On Neutral Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Padlock Attachment, Handle Tie
• Standards: CSA C22.2 No. 5, UL 1699, UL 489
• Approval: CSA, HACR, UL
• Temp Rating: 40C
• Construction Features: Visual Trip Indicator, HACR Rated, SWD Rated, Mercury Free, RoHS Compliant
• Voltage Rating: 120/240
• Frame: QO
• Trip Type: Thermal Magnetic
• Range: QO
• Mounting Mode: plug-in
• Wire Size: 14 to 8 AWG
• Enclosure: G Enclosure
