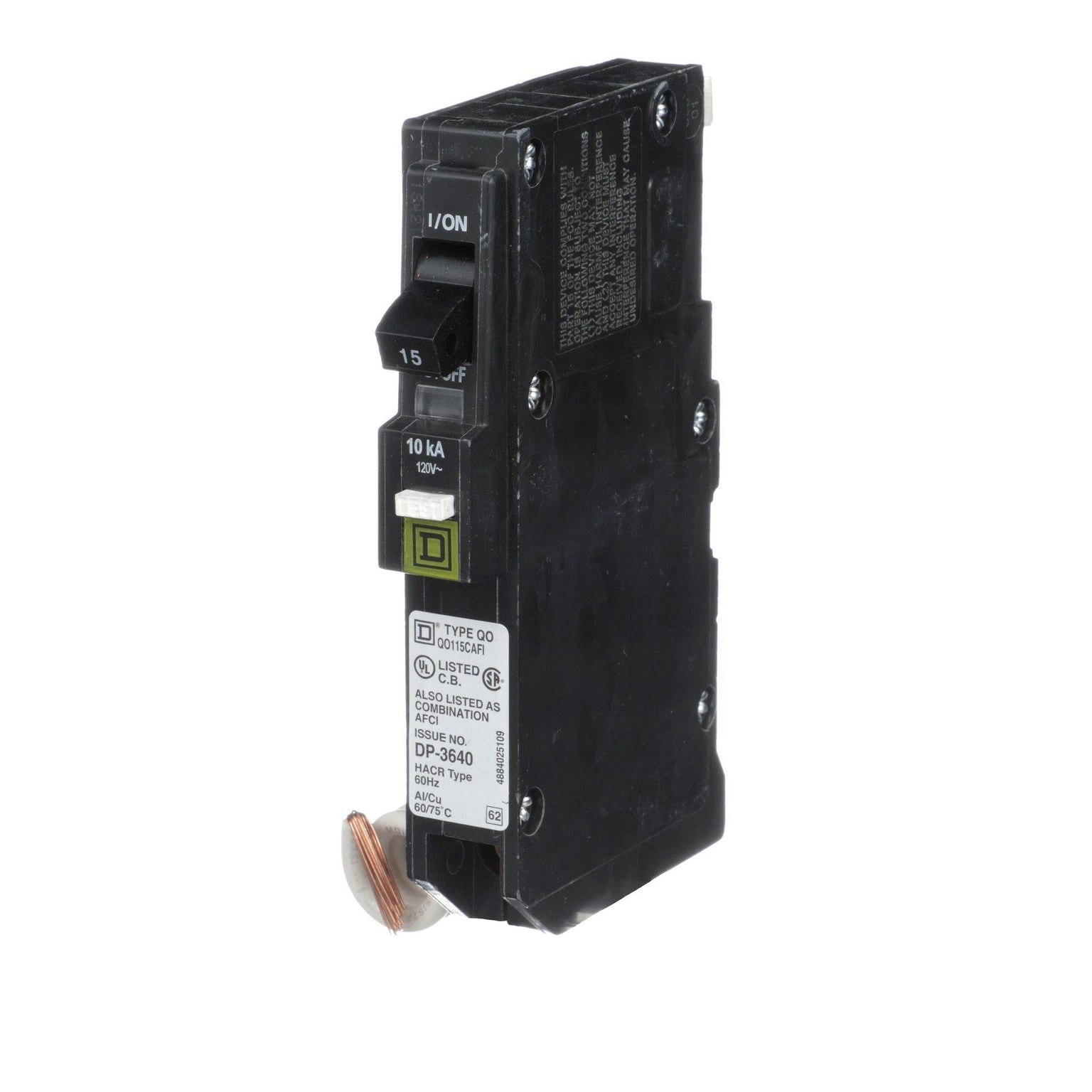

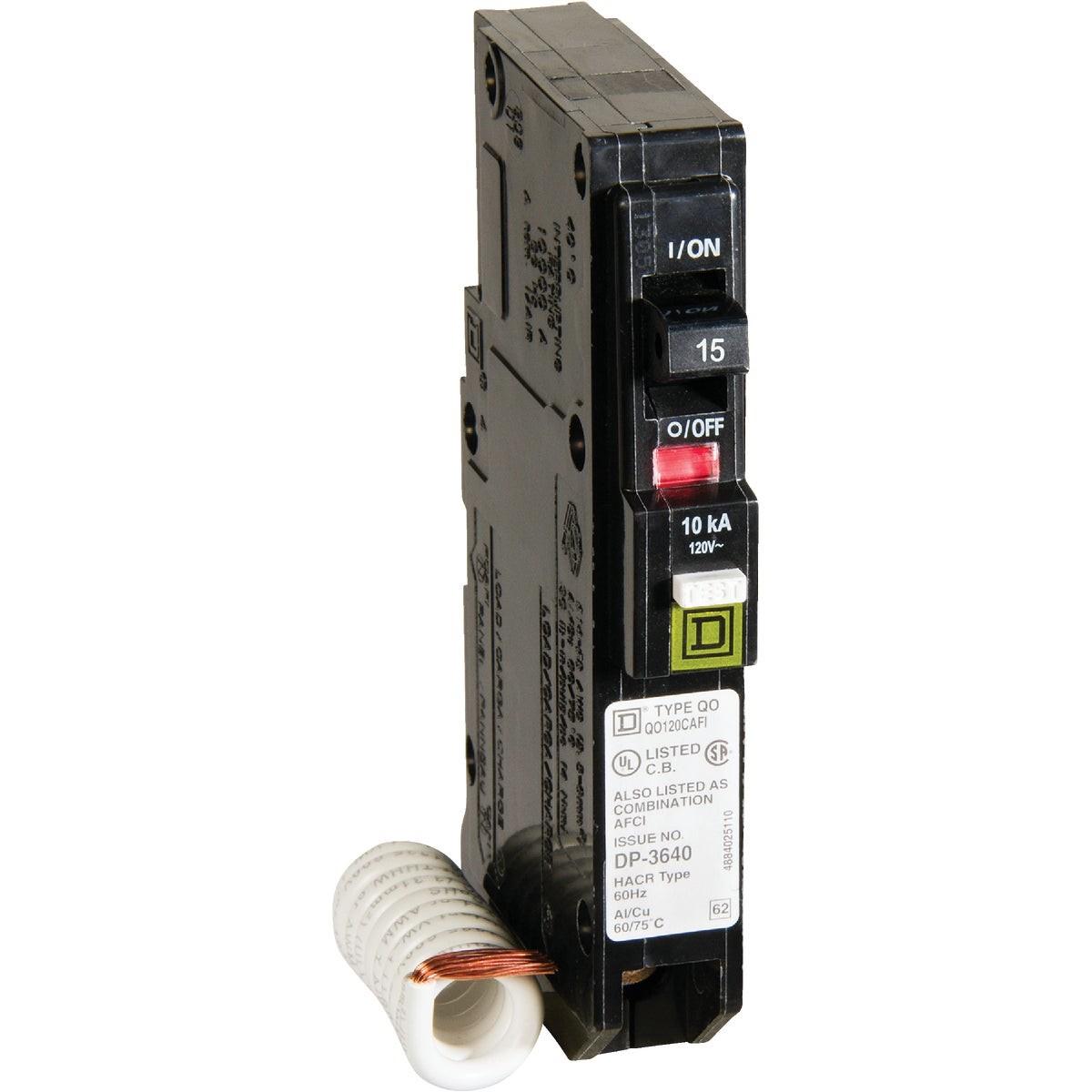

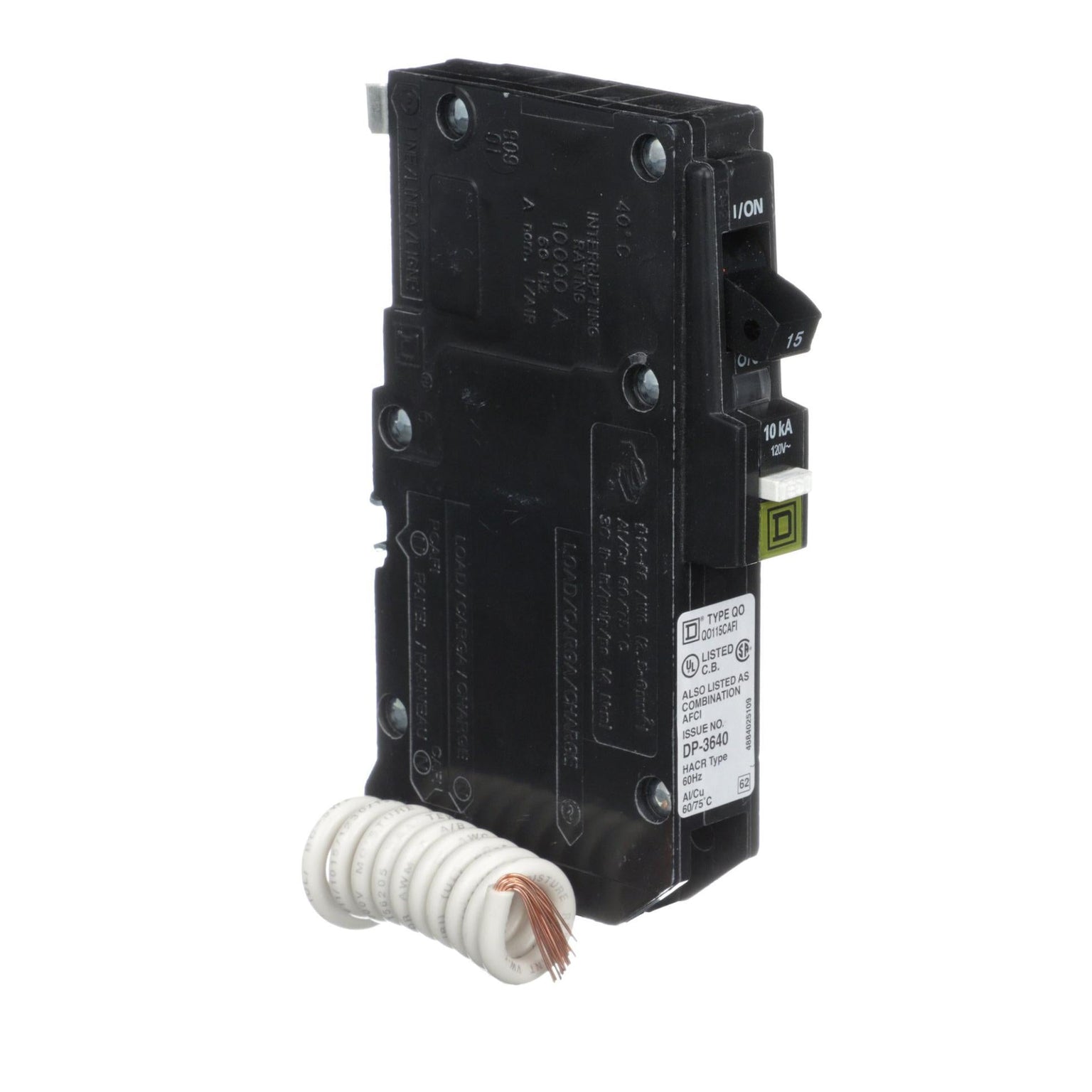

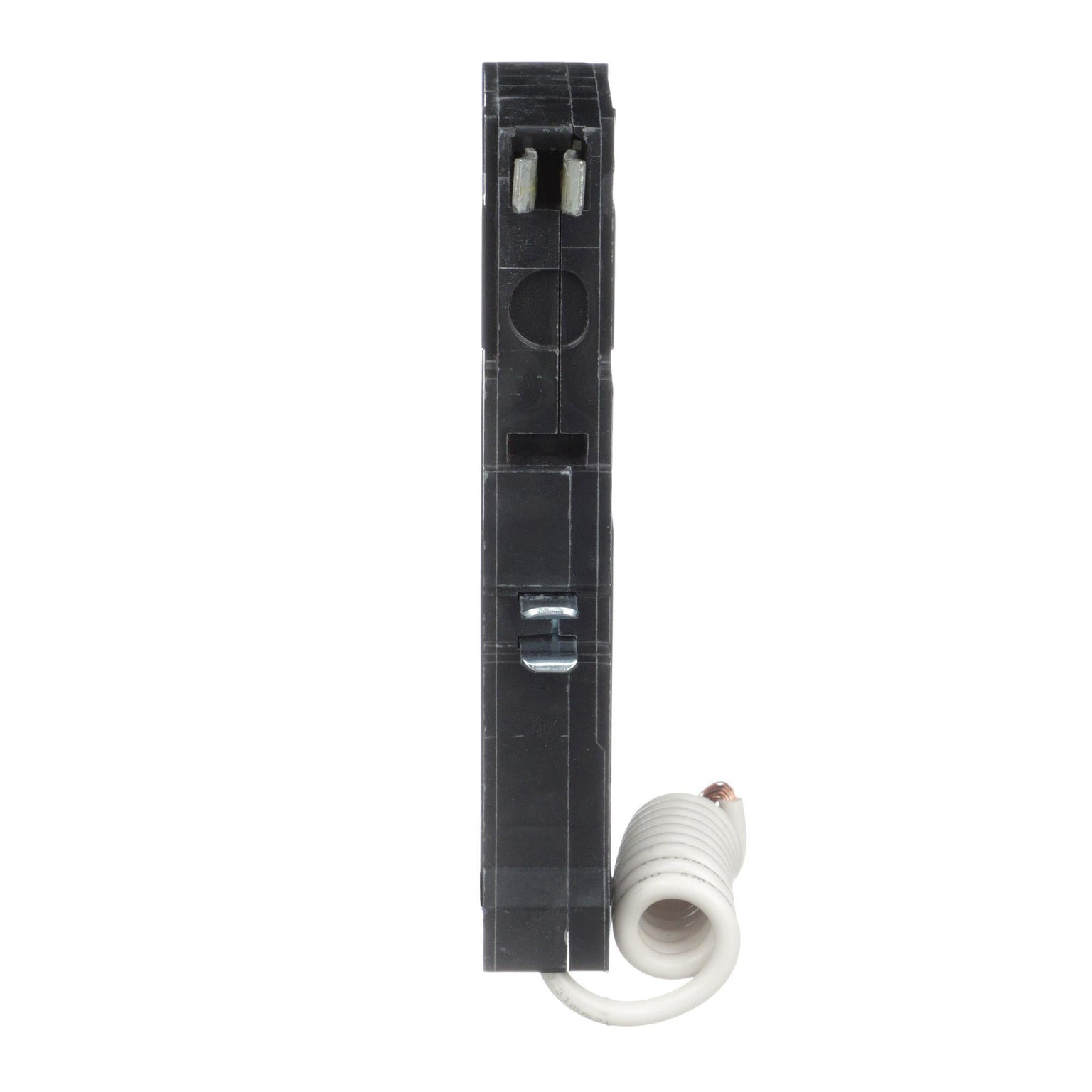

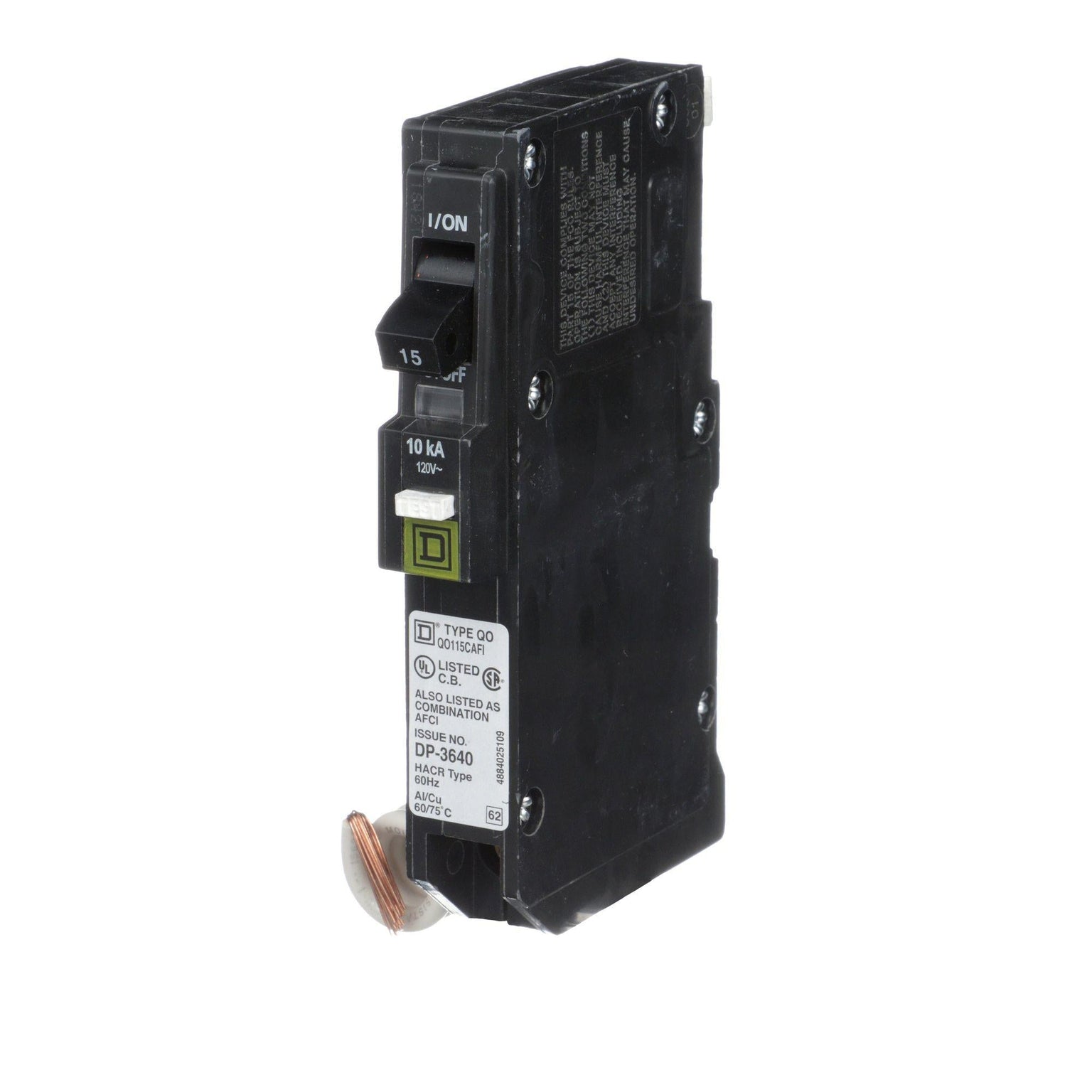

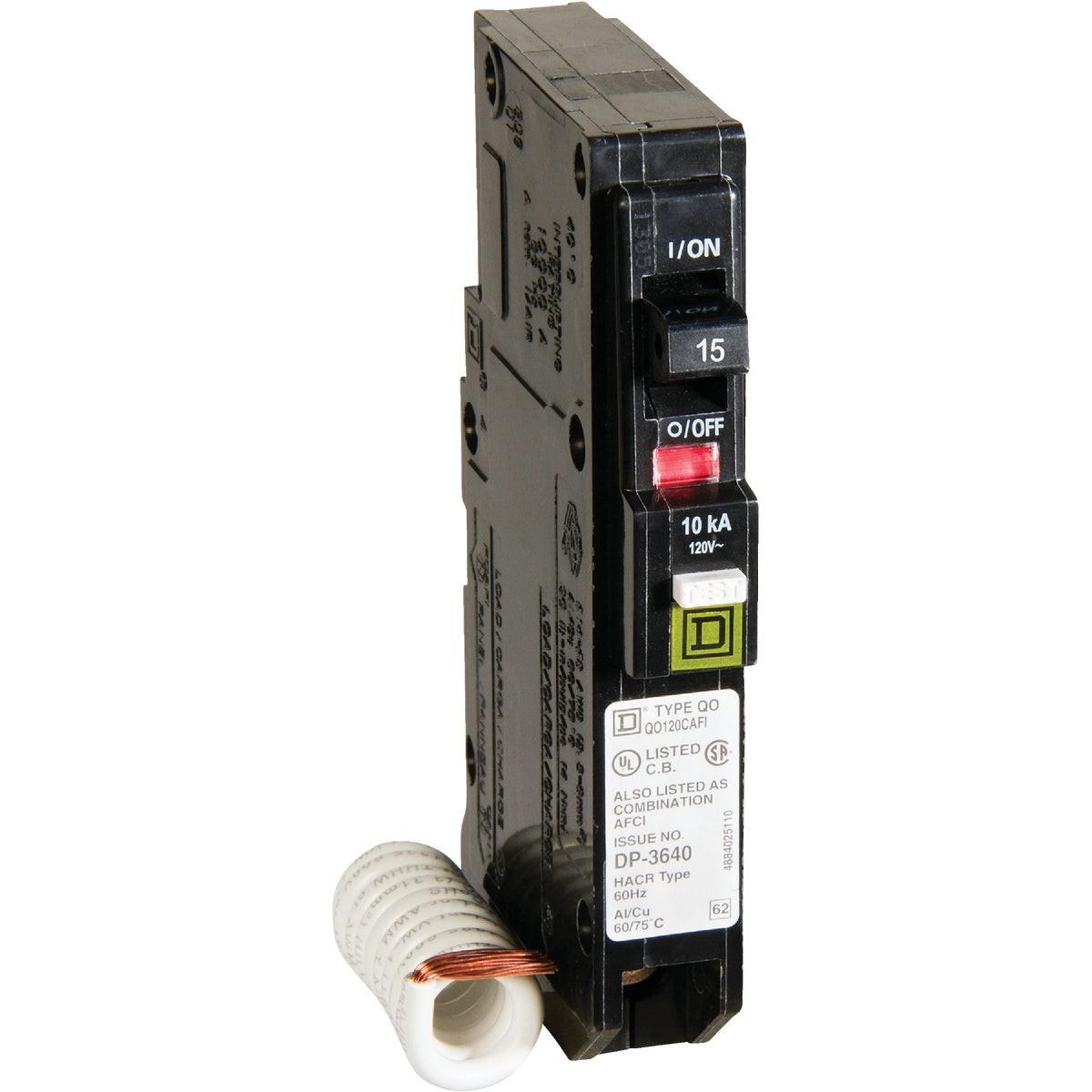

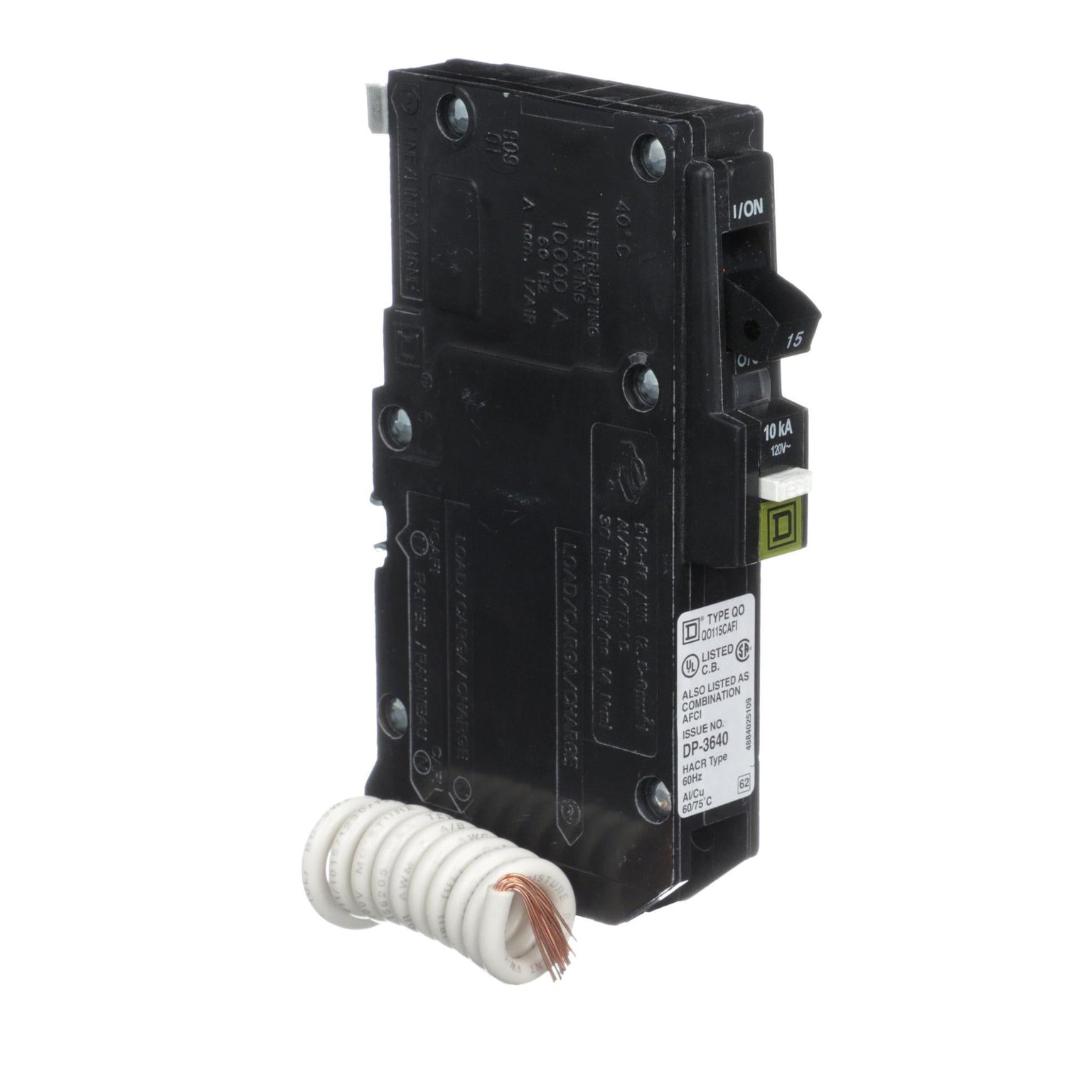

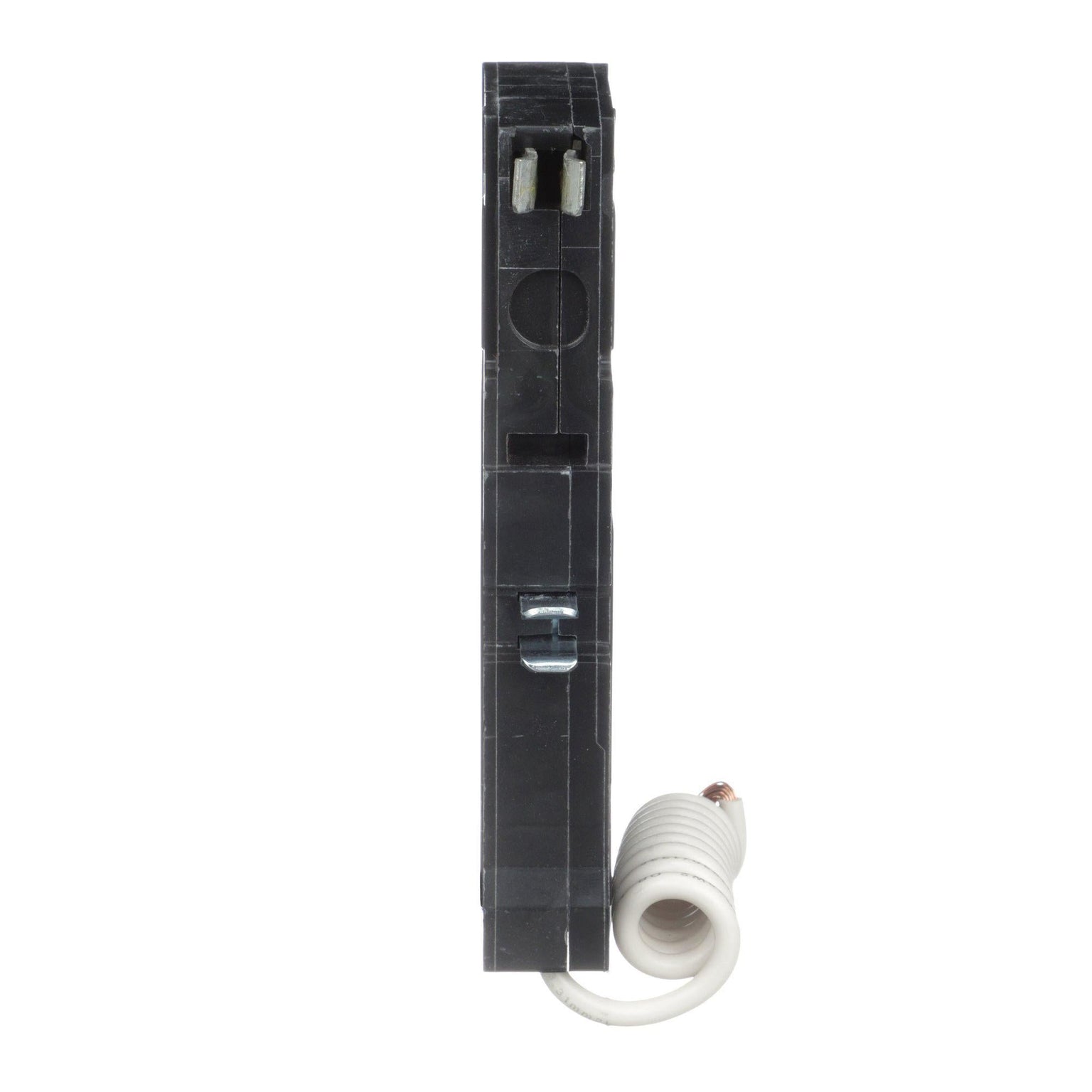

Square D QO115CAFIC QO 15A Single-Pole CAFCI Combination Arc Fault Breaker

Product Description

The Square D QO115CAFIC is a 15A single-pole CAFCI combination arc fault breaker designed for overload and short-circuit protection. It provides overcurrent protection and switching on AC and DC systems. It is compatible with QO load centers, CSED's and NQOD panel boards. The breaker meets the 2008 National Electrical Code for series parallel arc fault protection.

• Provides standard overload short circuit protection
• Meets 2008 National Electrical Code For Series Parallel Arc Fault Protection
• Protects against parallel and series arcs

Product Highlights

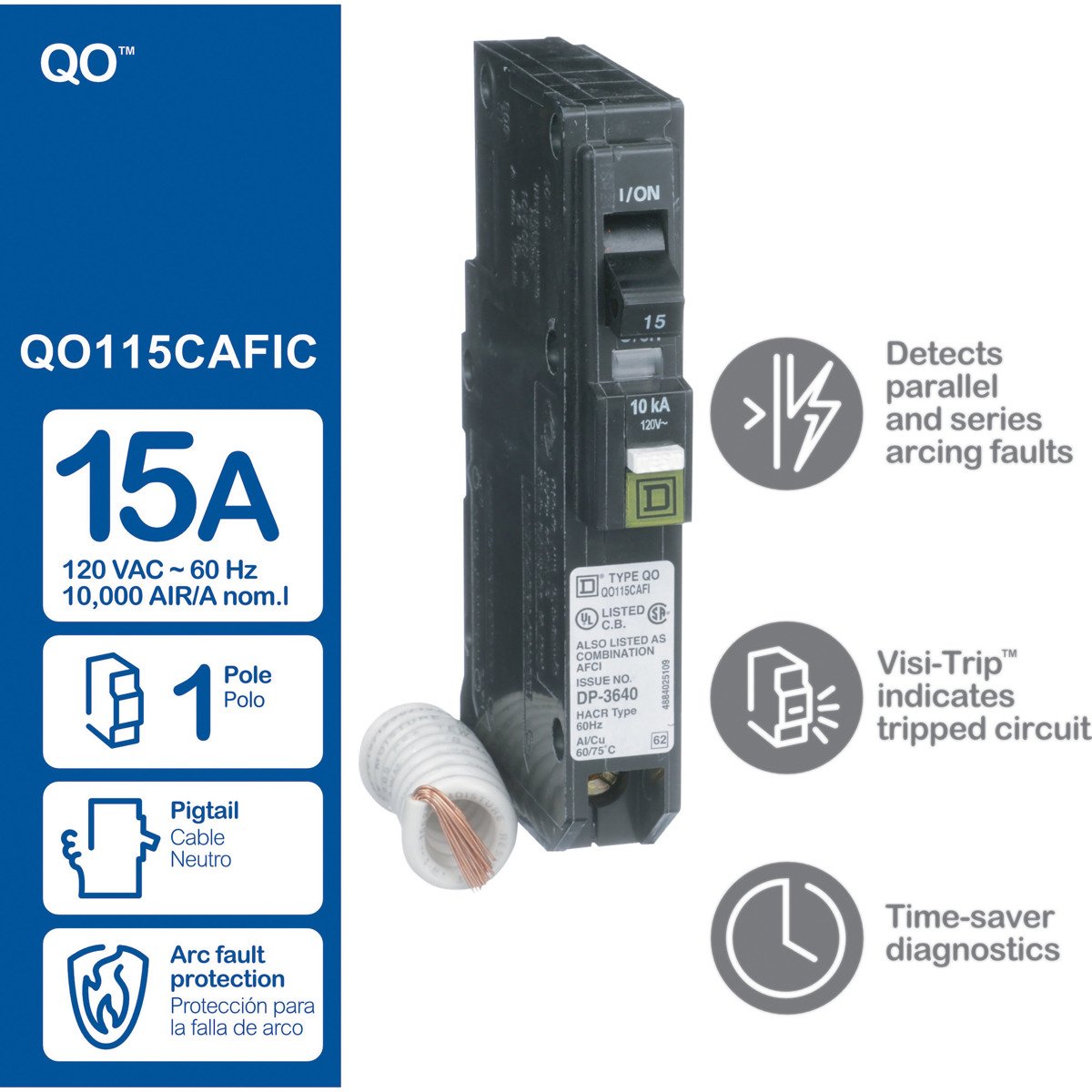

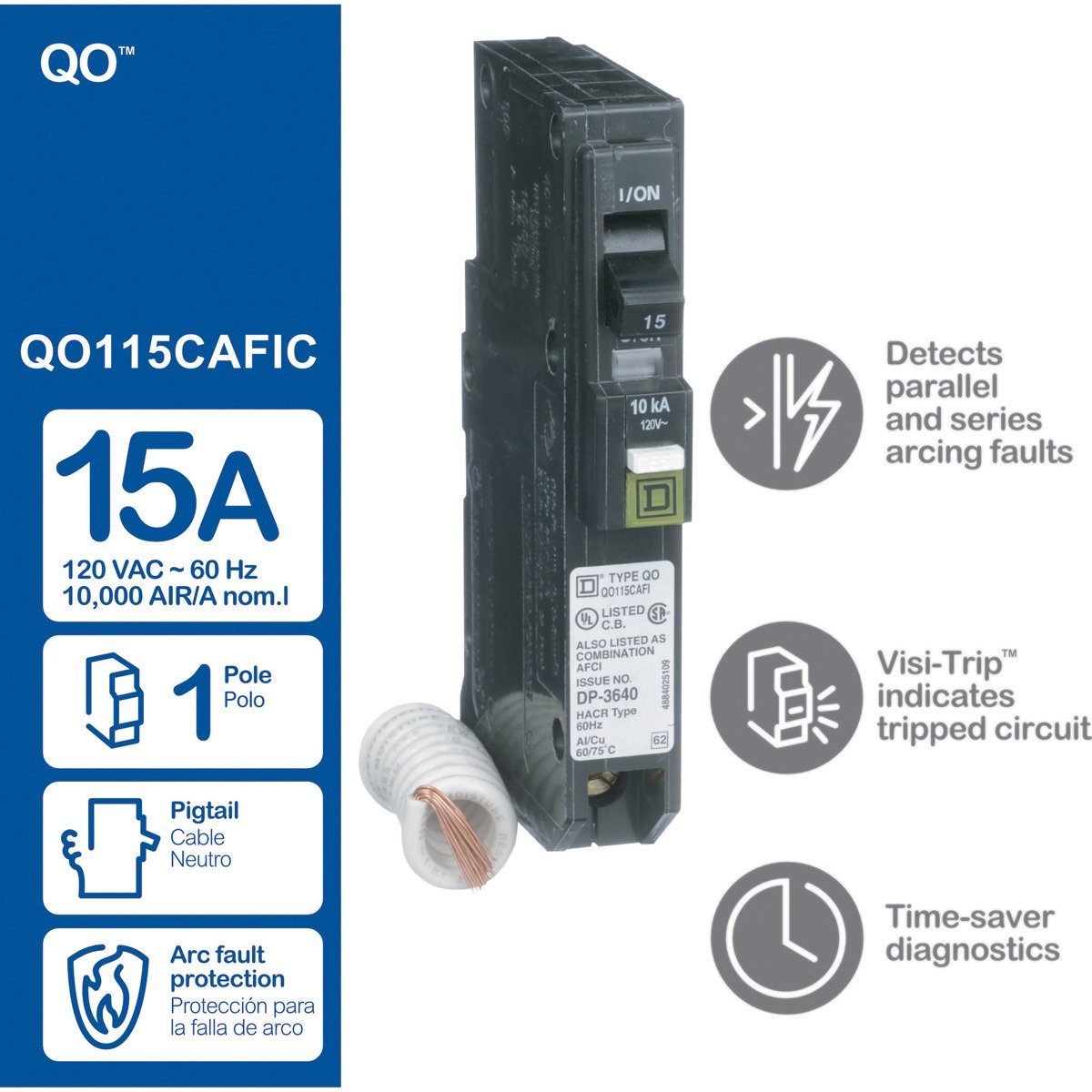

This Square D breaker features built-in Time Saver Diagnostics for easier troubleshooting and VisiTrip trip indication for visual indication of tripped circuits.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO115CAFIC
• Country of Origin: Mexico

Technical Specifications

• MPN: QO115CAFIC
• ItemID: SQDQO115CAFIC
• UPCCode: 00785901610441
• Manufacturer: Square D
• Brand: Square D
• UOM: Each
• Country of Origin: MX
• Amperage: 15A
• Poles: Single Pole
• Type: Combo Arc Fault Circuit Breaker
• Voltage: 120/240 Vac
• Interrupting Capacity: 10,000 AIR
• Listing: ULCSA
• Depth: 74 mm
• Width: 19 mm
• Height: 121 mm
• Length: 2.91 Inch
• Current: 15 Amp
• Voltage Rating: 120 V AC
• Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Applications: HACR rated
• Mounting Type: Plug
• TC Connection: Pigtail neutral;Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Certifications: CSA,UL Listed
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 15 A
• Circuit Breaker Type: Combination ARC-fault
• Short Circuit Current: 10 kA
• Maximum Amperage (A): 15 A
• Pack Size: 1
• Interruption Type: AFCI
• Number Of Poles: 1
• Item model number: QO115CAFIC
• Item Package Quantity: 1
• Number Of Pieces: 1
• Number of Handles: 1
• Category: Molded Case Breakers
• Number of Phases: 1
• Trip Type: Fixed
• Terminal Type: Pressure Contact
• Current Rating: 15 Amps
