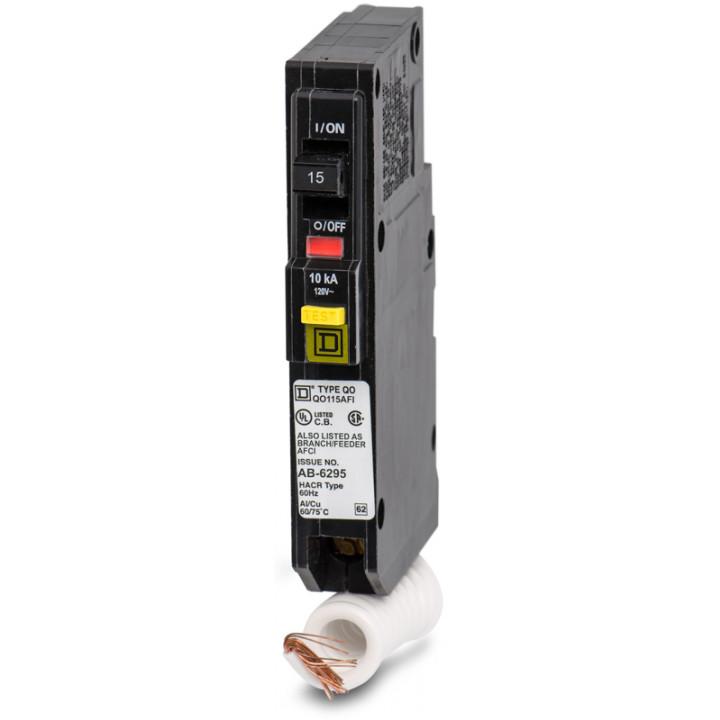

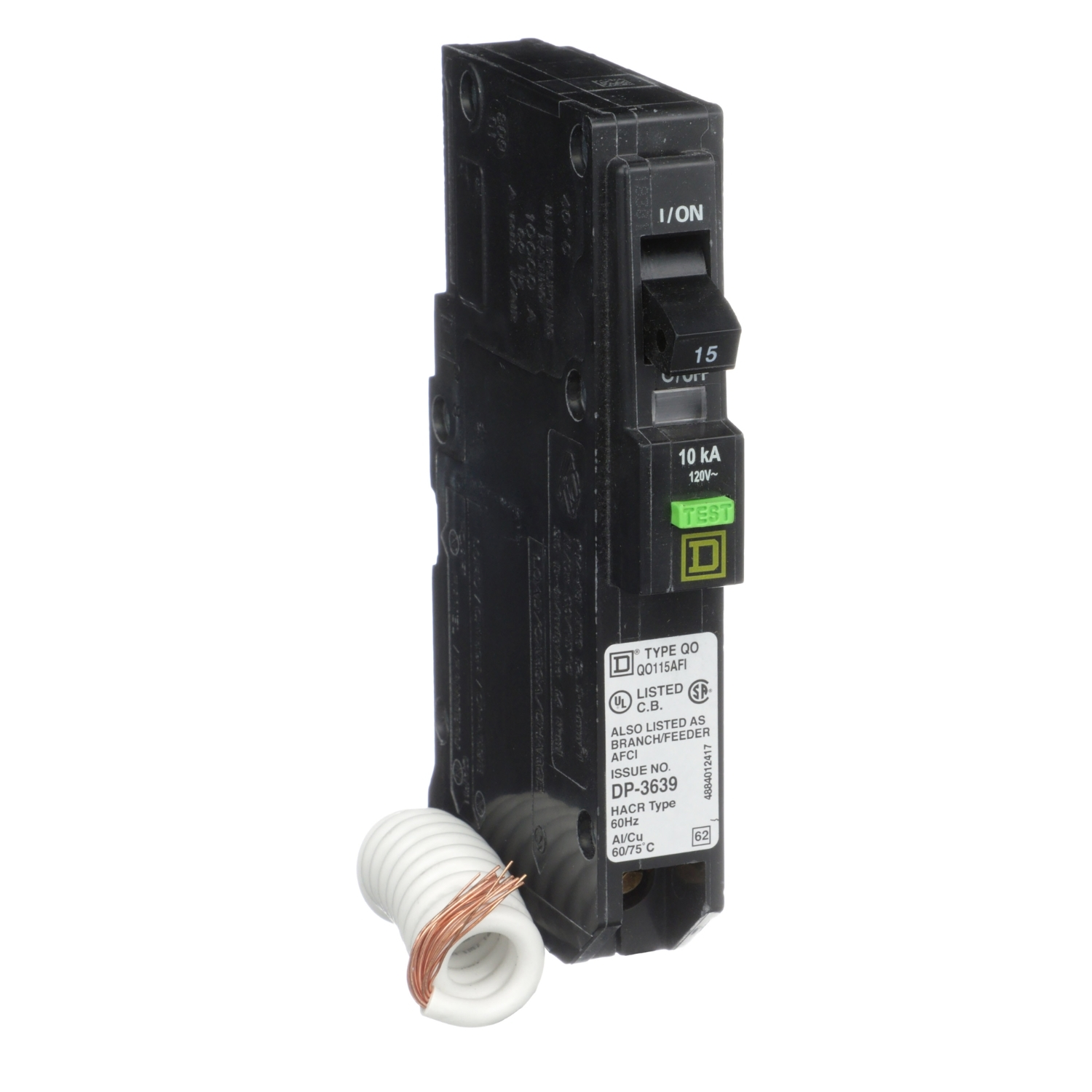

Square D QO115AFI 1-Pole 15 Amp Miniature Circuit Breaker

Product Description

The Square D QO115AFI is a 1-pole, 15 Amp thermal magnetic miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. It features an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. It has VisiTrip trip indication and an arc fault interrupt with pigtail.

• Provides overcurrent protection
• Enables switching on AC and DC systems
• Features VisiTrip trip indication

Product Highlights

This Square D QO series circuit breaker has a 10kA breaking capacity and plug in mounting. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO115AFI
• Country of Origin: Mexico

Technical Specifications

• Type: AFCI Circuit Breaker
• Brand: Square D
• Current: 15 Amp
• Voltage: 120VAC
• Amperage: 15 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Product UPC: 78590130129
• 12-Digit UPC: 785901301295
• Applications: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO DETECT ARC FAULTS
• Mounting Type: Plug-in
• TC Connection: PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU)
• Certifications: CSA,UL Listed
• Conductor Size: 12-8 AWG (AL)/14-8 AWG (CU)
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 15 A
• Circuit Breaker Type: ARC-fault
• Short Circuit Current: 10 kA
• Manufacturer: Schneider Electric
• UPC: 785901301295
• GTIN: 00785901301295
• Poles: 1
• Voltage Rating: 120 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 15 Ampere
• Interrupting Rating: 10 Kiloampere
• Terminal Type: Pressure Plate
• Application: HACR
• Construction Feature: ARC Fault Circuit Interrupter
• Mounting: Plug-On
• Used On: NQOD Panelboard, QO Loadcenter, Speed-D Switchboard Distribution Panel
• Approval: UL 1699, CSA
• Amps: 15 A
• Phase: Single
• Series: QO
• Features: Mercury Free
• Standards: CSA, UL Listed
• Frame Size: 100A/QO
• For Use With: QO Load Centers and NQ Panelboards
• Product Type: Miniature Circuit Breaker
• Max. Wire Size: 8 AWG
• Min. Wire Size: 14 AWG
• Max. AIR Rating: 10kA at 120V AC
• AC Voltage Rating: 120V AC
• DC Voltage Rating: Not Rated
• Terminal Connection: Pressure plate
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Plug In
• Compatible Panelboard/Load Center Series: QO
• Feature: ARC FAULT CIRCUIT INTERRUPTER
• Model: QO-AFI
• Ampere: 15 Ampere
• Pole: 1 Pole
• Wire Size (Aluminum): 12 To 8 Awg
• Wire Size (Copper): 14 To 8 Awg
• Mounting Mode: plug-in
• Poles Description: 1P
• Electrical Connection: pressure plate
• [Ue] Rated Operational Voltage: 120 V AC
• Breaking Capacity: 10 kA 120 V AC
• Tightening Torque: 4-4 N.m
• Number Of Spaces Required: 1
• Awg Gauge: AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2212005
• Packaging Without Single Use Plastic: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI2212005
• Take-Back: No
• Eu Rohs Directive: Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle): 39.6025132381
• Part Number / Catalog: QO115AFI
• Frame Type: ED
