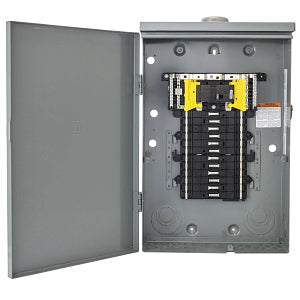

Square D QO112L200PGRB Load Center, QO 200 Amp

Product Description

The SQUARE D QO112L200PGRB Load Center offers premium features, allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use, it protects electrical systems, equipment, and people. This 1 phase load center has 12 spaces and 24 circuits with 200A convertible main lugs in a NEMA 3R enclosure. It includes plug on neutral, ground bar, and is UL rated.

• Allows QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside
• Designed for residential and industrial use to protect electrical systems, equipment, and people
• Available in both traditional and plug on neutral configurations

Product Highlights

This load center is a 1-phase system with 12 spaces and 24 circuits, featuring 200A convertible main lugs and a NEMA 3R enclosure.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO112L200PGRB
• Country of Origin: Mexico

Technical Specifications

• Amperage: 200 Amp
• Current: 200 Amp
• Enclosure: 3R
• Enclosure Rating: 3R
• Enclosure Type: NEMA 3R
• Line Rated Current: 200 A
• NEMA Size: 3R
• Number of Circuits: 24
• Number of Phases: 1 Phase
• Number of Spaces: 12
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 65 kA
• Short Circuit Current Ratng: 65 kA
• Brand: Schneider Electric
• Amperage Rating: 200 A
• Number of Poles: 1
• Sub-Brand: Square D
• Type: 1-Phase
• Voltage Rating: 120/240 V
