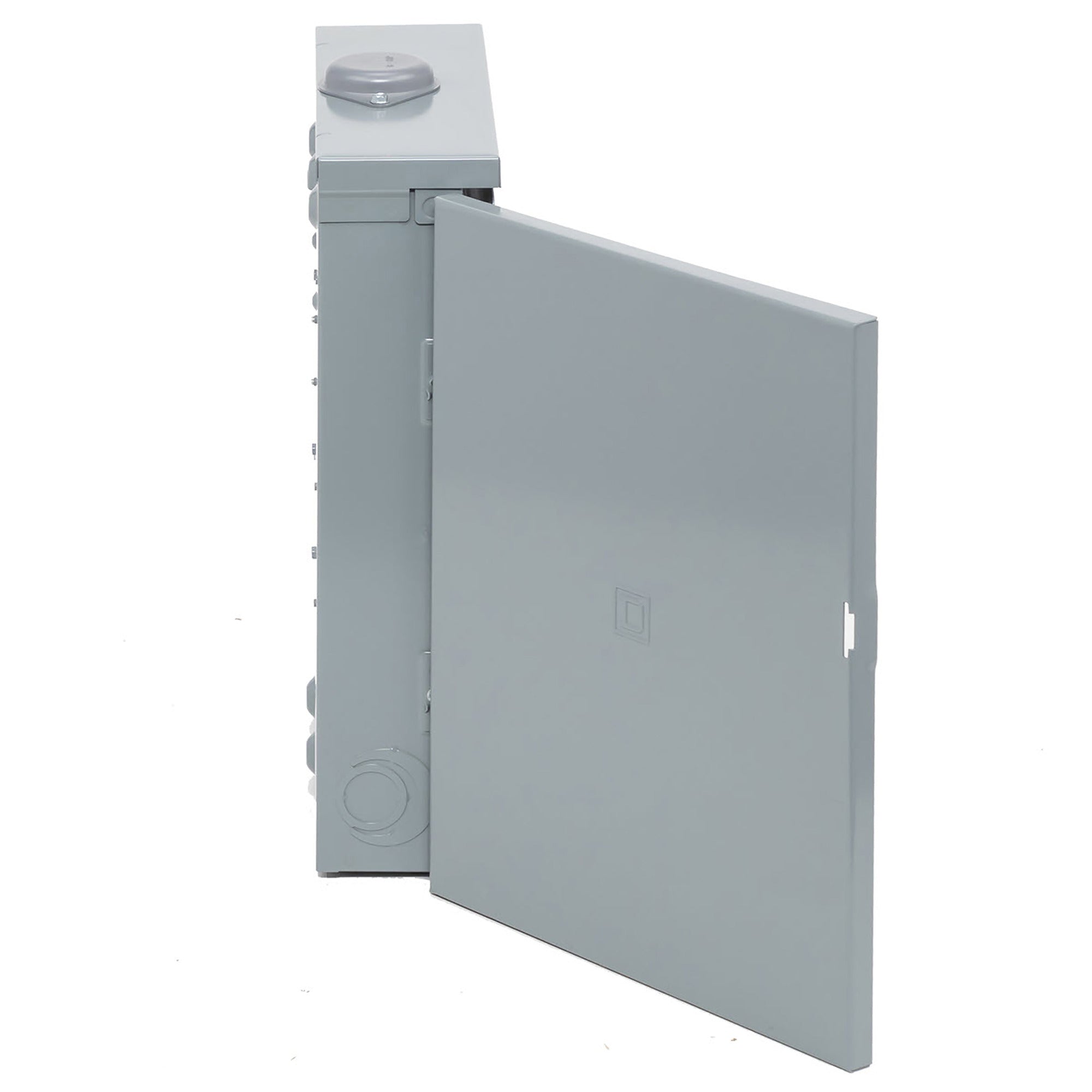

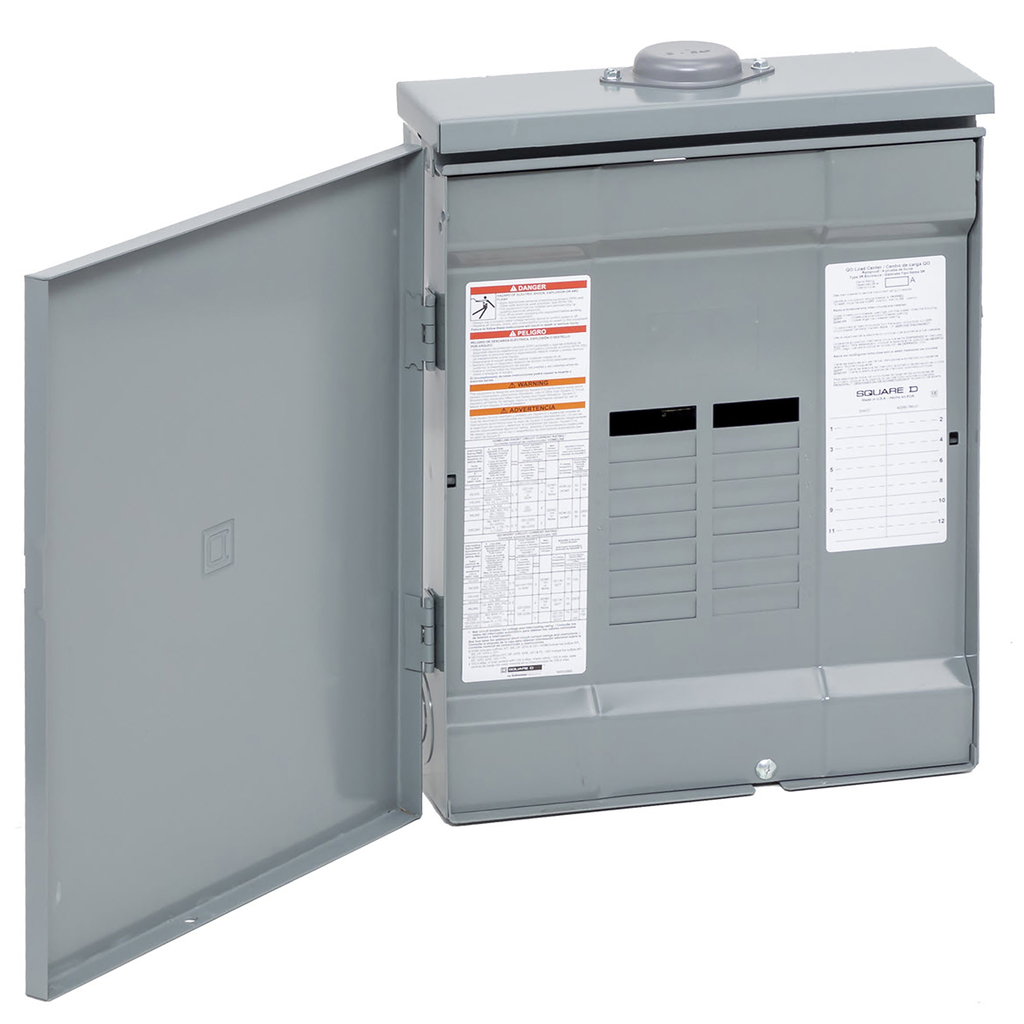

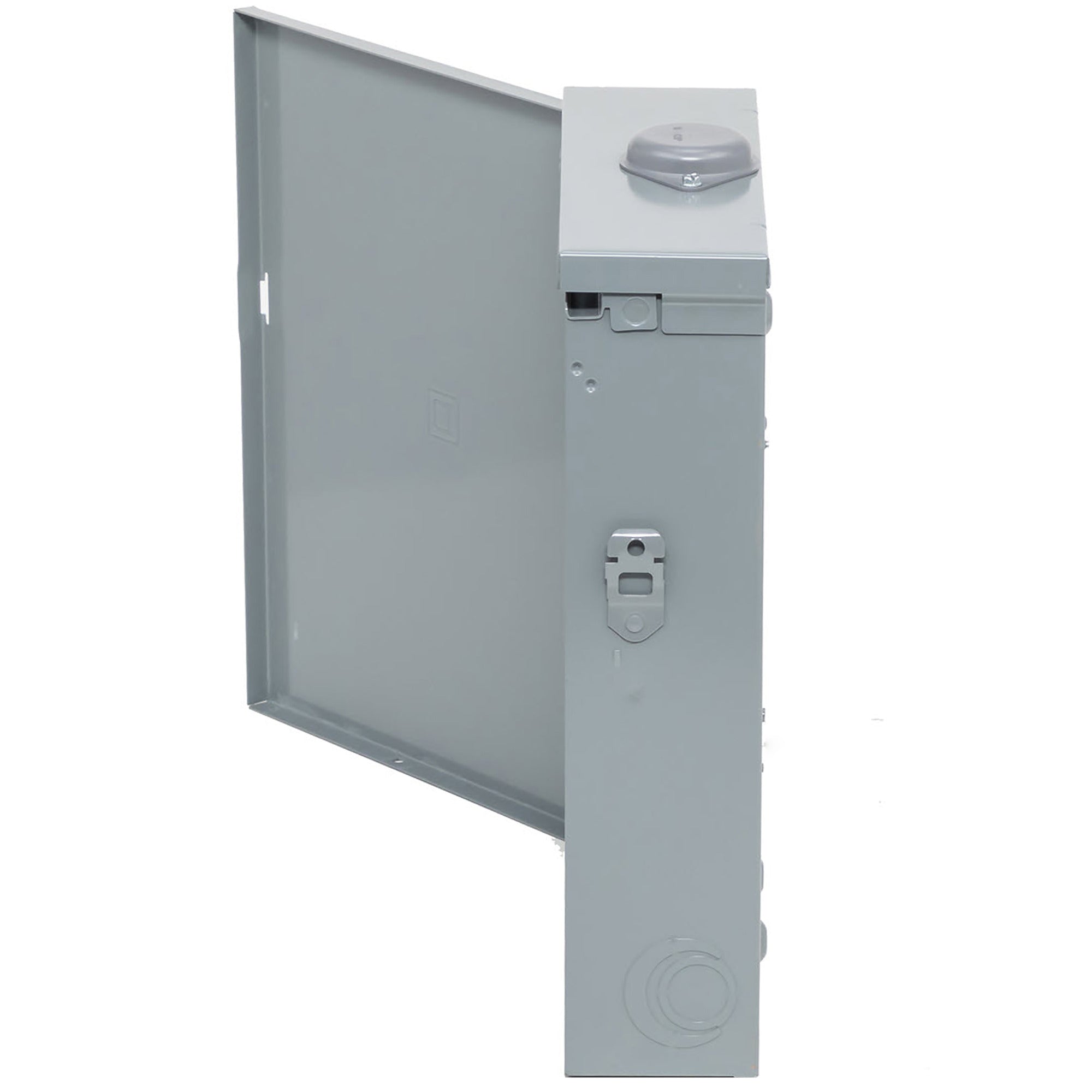

Square D QO112L125PGRB Load Center, QO, 125A (12 Spaces) QO112L125PGRB

Product Description

The Square D QO112L125PGRB Load Center is a 125 amp, single-phase load center. It features twelve spaces and supports up to twenty-four circuits. This load center is designed for residential and industrial applications, providing reliable protection for electrical systems. The product meets NEMA 3R standards and includes a ground bar, making it suitable for outdoor use. Its convertible main lugs ensure flexibility in installation. The QO series is known for accommodating various accessories, enhancing its functionality.

• 125 amp, single-phase load center
• Twelve spaces for circuit breakers
• NEMA 3R rated for outdoor use

Product Highlights

Ideal for residential and light commercial use, the QO112L125PGRB provides essential circuit protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO112L125PGRB
• Current Rating: 125 Amp
• Phase: 1 Phase
• Number of Spaces: 12
• Number of Circuits: 24
• Dimensions: 115 mm (Depth) x 375 mm (Width) x 481 mm (Height)
• Net Weight: 9.240 kg
• Country of Origin: Mexico
• Certifications: UL
• Enclosure Rating: 3R
