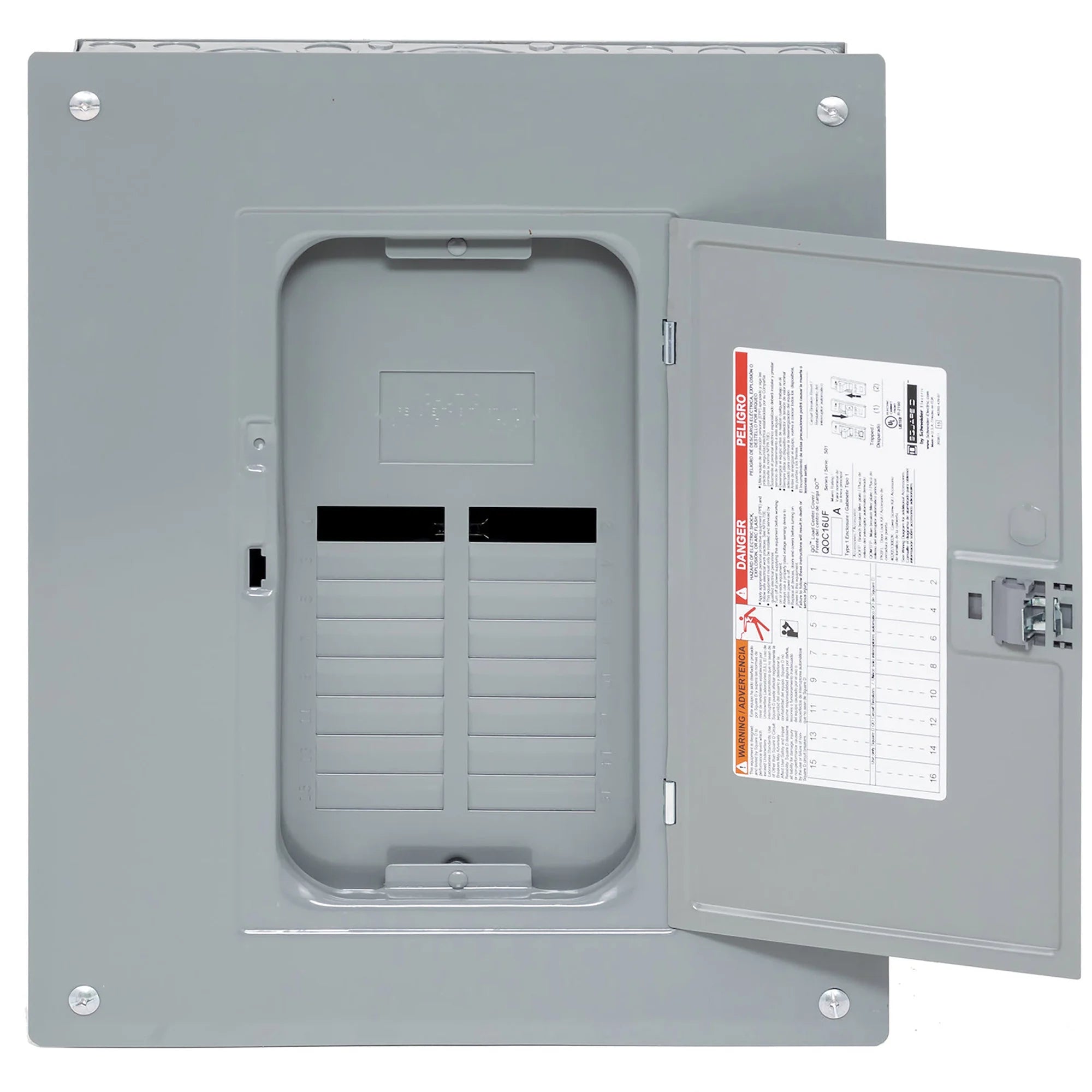

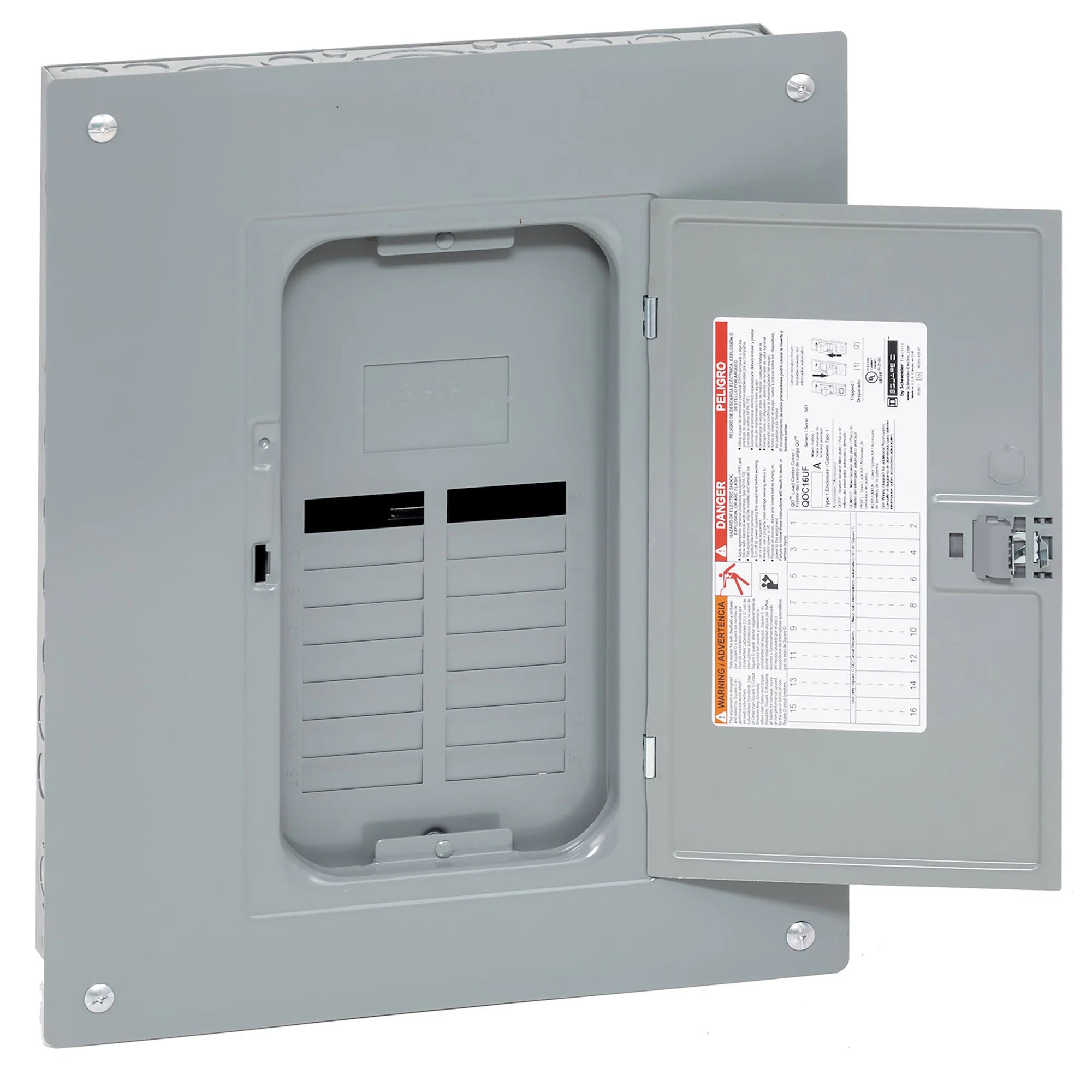

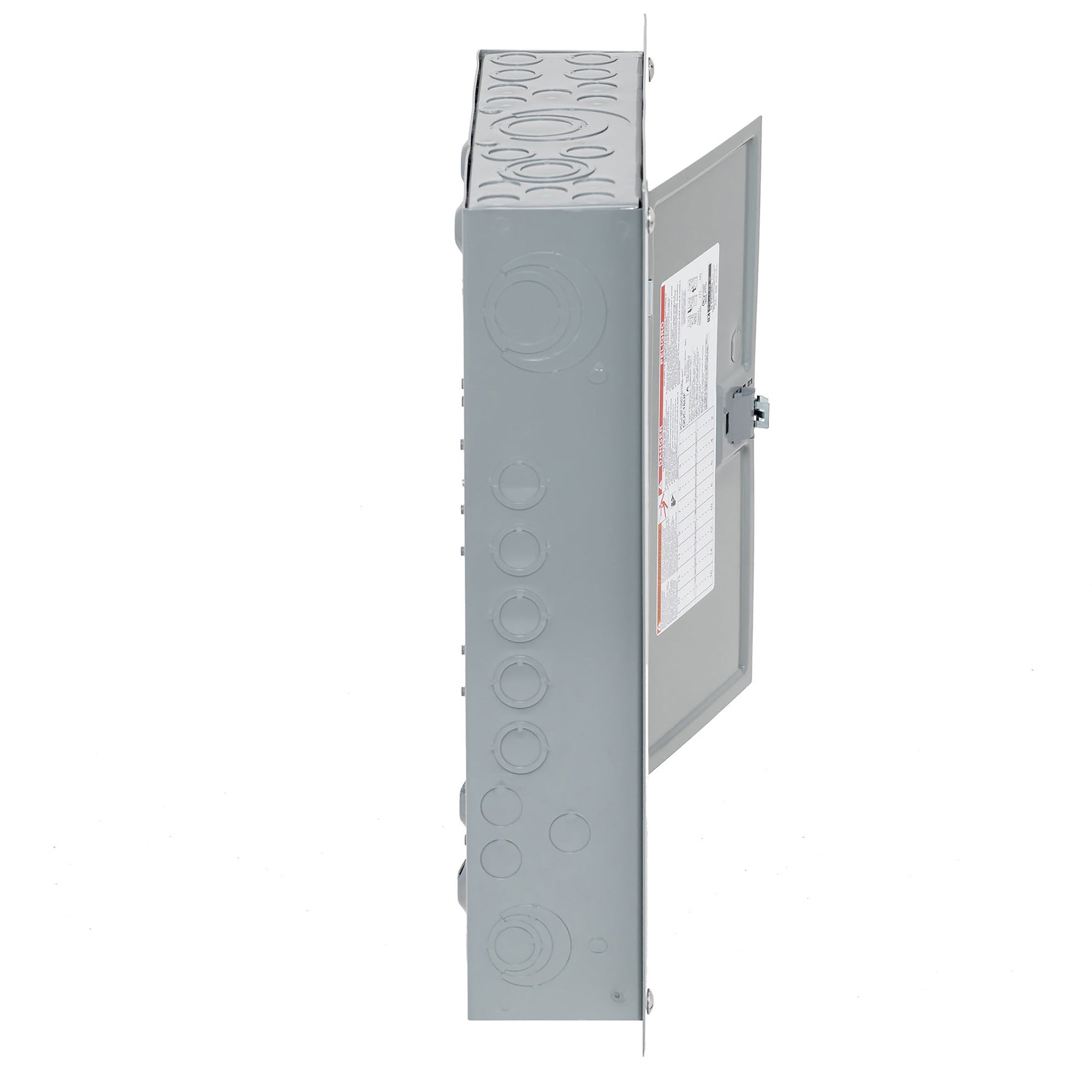

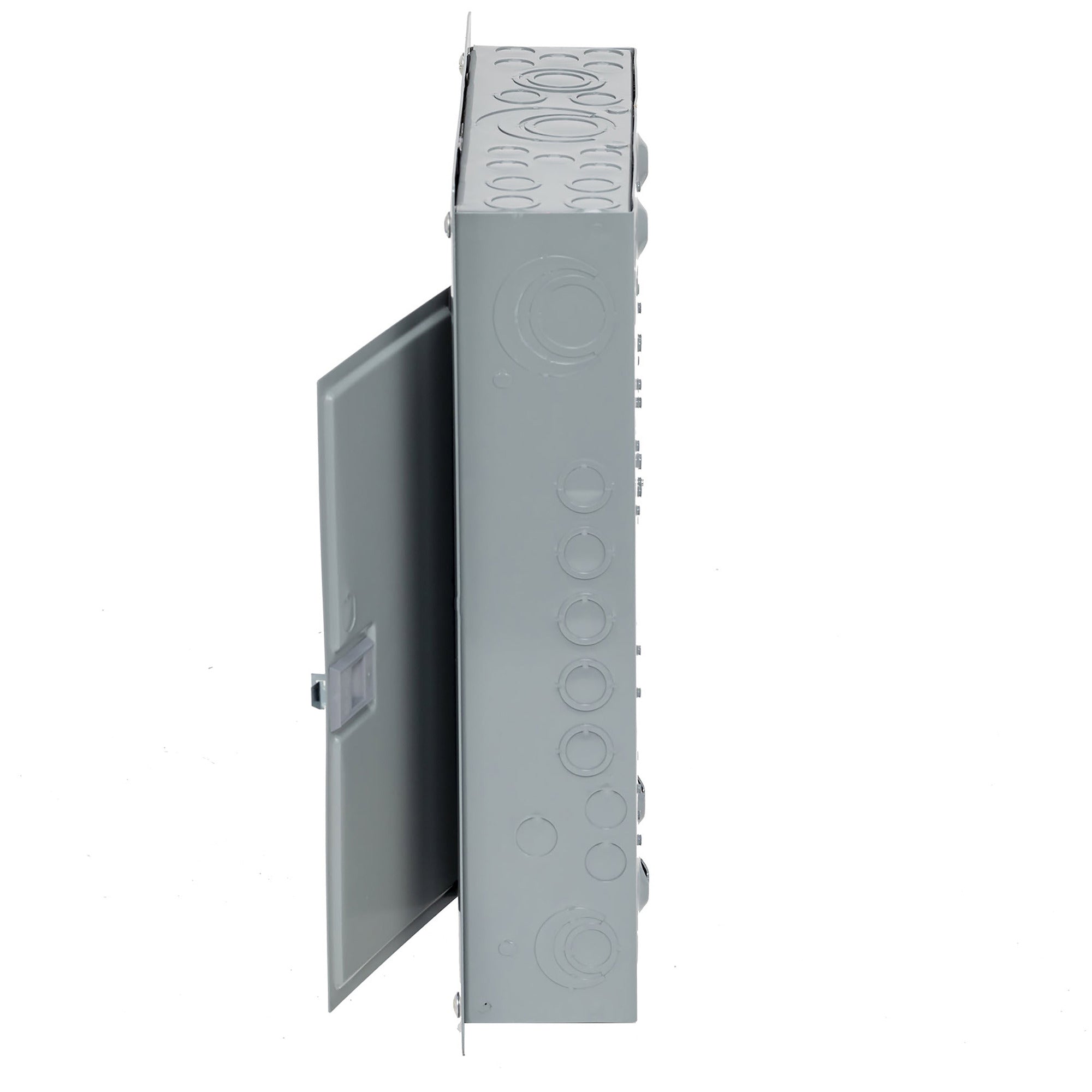

Square D QO112L125PGC Load center, QO, 1 phase, 12 spaces, 125A convertible main lugs

Product Description

The Square D QO112L125PGC Load Center is designed to provide reliable power distribution. This load center supports one phase and features 12 spaces and 24 circuits. It is rated for a maximum current of 125 amperes and includes convertible main lugs.

• Features 12 spaces and 24 circuits
• Contains NEMA 1 enclosure and ground bar
• Suitable for both indoor and outdoor applications

Product Highlights

This load center is suitable for residential and light commercial use, ensuring safe and efficient operation of electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO112L125PGC
• Overall Dimensions: Depth 3.74 inches, Width 14.25 inches, Height 17.91 inches
• Current Rating: 125 Amp
• Cover Type: Combination flush/surface cover
• Enclosure Type: NEMA 1
• Weight: 7.260 kg
• Certifications: UL listed
• Country of Origin: USA
