Product Description

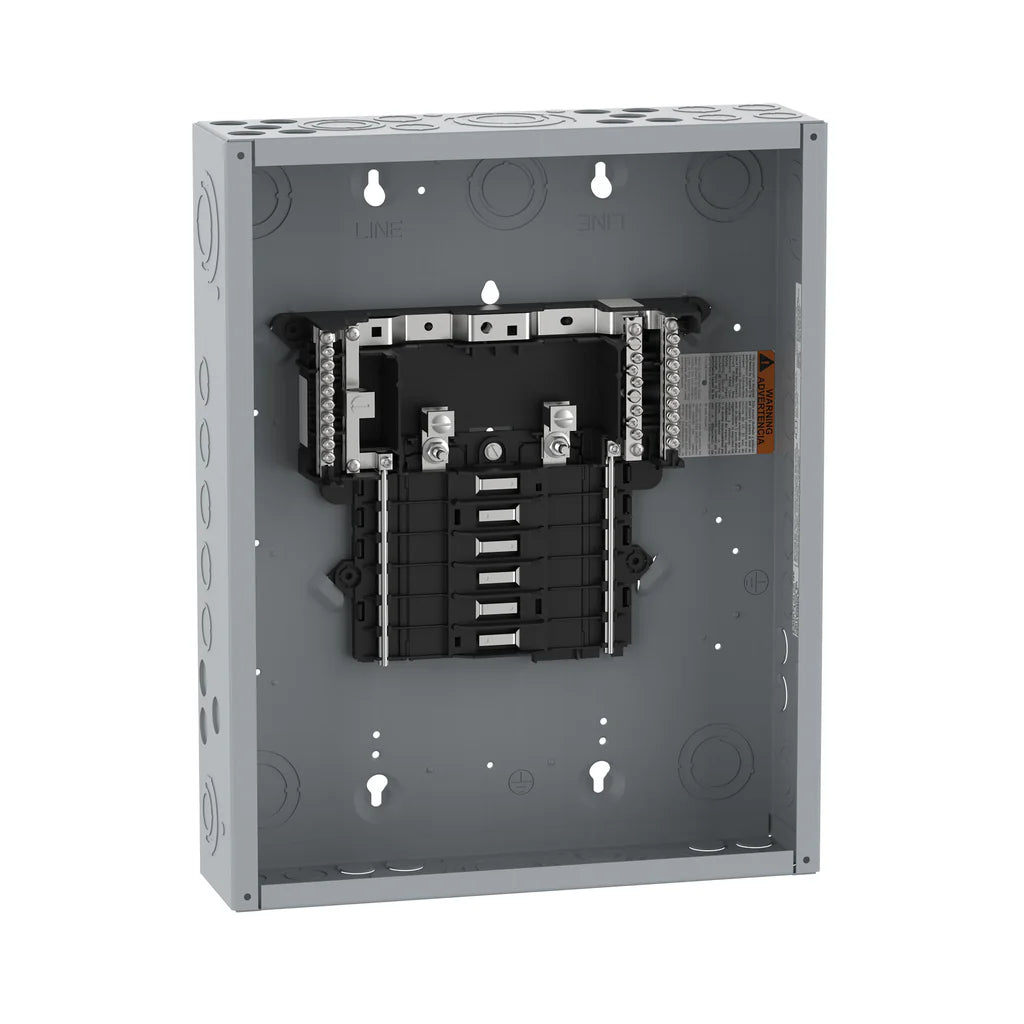

Square D QO112L125PG is a load center designed for efficient power distribution. It supports one phase with twelve spaces and circuits, making it ideal for residential and light commercial applications. This model includes a convertible main lug system rated at 125 amps and is UL listed for safety and reliability.
- One phase, twelve spaces, and twelve circuits capacity.
- 125 amp convertible main lugs for flexible installation.
- NEMA 1 rated enclosure suitable for indoor use.
Product Highlights
The QO Load Center offers enhanced features for electrical safety. It can accommodate QO breakers, GFCIs, and arc fault interrupters to protect electrical systems and personnel.
Product Information
Standard Information
-
Manufacturer: Schneider Electric
-
Brand: Square D
Technical Specifications
-
Catalog Number: QO112L125PG
-
Rated Current: 125 Amp
-
Number of Spaces: 12
-
Number of Circuits: 12
-
NEMA Size: 1
-
Net Weight: 4.72 kg
-
Operating Temperature: 23 degrees F to 104 degrees F
-
Short Circuit Current Rating: 65 kA
