Square D QHB230 miniature circuit breaker 30 Amp

Product Description

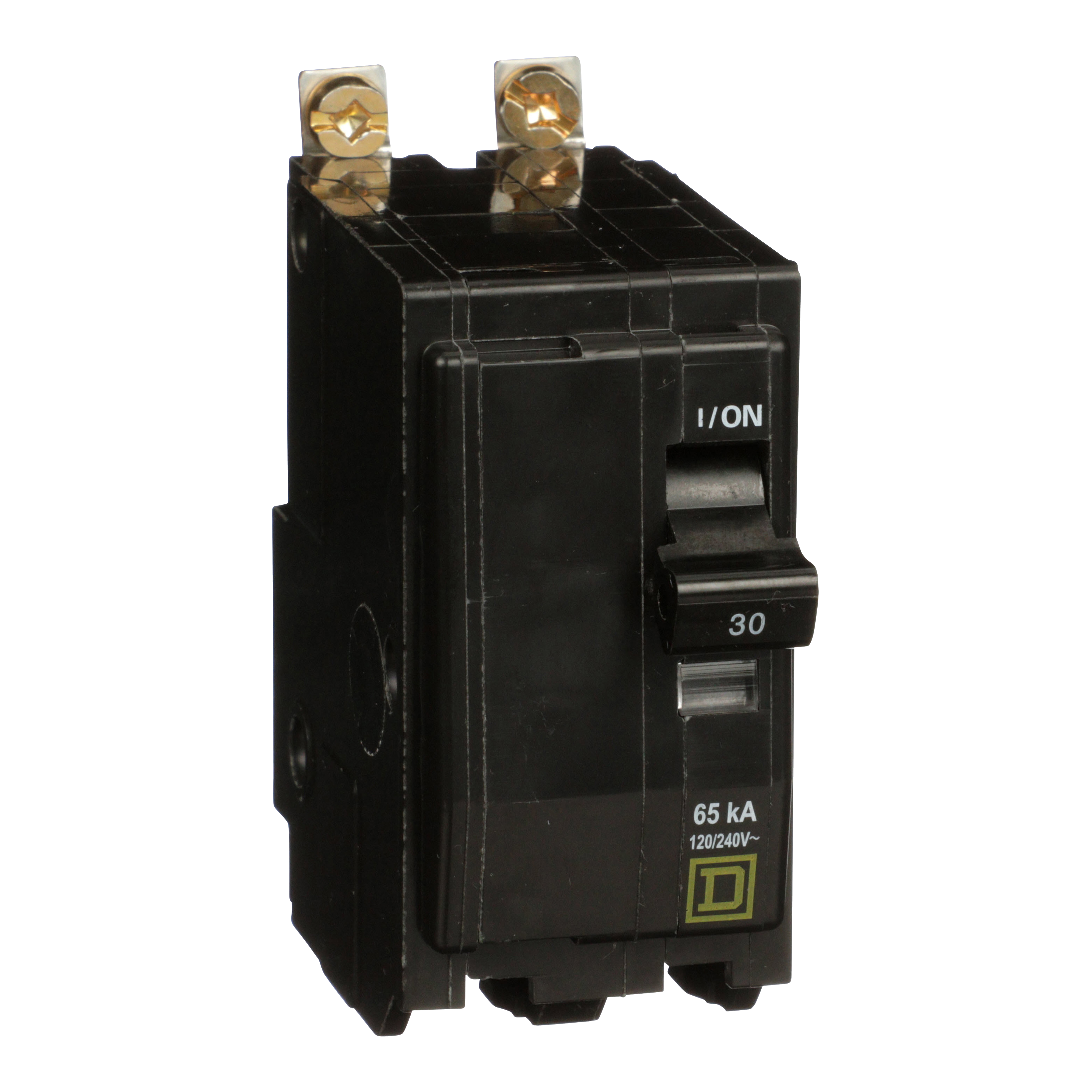

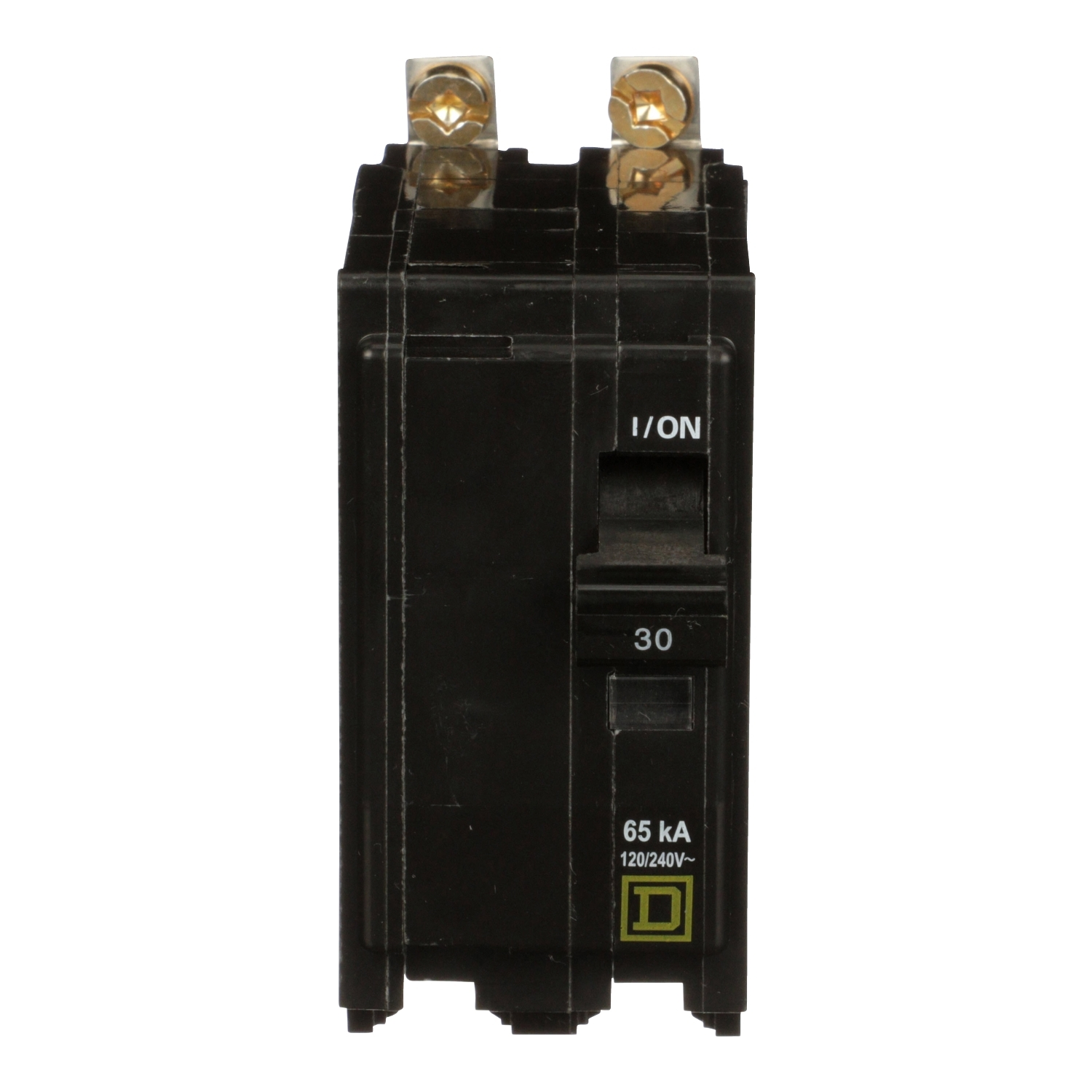

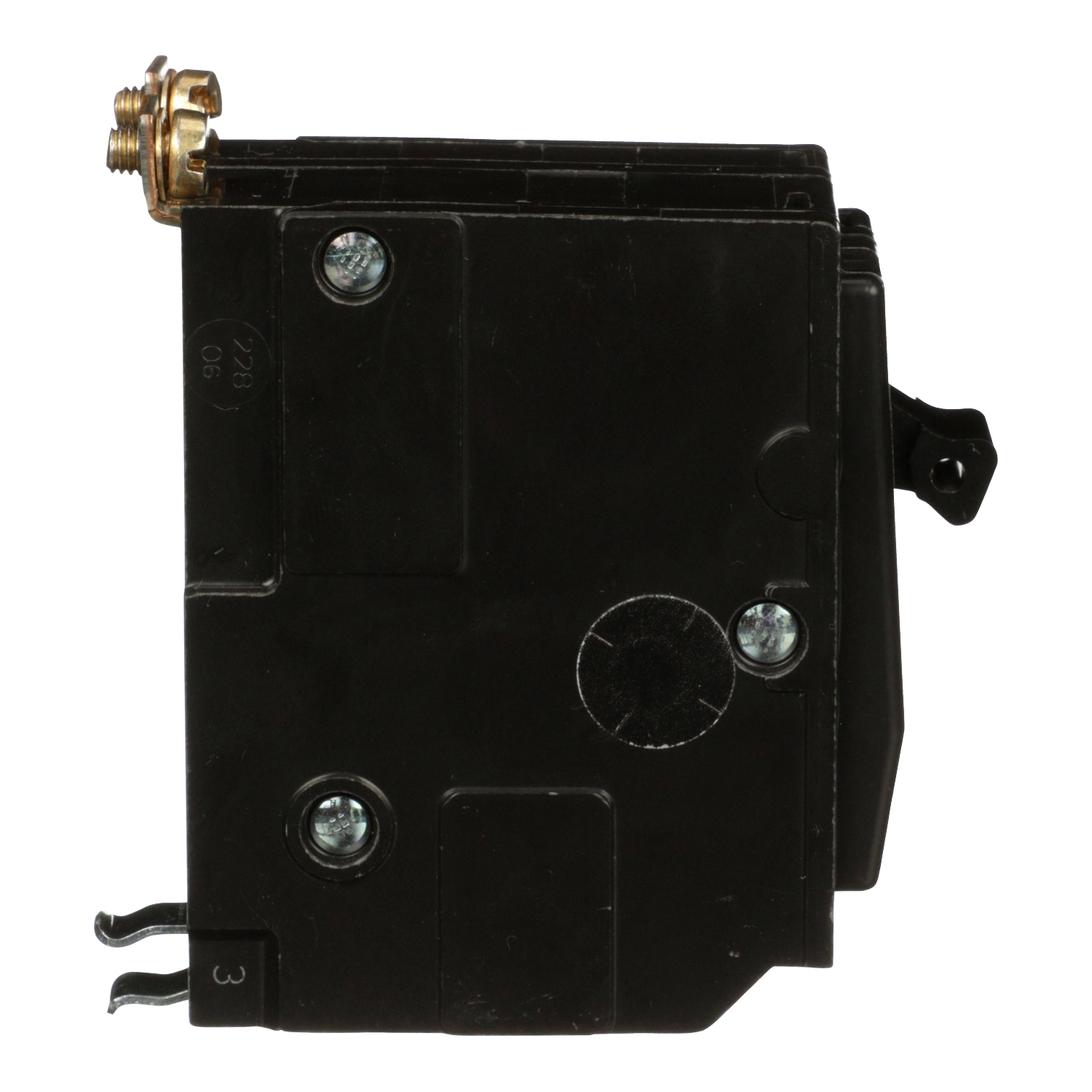

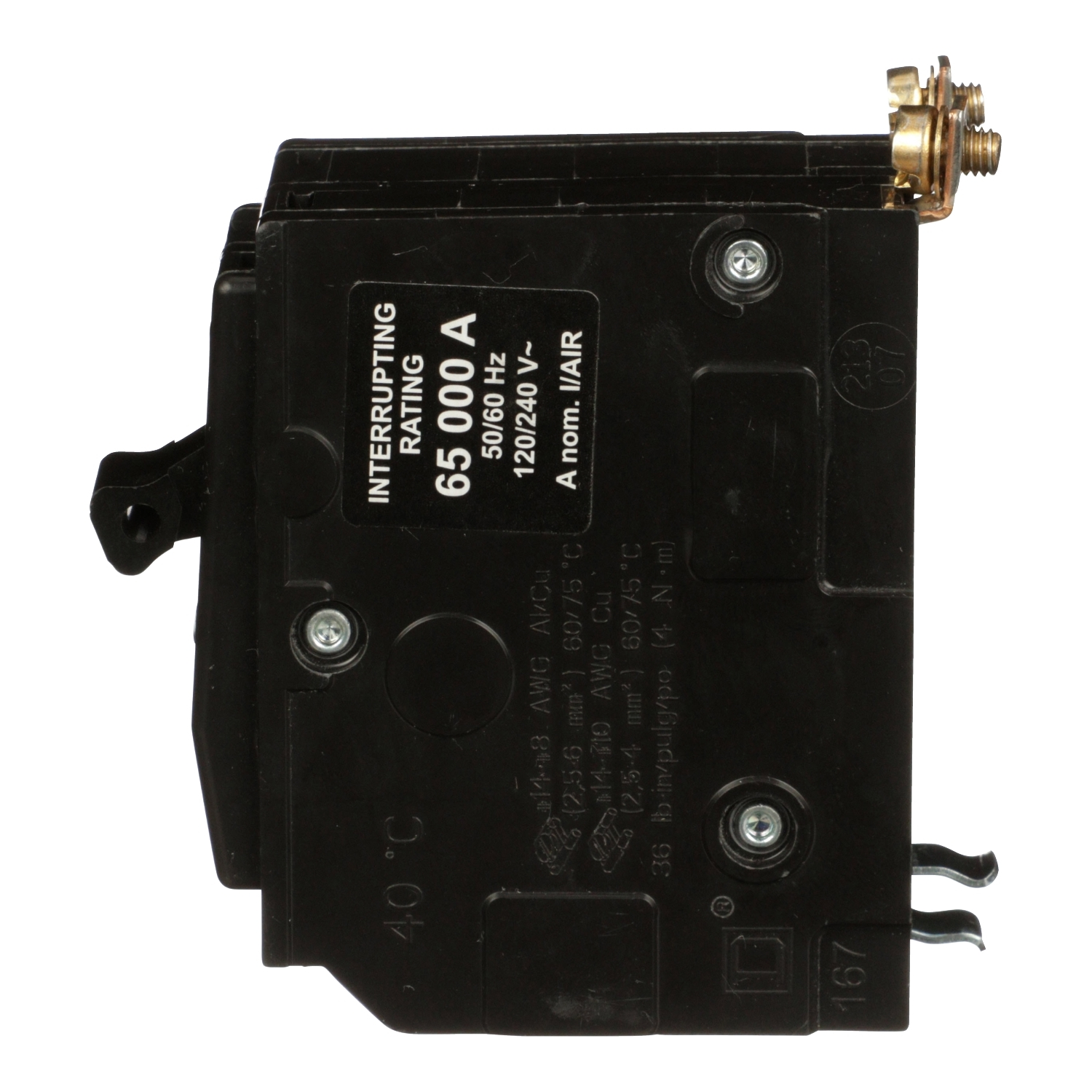

The Square D QHB230 is a 30 Amp, 2-pole thermal magnetic circuit breaker designed for overcurrent protection and switching on AC and DC systems. It features an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. The VisiTrip trip indication provides a visual indication that the circuit breaker has tripped. It has a 65kA breaking capacity and bolt-on mounting.

• Provides overcurrent protection and switching on AC and DC systems
• Features a trip-free toggle mechanism with quick make, quick break action
• Offers VisiTrip trip indication for visual indication of tripped circuit

Product Highlights

This Square D circuit breaker is UL Listed and CSA Certified, offering reliable circuit protection with a visible trip indicator.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QHB230
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• MPN: QHB230
• Current: 30 Amp
• Voltage: 120/240 VAC
• Amperage: 30 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 2
• Interrupt Rating: 65 kAIC
• Line Rated Current: 30 A
• Circuit Breaker Type: Standard
• Operating Temperature: 40 Adegrees C
• Short Circuit Current: 65 kA
• Manufacturer: Schneider Electric
• Installation: Bolt-On
• Application: Appliance, Air Conditioning, Heating, Lighting, Refrigeration Equipment
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Frame Type: Q
• Tripping Method: Thermal Magnetic
• Includes: Visi-Trip Indicator
• Range Of Product: QO
• Product Or Component Type: miniature circuit-breaker
• Circuit Breaker Application: HACR rated
• Mounting Mode: bolt-on
• Poles Description: 2P
• Electrical Connection: pressure plate
• [Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
• Tightening Torque: 4.6-4.6 N.m
• Number Of Spaces Required: 2
• Breaking Capacity: 65 kA 120/240 V AC || 65 kA 120 V AC
• Awg Gauge: AWG 14...AWG 8 copper or aluminium
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• Alternate Catalog Number: QHB230
• Connection: PRESSURE PLATE #14 TO #8 AWG(AL/CU)
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 30 Ampere
• Interrupting Rating: 65 Kiloampere at 120/240 VAC (UL/CSA)
• Standard: UL LISTED - CSA CERTIFIED
• Standards: ARRA, Buy American Act, RoHS Compliant, CSA 22.2 No. 5, Federal Specification W-C-375B/GEN, HACR Rated, NOM/ANCE, UL 489 File No. E84967
