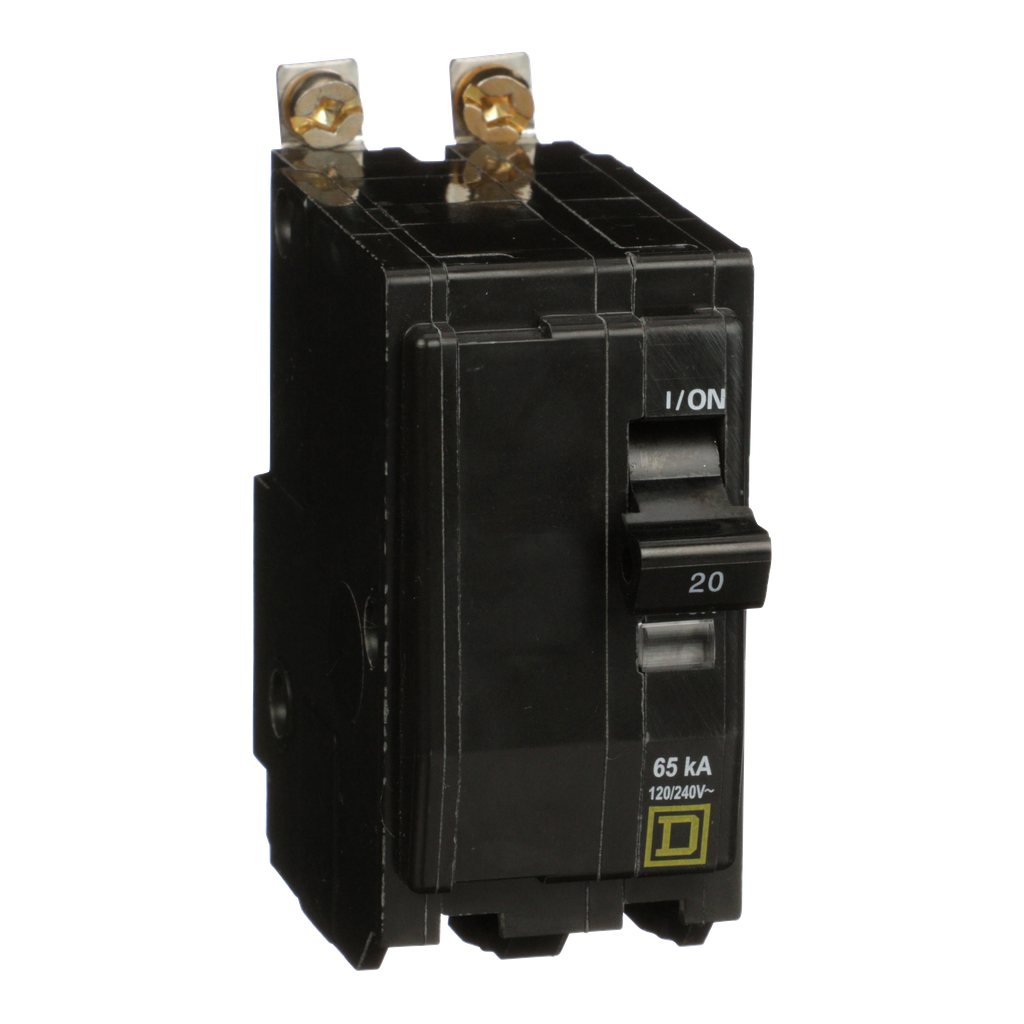

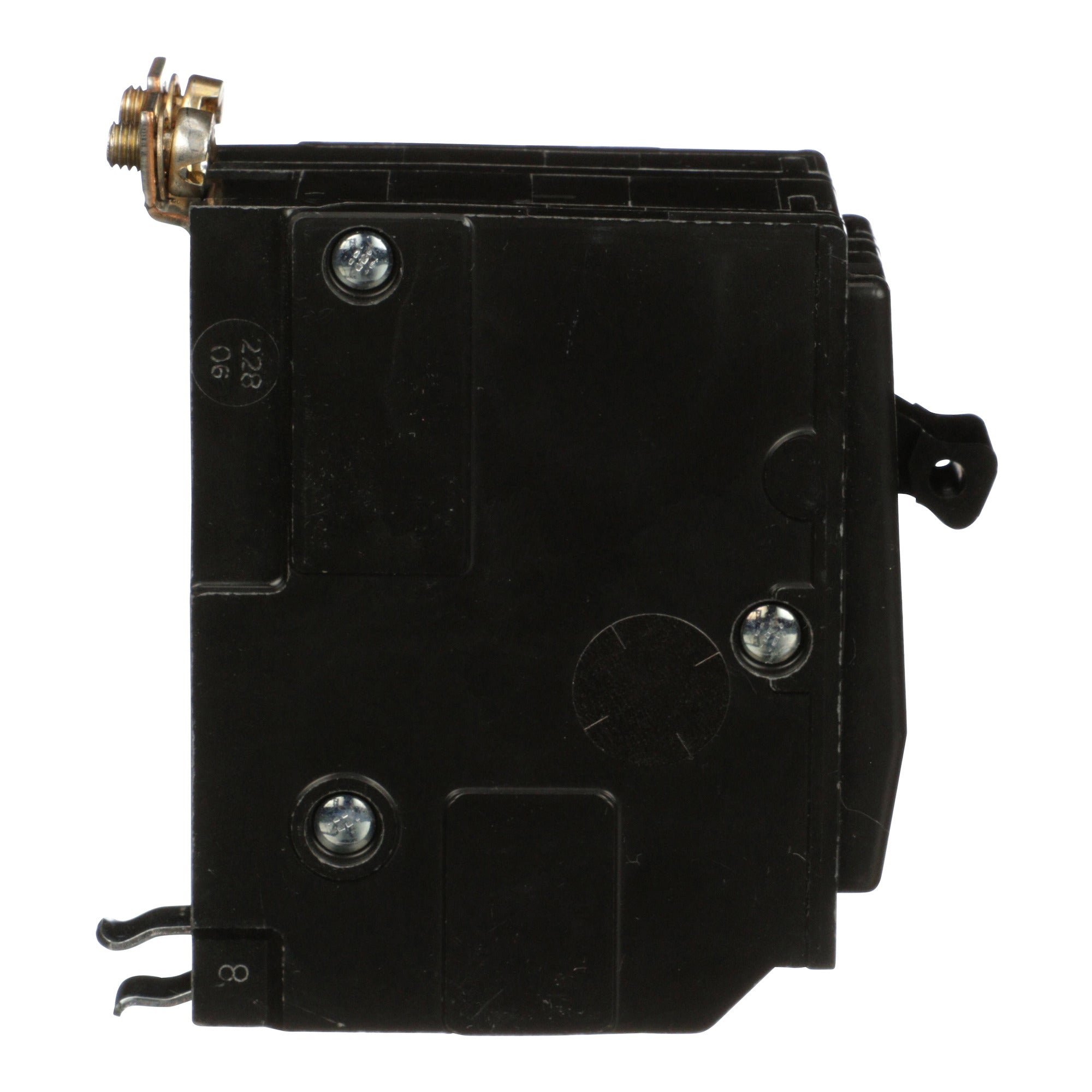

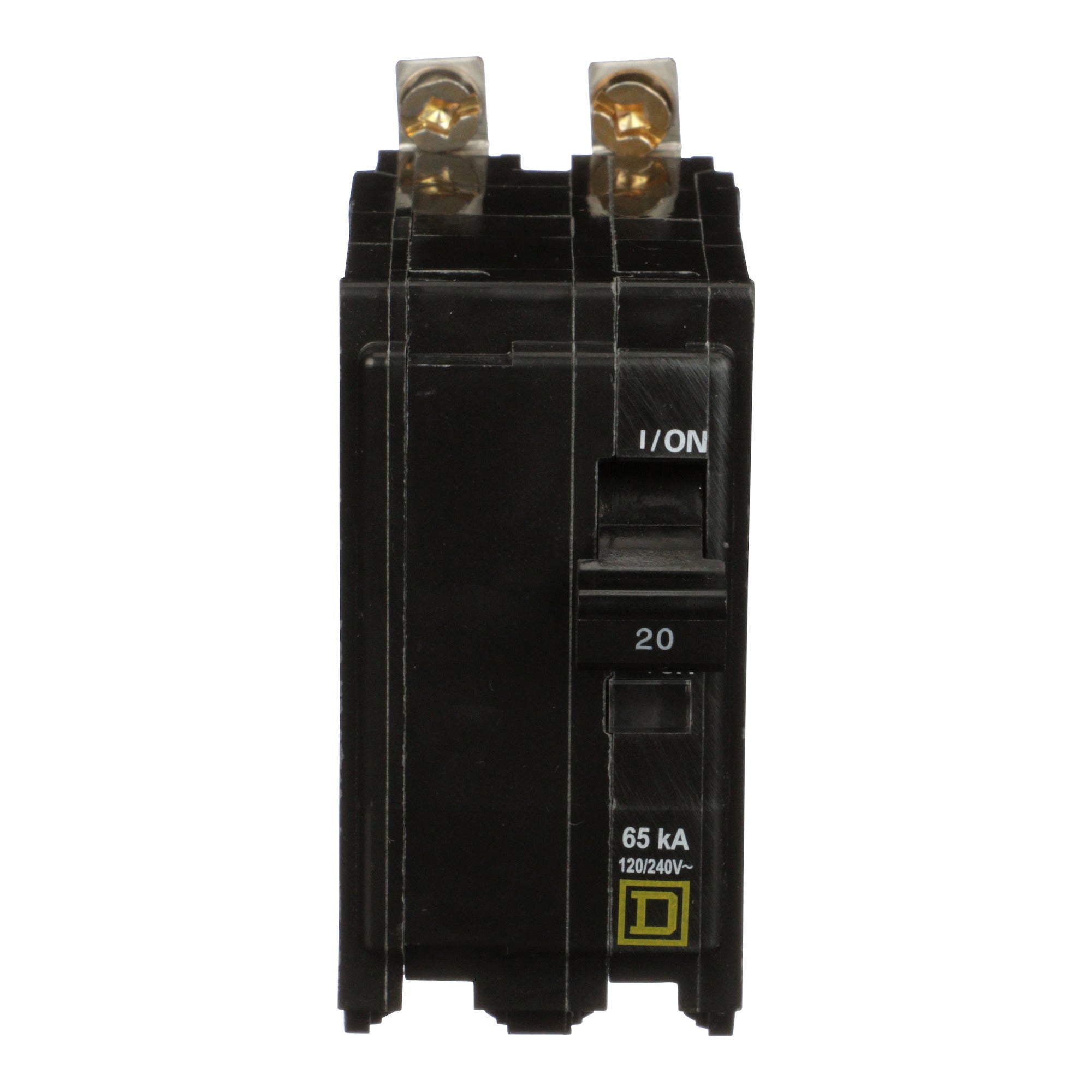

Square D QHB220 Miniature Circuit Breaker 20A 120/240V 2P

Product Description

Square D QHB220 is a miniature circuit breaker that provides reliable overcurrent protection in both AC and DC systems. With a rating of twenty amps at one hundred twenty to two hundred forty volts, this two-pole breaker is designed for quick make and break action using a positive handle mechanism. It features VisiTrip technology, allowing users to visually confirm if the breaker has tripped. This model also supports bolt-on mounting for easy installation.

• 20A at 120/240VAC

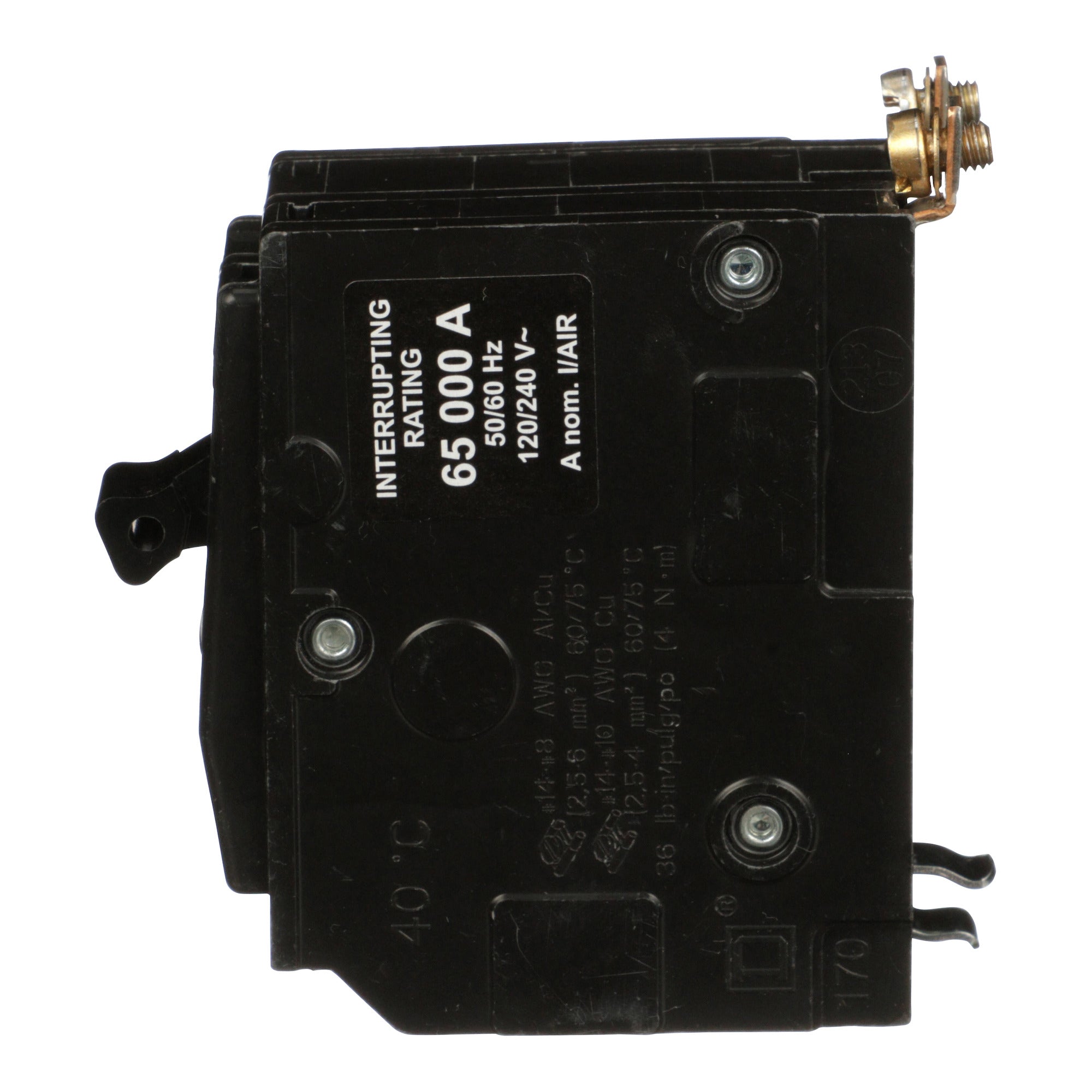

• 65kA breaking capacity
• UL listed and CSA certified

Product Highlights

This circuit breaker is suitable for various applications, including HVAC systems and general electrical protection.

Product Information

Standard Information

• Catalog Number: QHB220
• Brand: Square D

Technical Specifications

• Type: Miniature Circuit Breaker
• Depth: 2.91 inches
• Width: 1.50 inches
• Height: 3.00 inches
• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volts
• Mounting Type: Bolt-on
• Warranty Length: 18 months
• Country of Origin: Mexico
• Certifications: UL Listed, CSA Certified
