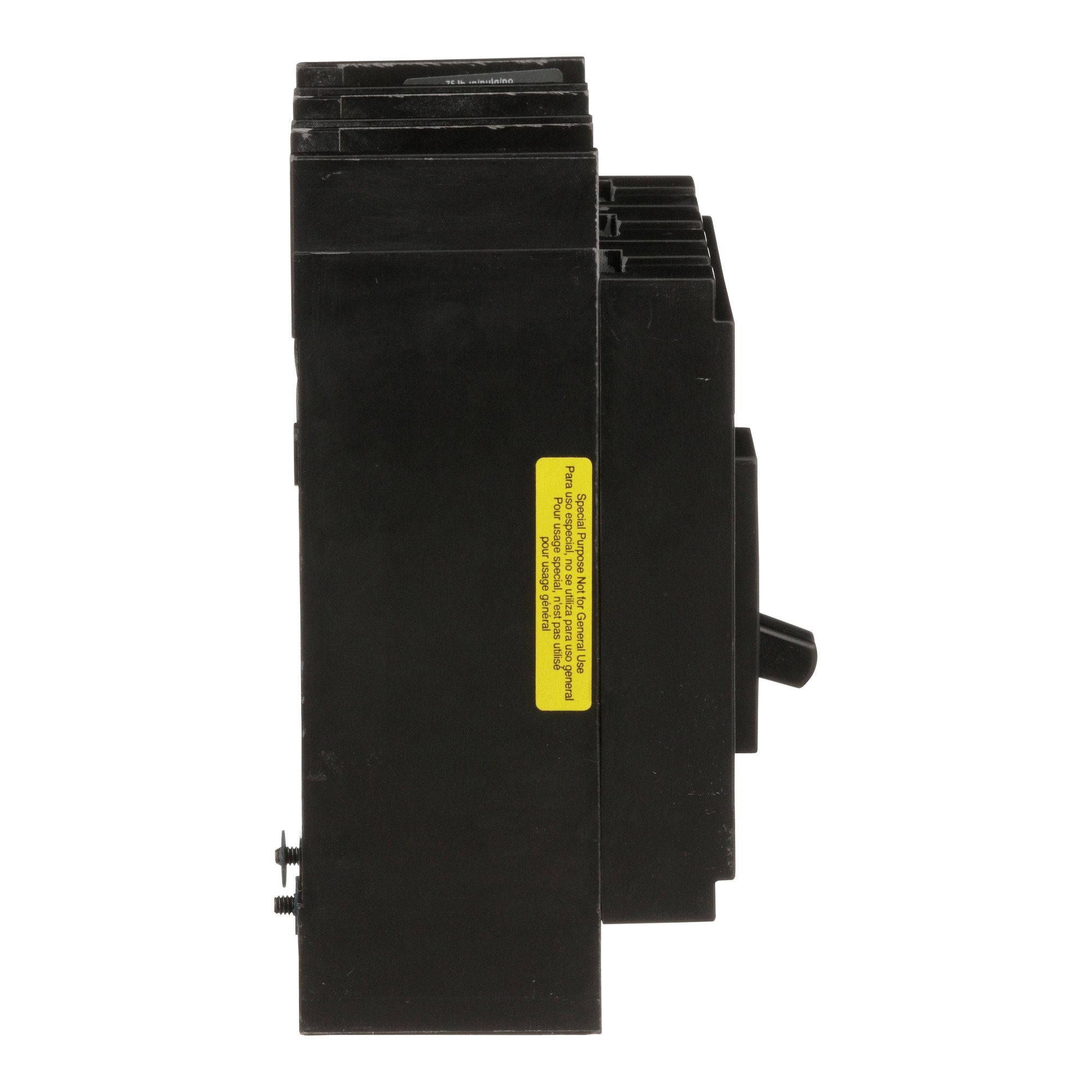

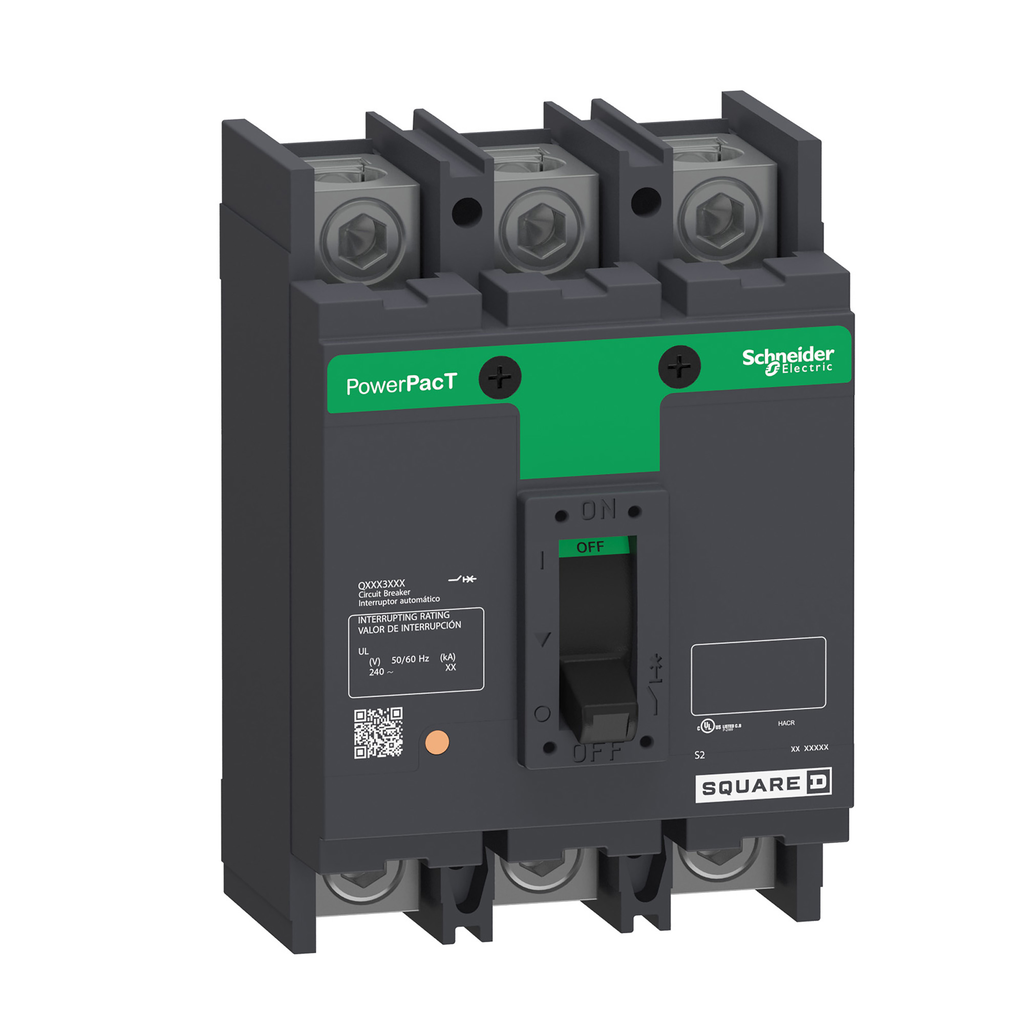

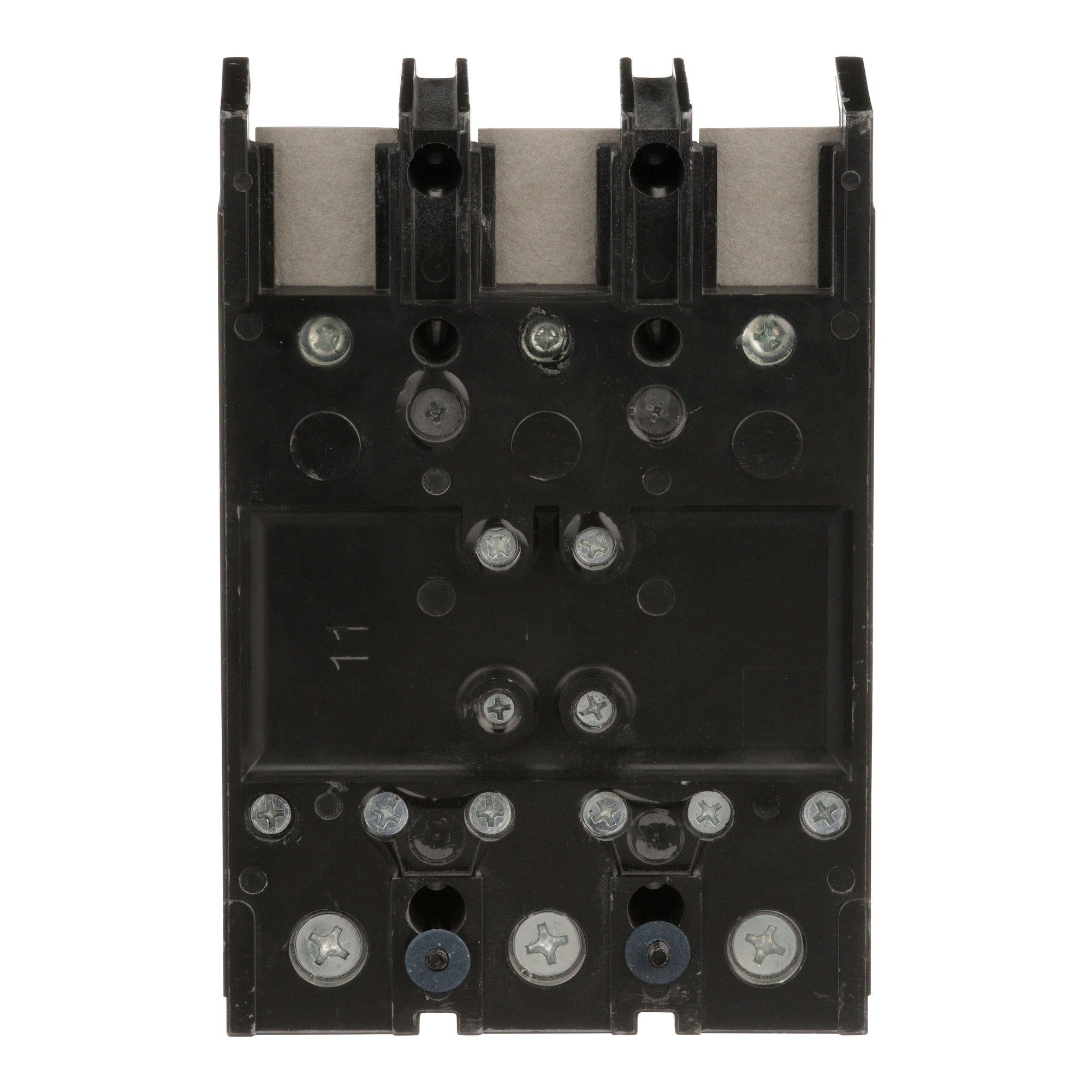

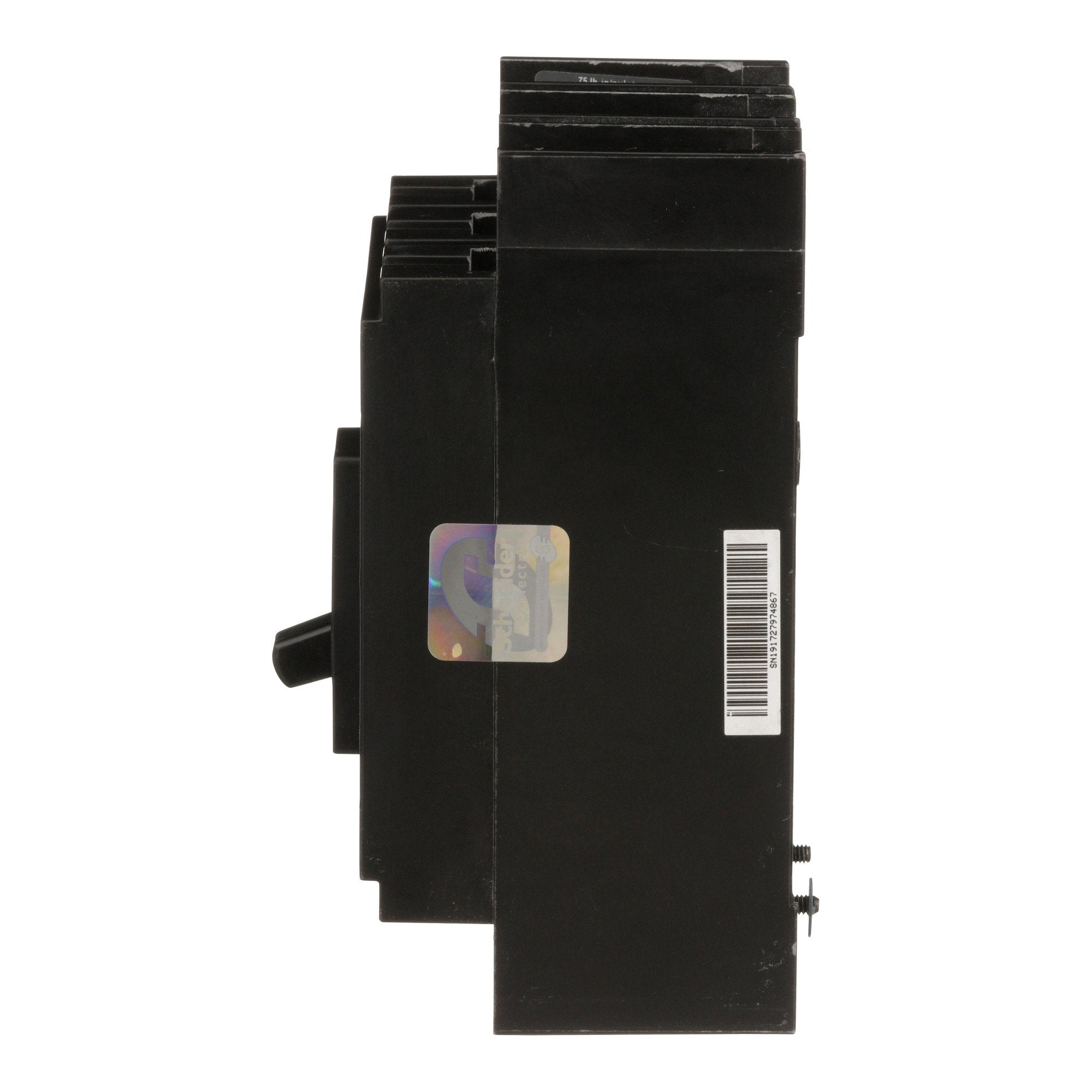

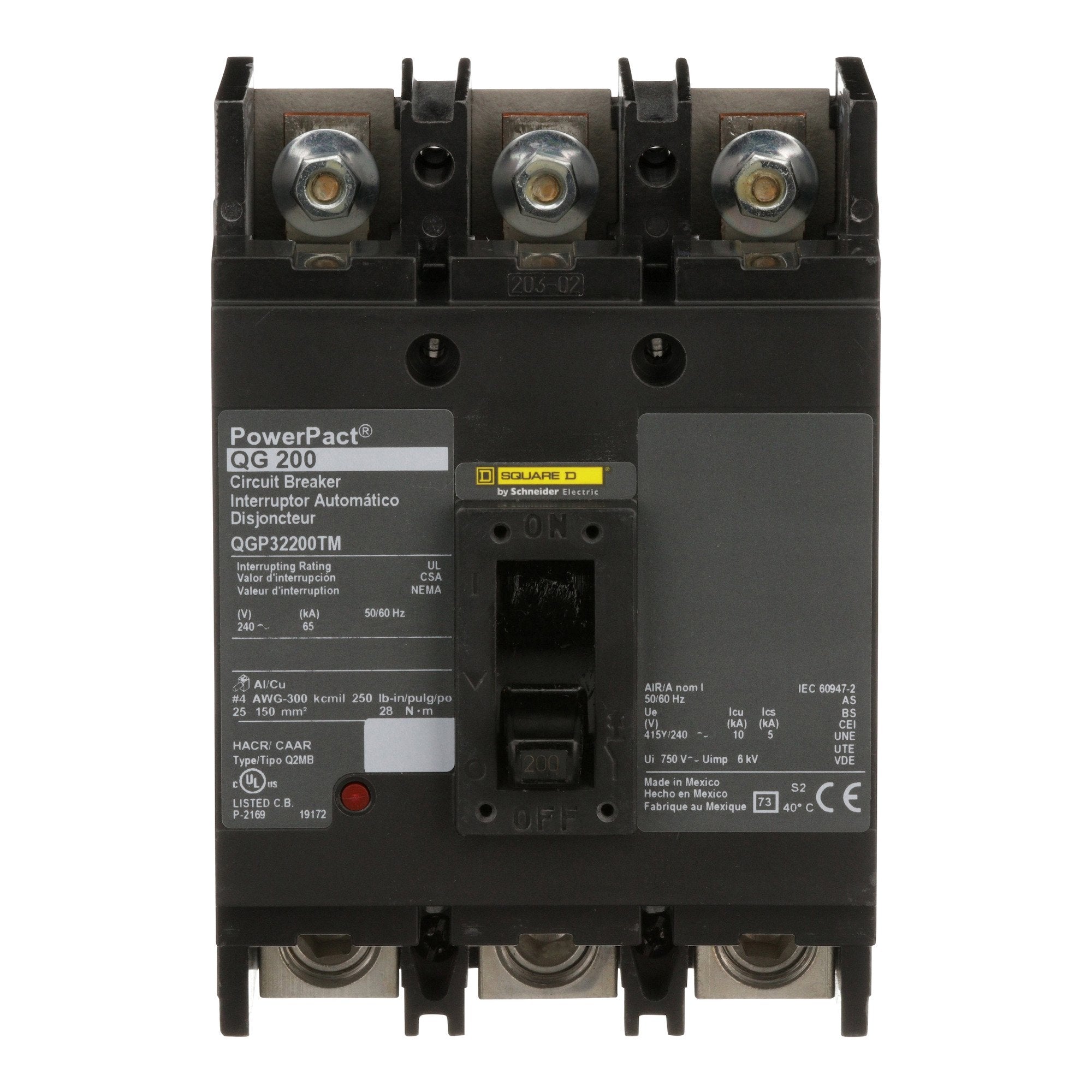

Square D QGP32200TM Molded Case Circuit Breaker 200 Amp 240 Volt

Product Description

The Square D QGP32200TM is a 200 Amp molded case circuit breaker designed for overcurrent protection in 240 Volt AC systems. This circuit breaker employs a thermal magnetic trip mechanism which provides reliable operation. The unit is available in 3-pole configuration and is built for both unit mount and I-Line construction scenarios.

• Rated for 240VAC operational voltage
• Interrupt rating of 65kA at 208Y/120VAC and 240VAC
• Complies with UL, CSA, and NOM standards

Product Highlights

With an integral push-to-trip button, users can quickly manually trip the breaker when needed. The terminal nuts on the line side and lugs on the load side ensure secure connections for electrical installation. Continuous current rating reaches up to 80% of its maximum capacity, making it suitable for various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QGP32200TM
• Voltage: 240 Volt
• Amperage: 200 Amp
• Number of Poles: 3 Pole
• Height: 6.47 Inch
• Width: 4.5 Inch
• Depth: 3.93 Inch
• Trip Type: Thermal-magnetic
