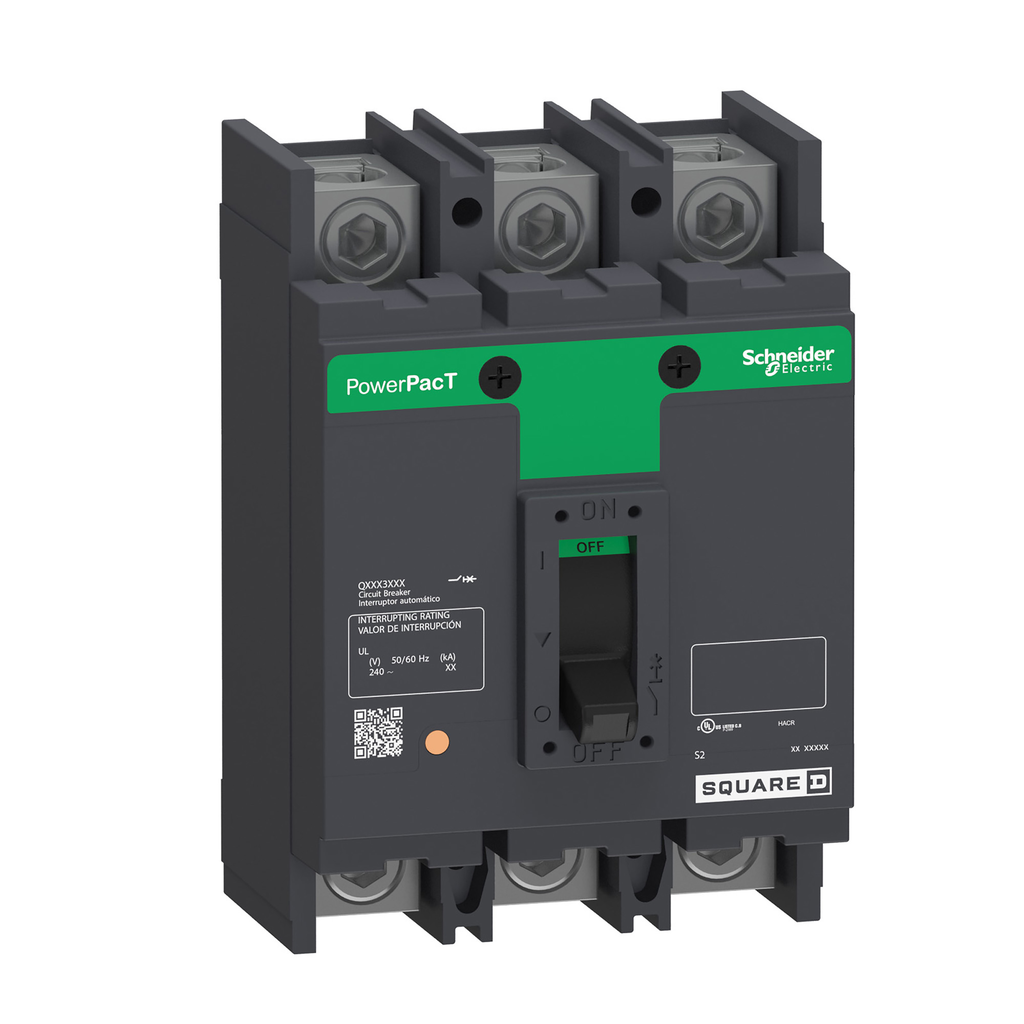

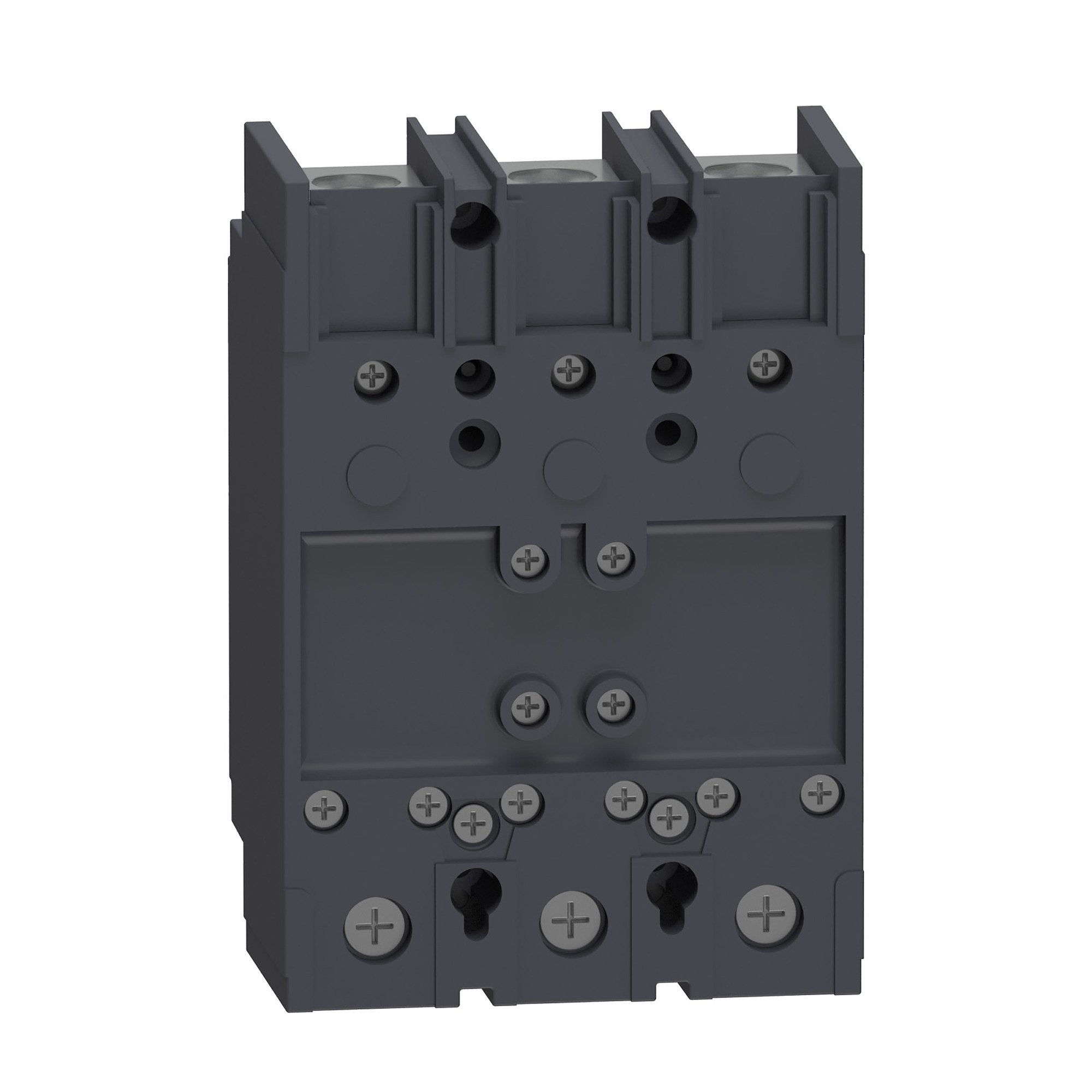

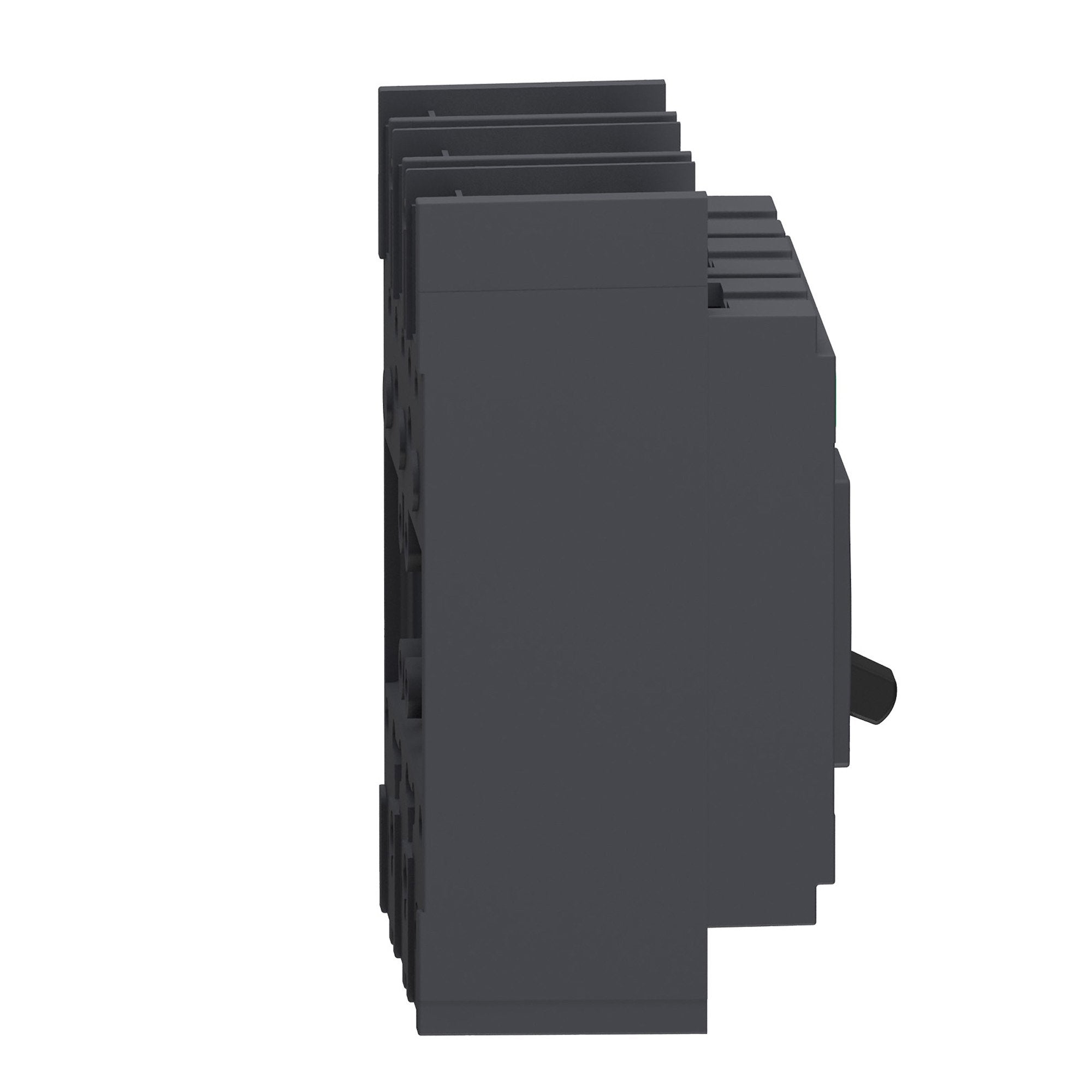

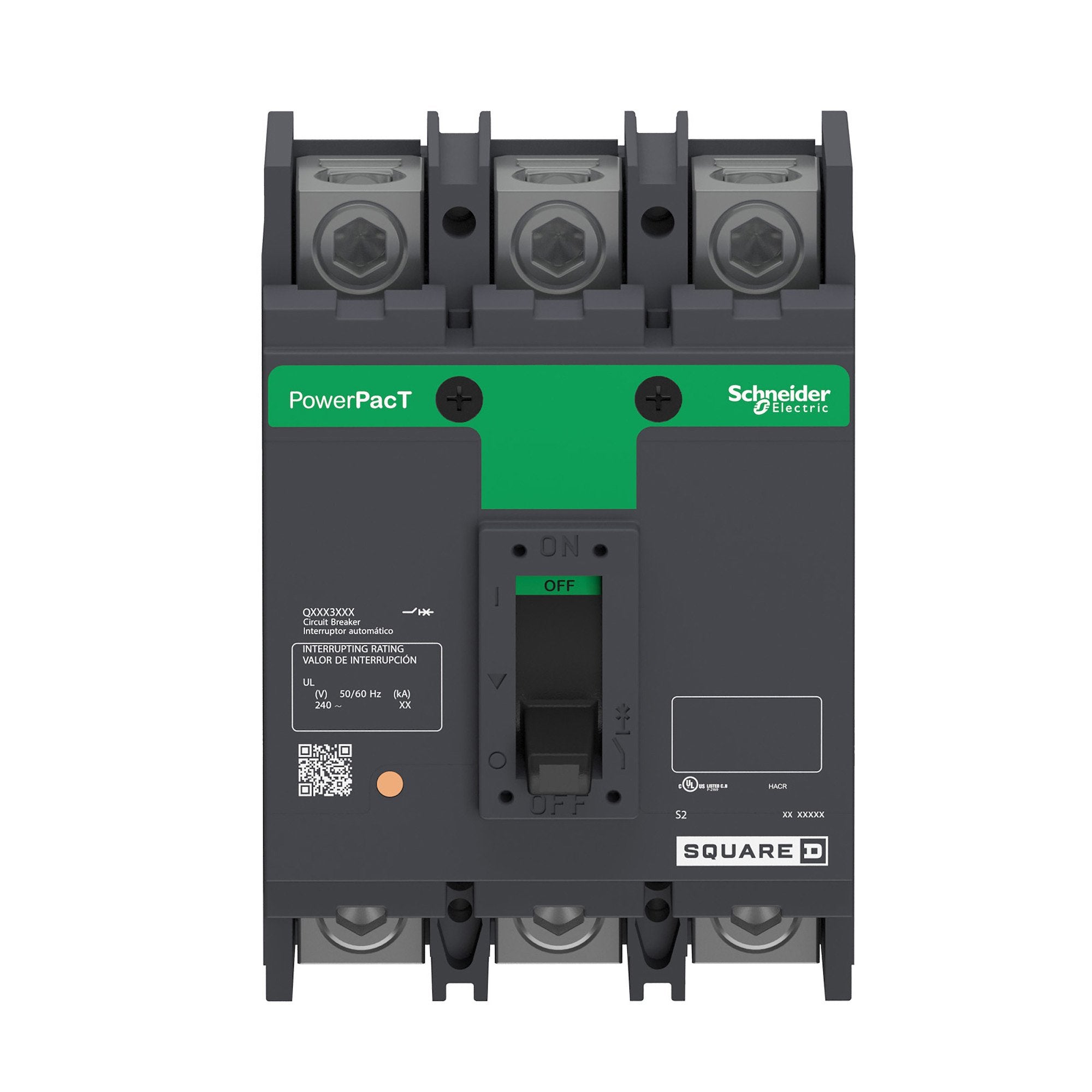

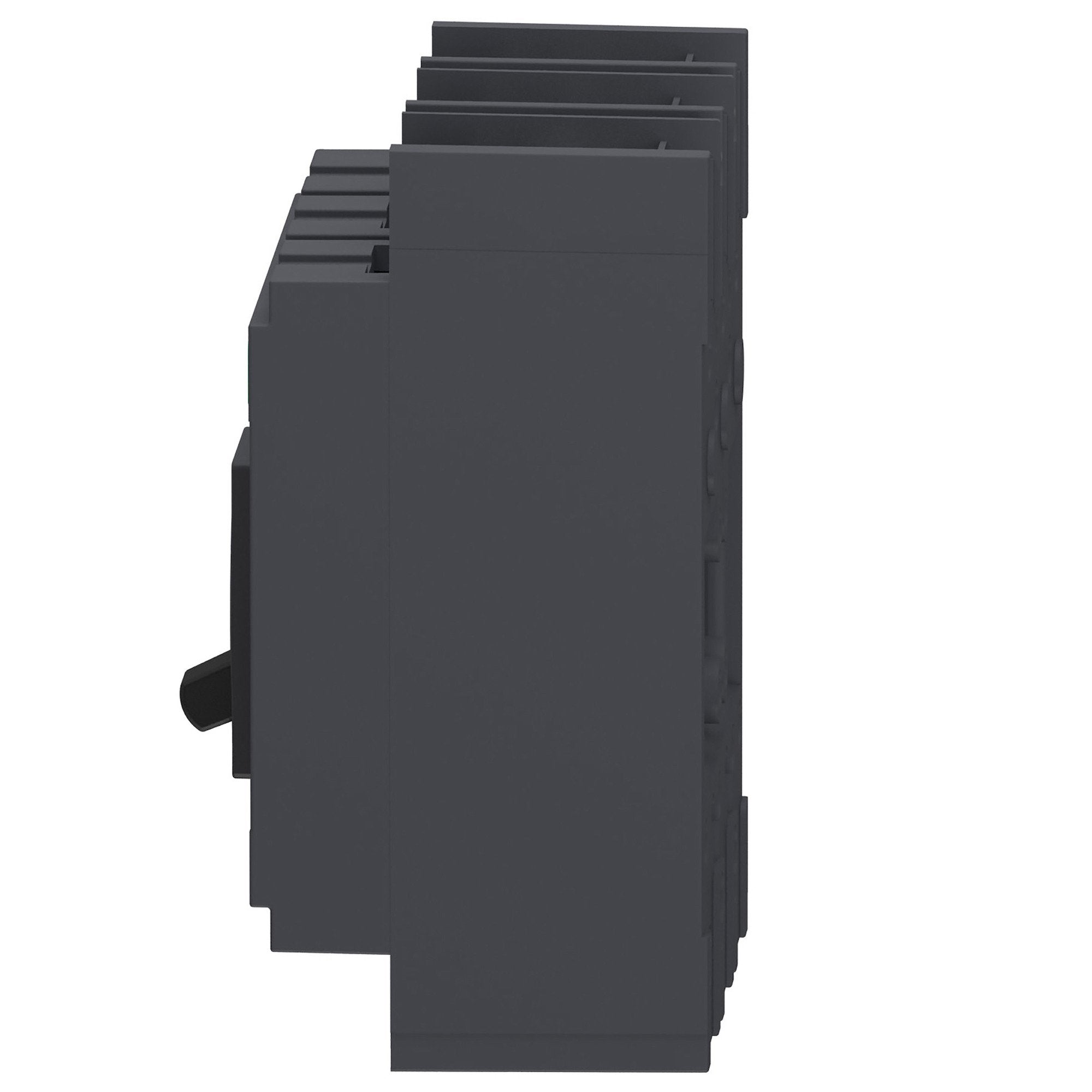

Square D QGL32225 Molded Case Circuit Breaker 225A 240V 3P

Product Description

The Square D QGL32225 is a molded case circuit breaker suitable for overcurrent protection. It has a rated current of 225 amperes and operates on a voltage of 240 volts. This circuit breaker features thermal-magnetic trip technology, providing reliable protection against overloads and short circuits.

• Three-pole configuration
• Breaking capacity of 65 kA at 240 VAC
• UL and CSA certified

Product Highlights

This circuit breaker is ideal for industrial and commercial applications, ensuring safety and efficiency. It is compatible with various mounting systems and has a compact design for easy integration.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QGL32225
• Voltage: 240 Volt
• Amperage: 225 Amp
• Trip Type: Thermal-magnetic
• Height: 6.47 inches
• Width: 4.5 inches
• Depth: 3.93 inches
• Number of Poles: 3
• Interrupt Rating: 65 kAIC
