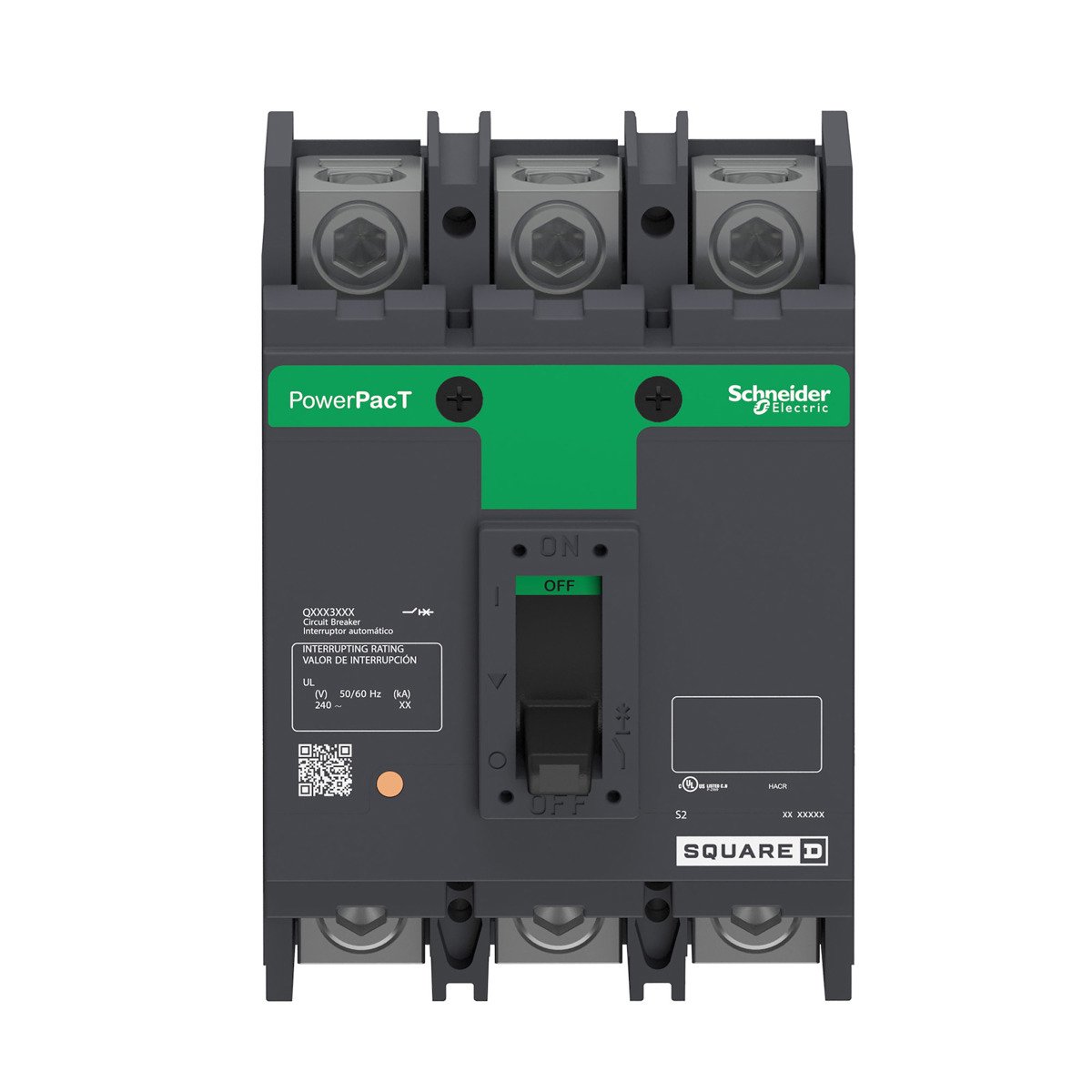

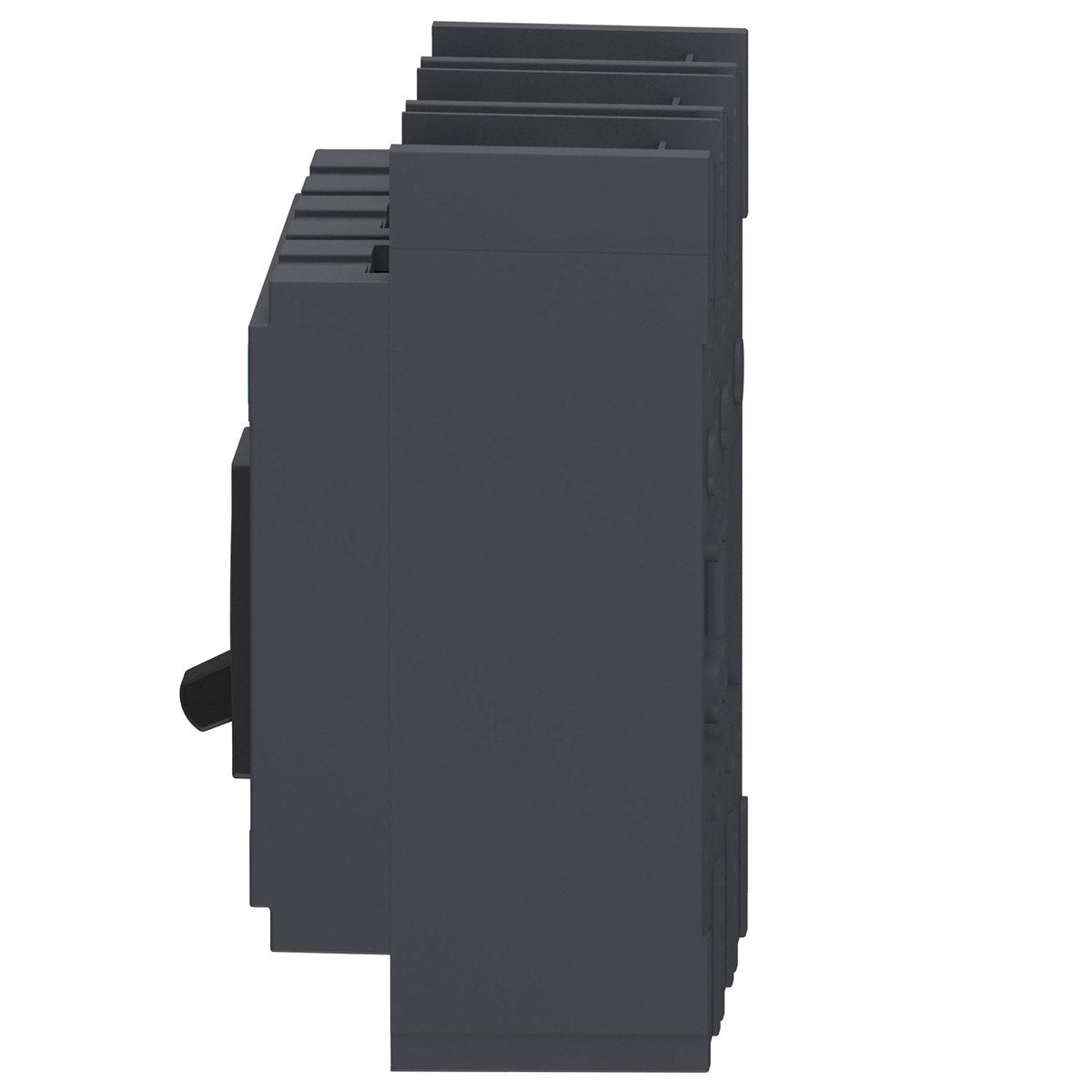

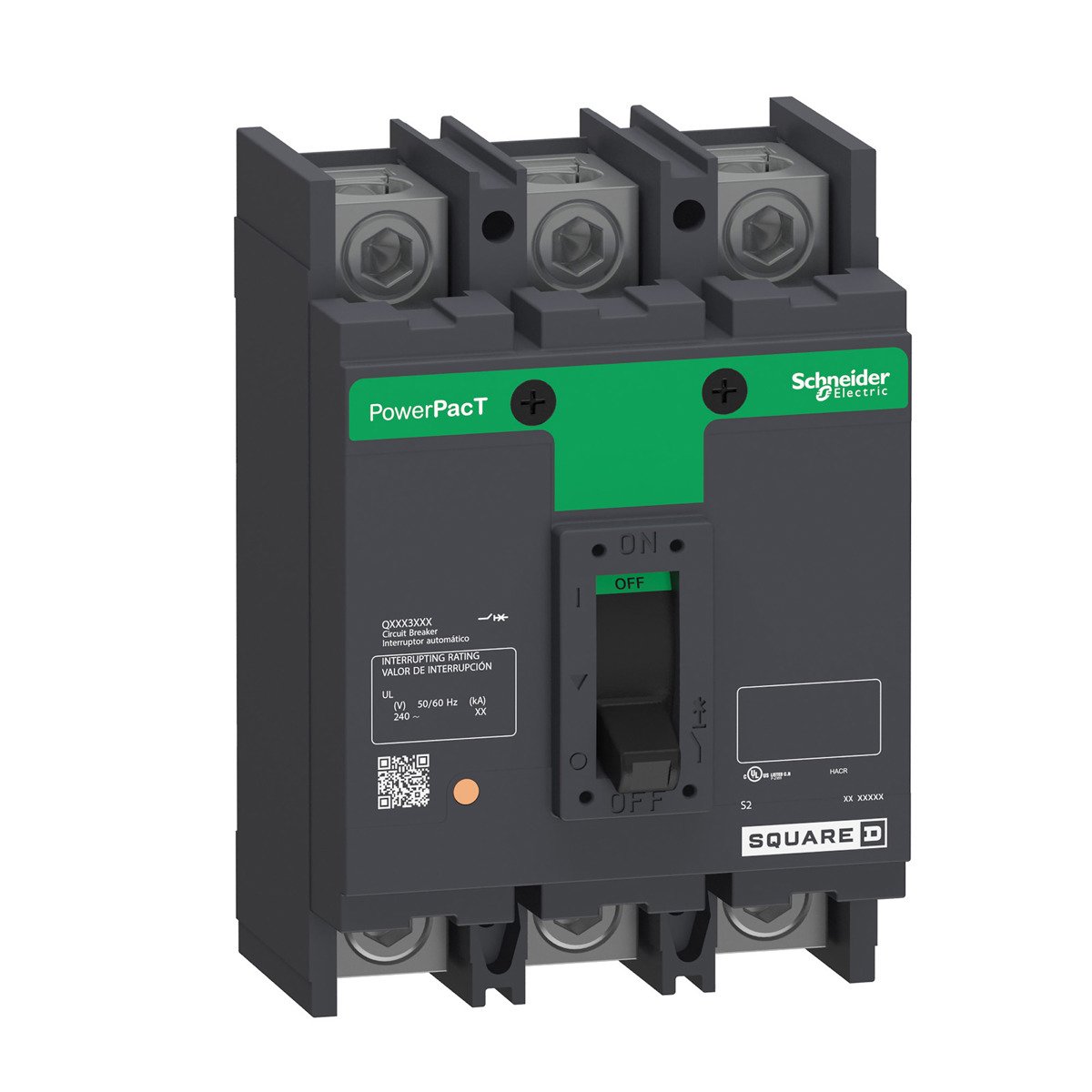

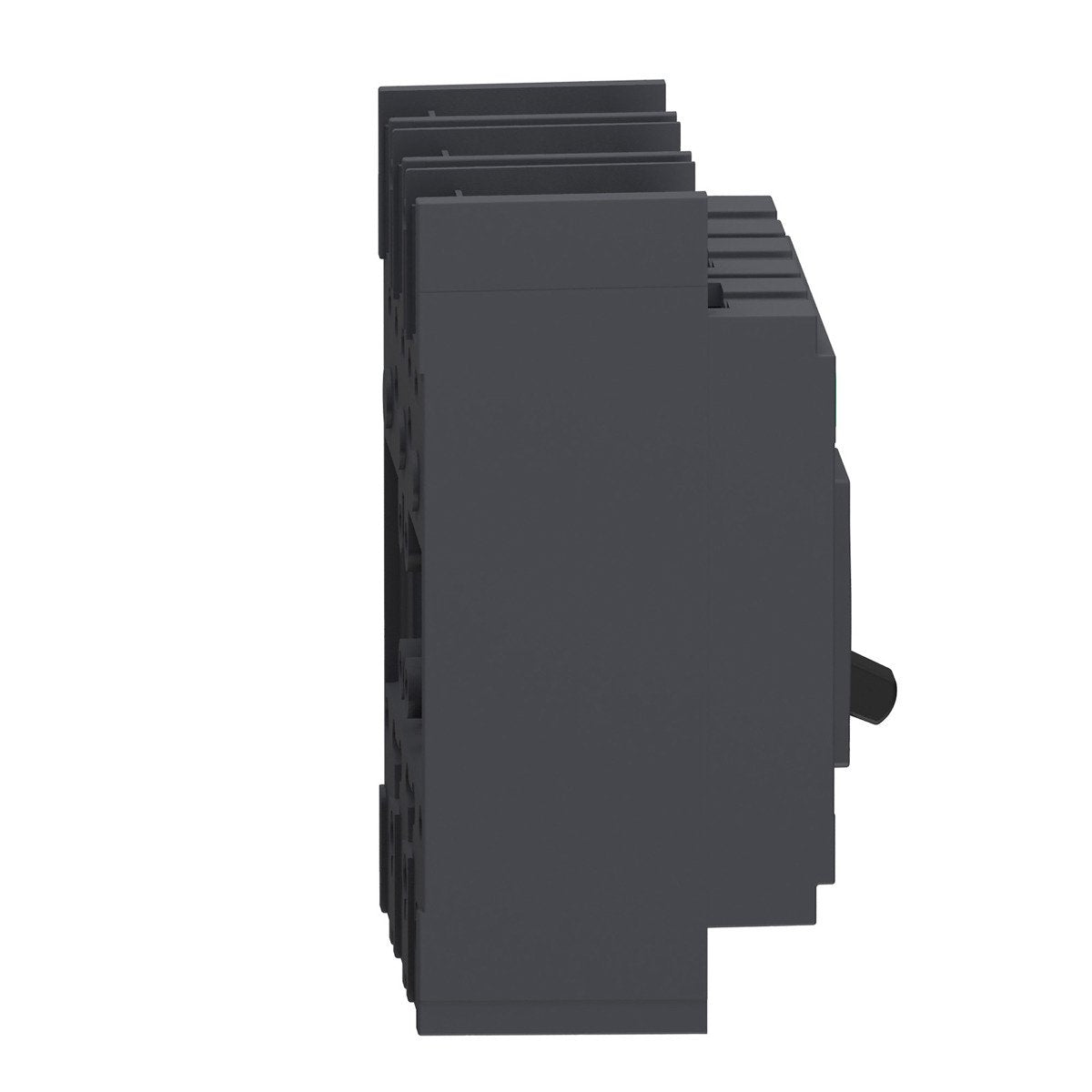

Square D QGL32100 Molded Case Circuit Breaker 100A 240V 3P

Product Description

The Square D QGL32100 is a molded case circuit breaker designed to provide overload and short circuit protection for electrical systems operating at a voltage of 240V. It features thermal-magnetic trip technology and is rated for a continuous current of 100 Amps. This circuit breaker has an interrupting capacity of 65 kA at a voltage of 240V. The unit is compatible with various mounting types, including unit mount and I-Line configurations.

• Thermal-magnetic trip unit for reliable performance.
• Rated for 100 Amps and 240 Volt applications.
• Designed for both individual and group mounting configurations.

Product Highlights

The PowerPact Q-frame circuit breaker is a reliable solution for power distribution needs. It meets UL, CSA, and IEC standards for safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QGL32100
• Voltage: 240 Volt
• Amperage: 100 Amp
• Trip Type: Thermal-magnetic
• Number of Poles: 3
• Interrupt Rating: 65 kAIC
• Height: 6.47 inches
• Width: 4.5 inches
• Depth: 3.93 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
