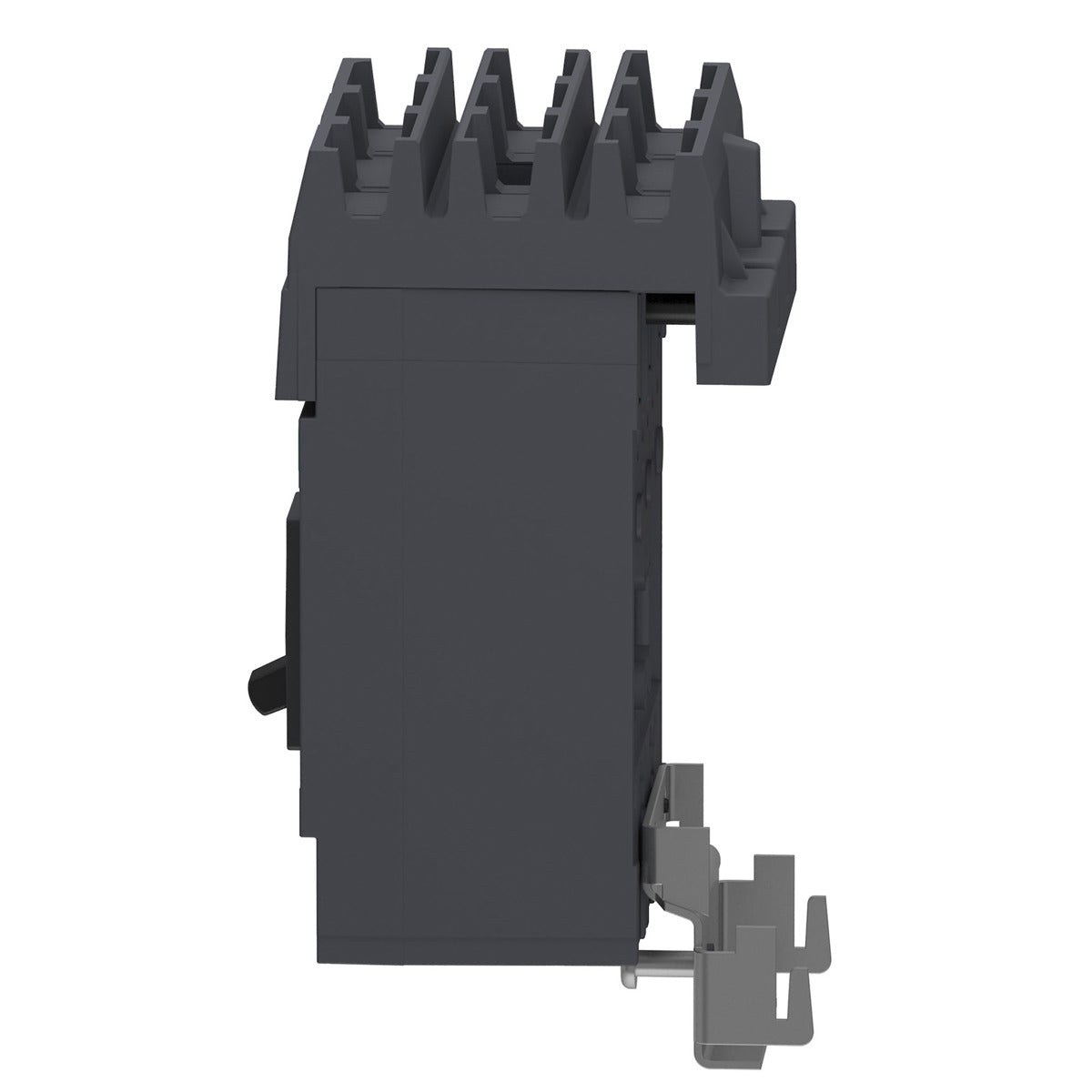

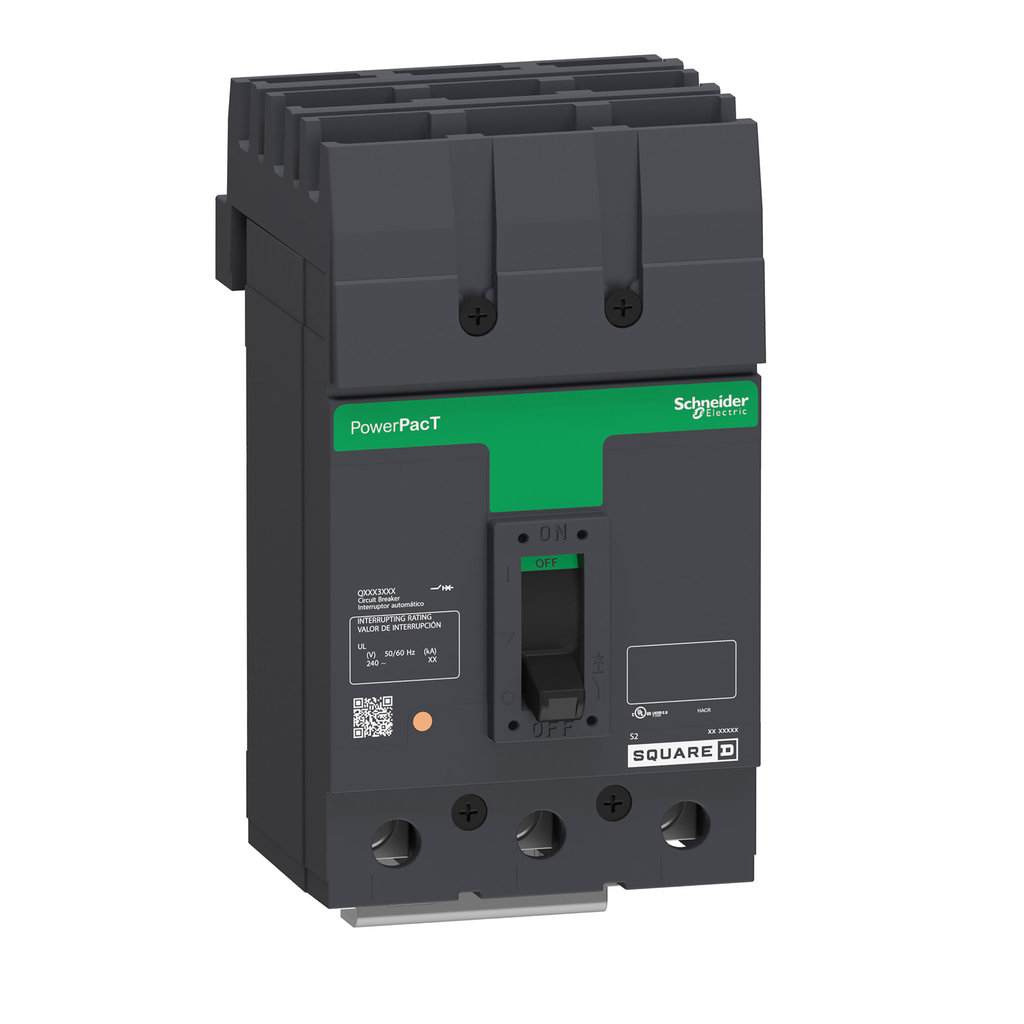

Square D QGA32200 Molded Case Circuit Breaker 200A 240V 3P Thermal Magnetic

Product Description

The Square D QGA32200 is a molded case circuit breaker rated for 200 Amps and 240 Volts in a three-pole configuration. This unit is part of the PowerPact Q-frame line, offering reliable protection against overcurrents. The breaker has a thermal-magnetic trip mechanism and is designed for use in a variety of electrical systems.

• Rated for 240 Volts with a breaking capacity of 65kA.
• Features a thermal magnetic trip unit with hold current of 1200 A and trip current of 2400 A.
• Compliant with UL, CSA, and IEC standards.

Product Highlights

This circuit breaker is suitable for use in panelboards, switchboards, and individual enclosures. It is compatible with both lug and bus-connected configurations, making it versatile for different installations.

Product Information

Standard Information

• Catalog Number: QGA32200
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Amperage: 200 Amp
• Number of Poles: 3 Pole
• Width: 4.5 inches
• Height: 6.47 inches
• Depth: 3.93 inches
• Interrupt Rating: 65 kAIC
• Operating Temperature: -13F to 158F
• Country of Origin: Mexico
• Warranty Length: 18 months
