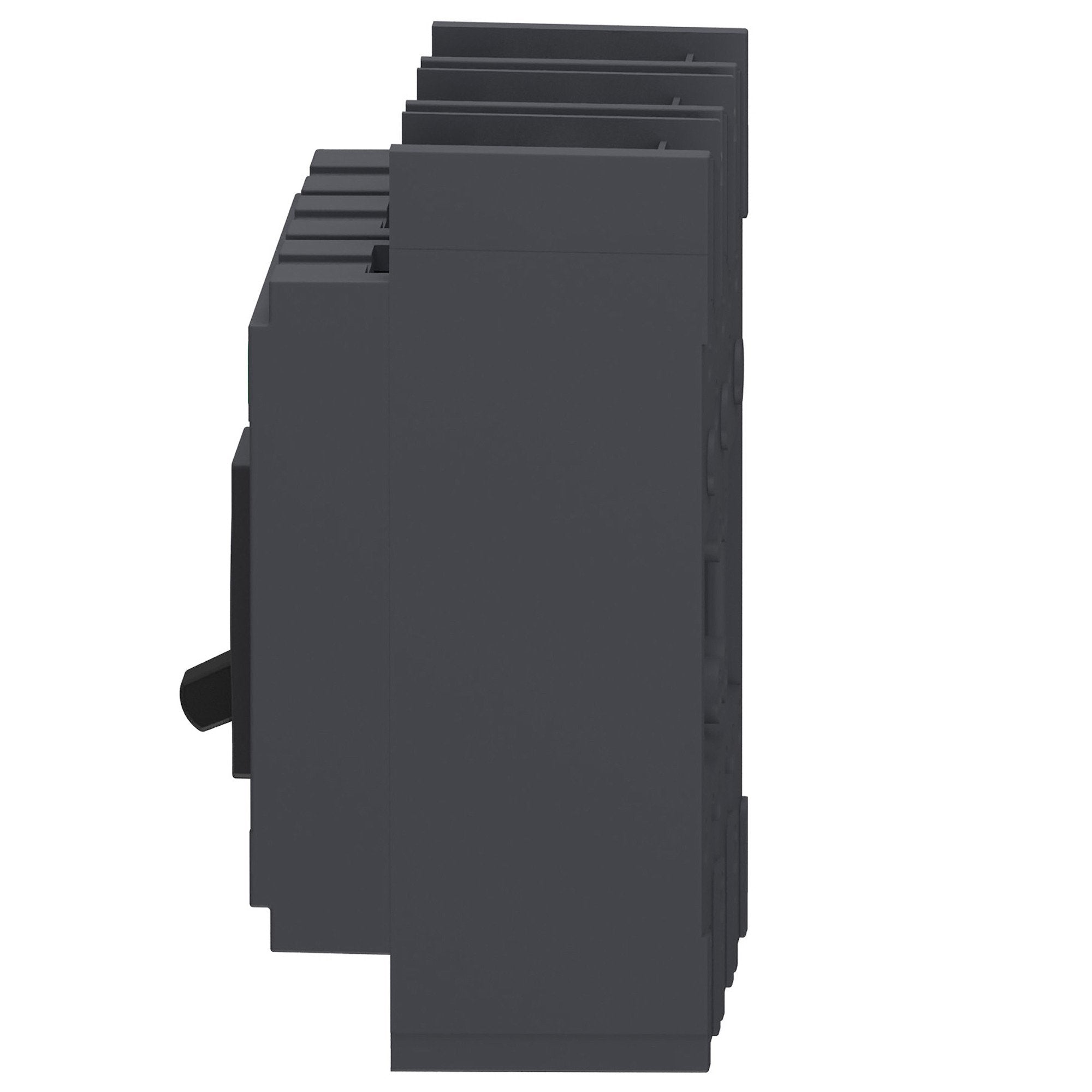

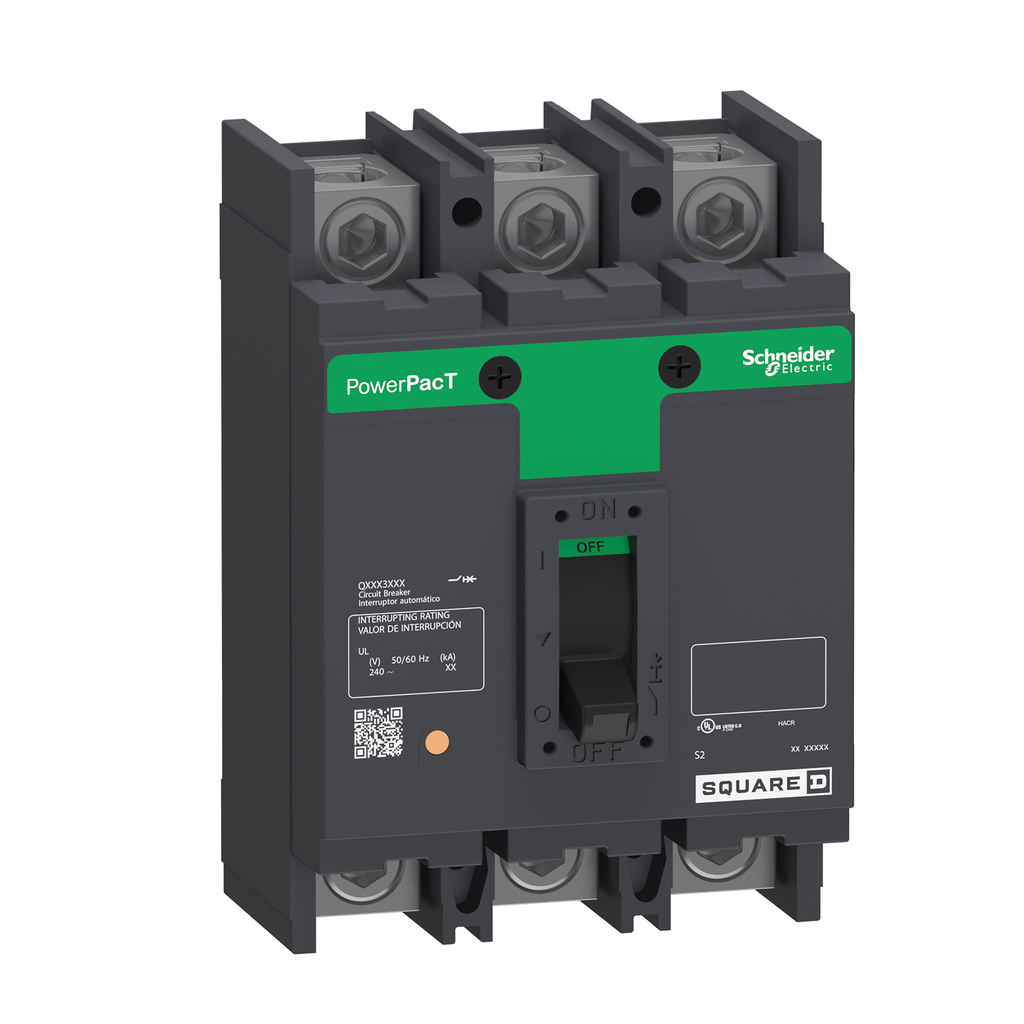

Square D QDP32200TM Molded Case Circuit Breaker 200 Amp 240 Volt

Product Description

Square D QDP32200TM is a molded case circuit breaker designed for overcurrent protection and switching in 240VAC systems. This circuit breaker features thermal magnetic trip protection and operates effectively at a voltage rating of 240VAC. The unit supports both two and three-pole configurations, allowing flexibility in installation. An integral push-to-trip button is included for manual operation. The product is equipped with terminal nuts on the line side and lugs on the load side, with studs on the line end for easy installation.

• Rated for 240VAC operational voltage
• Interrupting rating of 25kA at 208Y/120VAC and 240VAC
• Continuous current rating of 160A, compliant with UL, CSA, and NOM standards

Product Highlights

This circuit breaker is suitable for use in a variety of applications, including distribution and HACR-rated scenarios. Its reliable design ensures protection for electrical systems in residential, commercial, and industrial settings.

Product Information

Standard Information

• Catalog Number: QDP32200TM
• Manufacturer: Schneider Electric

Technical Specifications

• Frame: D
• Width: 4.5 Inch
• Height: 6.47 Inch
• Depth: 3.93 Inch
• Voltage: 240 Volt
• Amperage: 200 Amp
• Number of Poles: 3 Pole
• Trip Type: Thermal-Magnetic
• Warranty Length: 18 months
• Country of Origin: Mexico
