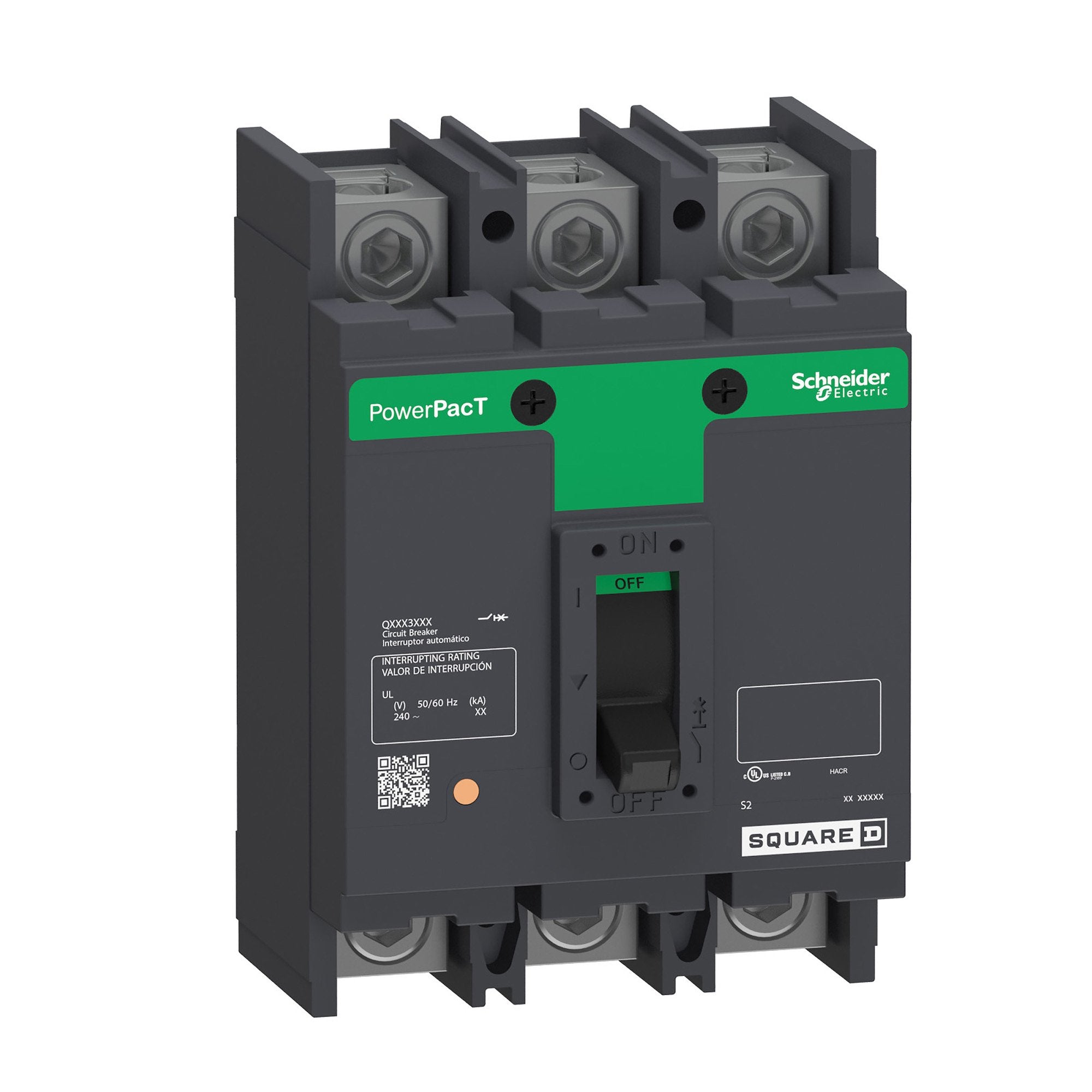

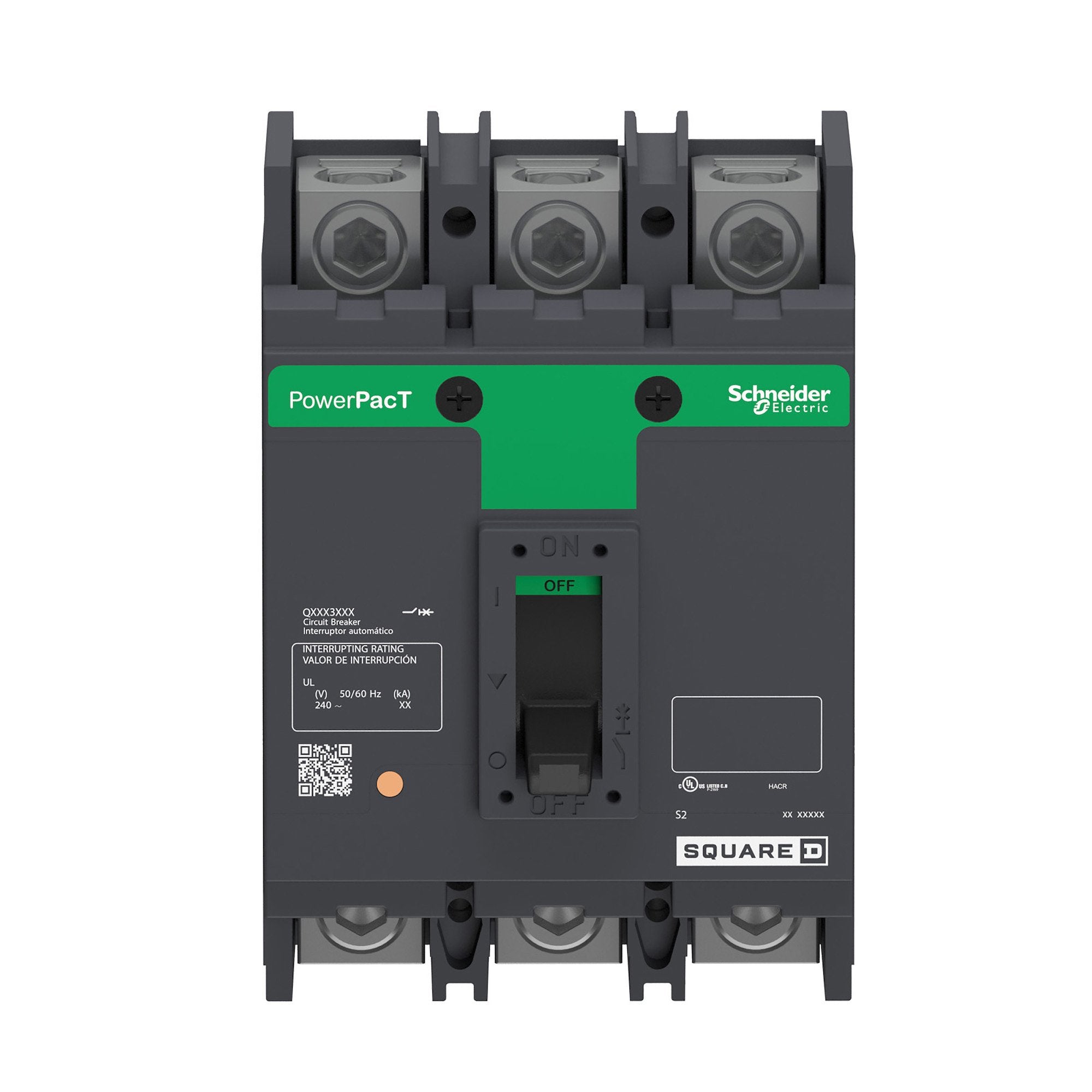

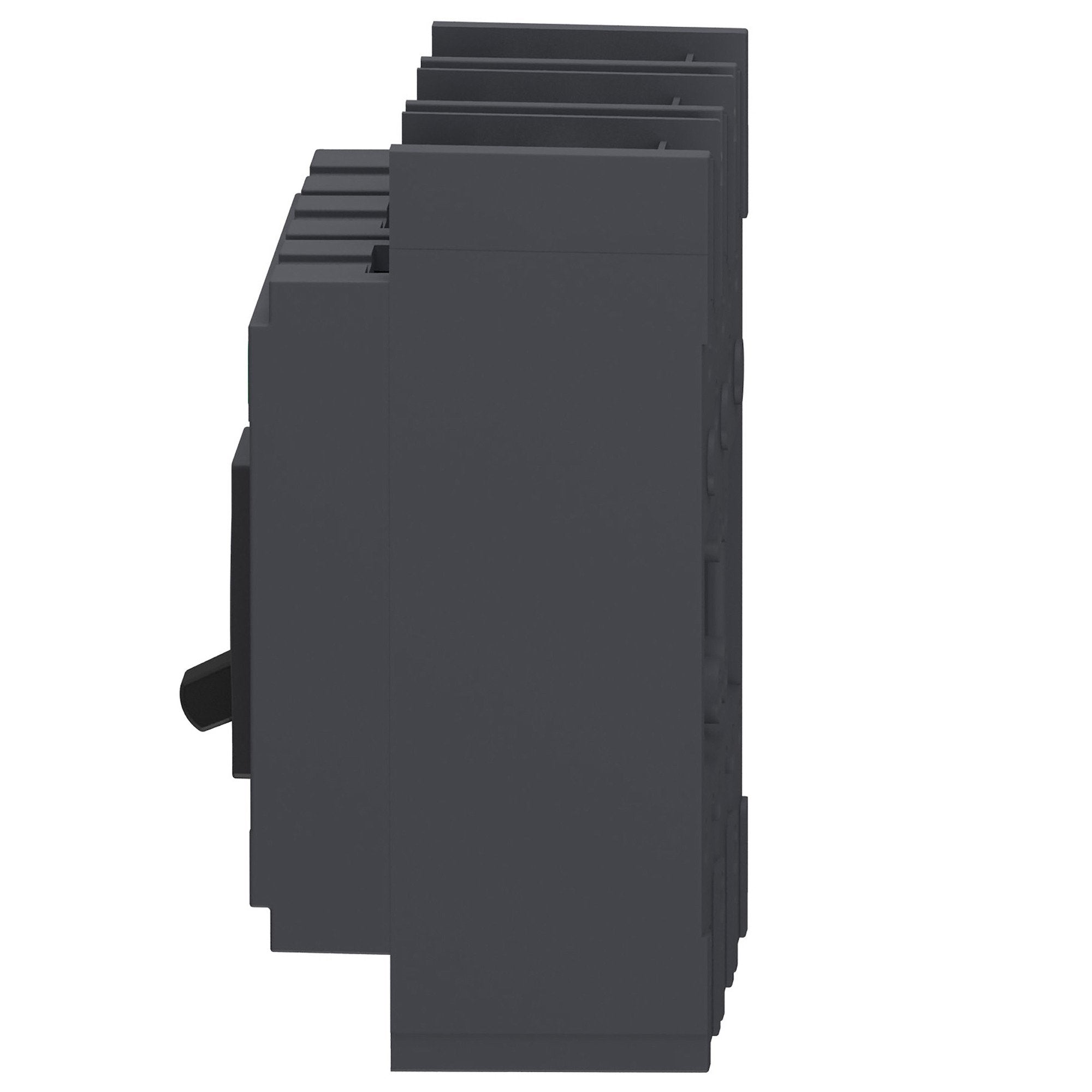

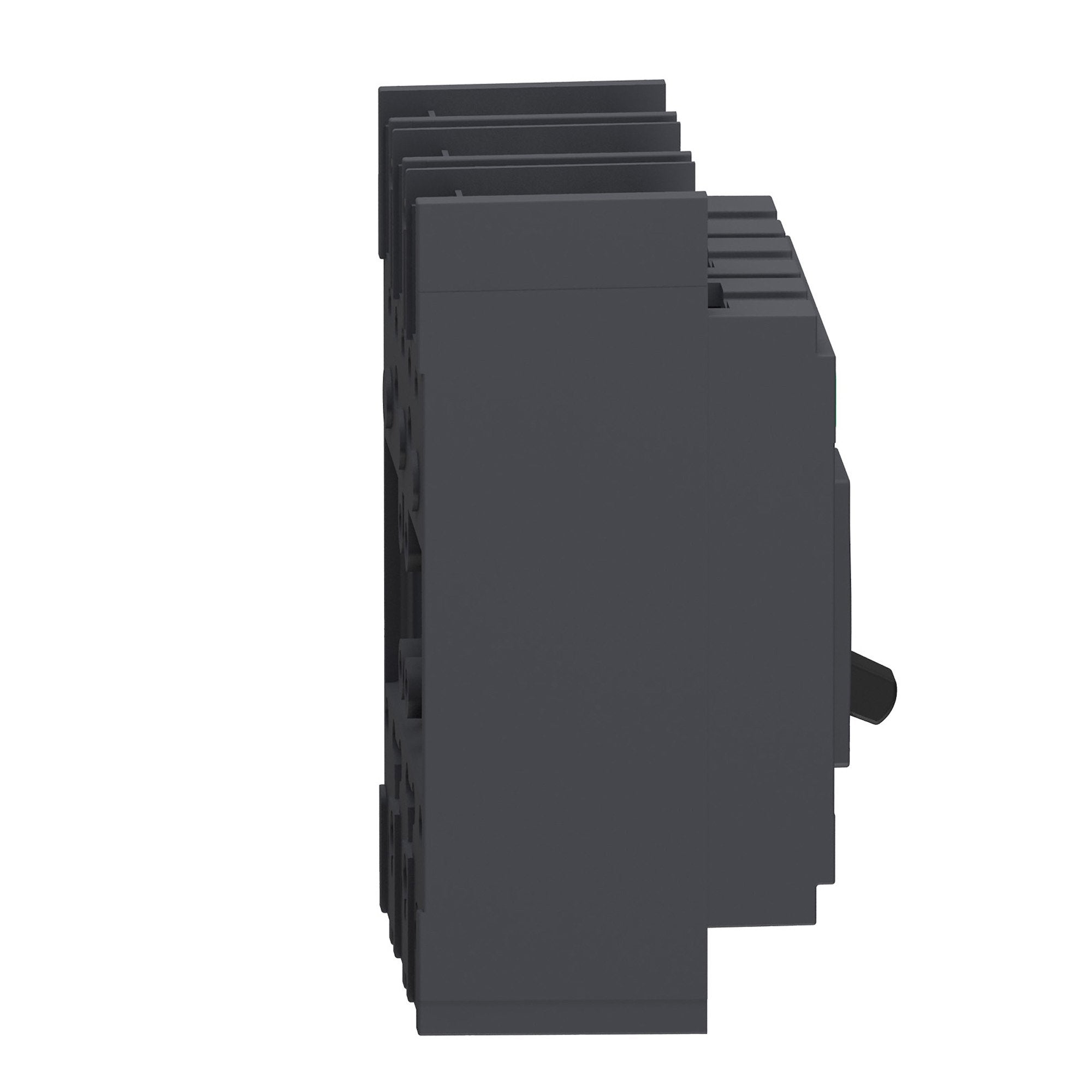

Square D QDP32150TM Molded Case Circuit Breaker 150 Amp 240 Volt

Product Description

The Square D QDP32150TM is a three-pole circuit breaker designed for overcurrent protection in 240VAC systems. This thermal magnetic molded case breaker is rated for 150 amps and operates at a voltage of 240. The QDP32150TM features a manual push-to-trip button and is suitable for use in metering applications.

• Rated for 150 Amps at 240 Volts
• Thermal magnetic protection for reliable operation
• Compact design for easy installation

Product Highlights

The Square D QDP32150TM is perfect for protecting electrical circuits in residential and commercial settings. It has a high interrupting capacity of 25kA, allowing it to handle fault conditions efficiently. Compliance with UL, CSA, and NOM standards ensures safety and reliability in all applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QDP32150TM
• Amperage: 150 Amp
• Voltage: 240 Volt
• Number of Poles: 3 Pole
• Frame Type: Q-FRAME
• Height: 6.47 Inch
• Width: 4.5 Inch
• Depth: 3.93 Inch
• Warranty: 18 months
• Country of Origin: Mexico
• Interrupt Rating: 25 kAIC
• Connection Type: Terminal nut, line; lugs, load
