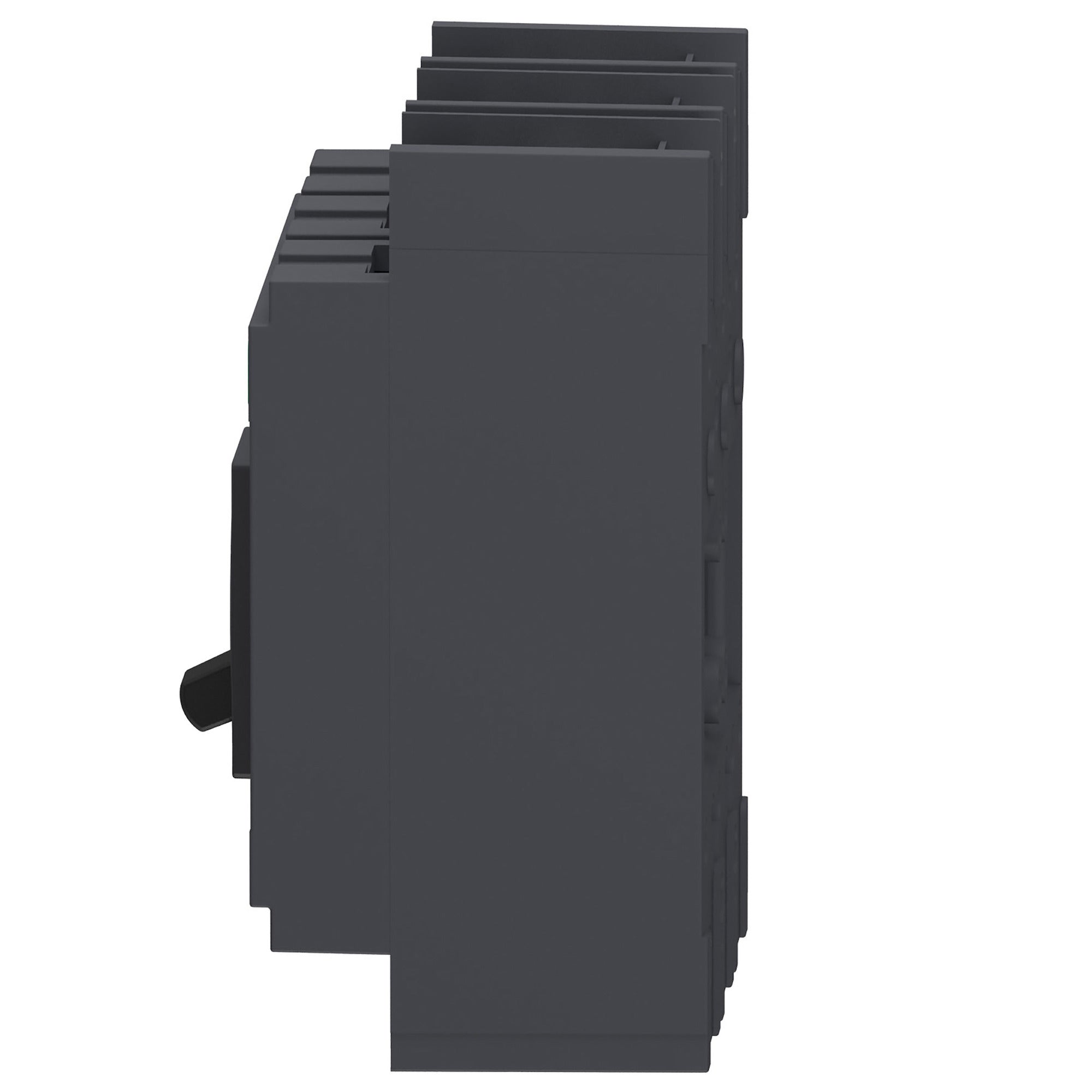

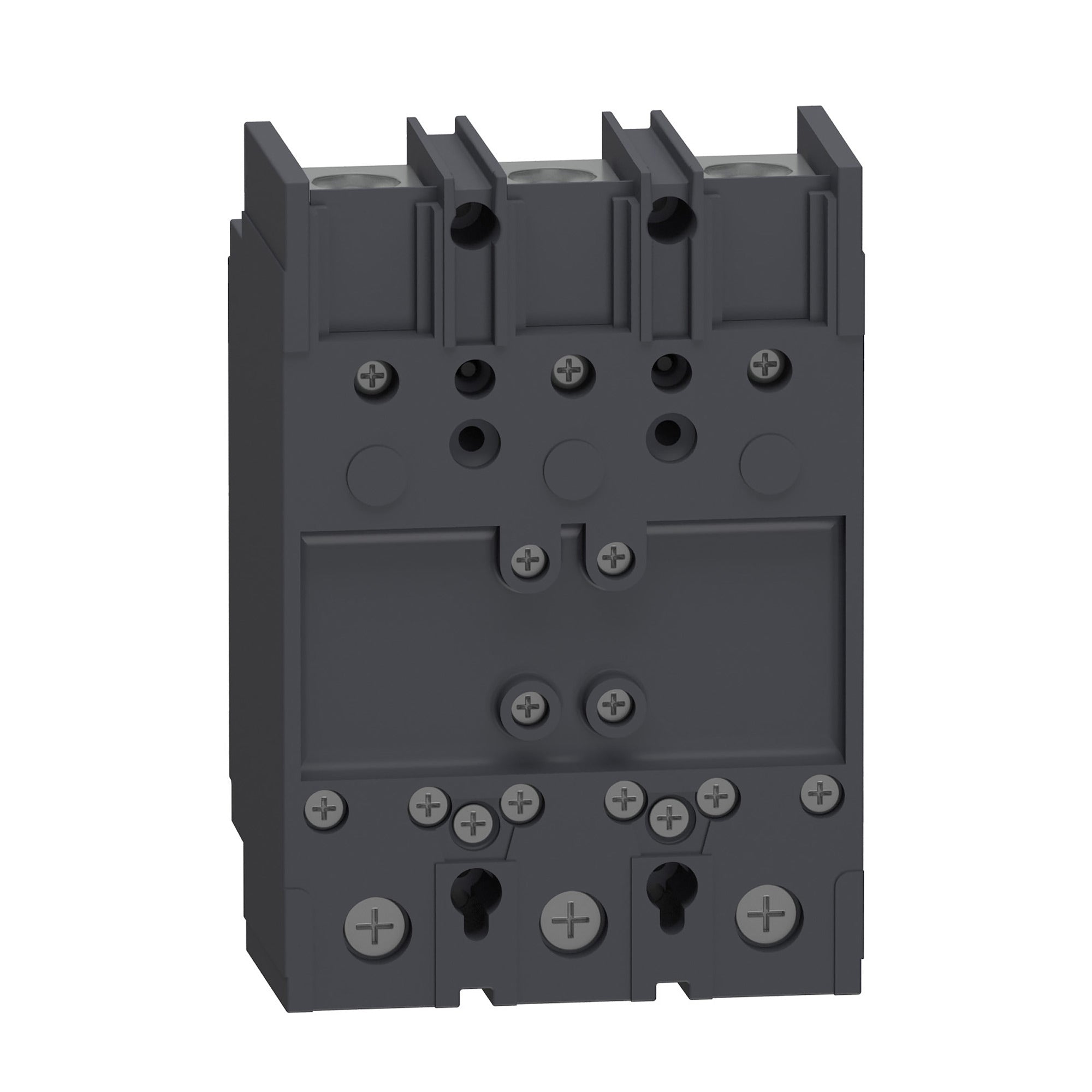

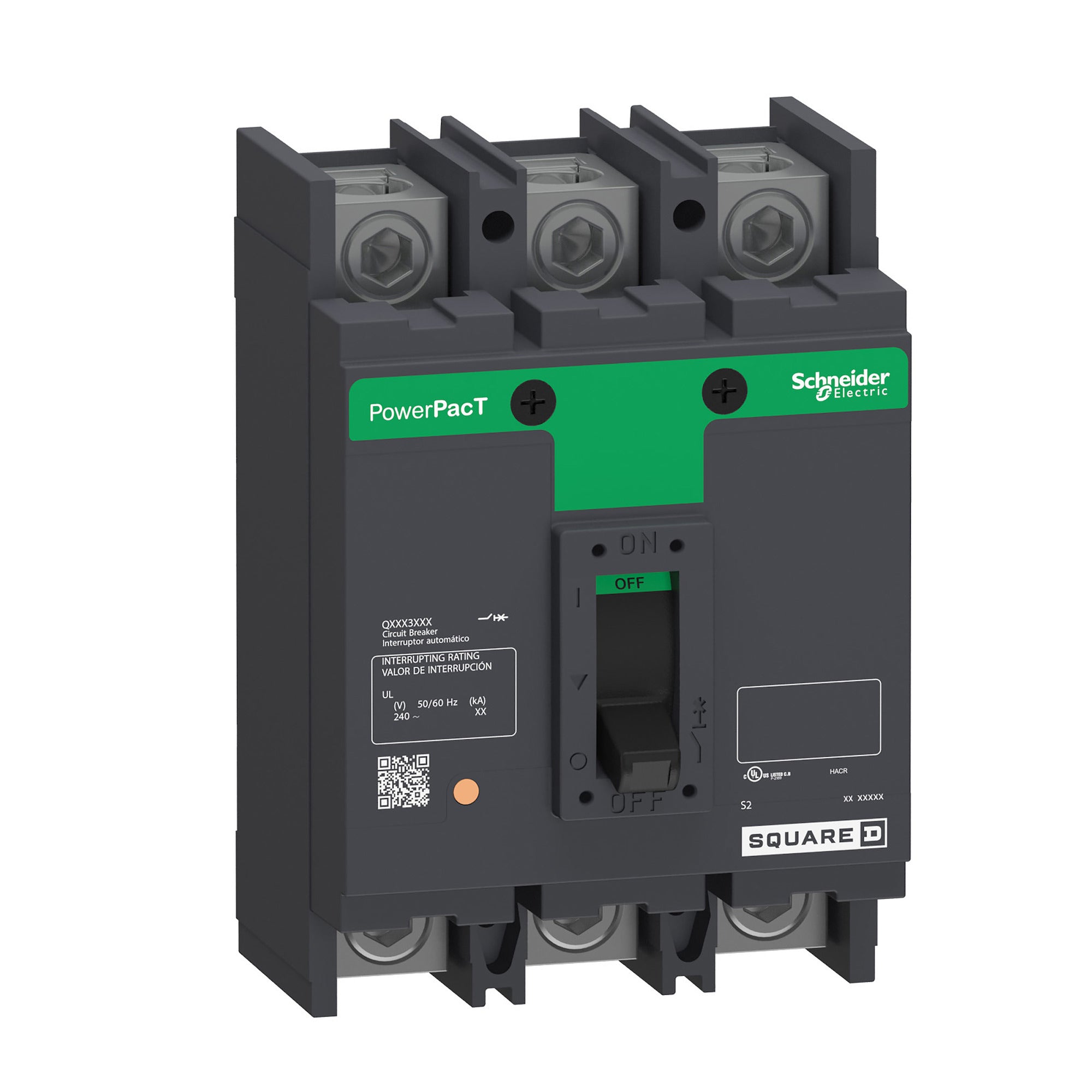

Square D QDP32125TM Molded Case Circuit Breaker, 125 Amp, 3 Pole, 240V

Product Description

The Square D QDP32125TM molded case circuit breaker is designed for overcurrent protection in 240VAC systems. This breaker is rated for 125 amps and has three poles. It features thermal magnetic trip protection, making it suitable for various applications including distribution and HACR rated setups. The unit includes terminal nuts on the line side and lugs on the load side, ensuring secure connections. An integral push-to-trip button is included for manual operation.

• 125 amp rating with three poles
• Operational voltage of 240VAC
• Interrupting rating of 25kA at 240VAC

Product Highlights

This circuit breaker meets UL, CSA, and NOM standards and is IEC certified. It is built for reliability in critical electrical applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QDP32125TM
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: United States
• Actuator: Operating handle
• Application: Distribution; HACR rated
• Connection: Terminal nut, line; lugs, load
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
