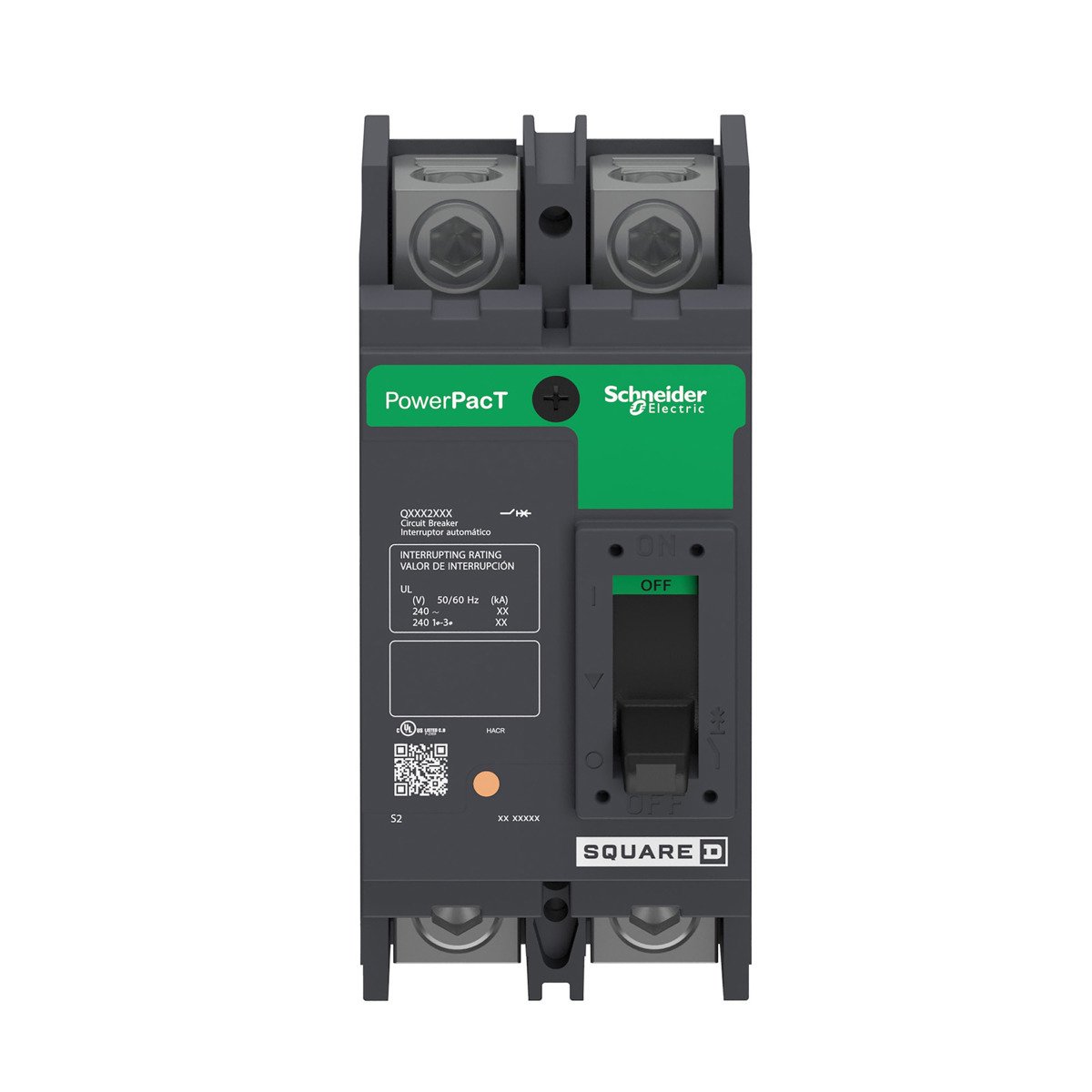

Square D QDP22200TM Molded Case Circuit Breaker 200A 240V 2 Pole

Product Description

The Square D QDP22200TM is a molded case circuit breaker designed for use in 240 Volt systems. This unit is rated for 200 Amps and features a thermal-magnetic trip unit. The circuit breaker ensures overcurrent protection and can be used in various applications such as panelboards and switchboards.

• Rated operational voltage of 240 Vac
• Interrupting capacity of 25 kA
• 2-pole unit with dimensions six point four seven inches height, three inches width, and three point nine three inches depth

Product Highlights

This PowerPact Q-frame circuit breaker meets UL, CSA, and IEC standards, making it a reliable choice for electrical distribution systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QDP22200TM
• Voltage: 240 Volt
• Amperage: 200 Amp
• Trip Type: Thermal-magnetic
• Number of Poles: 2
• Interrupt Rating: 25 kAIC
• Country of Origin: Mexico
• Warranty Length: 18 months
