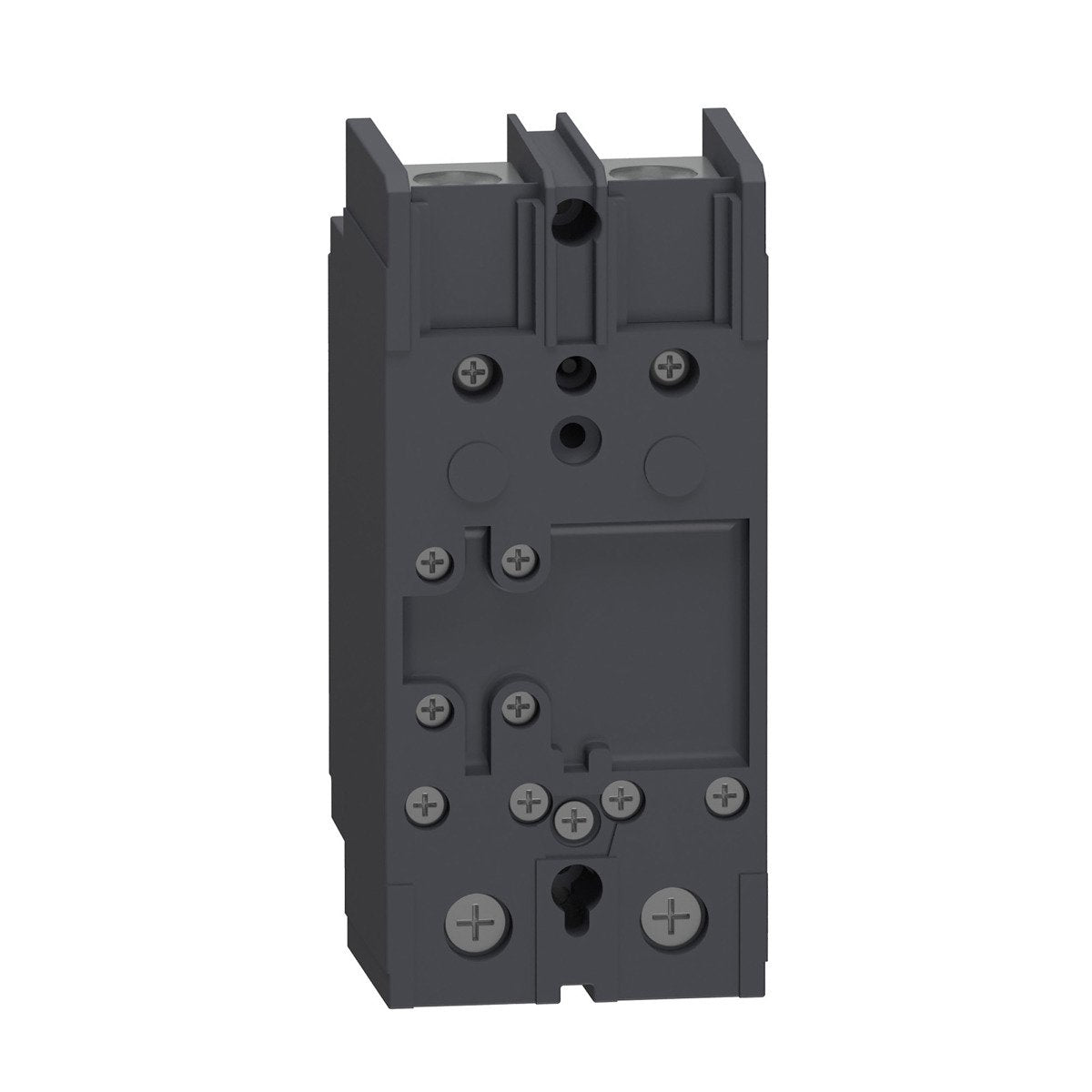

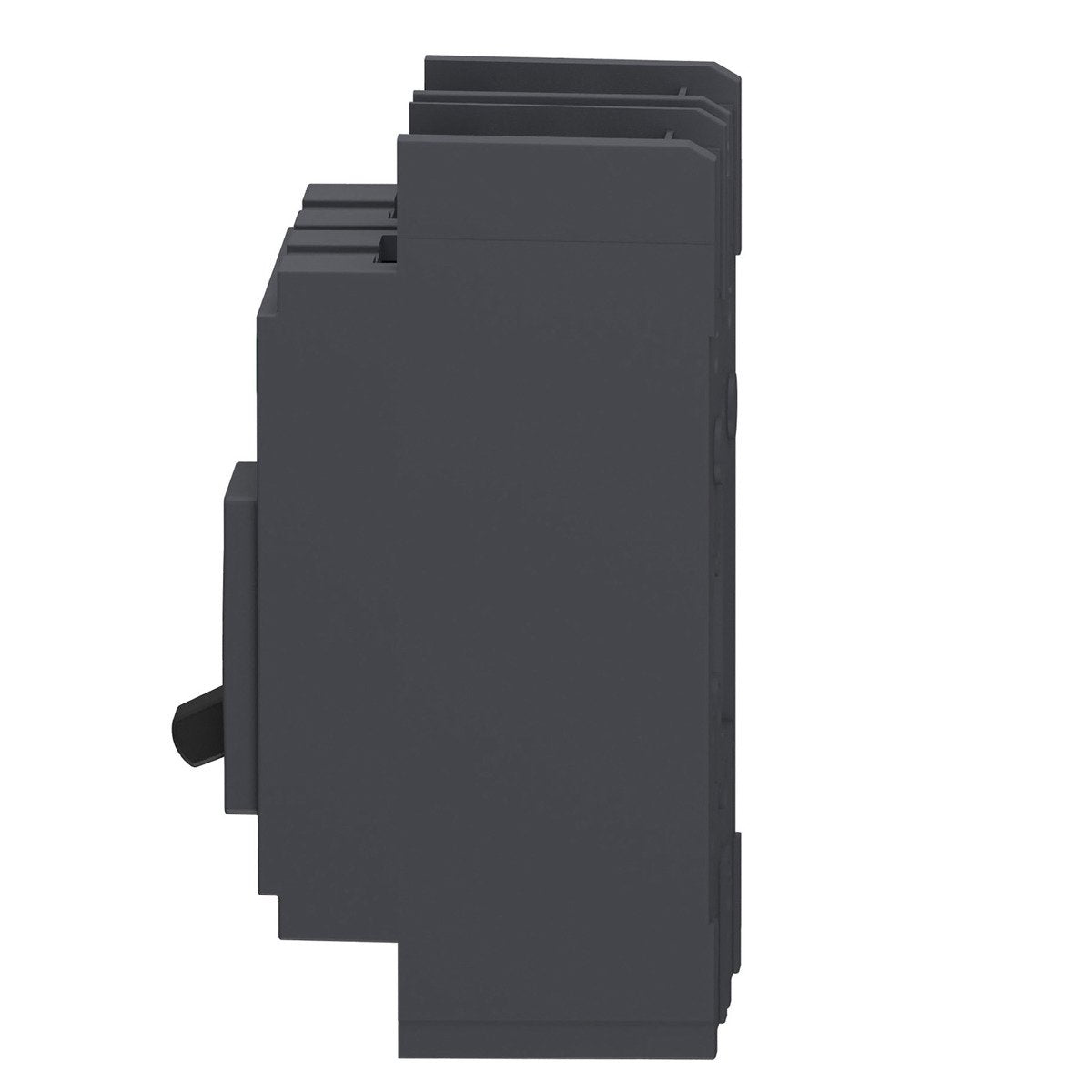

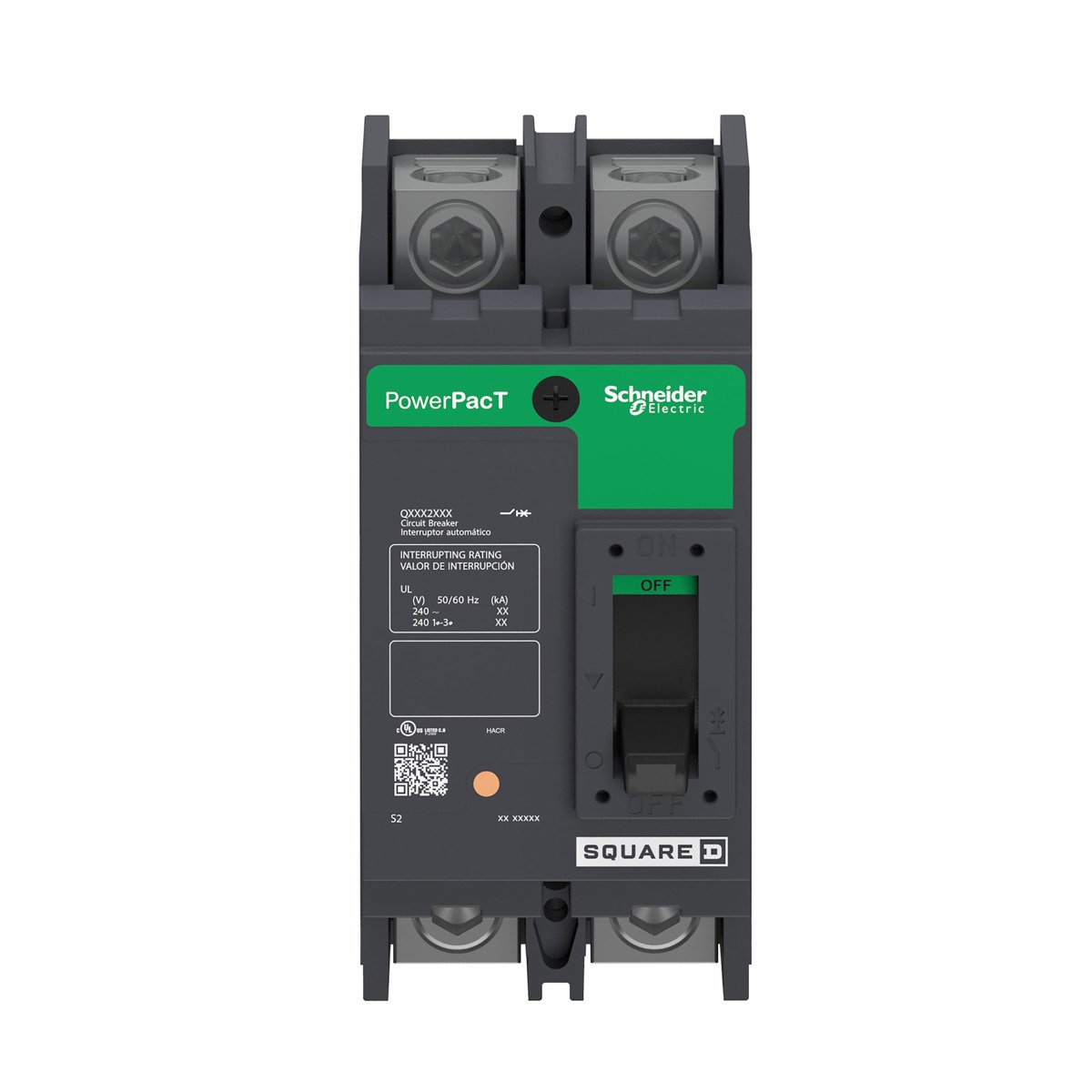

Square D QDP22125TM Molded Case Circuit Breaker 125A 240V 2P

Product Description

The Square D QDP22125TM is a molded case circuit breaker designed for reliable overcurrent protection in 240VAC systems. With a rated current of 125A and two poles, this unit ensures effective electrical distribution and safety. It features a thermal-magnetic trip unit, allowing for both overload and short-circuit protection.

• Rated for 240V AC
• Interrupting rating of 25kA
• Robust design for unit mounting

Product Highlights

This circuit breaker is UL listed and complies with CSA and IEC standards. It has a continuous current rating of 80%, enhancing its reliability in various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Voltage: 240 Volt
• Amperage: 125 Amp
• Width: 3.00 inches
• Height: 6.47 inches
• Depth: 3.93 inches
• Trip Type: Thermal-Magnetic
• Number of Poles: 2 Pole
• Country of Origin: Mexico
• Warranty Length: 18 months
• Interrupt Rating: 25 kAIC
